1. Find "Access Point Names (APNs)"
Press Settings.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-985dac77-368a-492b-9682-7a60edcd8e6b.png?width=208&height=450)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-cf96b932-3731-4e02-b582-303eb673f874.png?width=208&height=450)
Press Mobile data.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-adb0b82d-df48-41fb-ba24-345acf6bd087.png?width=208&height=450)
Press Access Point Names (APNs) below the required SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-315aaa6d-0dbf-4bf0-86c3-10a8e3fa7a85.png?width=208&height=450)
2. Create new data connection

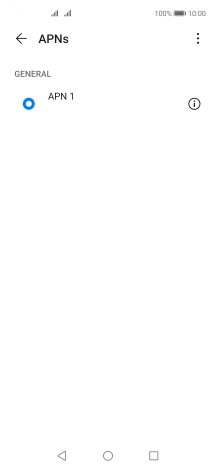

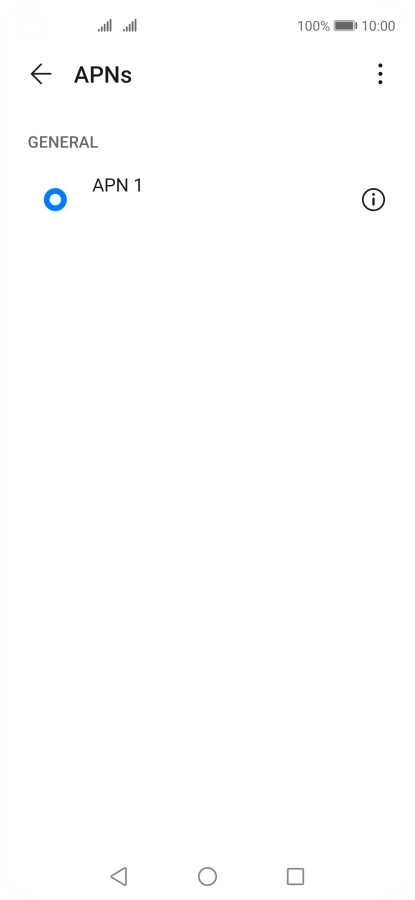

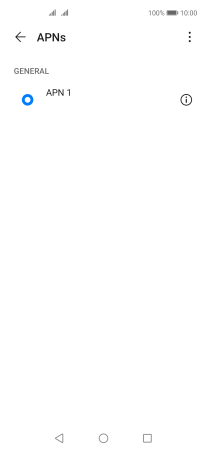

Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4762e401-123d-4993-a721-81876d41cdd3.png?width=208&height=450)

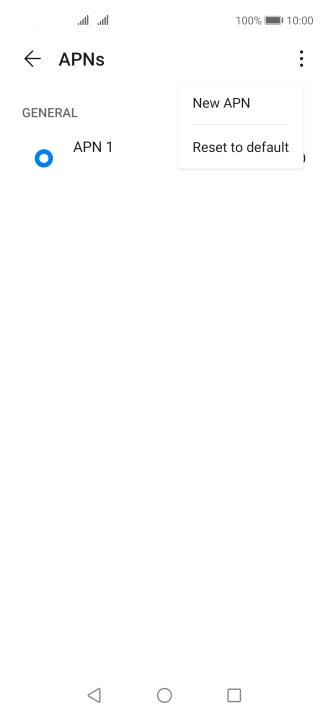

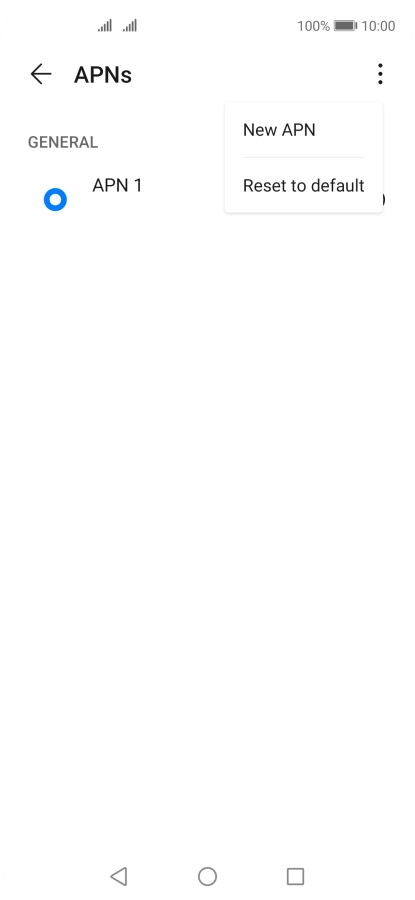

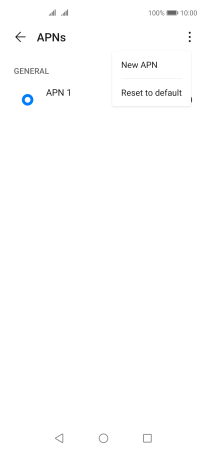

Press New APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-99aae875-c3f5-4670-ac82-84391d282df4.png?width=208&height=450)
3. Enter a name for the connection

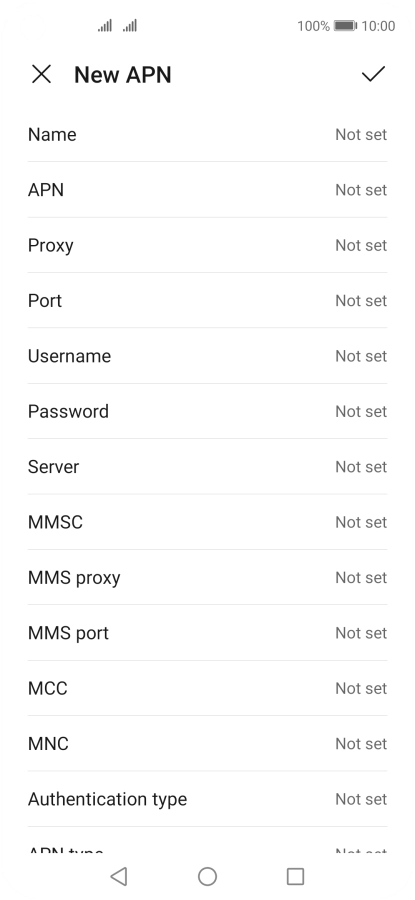

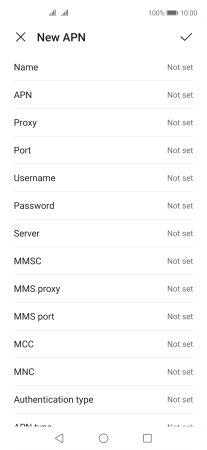

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-da0b4e5d-e3ab-4685-9ed0-45283429ba21.png?width=208&height=450)

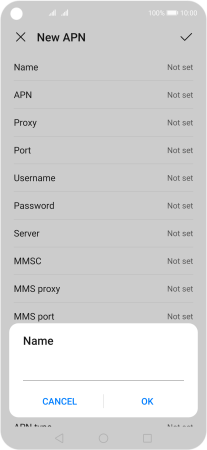

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d83243fe-8ea5-4235-ba8c-2095ac8d89a2.png?width=208&height=450)
Vodafone MMS
4. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-da0b4e5d-e3ab-4685-9ed0-45283429ba21.png?width=208&height=450)

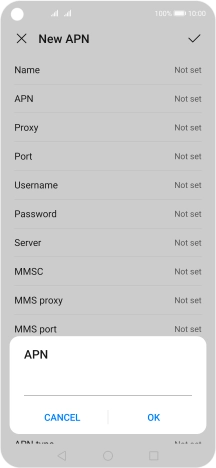

Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8e4aebe2-8b96-4f87-a6ba-f18f6c63db0e.png?width=208&height=450)
mms.vodafone.net
5. Enter picture messaging server
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-da0b4e5d-e3ab-4685-9ed0-45283429ba21.png?width=208&height=450)

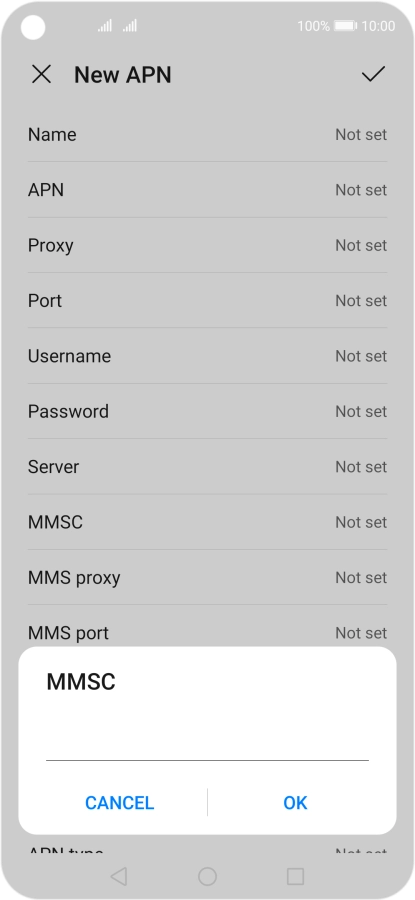

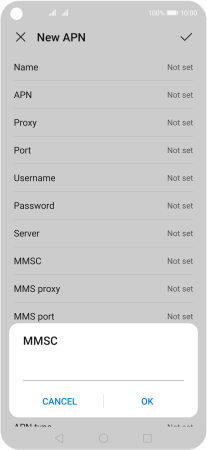

Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b8e6f7b4-0736-4c44-a90f-46aea707abec.png?width=208&height=450)
http://www.vodafone.ie/mms
6. Enter IP address

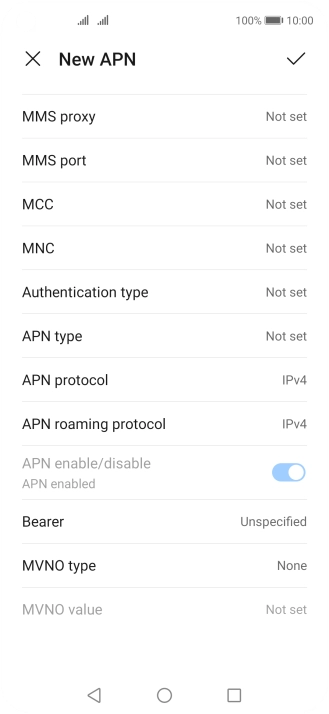

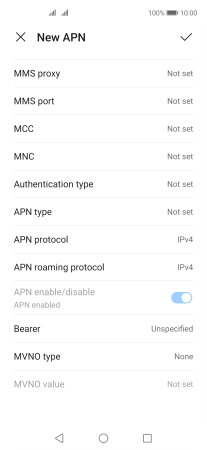

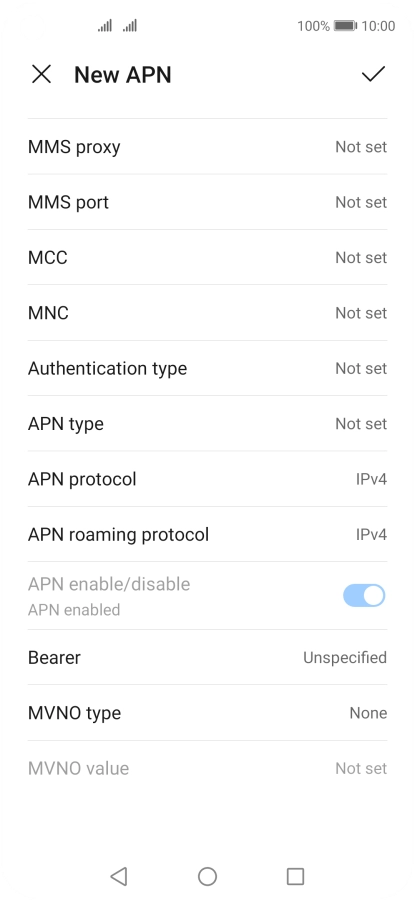

Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b12df7ba-b42b-418e-aab8-a595f2d027d9.png?width=208&height=450)

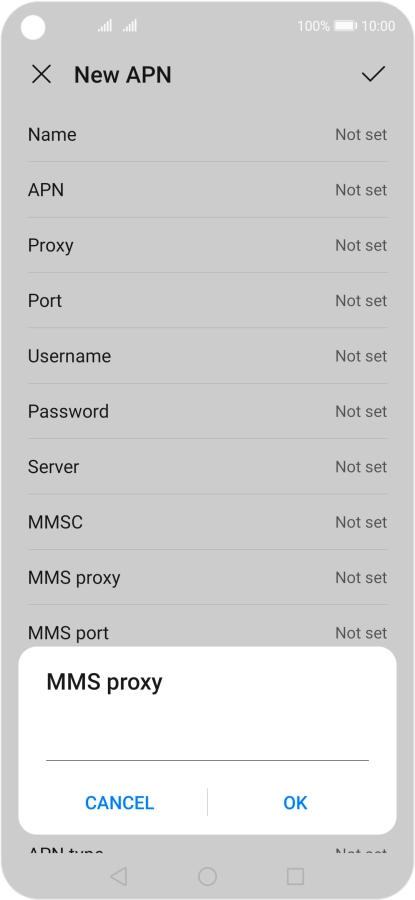

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-20b378b9-1b2c-418e-94d5-a030812e4146.png?width=208&height=450)
10.24.59.200
7. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b12df7ba-b42b-418e-aab8-a595f2d027d9.png?width=208&height=450)

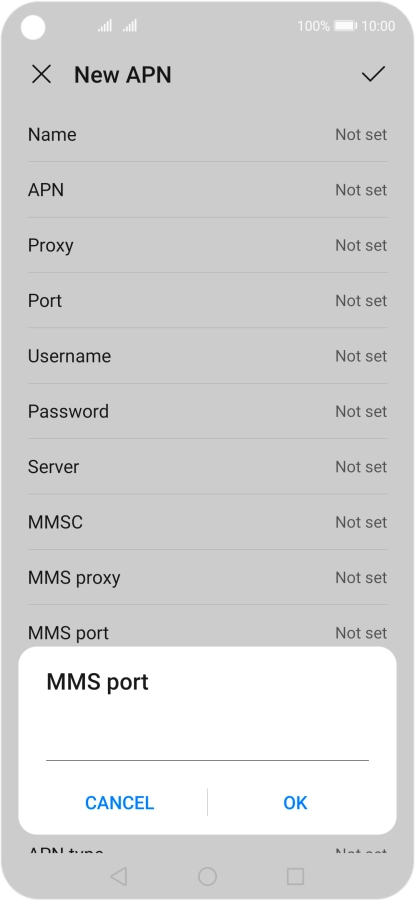

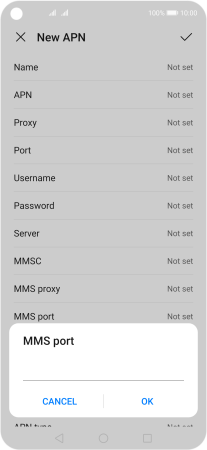

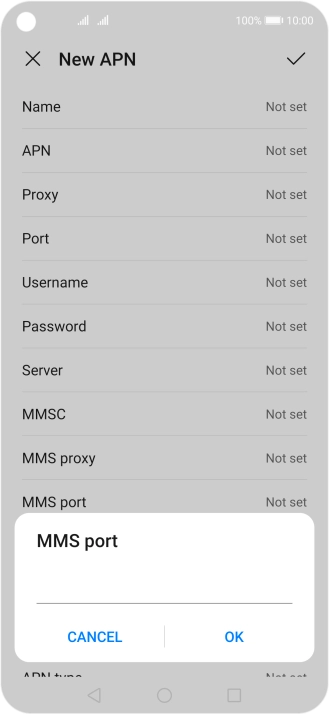

Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0bc64698-0748-463c-9434-de132c4107db.png?width=208&height=450)
80
8. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b12df7ba-b42b-418e-aab8-a595f2d027d9.png?width=208&height=450)

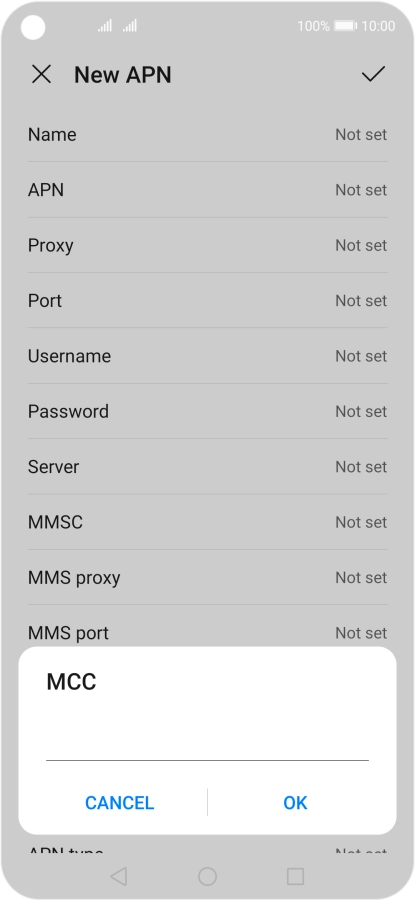

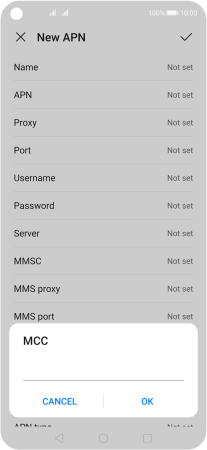

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ffcbdedb-3310-4ec9-9169-9f74dd335831.png?width=208&height=450)
272
9. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b12df7ba-b42b-418e-aab8-a595f2d027d9.png?width=208&height=450)

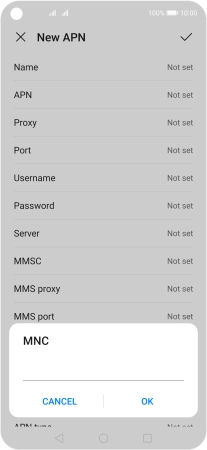

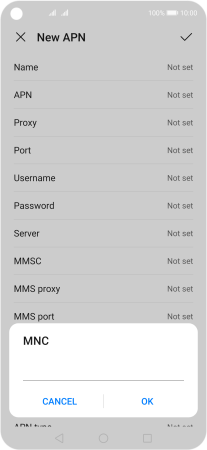

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-401b0fdd-e7d1-4220-8482-f01c8635eaf3.png?width=208&height=450)
01
10. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b12df7ba-b42b-418e-aab8-a595f2d027d9.png?width=208&height=450)

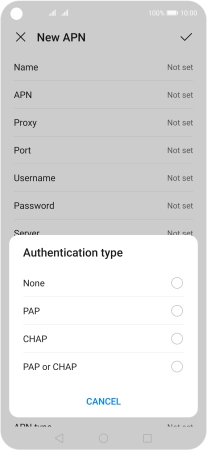

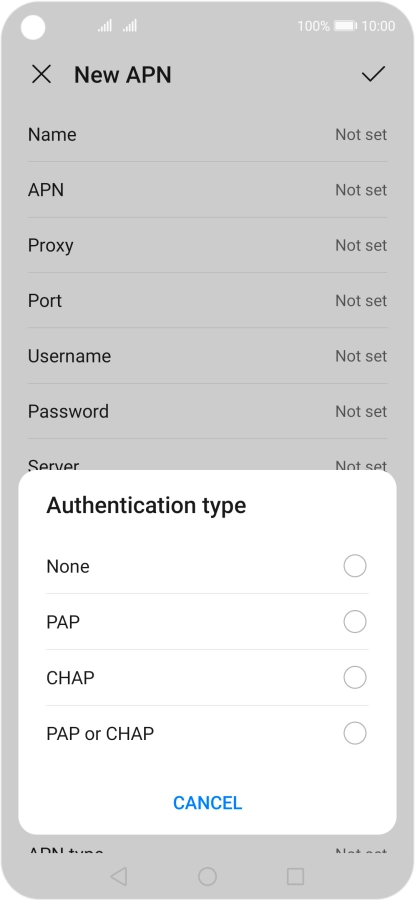

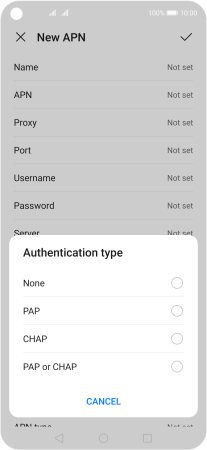

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-cc069502-9b67-4428-85d4-f7ceeaf924f5.png?width=208&height=450)
11. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b12df7ba-b42b-418e-aab8-a595f2d027d9.png?width=208&height=450)

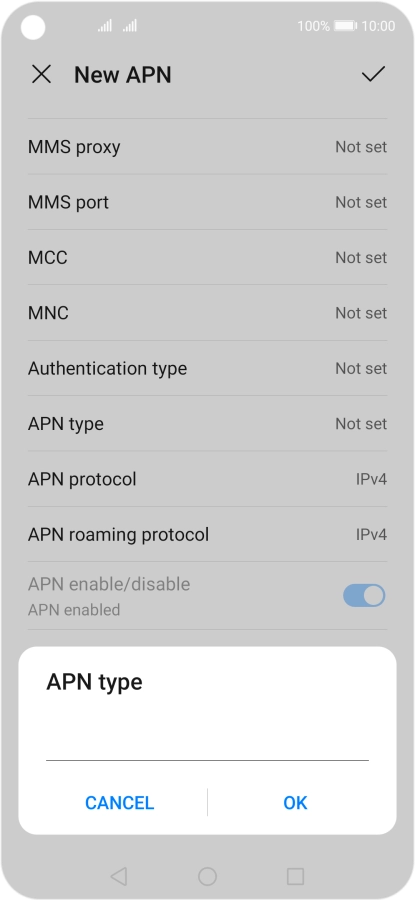

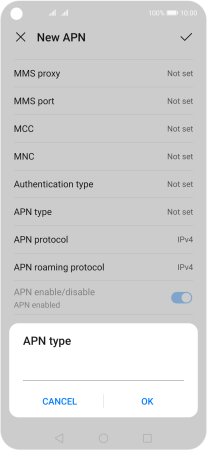

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4a1a67e1-8467-4892-a8e5-c2536d48ec49.png?width=208&height=450)
mms
12. Save data connection
Press the confirm icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b12df7ba-b42b-418e-aab8-a595f2d027d9.png?width=208&height=450)
13. Return to the home screen

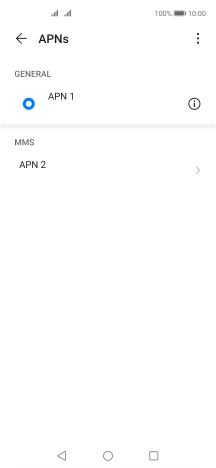

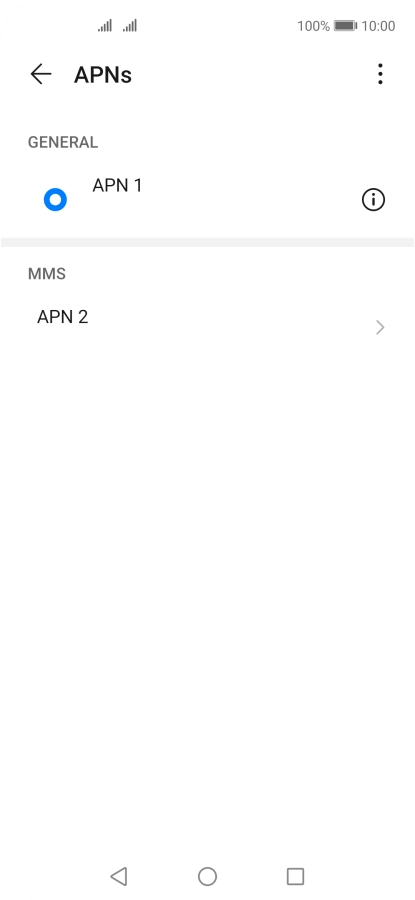

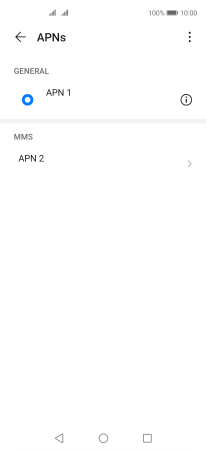

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7b32f98a-5e6e-4817-9df0-f87247497d98.png?width=208&height=450)
