1. Find "Access Point Names (APNs)"
Press Settings.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-985dac77-368a-492b-9682-7a60edcd8e6b.png?width=208&height=450)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-cf96b932-3731-4e02-b582-303eb673f874.png?width=208&height=450)
Press Mobile data.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-adb0b82d-df48-41fb-ba24-345acf6bd087.png?width=208&height=450)
Press Access Point Names (APNs) below the required SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-315aaa6d-0dbf-4bf0-86c3-10a8e3fa7a85.png?width=208&height=450)
2. Create new data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4762e401-123d-4993-a721-81876d41cdd3.png?width=208&height=450)

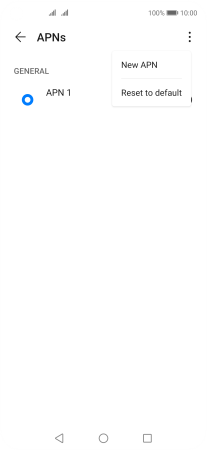

Press New APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-99aae875-c3f5-4670-ac82-84391d282df4.png?width=208&height=450)
3. Enter a name for the connection

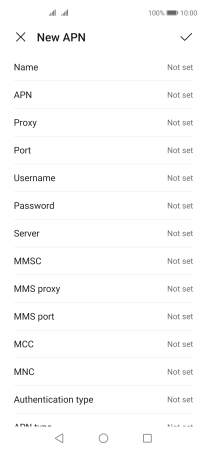

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-da0b4e5d-e3ab-4685-9ed0-45283429ba21.png?width=208&height=450)

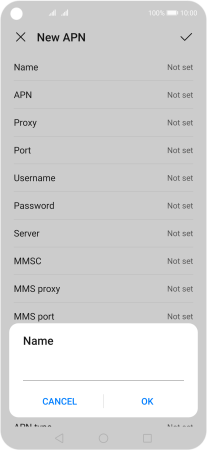

Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d83243fe-8ea5-4235-ba8c-2095ac8d89a2.png?width=208&height=450)
Vodafone Internet
4. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-da0b4e5d-e3ab-4685-9ed0-45283429ba21.png?width=208&height=450)
Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8e4aebe2-8b96-4f87-a6ba-f18f6c63db0e.png?width=208&height=450)
live.vodafone.com
5. Enter country code

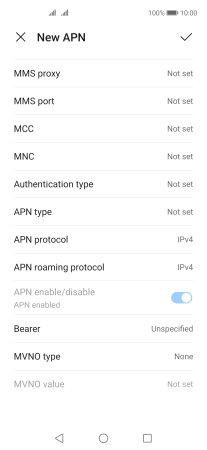

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b12df7ba-b42b-418e-aab8-a595f2d027d9.png?width=208&height=450)

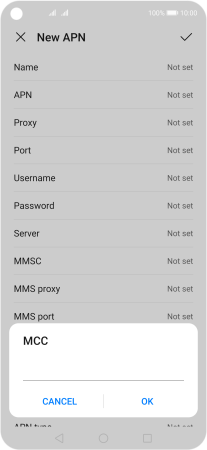

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ffcbdedb-3310-4ec9-9169-9f74dd335831.png?width=208&height=450)
272
6. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b12df7ba-b42b-418e-aab8-a595f2d027d9.png?width=208&height=450)

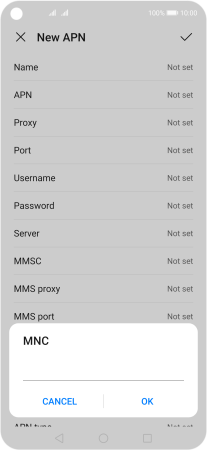

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-401b0fdd-e7d1-4220-8482-f01c8635eaf3.png?width=208&height=450)
01
7. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b12df7ba-b42b-418e-aab8-a595f2d027d9.png?width=208&height=450)

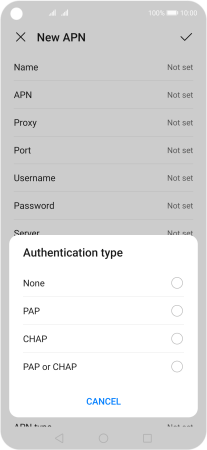

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-cc069502-9b67-4428-85d4-f7ceeaf924f5.png?width=208&height=450)
8. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b12df7ba-b42b-418e-aab8-a595f2d027d9.png?width=208&height=450)
Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4a1a67e1-8467-4892-a8e5-c2536d48ec49.png?width=208&height=450)
default
9. Save data connection
Press the confirm icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b12df7ba-b42b-418e-aab8-a595f2d027d9.png?width=208&height=450)

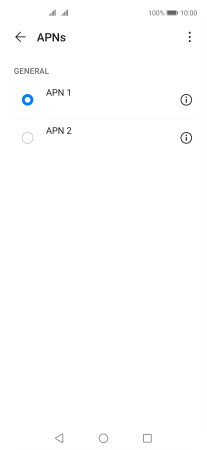

Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4f49c272-0bec-40f1-8fe7-e0dbec54c4c5.png?width=208&height=450)
10. Return to the home screen

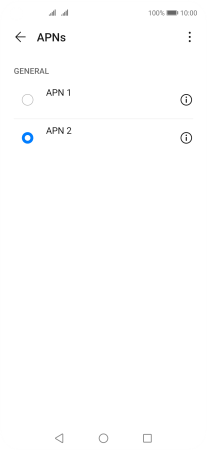

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3e46e15e-8630-4a4b-a510-3fcc31c6ce5e.png?width=208&height=450)
