1. Find "Access point names"
Find "Access point names"
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ca9a27ca-3d1b-4071-ae89-20763c9ccd62.png?width=214&height=380)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-41d5d634-a082-4a8f-9e61-2185080ad44a.png?width=214&height=380)

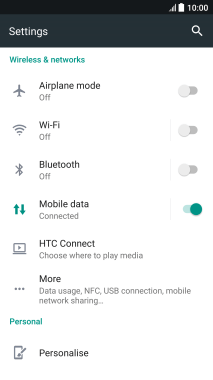

Press Mobile data.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-26065048-8efa-4499-96b0-a7cdd2472252.png?width=214&height=380)

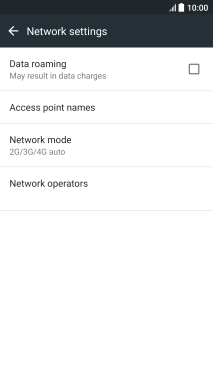

Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ca9a27ca-3d1b-4071-ae89-20763c9ccd62.png?width=214&height=380)
2. Create new data connection

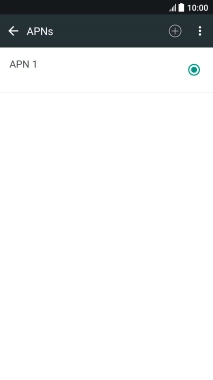

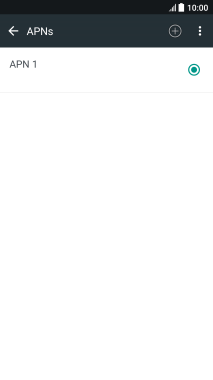

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-dfe8f2ad-0c48-4374-9594-dcbc3777a4b5.png?width=214&height=380)

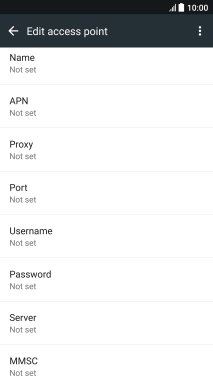

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a9714054-a43e-48e7-b78c-ab5376364162.png?width=214&height=380)
Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-12aaa2fd-f65e-433a-a3b8-fb407b5e3a6d.png?width=214&height=380)
Vodafone Internet
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a9714054-a43e-48e7-b78c-ab5376364162.png?width=214&height=380)

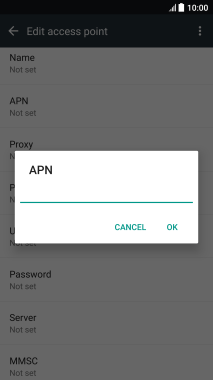

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e297a474-db0c-4d73-9e2c-d2cec9f3fea2.png?width=214&height=380)
live.vodafone.com
4. Enter country code

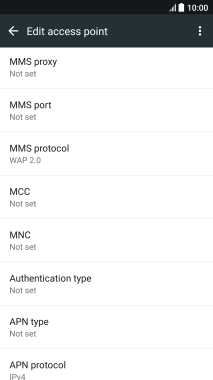

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3e5118f8-303c-46a5-841d-160f278bdcde.png?width=214&height=380)

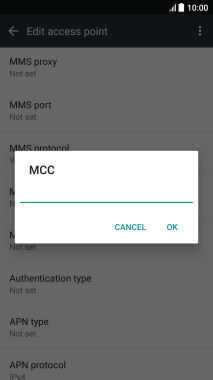

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7b603b59-f405-49fc-8823-4b5ad6808450.png?width=214&height=380)
272
5. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3e5118f8-303c-46a5-841d-160f278bdcde.png?width=214&height=380)
Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5a248152-ebc0-4465-83be-0f72c8d588bf.png?width=214&height=380)
01
6. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3e5118f8-303c-46a5-841d-160f278bdcde.png?width=214&height=380)

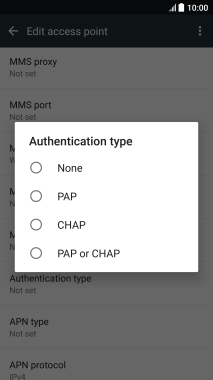

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7d2a3c41-9b3b-49c8-a9d5-1e2a1aa7459c.png?width=214&height=380)
7. Select APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3e5118f8-303c-46a5-841d-160f278bdcde.png?width=214&height=380)

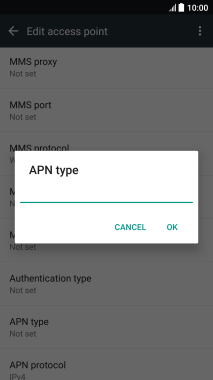

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-95ce0110-7d27-4d86-83bb-74bc3bf00d0a.png?width=214&height=380)
default
8. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3e5118f8-303c-46a5-841d-160f278bdcde.png?width=214&height=380)

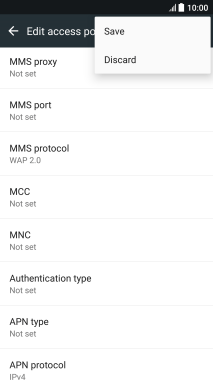

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-51f85eef-22f4-48eb-9c37-da5ab9377e25.png?width=214&height=380)

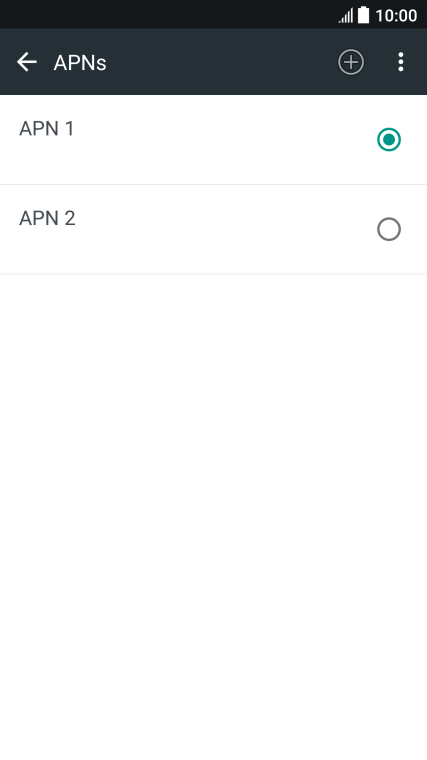

Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1a74735b-b091-42f9-9c35-92e888d84d05.png?width=214&height=380)
9. Return to the home screen
Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8e4e22c9-123f-4a1e-a5d6-6c2140cbb1da.png?width=214&height=380)
