Set up the phone for picture messaging - HTC Desire HD

Read help info

Follow these instructions to set up the phone for picture messaging.

Step 1 of 39

Find "Access Point Names"

Press arrow up to access the main menu.

Step 2 of 39

Find "Access Point Names"

Press Settings.

Step 3 of 39

Find "Access Point Names"

Press Wireless & networks.

Step 4 of 39

Find "Access Point Names"

Press Mobile networks.

Step 5 of 39

Find "Access Point Names"

Press Access Point Names.

Step 6 of 39

Create new data connection

Press the Menu key.

Step 7 of 39

Create new data connection

Press New APN.

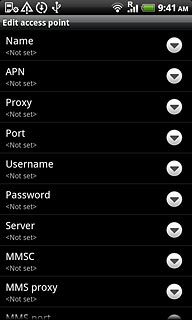

Step 8 of 39

Enter data connection name

Press Name.

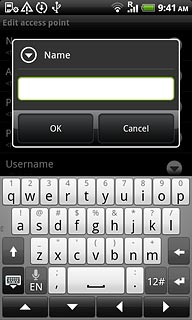

Step 9 of 39

Enter data connection name

Key in Vodafone MMS and press OK.

Step 10 of 39

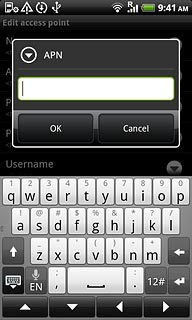

Enter APN

Press APN.

Step 11 of 39

Enter APN

Key in mms.vodafone.net and press OK.

Step 12 of 39

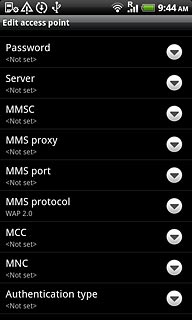

Enter picture messaging server

Press MMSC.

Step 13 of 39

Enter picture messaging server

Key in http://www.vodafone.ie/mms and press OK.

Step 14 of 39

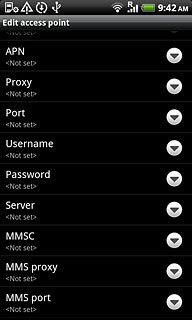

Enter IP address

Press MMS proxy.

Step 15 of 39

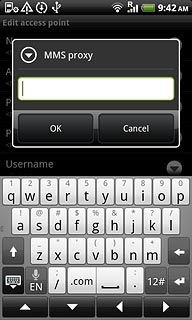

Enter IP address

Key in 10.24.59.200 and press OK.

Step 16 of 39

Enter port number

Press MMS port.

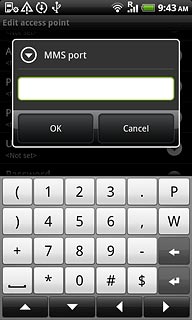

Step 17 of 39

Enter port number

Key in 80 and press OK.

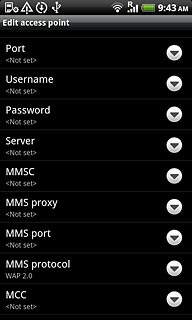

Step 18 of 39

Enter country code

Press MCC.

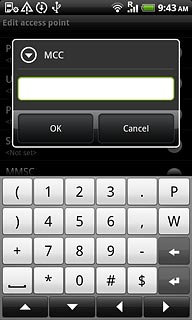

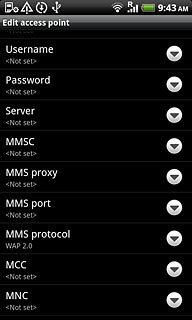

Step 19 of 39

Enter country code

Key in 272 and press OK.

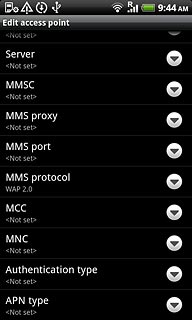

Step 20 of 39

Enter network code

Press MNC.

Step 21 of 39

Enter network code

Key in 01 and press OK.

Step 22 of 39

Select authentication

Press Authentication type.

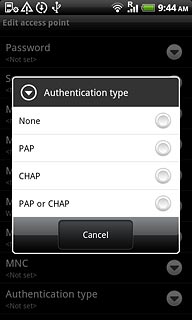

Step 23 of 39

Select authentication

Press PAP.

Step 24 of 39

Enter APN type

Press APN type.

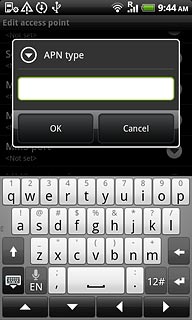

Step 25 of 39

Enter APN type

Key in mms and press OK.

Step 26 of 39

Save data connection

Press the Menu key.

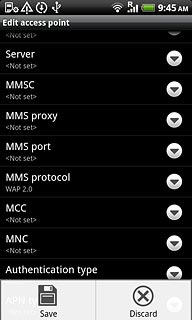

Step 27 of 39

Save data connection

Press Save.

Step 28 of 39

Save data connection

Press the Home key to return to standby mode.

Step 29 of 39

Find "Settings"

Press arrow up to access the main menu.

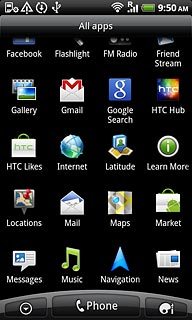

Step 30 of 39

Find "Settings"

Press Messages.

Step 31 of 39

Find "Settings"

Press the Menu key.

Step 32 of 39

Find "Settings"

Press Settings.

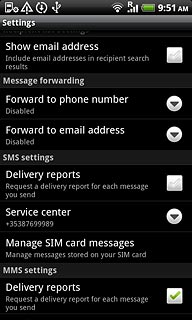

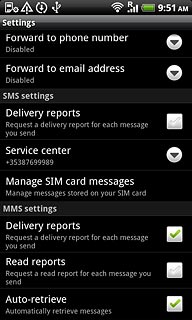

Step 33 of 39

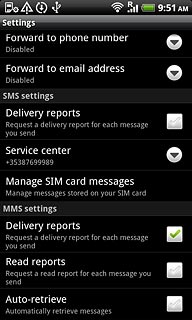

Activate or deactivate request for delivery reports

Press Delivery reports below MMS settings to activate or deactivate the function.

If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been activated by the recipient.
Step 34 of 39

Activate or deactivate request for delivery reports

When the box next to the menu item is ticked (V), the function is activated.

If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been activated by the recipient.
Step 35 of 39

Select setting for picture message download in home network

Press Auto-retrieve to activate the function.

If you turn on the function, you'll receive all picture messages when you're within range of your home network.
If you turn off the function, you'll be notified before you receive picture messages when you're within range of your home network.
Step 36 of 39

Select setting for picture message download in home network

When the box next to the menu item is ticked (V), the function is activated.

If you turn on the function, you'll receive all picture messages when you're within range of your home network.
If you turn off the function, you'll be notified before you receive picture messages when you're within range of your home network.

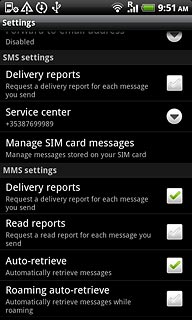

Step 37 of 39

Select setting for picture message download when roaming

Press Roaming auto-retrieve to activate the function.

If you turn on the function, you'll receive all picture messages when you're out of range of your home network.
If you turn off the function, you'll be notified before you receive picture messages when you're out of range of your home network.
Step 38 of 39

Select setting for picture message download when roaming

When the box next to the menu item is ticked (V), the function is activated.

If you turn on the function, you'll receive all picture messages when you're out of range of your home network.
If you turn off the function, you'll be notified before you receive picture messages when you're out of range of your home network.
Step 39 of 39

Exit

Press the Home key to return to standby mode.
