Set up your phone for picture messaging - HTC 8S

Read help info

Follow these instructions to set up your phone for picture messaging.

Step 1 of 11

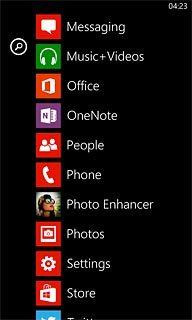

Find "settings"

Slide your finger left on the display.
Press Messaging.

Step 2 of 11

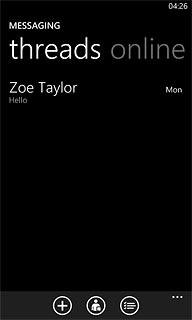

Find "settings"

Press the dots in the bottom right corner of the display.

Step 3 of 11

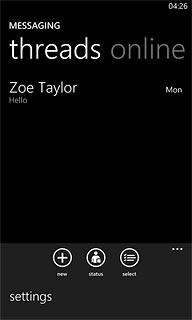

Find "settings"

Press settings.

Step 4 of 11

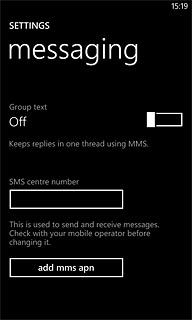

Create new data connection

Press add mms apn.

Step 5 of 11

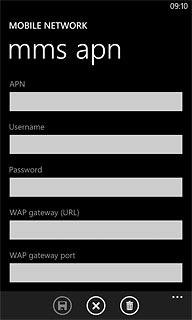

Enter APN

Press the field below APN and key in mms.vodafone.net

An APN is used to establish a data connection. In order to send and receive picture messages, your phone needs a data connection.
Step 6 of 11

Enter IP address

Press the field below WAP gateway (URL) and key in 10.24.59.200

Step 7 of 11

Enter port

Press the field below WAP gateway port and key in 80

Step 8 of 11

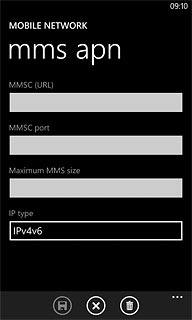

Enter picture messaging server

Press the field below MMSC (URL) and key in http://www.vodafone.ie/mms

Step 9 of 11

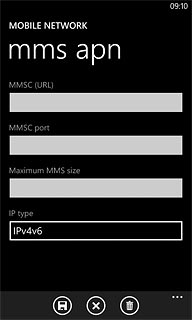

Save data connection

Press the save icon.

Step 10 of 11

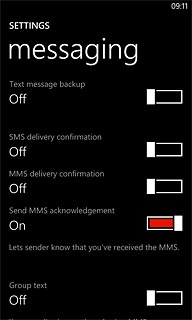

Turn request for delivery reports on or off

Press the indicator next to MMS delivery confirmation.
Depending on the current setting, the function is turned on or off.

If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
Step 11 of 11

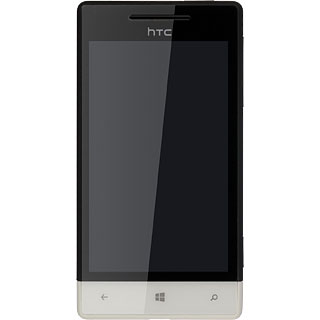

Exit

Press the Home key to return to standby mode.

Find "settings"

Slide your finger left on the display.
Press Messaging.
Press the dots in the bottom right corner of the display.
Press settings.

Create new data connection

Press add mms apn.

Enter APN

Press the field below APN and key in mms.vodafone.net
An APN is used to establish a data connection. In order to send and receive picture messages, your phone needs a data connection.

Enter IP address

Press the field below WAP gateway (URL) and key in 10.24.59.200

Enter port

Press the field below WAP gateway port and key in 80

Enter picture messaging server

Press the field below MMSC (URL) and key in http://www.vodafone.ie/mms

Save data connection

Press the save icon.

Turn request for delivery reports on or off

Press the indicator next to MMS delivery confirmation.
Depending on the current setting, the function is turned on or off.
If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.

Exit

Press the Home key to return to standby mode.
