1. Find "Access point names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4ea2d625-fd94-4805-aee0-2a446685576d.png?width=206&height=412)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8c8905d0-6b28-407c-91d9-9f99c8550413.png?width=206&height=412)

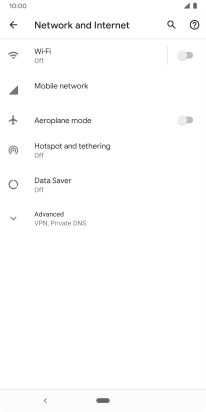

Press Network and Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-94456eb6-c566-4cb2-b226-b0d9ba800834.png?width=206&height=412)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8c160470-5645-4b47-9dcb-2fc716d8097c.png?width=206&height=412)

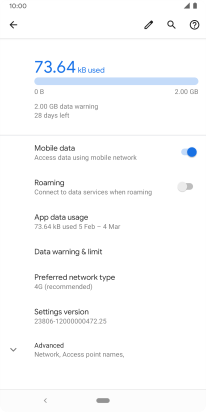

Press Advanced.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c34c5338-058f-42de-8171-6bafaa177c21.png?width=206&height=412)

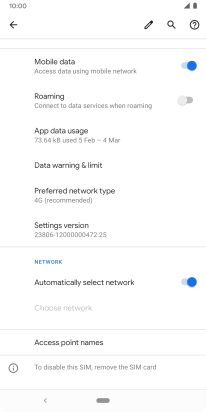

Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3eeee778-50e3-4a95-bd7a-95da4659af8d.png?width=206&height=412)
2. Create new data connection

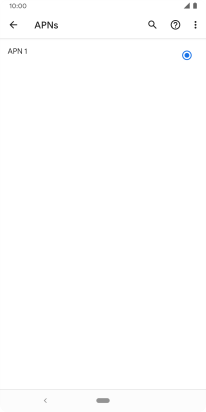

Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-abd2369a-e981-429e-87e7-ec03c9c278e3.png?width=206&height=412)

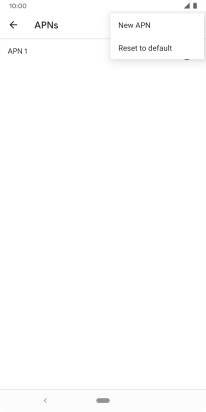

Press New APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8267e58c-a0db-4dd3-a4f0-4a5212e68a58.png?width=206&height=412)
3. Enter a name for the connection

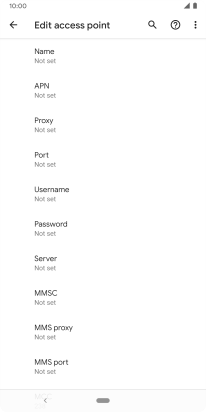

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-79b546dd-be6b-461b-b6a9-f97c6c9ac700.png?width=206&height=412)

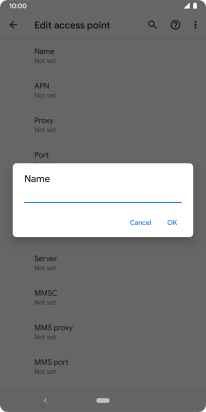

Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5c96761d-8d3d-4329-9834-61640224df16.png?width=206&height=412)
Vodafone Internet
4. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-79b546dd-be6b-461b-b6a9-f97c6c9ac700.png?width=206&height=412)

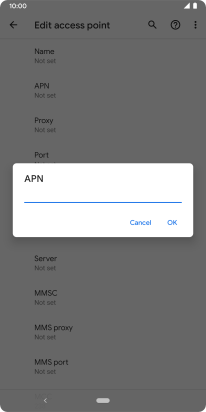

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-202f1973-dc46-4efa-b268-b9b50a40b64b.png?width=206&height=412)
live.vodafone.com
5. Enter country code

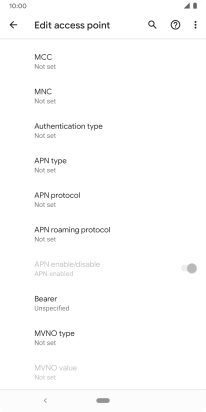

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b8925ba6-43b3-470d-b274-26fabc5ce075.png?width=206&height=412)

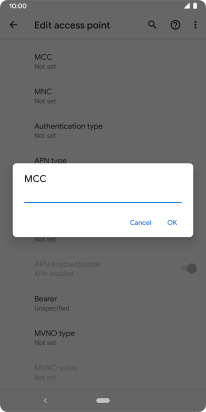

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3b507b18-c38d-455f-a911-ac22cdfcc565.png?width=206&height=412)
272
6. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b8925ba6-43b3-470d-b274-26fabc5ce075.png?width=206&height=412)

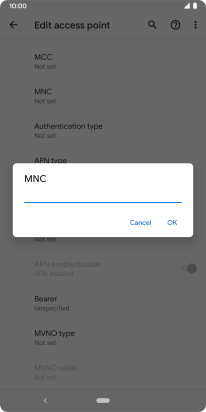

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f1fa751b-8e25-4bf3-9b75-ea7ba0e32106.png?width=206&height=412)
01
7. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b8925ba6-43b3-470d-b274-26fabc5ce075.png?width=206&height=412)

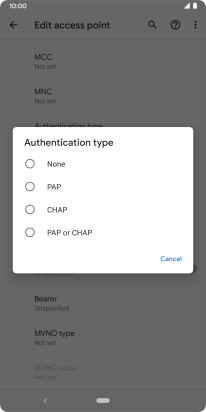

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1baf793f-d8b2-4842-ac8d-4bce369d55d4.png?width=206&height=412)
8. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b8925ba6-43b3-470d-b274-26fabc5ce075.png?width=206&height=412)

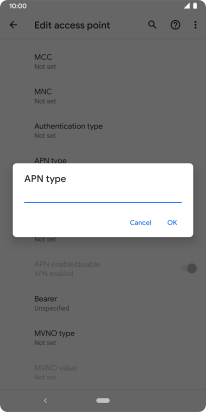

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-47c4b9a7-d74f-47bd-9f45-90da0cdf0652.png?width=206&height=412)
default
9. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b8925ba6-43b3-470d-b274-26fabc5ce075.png?width=206&height=412)

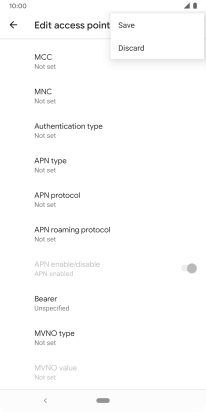

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9314e7ca-96b6-4e74-9082-5a2da19b5b06.png?width=206&height=412)

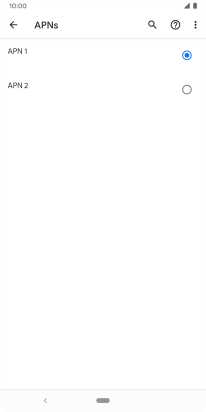

Press the field next to the required data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5a5a2eb3-1af4-407e-9461-ab09d1629da1.png?width=206&height=412)
10. Return to the home screen

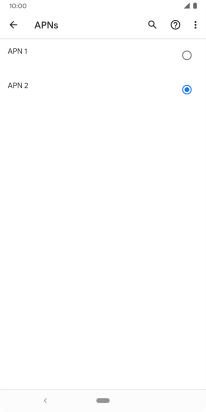

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f82e90f9-56cd-4f91-b364-790d1d9f8aba.png?width=206&height=412)
