1. Find "Access point names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-468fd102-21df-4f18-a600-788162732527.png?width=198&height=406)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-700c8c87-d969-4b06-a0d1-a747825d2ac2.png?width=198&height=406)
Press Network and Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a78f5a08-101b-4282-a5a1-7b18ef573907.png?width=198&height=406)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c67ab59e-5bd2-428d-a245-a2d21542a1dc.png?width=198&height=406)

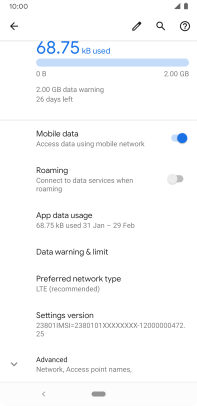

Press Advanced.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-255a6aa0-40d8-4f2a-b9ec-96670ac6257d.png?width=198&height=406)

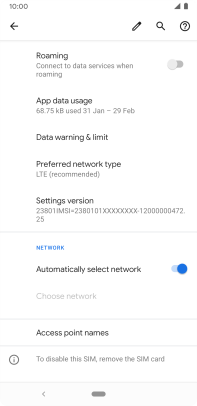

Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a94b9638-fd53-4e63-8ccf-87a8b7b113da.png?width=198&height=406)
2. Create new data connection

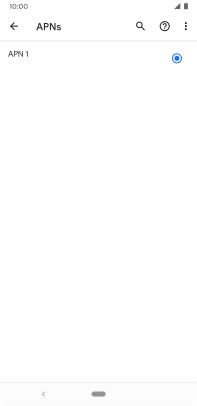

Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-fcda6cee-32f1-4738-b07d-bc3c75115f83.png?width=198&height=406)

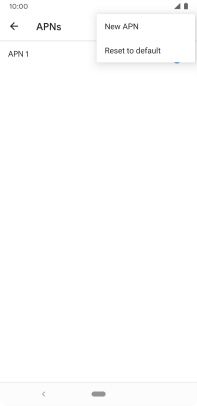

Press New APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-28ebc0fc-5d7d-4eb9-9740-72a0716edc08.png?width=198&height=406)
3. Enter a name for the connection

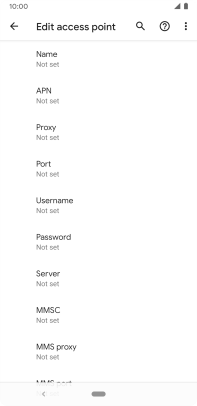

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-25607638-c7f4-456b-bfd7-7f212a5af0f5.png?width=198&height=406)

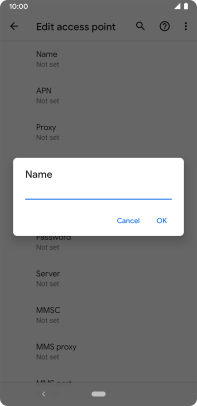

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1828ca15-c184-4a2b-a474-9c8bbe652d8f.png?width=198&height=406)
Vodafone MMS
4. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-25607638-c7f4-456b-bfd7-7f212a5af0f5.png?width=198&height=406)
Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ddfb8bbd-6803-423b-8434-ae6393b80849.png?width=198&height=406)
mms.vodafone.net
5. Enter picture messaging server
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-25607638-c7f4-456b-bfd7-7f212a5af0f5.png?width=198&height=406)

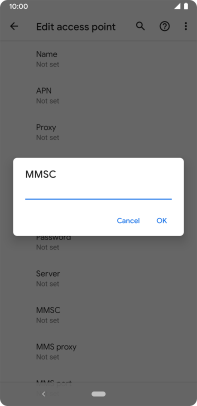

Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4eb54d62-70a9-4ec2-9bc3-e987da3735e0.png?width=198&height=406)
http://www.vodafone.ie/mms
6. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-25607638-c7f4-456b-bfd7-7f212a5af0f5.png?width=198&height=406)

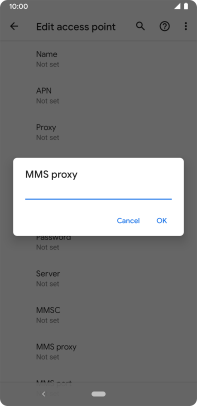

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-22ee8f55-0488-433a-b371-50a4db4f8259.png?width=198&height=406)
10.24.59.200
7. Enter port number

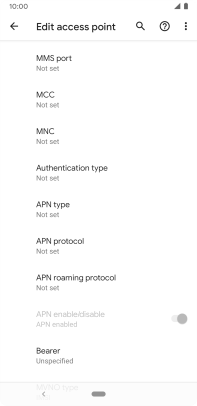

Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-02163694-1bd2-42ff-8ebe-1d6b390ee312.png?width=198&height=406)

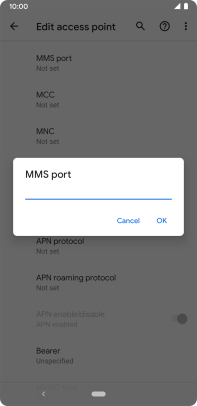

Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5e044909-346e-45b7-ab89-7b91610b2f45.png?width=198&height=406)
80
8. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-02163694-1bd2-42ff-8ebe-1d6b390ee312.png?width=198&height=406)

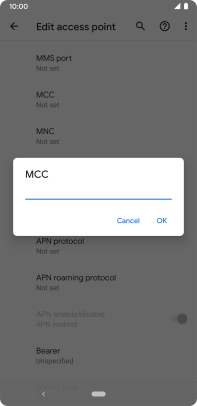

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-50e89db5-e452-4134-849a-36030900a0a8.png?width=198&height=406)
272
9. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-02163694-1bd2-42ff-8ebe-1d6b390ee312.png?width=198&height=406)
Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-48145818-150d-41c7-a96b-db81e8930dcd.png?width=198&height=406)
01
10. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-02163694-1bd2-42ff-8ebe-1d6b390ee312.png?width=198&height=406)

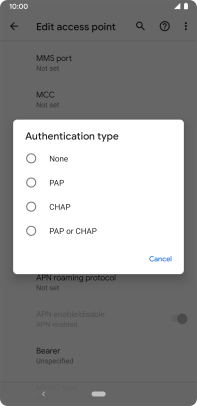

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-39c03853-d24c-4853-b059-c7fd5f171dbf.png?width=198&height=406)
11. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-02163694-1bd2-42ff-8ebe-1d6b390ee312.png?width=198&height=406)

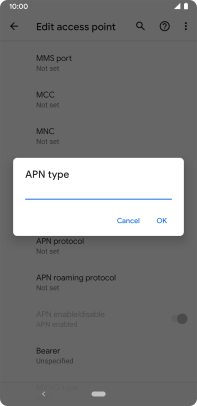

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-75f7afdc-6458-4b36-b876-23cab2eb0092.png?width=198&height=406)
mms
12. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-02163694-1bd2-42ff-8ebe-1d6b390ee312.png?width=198&height=406)

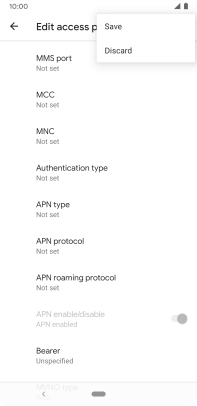

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-66eb0bae-277e-4369-a477-2806e3468563.png?width=198&height=406)
13. Return to the home screen

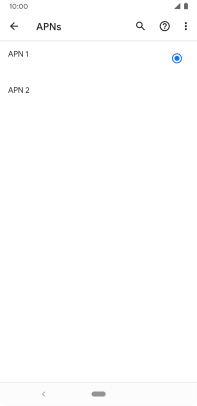

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-cb22a160-f1c5-478f-961c-7763488a91eb.png?width=198&height=406)
