1. Find "Access point names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1507a358-89e7-4c93-b13b-a34e08162406.png?width=204&height=408)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6384514d-aa8b-477d-89c5-29b25b6fe56e.png?width=204&height=408)

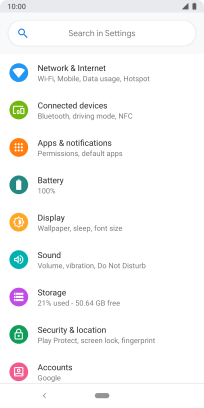

Press Network & Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-740fb224-6684-4bc4-a9c7-ec61e67c8b77.png?width=204&height=408)

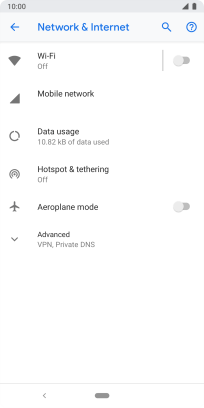

Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-93e739e5-1a87-4c52-862f-77c1af61ecaa.png?width=204&height=408)

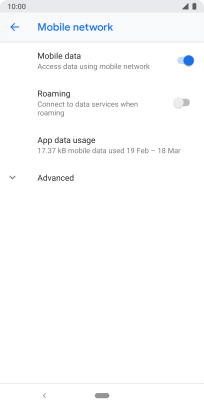

Press Advanced.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3938ecdd-9c08-43f8-be7d-4818bb1455c4.png?width=204&height=408)

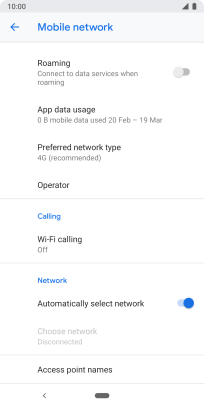

Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-46bc1588-c3f9-4848-b9ed-c7715bef8cd0.png?width=204&height=408)
2. Create new data connection

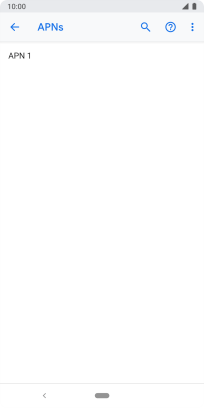

Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e0a1c250-dbe0-4163-96b8-96e2208c6f7d.png?width=204&height=408)

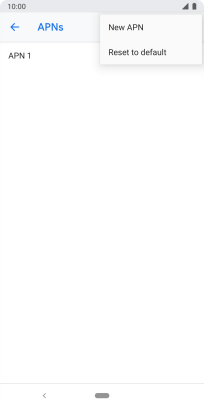

Press New APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c5a842c4-1734-40c5-90c5-71184d4b02fa.png?width=204&height=408)
3. Enter a name for the connection

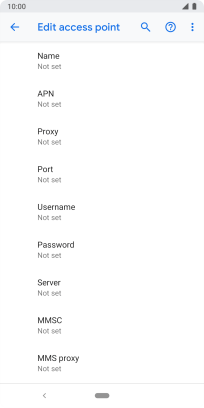

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7300550d-a631-418f-bf1a-12f843f33192.png?width=204&height=408)

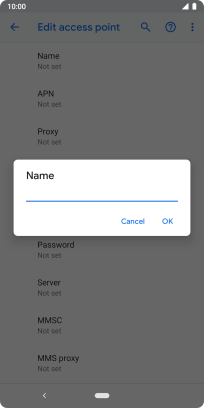

Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-fc244c0e-78ed-40d7-9b3c-51fa54a904d7.png?width=204&height=408)
Vodafone Internet
4. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7300550d-a631-418f-bf1a-12f843f33192.png?width=204&height=408)

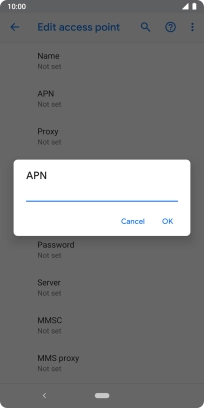

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e1cb2923-c244-44fb-8af2-7e97d16e7de0.png?width=204&height=408)
live.vodafone.com
5. Enter country code

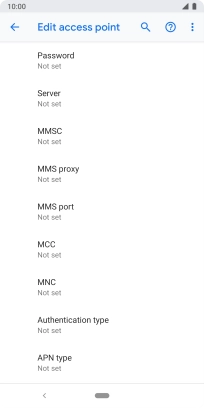

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-fb0857f7-fb64-412e-8b3c-14128096600d.png?width=204&height=408)
Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d4ca122c-51be-4c80-b5e3-2502705b28d1.png?width=204&height=408)
272
6. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-fb0857f7-fb64-412e-8b3c-14128096600d.png?width=204&height=408)

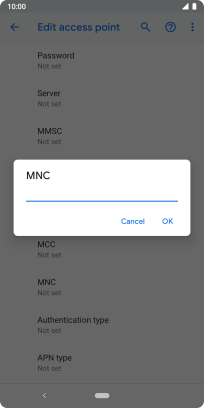

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8379aba9-6215-456e-9b1a-b9fc5e70e156.png?width=204&height=408)
01
7. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-fb0857f7-fb64-412e-8b3c-14128096600d.png?width=204&height=408)

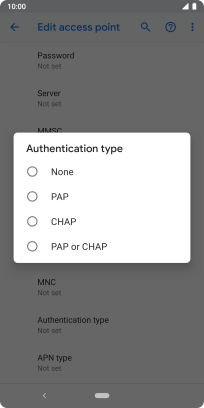

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-57a9d10a-8463-4d11-9f8a-fbd497d9d99c.png?width=204&height=408)
8. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-fb0857f7-fb64-412e-8b3c-14128096600d.png?width=204&height=408)

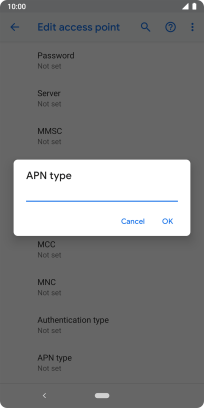

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5089377a-acfe-4c04-b5ec-5e5bb57863f7.png?width=204&height=408)
default
9. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7300550d-a631-418f-bf1a-12f843f33192.png?width=204&height=408)

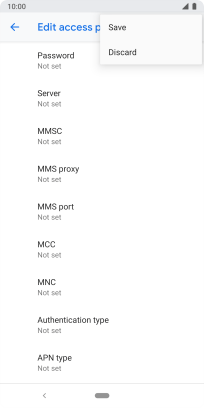

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-59f13d59-3e4f-422b-8149-f8173f744990.png?width=204&height=408)

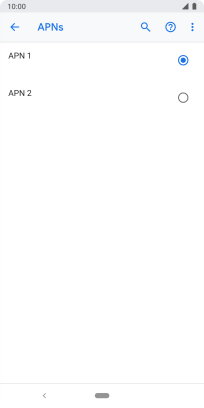

Press the field next to the required data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a8a6e45e-1955-40c6-9a5a-19c4edef46ff.png?width=204&height=408)
10. Return to the home screen

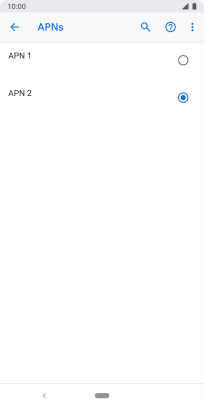

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9f8814fd-7547-45fe-b695-bb971caf9160.png?width=204&height=408)
