Set up your FAIRPHONE Fairphone 3 Android 9.0 for picture messaging

Read help info

A picture message is a message which can contain pictures and other media files and can be sent to other mobile phones. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for picture messaging manually.

Step 1 of 29

1. Find "Access Point Names"

Slide two fingers downwards starting from the top of the screen.

Step 2 of 29

1. Find "Access Point Names"

Press the settings icon.

Step 3 of 29

1. Find "Access Point Names"

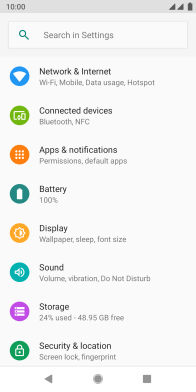

Press Network & Internet.

Step 4 of 29

1. Find "Access Point Names"

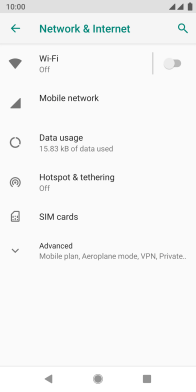

Press Mobile network.

Step 5 of 29

1. Find "Access Point Names"

Press the required SIM.

Step 6 of 29

1. Find "Access Point Names"

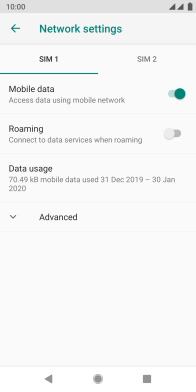

Press Advanced.

Step 7 of 29

1. Find "Access Point Names"

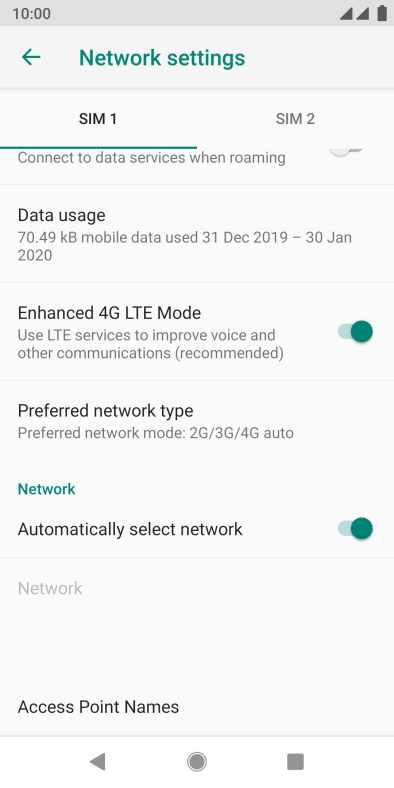

Press Access Point Names.

Step 8 of 29

2. Create new data connection

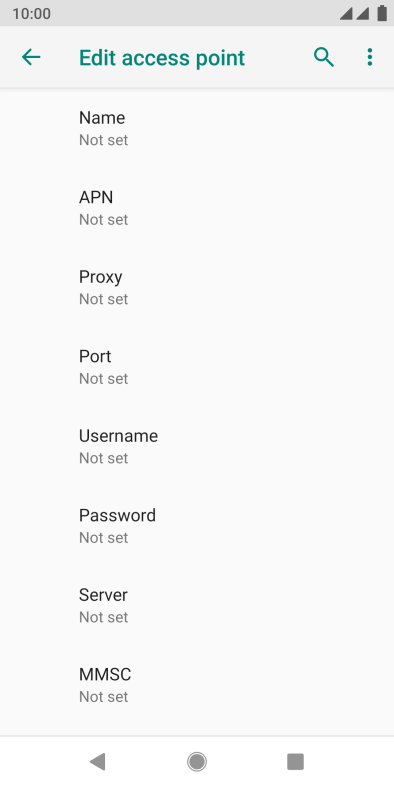

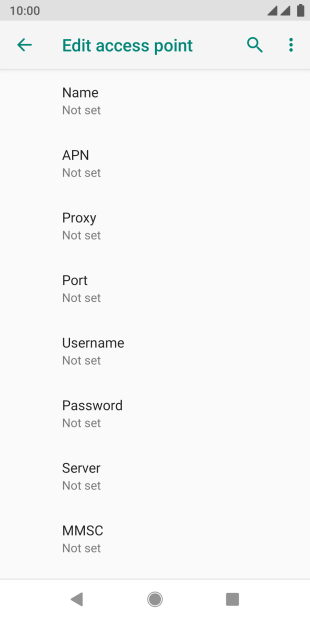

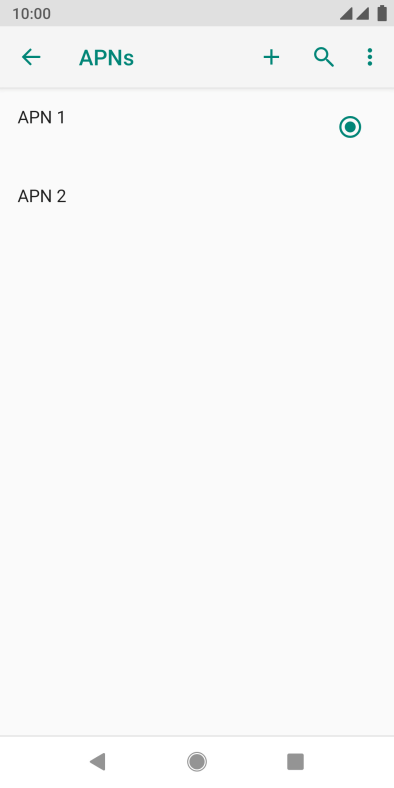

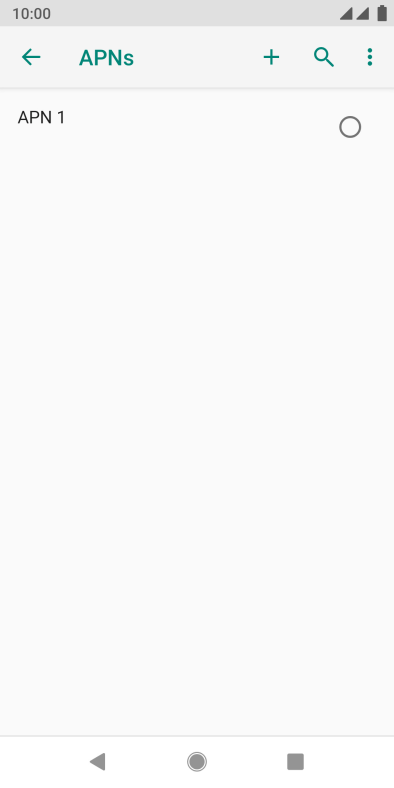

Press the new data connection icon.

Step 9 of 29

3. Enter a name for the connection

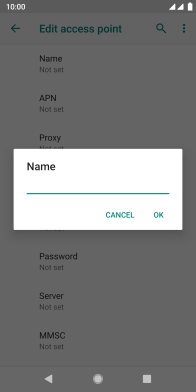

Press Name.

Vodafone MMS
Step 10 of 29

3. Enter a name for the connection

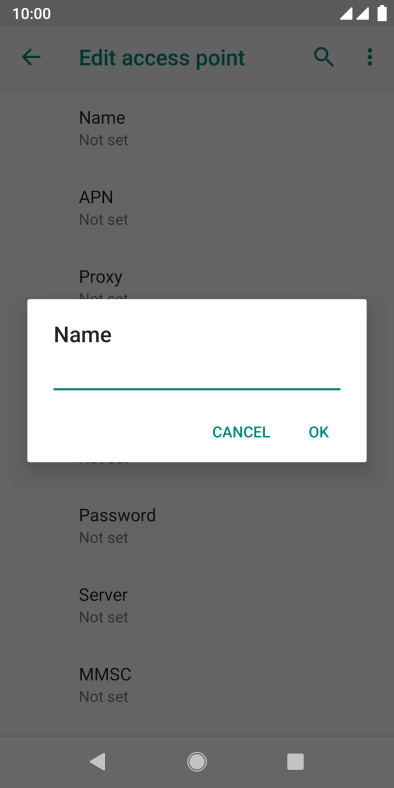

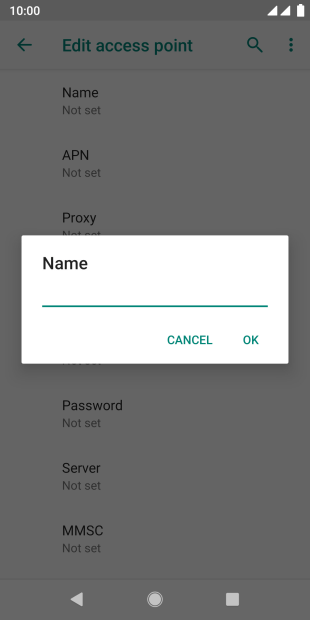

Key in Vodafone MMS and press OK.

Step 11 of 29

4. Enter APN

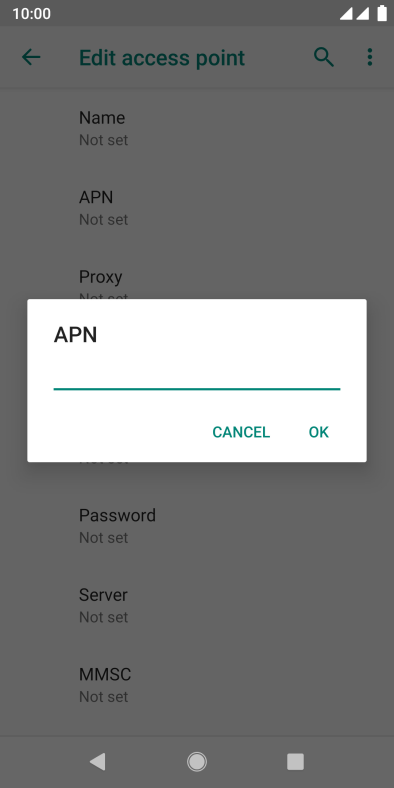

Press APN.

mms.vodafone.net
Step 12 of 29

4. Enter APN

Key in mms.vodafone.net and press OK.

Step 13 of 29

5. Enter MMSC

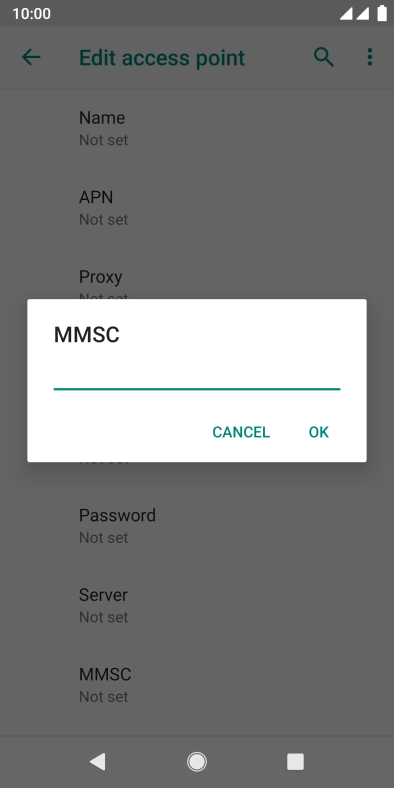

Press MMSC.

http://www.vodafone.ie/mms
Step 14 of 29

5. Enter MMSC

Key in http://www.vodafone.ie/mms and press OK.

Step 15 of 29

6. Enter IP address

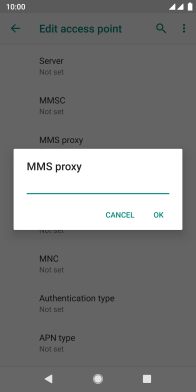

Press MMS proxy.

10.24.59.200
Step 16 of 29

6. Enter IP address

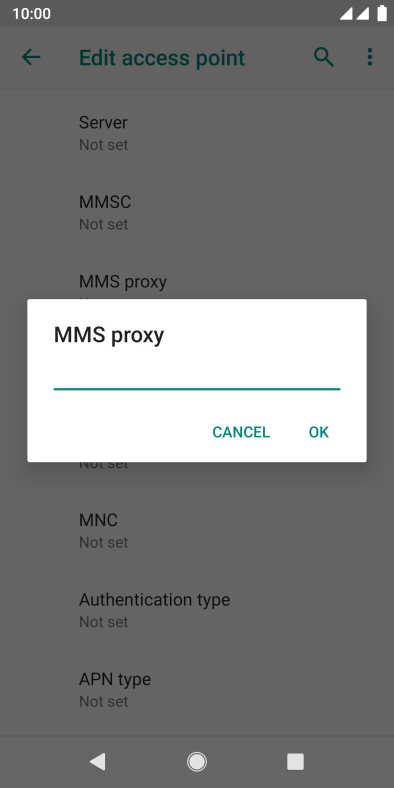

Key in 10.24.59.200 and press OK.

Step 17 of 29

7. Enter port number

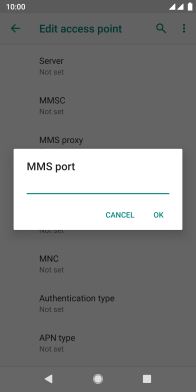

Press MMS port.

80
Step 18 of 29

7. Enter port number

Key in 80 and press OK.

Step 19 of 29

8. Enter country code

Press MCC.

272
Step 20 of 29

8. Enter country code

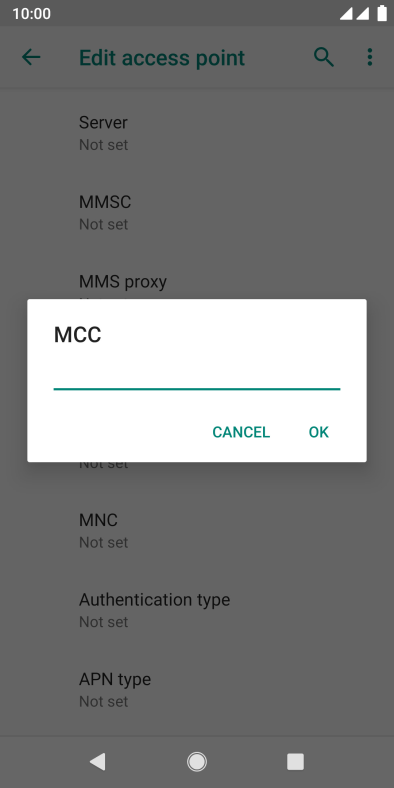

Key in 272 and press OK.

Step 21 of 29

9. Enter network code

Press MNC.

01
Step 22 of 29

9. Enter network code

Key in 01 and press OK.

Step 23 of 29

10. Select authentication type

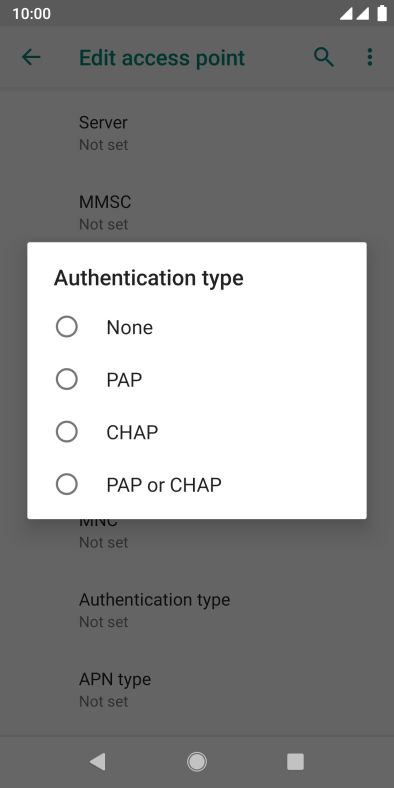

Press Authentication type.

Step 24 of 29

10. Select authentication type

Press PAP.

Step 25 of 29

11. Enter APN type

Press APN type.

mms
Step 26 of 29

11. Enter APN type

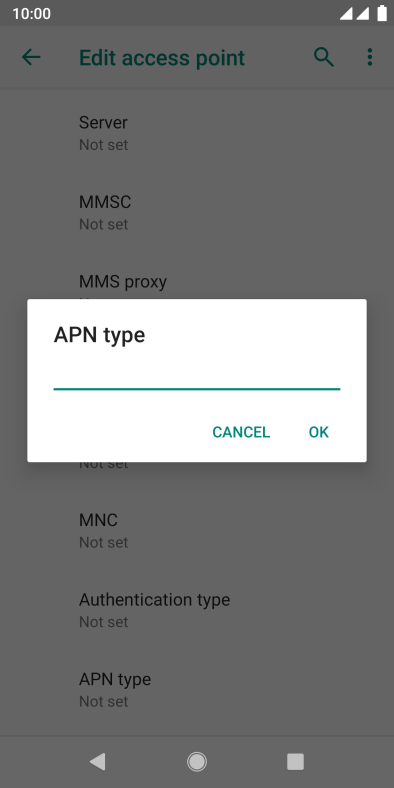

Key in mms and press OK.

Step 27 of 29

12. Save data connection

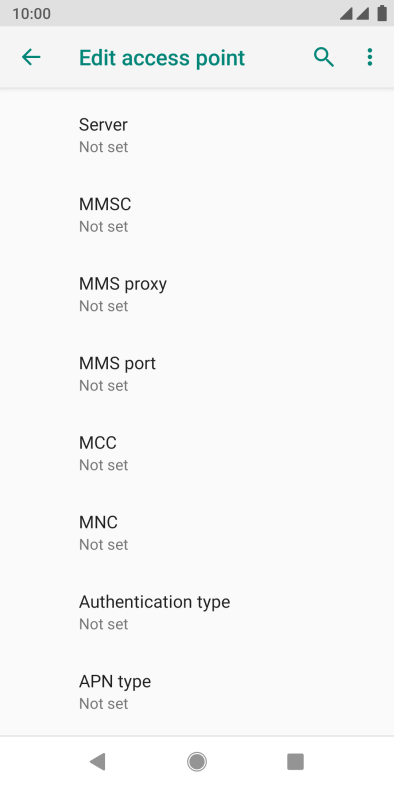

Press the menu icon.

Step 28 of 29

12. Save data connection

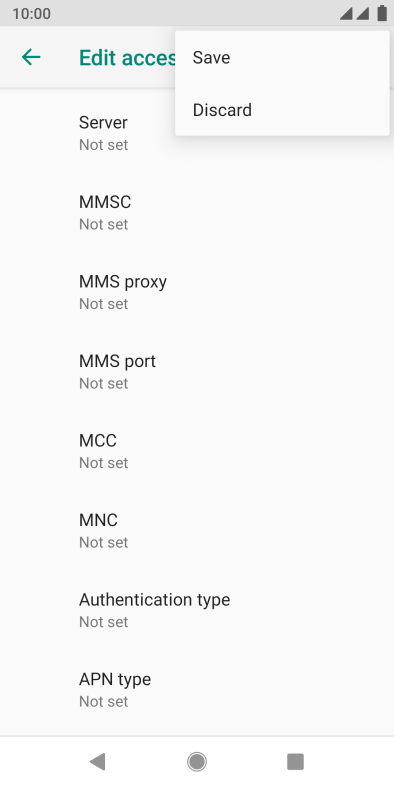

Press Save.

Step 29 of 29

13. Return to the home screen

Press the Home key to return to the home screen.

1. Find "Access Point Names"

Slide two fingers downwards starting from the top of the screen.
Press the settings icon.
Press Network & Internet.
Press Mobile network.
Press the required SIM.
Press Advanced.
Press Access Point Names.

2. Create new data connection

Press the new data connection icon.

3. Enter a name for the connection

Press Name.
Key in Vodafone MMS and press OK.
Vodafone MMS

4. Enter APN

Press APN.
Key in mms.vodafone.net and press OK.
mms.vodafone.net

5. Enter MMSC

Press MMSC.
Key in http://www.vodafone.ie/mms and press OK.
http://www.vodafone.ie/mms

6. Enter IP address

Press MMS proxy.
Key in 10.24.59.200 and press OK.
10.24.59.200

7. Enter port number

Press MMS port.
Key in 80 and press OK.
80

8. Enter country code

Press MCC.
Key in 272 and press OK.
272

9. Enter network code

Press MNC.
Key in 01 and press OK.
01

10. Select authentication type

Press Authentication type.
Press PAP.

11. Enter APN type

Press APN type.
Key in mms and press OK.
mms

12. Save data connection

Press the menu icon.
Press Save.

13. Return to the home screen

Press the Home key to return to the home screen.
