1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-767cdf2b-308f-4ec5-833c-fe89a77b852f.png?width=194&height=388)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c555acd5-52ef-488b-8f17-068d0616830a.png?width=194&height=388)
Press Network & Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-fb9915a8-9874-47e2-8a38-49b0f7cb6837.png?width=194&height=388)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7f40d5d2-2b98-405e-a608-ae625bf92870.png?width=194&height=388)

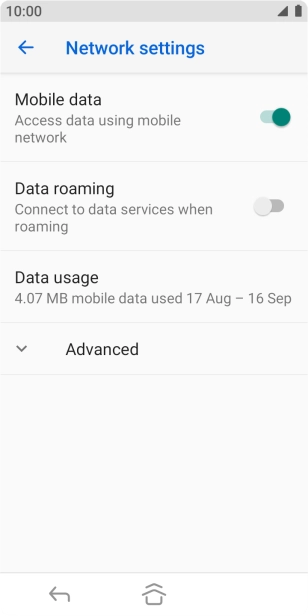

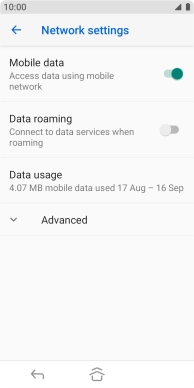

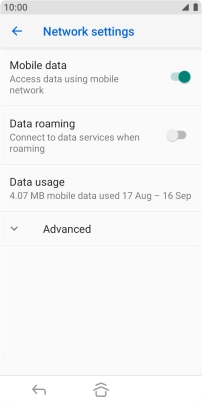

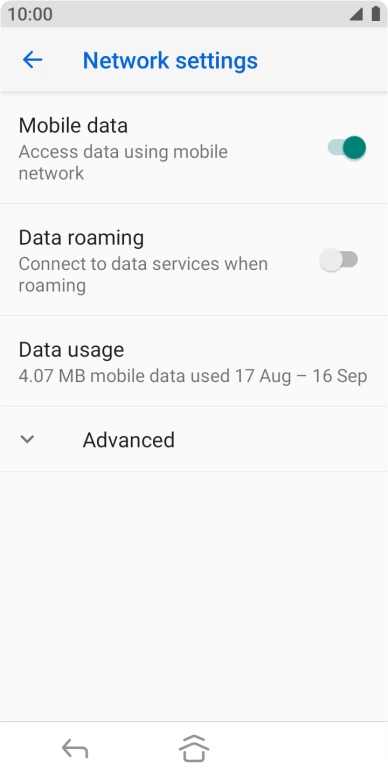

Press Advanced.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d65dae8a-c923-4428-9cbf-57ccda808bc8.png?width=194&height=388)

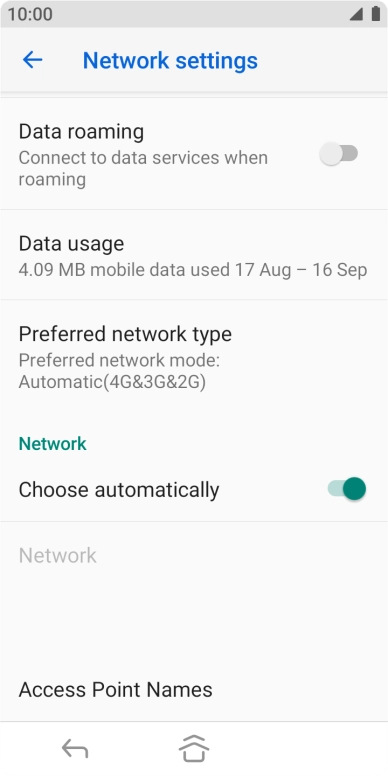

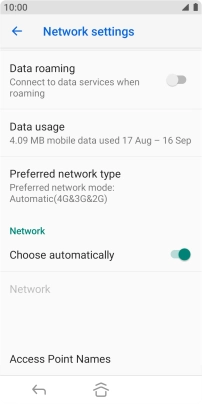

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c9678cb8-436a-46f3-8a07-da9fdc31cfac.png?width=194&height=388)
2. Create new data connection

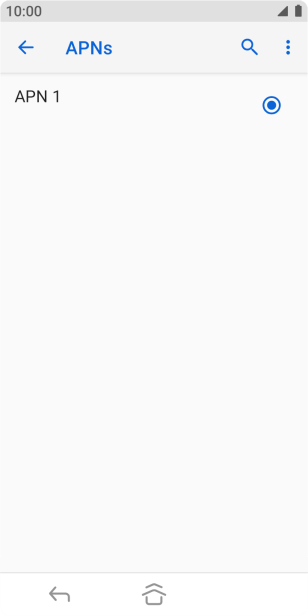

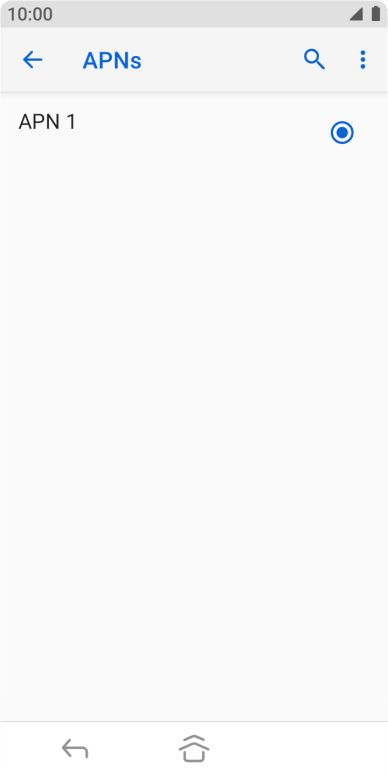

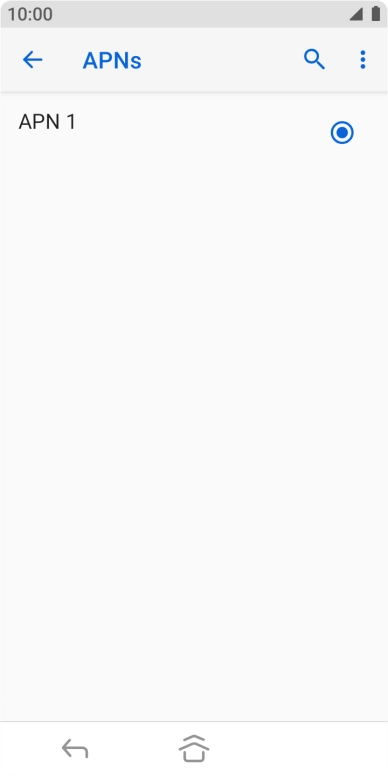

Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b8f0af7d-bf06-435d-a633-d5404b79c6cb.png?width=194&height=388)

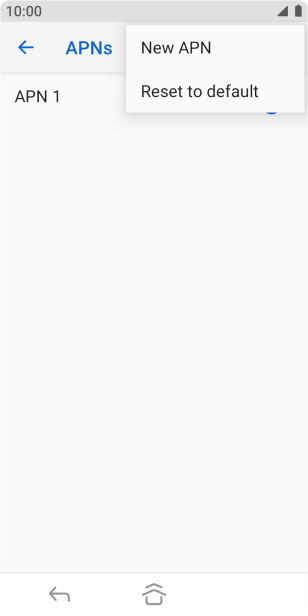

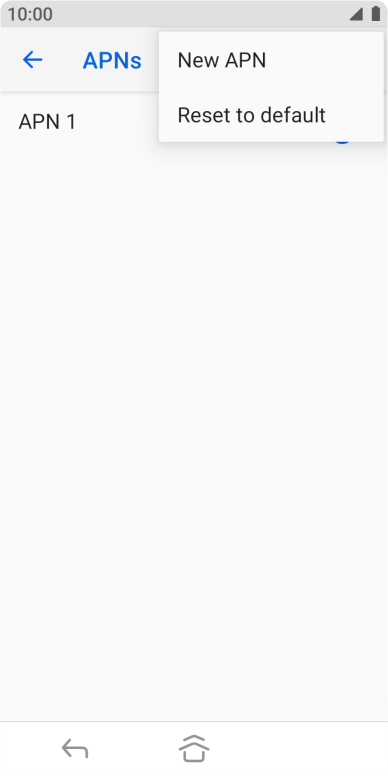

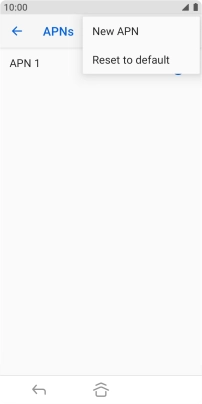

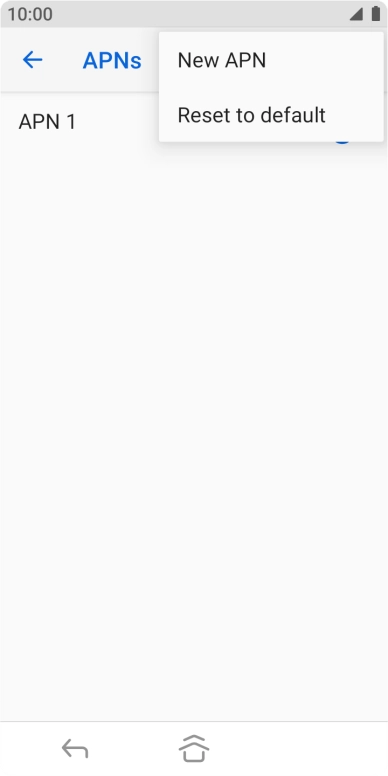

Press New APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2d10818c-465c-40b7-8a9a-fb8f18323c37.png?width=194&height=388)
3. Enter a name for the connection

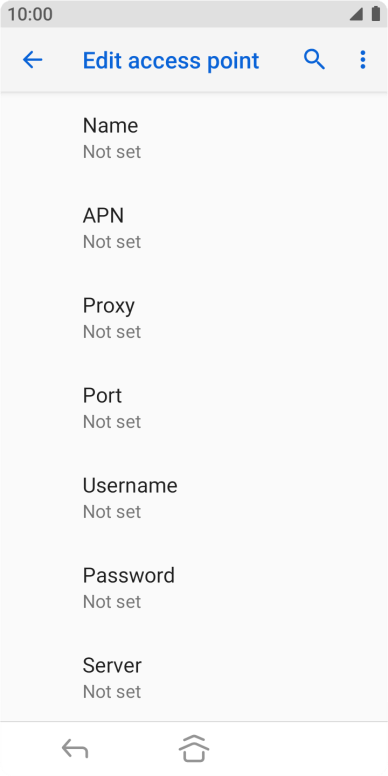

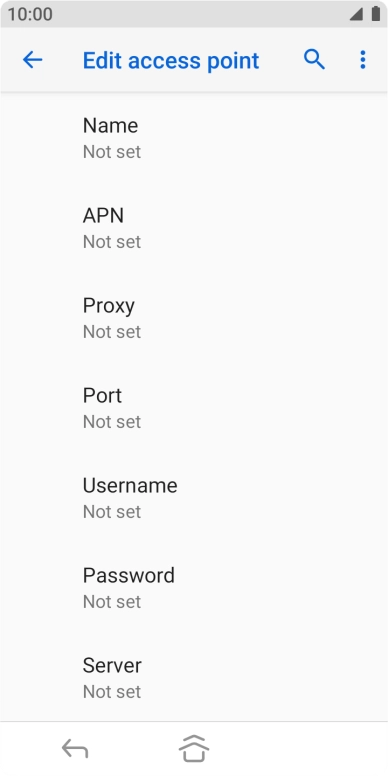

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e0ca3665-8dab-4c8c-8126-5332fe84774b.png?width=194&height=388)

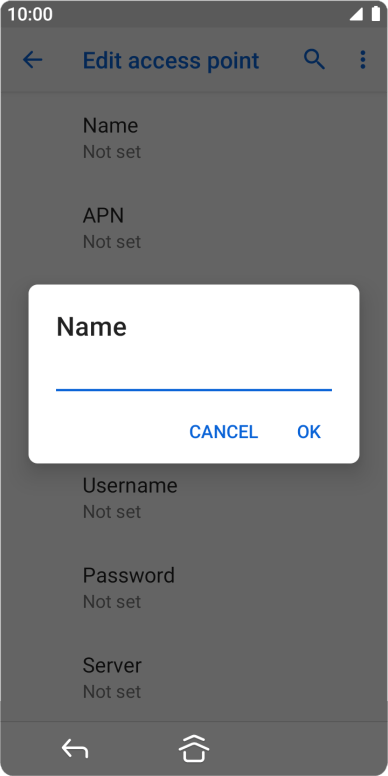

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-584677bd-699b-4f75-aaca-2564ddaf0ebf.png?width=194&height=388)
Vodafone MMS
4. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e0ca3665-8dab-4c8c-8126-5332fe84774b.png?width=194&height=388)

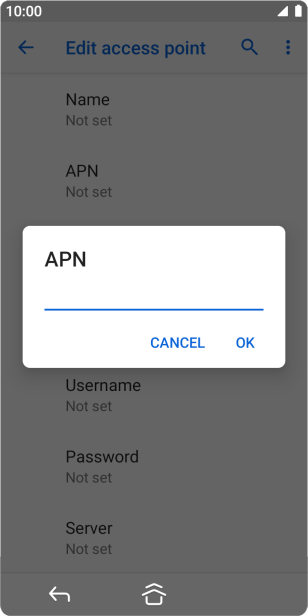

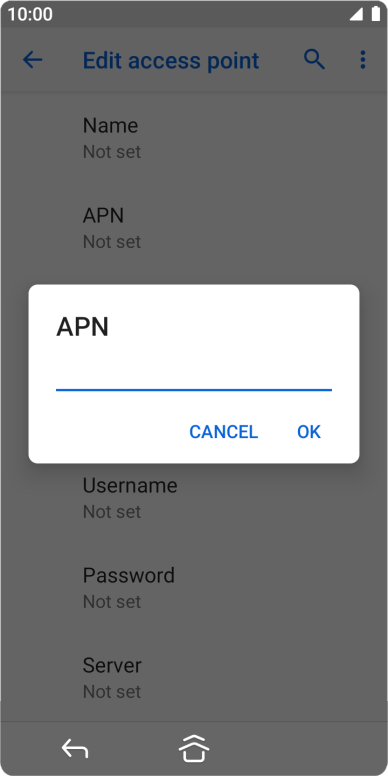

Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4ffea2b6-5620-4e56-9b1f-00d23f769842.png?width=194&height=388)
mms.vodafone.net
5. Enter MMSC

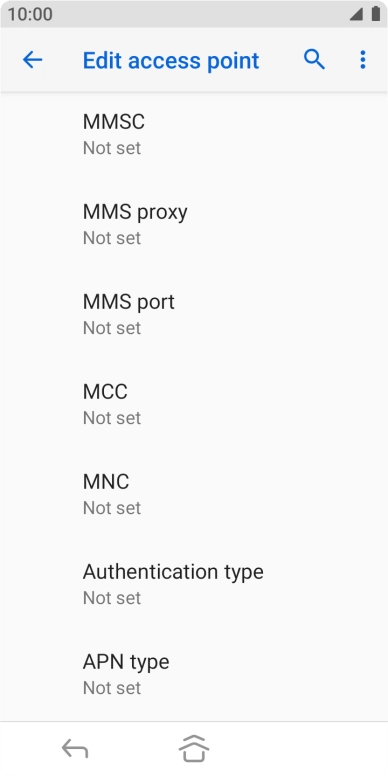

Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ab5fe6e5-e88d-4259-98e0-07b51ffcc88f.png?width=194&height=388)

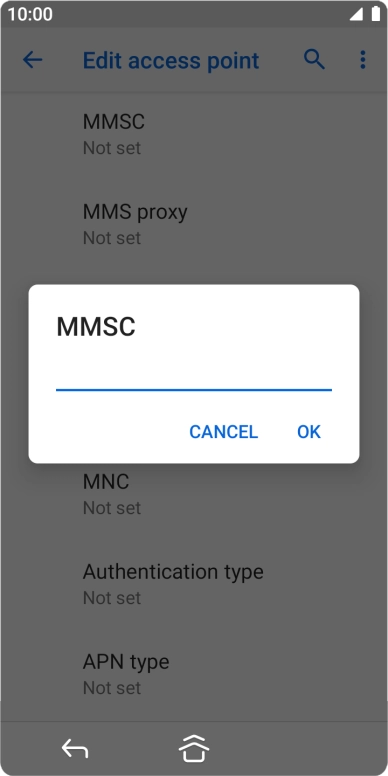

Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9c24d28d-e069-49fd-84c8-fb69f332a492.png?width=194&height=388)
http://www.vodafone.ie/mms
6. Enter IP address

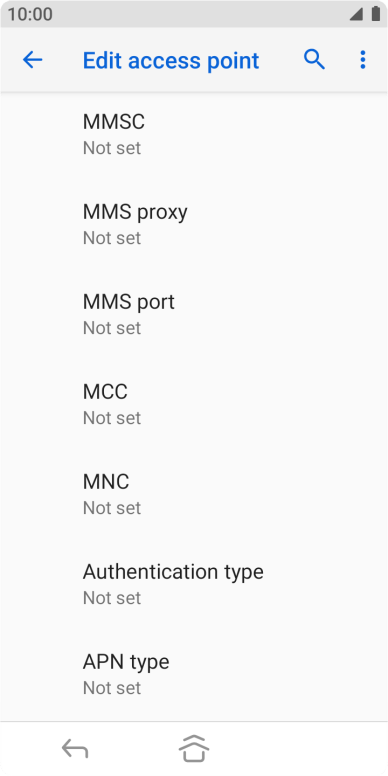

Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ab5fe6e5-e88d-4259-98e0-07b51ffcc88f.png?width=194&height=388)

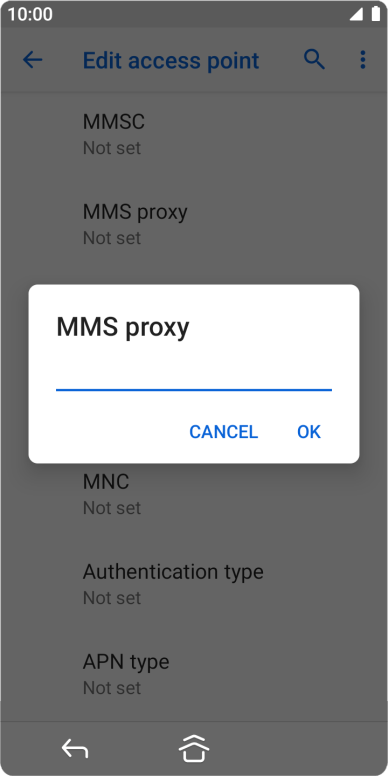

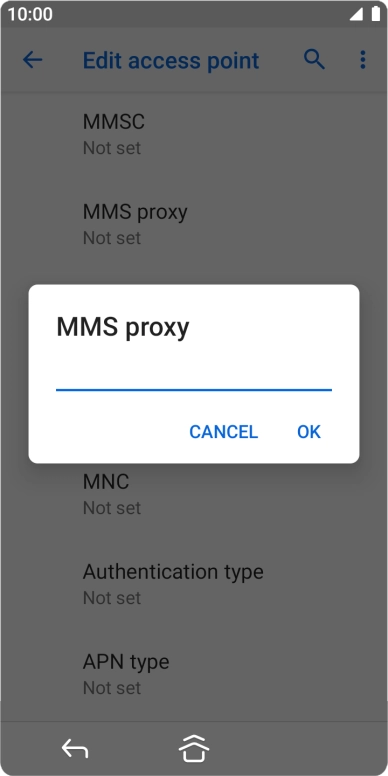

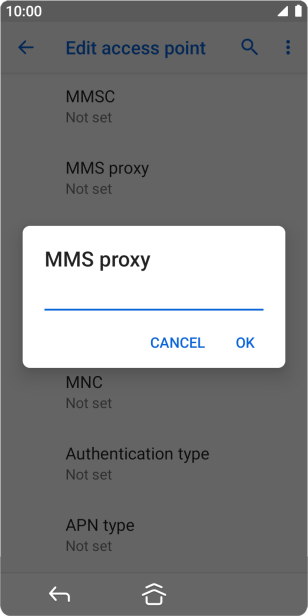

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-001ca589-77aa-4c8c-8c27-297ba2098f5e.png?width=194&height=388)
10.24.59.200
7. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ab5fe6e5-e88d-4259-98e0-07b51ffcc88f.png?width=194&height=388)
Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f5dbad14-06dc-494e-a51a-5ce10f8c1d7d.png?width=194&height=388)
80
8. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ab5fe6e5-e88d-4259-98e0-07b51ffcc88f.png?width=194&height=388)
Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c72cd5b6-d5b8-4b47-b33e-f20d11ba5eeb.png?width=194&height=388)
272
9. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ab5fe6e5-e88d-4259-98e0-07b51ffcc88f.png?width=194&height=388)

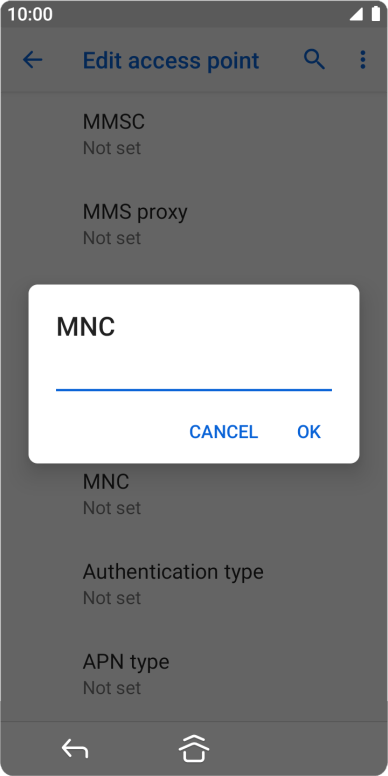

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-301d4f86-4469-4d31-8753-962f669c6631.png?width=194&height=388)
01
10. Select authentication type

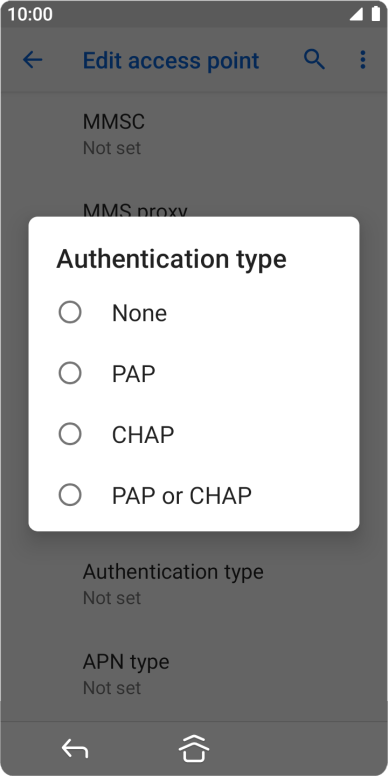

Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ab5fe6e5-e88d-4259-98e0-07b51ffcc88f.png?width=194&height=388)

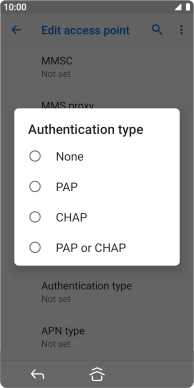

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-fa847c36-390c-454b-8841-e321126f7e94.png?width=194&height=388)
11. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ab5fe6e5-e88d-4259-98e0-07b51ffcc88f.png?width=194&height=388)

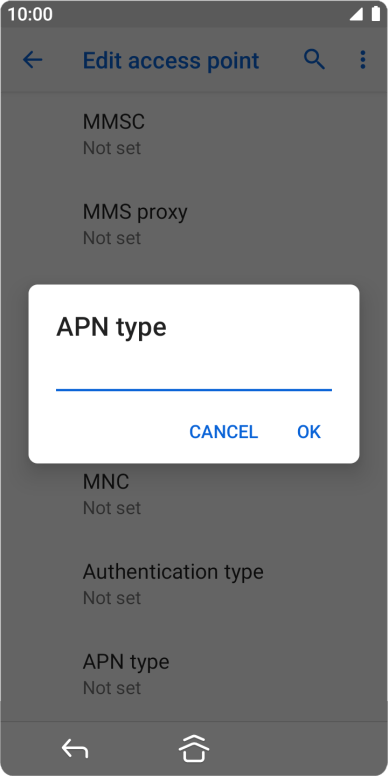

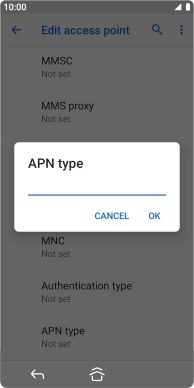

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-79dd8b15-725a-48b9-9699-35613066ecab.png?width=194&height=388)
mms
12. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ab5fe6e5-e88d-4259-98e0-07b51ffcc88f.png?width=194&height=388)

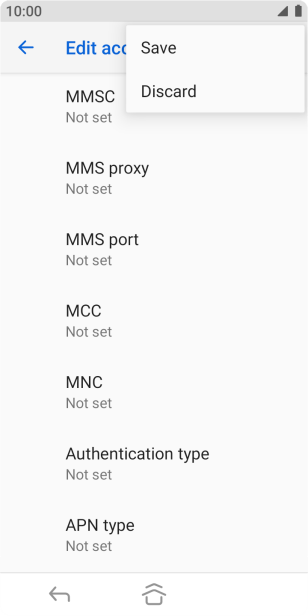

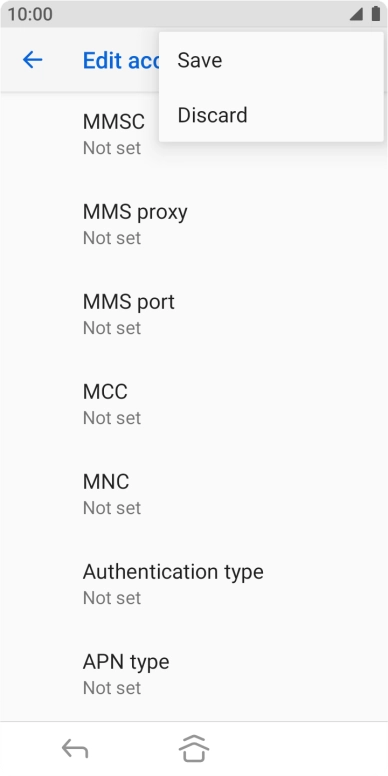

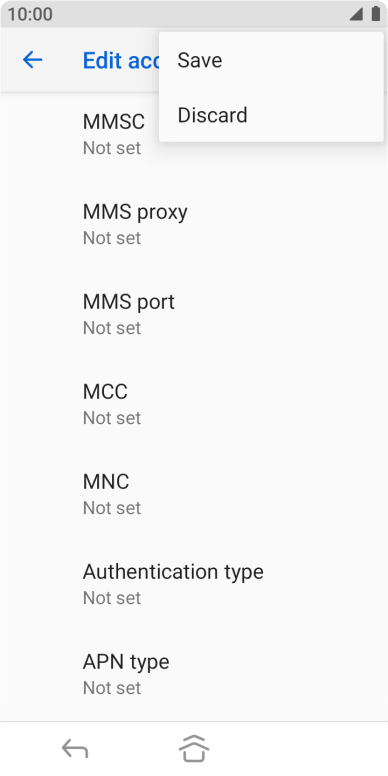

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-eafe2a40-8f78-4cf1-b41f-042e020ba4d7.png?width=194&height=388)
13. Return to the home screen

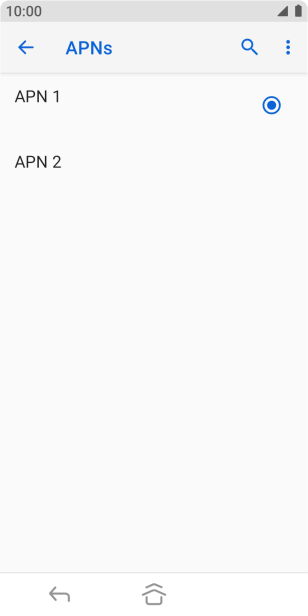

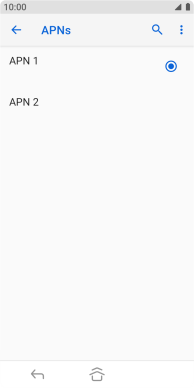

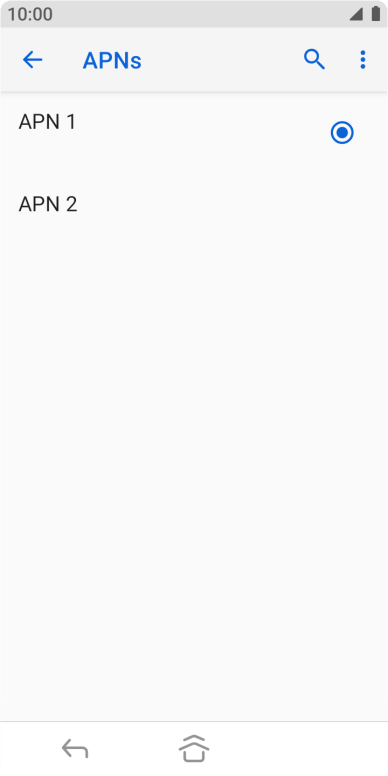

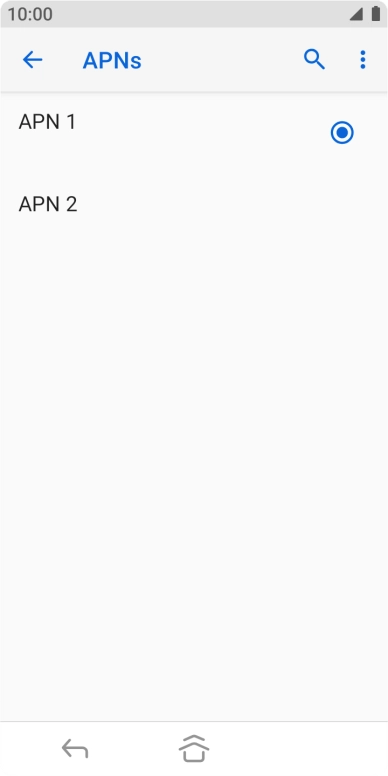

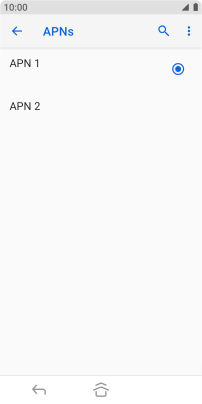

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9dfe15e5-a908-4600-9908-45b0654f52ad.png?width=194&height=388)
