Set up your Apple iPhone XR iOS 16.0 for picture messaging

Read help info

A picture message is a message which can contain pictures and other media files and can be sent to other mobile phones. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for picture messaging manually.

Step 1 of 12

1. Find "Mobile Data Network"

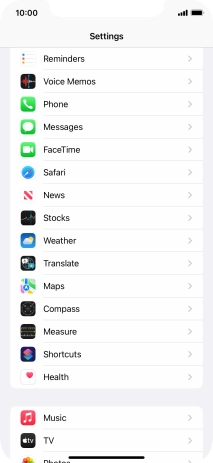

Press Settings.

Step 2 of 12

1. Find "Mobile Data Network"

Press Mobile Data.

Step 3 of 12

1. Find "Mobile Data Network"

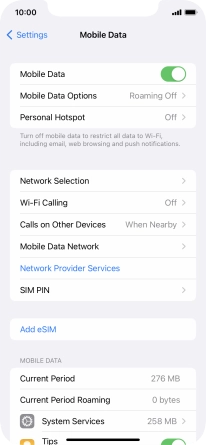

Press Mobile Data Network.

mms.vodafone.net
Step 4 of 12

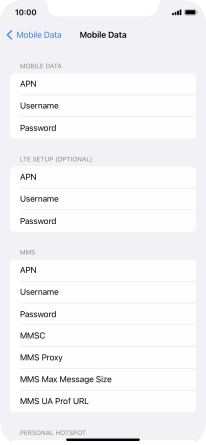

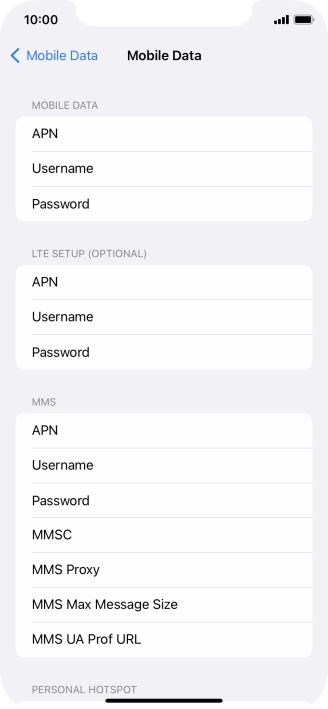

2. Enter APN

Press APN and key in mms.vodafone.net.

http://www.vodafone.ie/mms
Step 5 of 12

3. Enter picture messaging server

Press MMSC and key in http://www.vodafone.ie/mms.

10.24.59.200:80
Step 6 of 12

4. Enter IP address

Press MMS Proxy and key in 10.24.59.200:80.

Step 7 of 12

5. Save settings

Press arrow left.

Step 8 of 12

5. Save settings

Slide your finger upwards starting from the bottom of the screen to return to the home screen.

Step 9 of 12

6. Turn picture messaging on or off

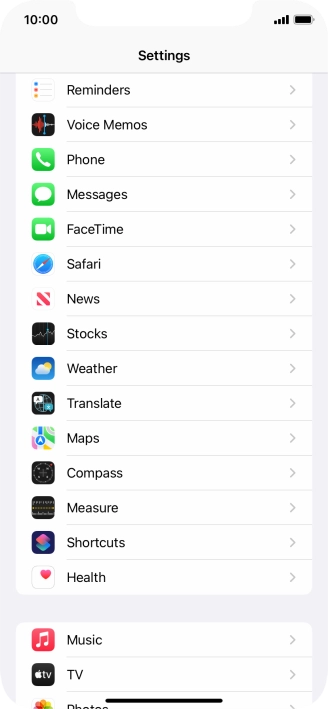

Press Settings.

Step 10 of 12

6. Turn picture messaging on or off

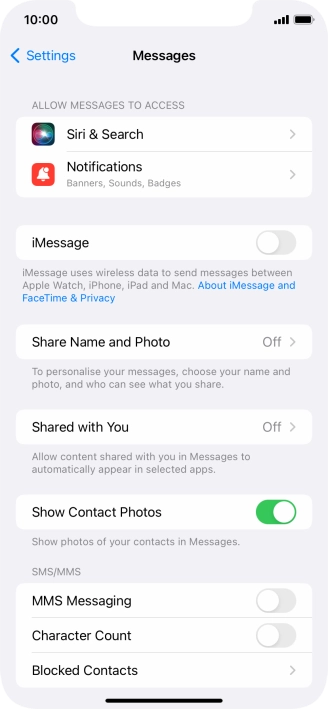

Press Messages.

Step 11 of 12

6. Turn picture messaging on or off

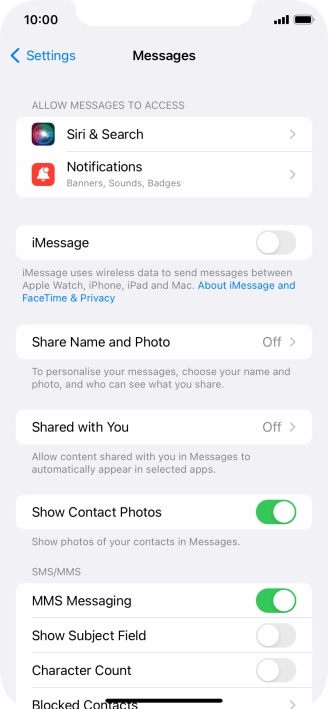

Press the indicator next to "MMS Messaging" to turn on the function.

Step 12 of 12

7. Return to the home screen

Slide your finger upwards starting from the bottom of the screen to return to the home screen.

1. Find "Mobile Data Network"

Press Settings.
Press Mobile Data.
Press Mobile Data Network.

2. Enter APN

Press APN and key in mms.vodafone.net.
mms.vodafone.net

3. Enter picture messaging server

Press MMSC and key in http://www.vodafone.ie/mms.
http://www.vodafone.ie/mms

4. Enter IP address

Press MMS Proxy and key in 10.24.59.200:80.
10.24.59.200:80

5. Save settings

Press arrow left.
Slide your finger upwards starting from the bottom of the screen to return to the home screen.

6. Turn picture messaging on or off

Press Settings.
Press Messages.
Press the indicator next to "MMS Messaging" to turn on the function.

7. Return to the home screen

Slide your finger upwards starting from the bottom of the screen to return to the home screen.
