1. Find "Mobile Data Network"
Press Settings.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-048d0987-9468-4d6c-b1c4-412680547a72.png?width=192&height=344)
Press Mobile Data.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0d0f3b6e-2862-4663-8a4f-29e6b395b4b0.png?width=192&height=344)

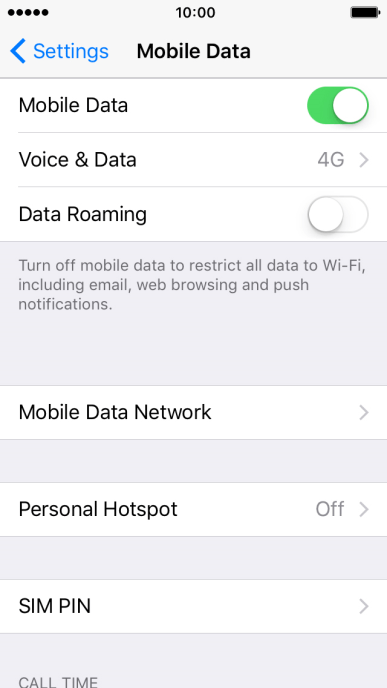

Press Mobile Data Network.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-646a211d-8c0f-489e-ab85-92fb66bccd85.png?width=192&height=344)
2. Enter APN

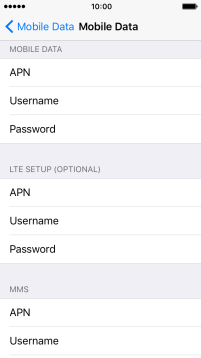

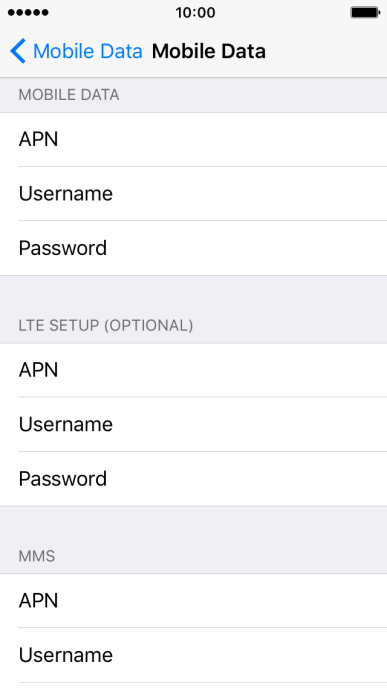

Press APN and key in mms.vodafone.net.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b0eed503-b527-4d6d-9ff2-05dbb26c83d0.png?width=192&height=344)
mms.vodafone.net
3. Enter picture messaging server

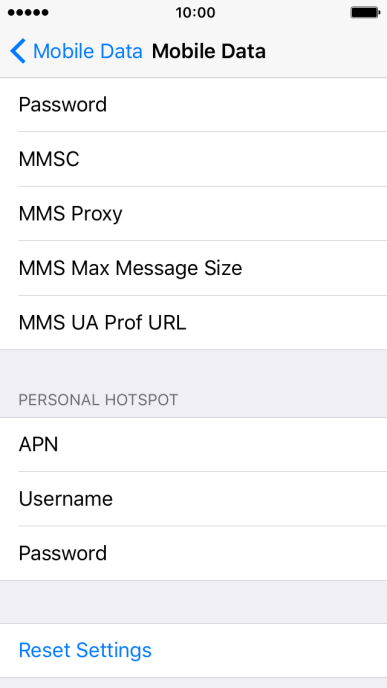

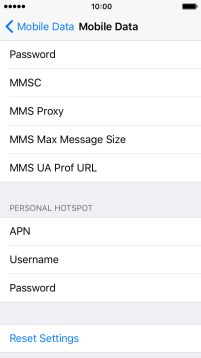

Press MMSC and key in http://www.vodafone.ie/mms.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-922a4fd3-6144-4b78-a706-7cc773fa6548.png?width=192&height=344)
http://www.vodafone.ie/mms
4. Enter IP address
Press MMS Proxy and key in 10.24.59.200:80.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-922a4fd3-6144-4b78-a706-7cc773fa6548.png?width=192&height=344)
10.24.59.200:80
5. Save settings
Press Mobile Data.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-922a4fd3-6144-4b78-a706-7cc773fa6548.png?width=192&height=344)
Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-646a211d-8c0f-489e-ab85-92fb66bccd85.png?width=192&height=344)
6. Turn picture messaging on or off
Press Settings.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-048d0987-9468-4d6c-b1c4-412680547a72.png?width=192&height=344)
Press Messages.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-76a41910-065c-428e-95b8-7a2f6a88a371.png?width=192&height=344)

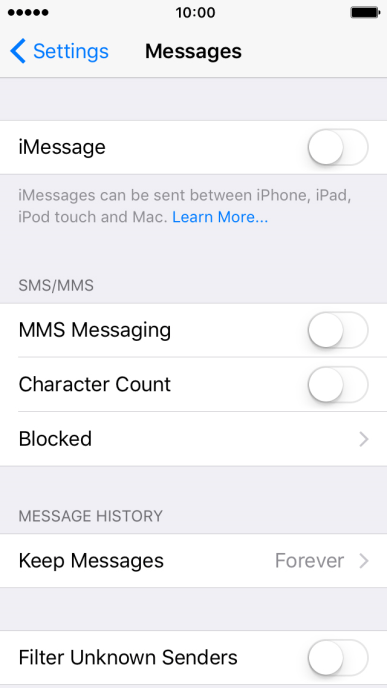

Press the indicator next to "MMS Messaging" to turn on the function.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-80bf0d28-b38c-41be-8eec-b8805dba930b.png?width=192&height=344)
7. Return to the home screen

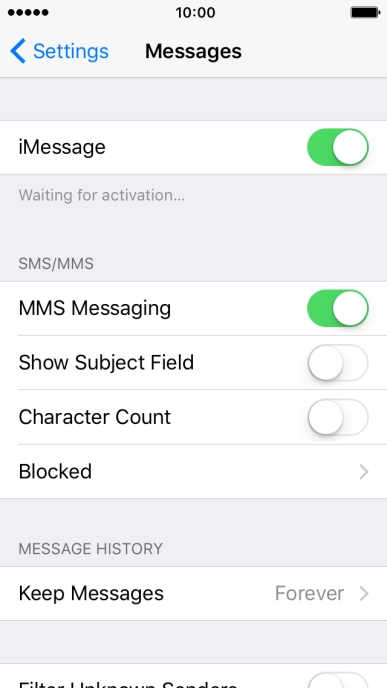

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c0844981-8457-4eaa-a895-6d7d35c42211.png?width=192&height=344)
