Apple iPhone 13 Pro Max

Apple iPhone 13 Pro Max

iOS 16.0

Set up your Apple iPhone 13 Pro Max iOS 16.0 for IMAP email

Read help info

You can set up your phone to send and receive email messages from your email accounts. Using IMAP, your email messages are kept on the server and are synchronised between all of your devices. You're then able to access your email messages from other devices. To set up your phone for IMAP email, you need to set up your phone for internet.

Step 1 of 43

1. Find "Accounts"

Press Settings.

Step 2 of 43

1. Find "Accounts"

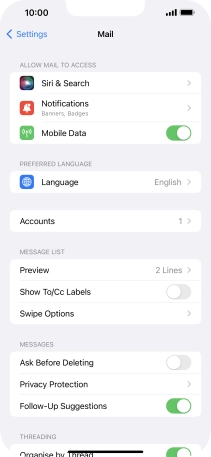

Press Mail.

Step 3 of 43

1. Find "Accounts"

Press Accounts.

Step 4 of 43

2. Create new email account

Press Add Account.

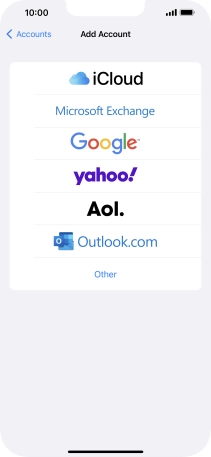

Step 5 of 43

2. Create new email account

Press Other.

If the name of your email provider is on the list, press this instead.
Step 6 of 43

2. Create new email account

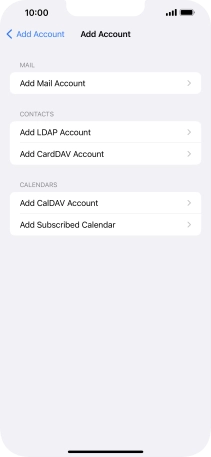

Press Add Mail Account.

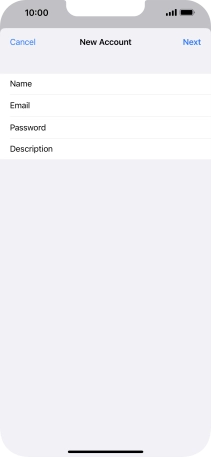

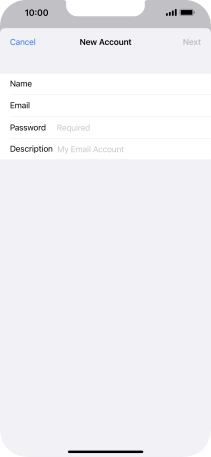

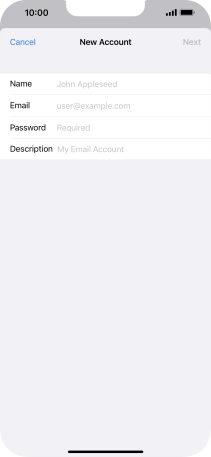

Step 7 of 43

3. Enter sender name

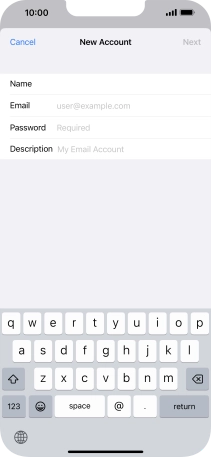

Press Name and key in the required sender name.

Step 8 of 43

4. Enter email address

Press Email and key in your email address.

Step 9 of 43

5. Enter password

Press Password and key in the password for your email account.

Step 10 of 43

6. Enter email account name

Press Description and key in the required name.

Step 11 of 43

6. Enter email account name

Press Next.

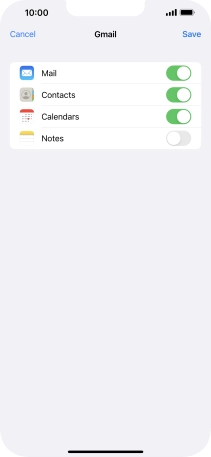

Step 12 of 43

6. Enter email account name

If this screen is displayed, you email account has been recognised and set up automatically. Follow the instructions on the screen to key in more information and finish setting up your phone.

Step 13 of 43

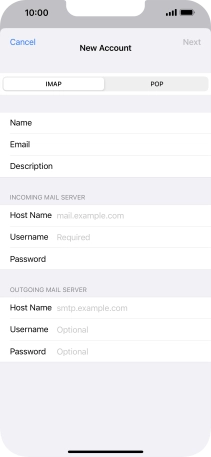

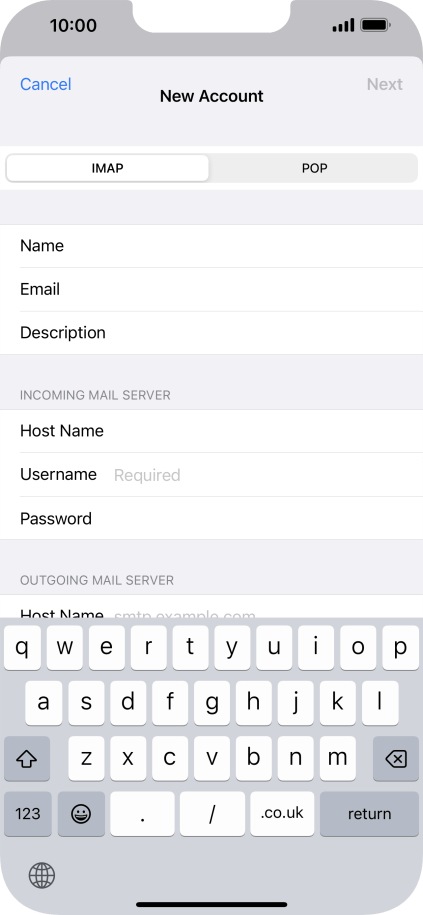

7. Select server type

Press IMAP.

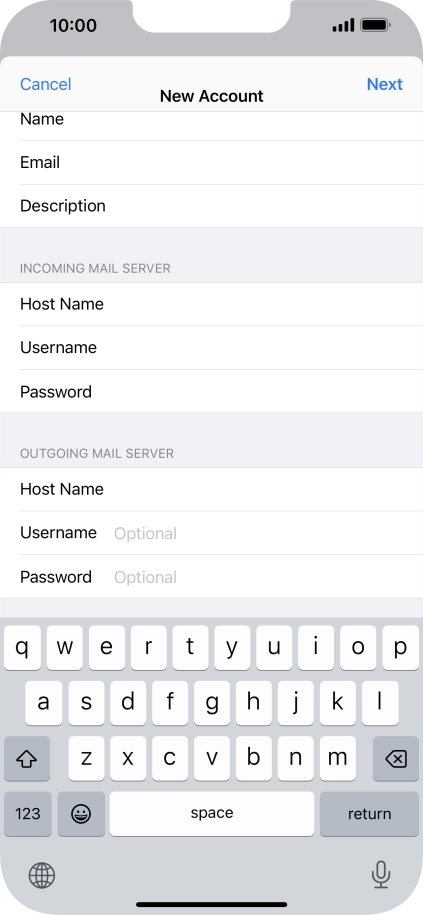

Step 14 of 43

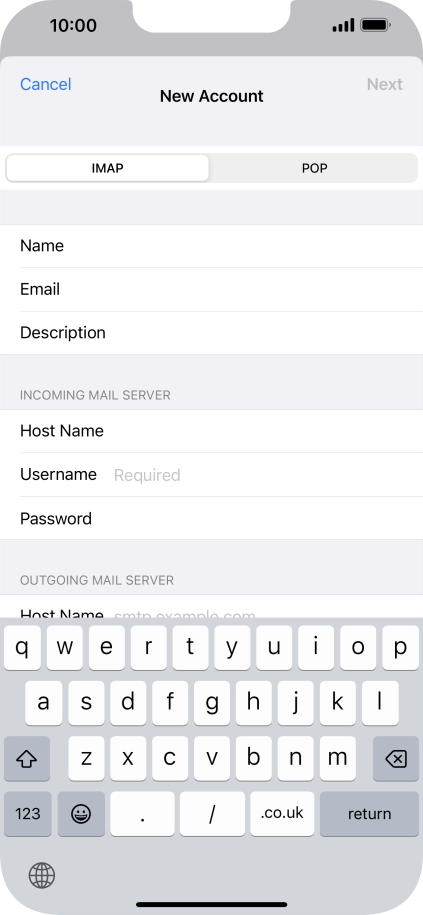

8. Enter incoming server

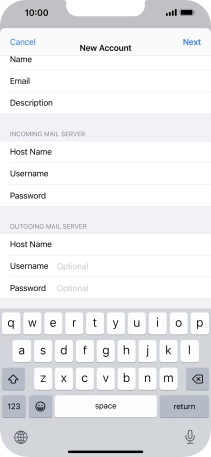

Press Host Name and key in the name of your email provider's incoming server.

Step 15 of 43

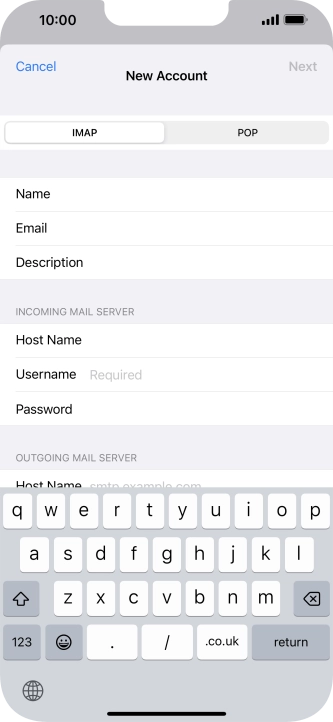

9. Enter username

Press Username and key in the username for your email account.

mail.vodafone.ie

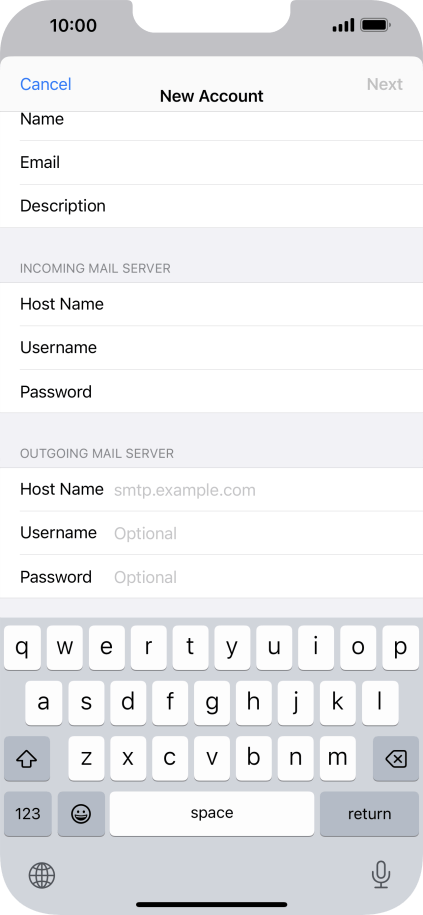

Step 16 of 43

10. Enter outgoing server

Press Host Name and key in mail.vodafone.ie.

Step 17 of 43

10. Enter outgoing server

Press Next.

Step 18 of 43

10. Enter outgoing server

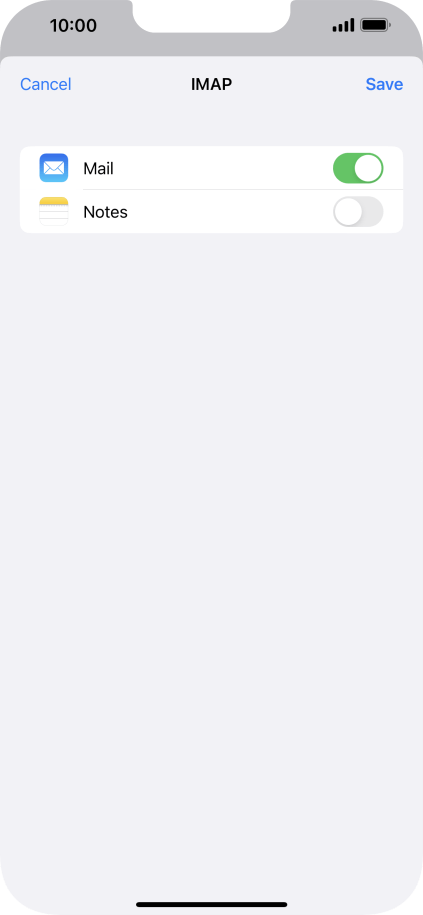

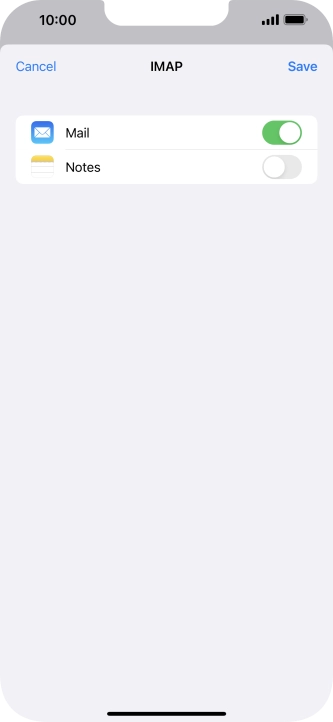

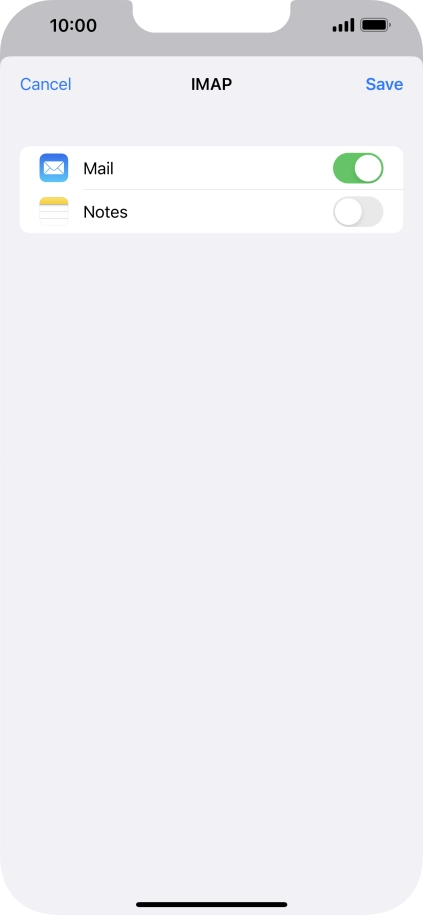

Press Save. Your email account has now been set up. To select more settings for incoming and outgoing server, proceed with the following steps.

Step 19 of 43

11. Select email account

Press the name of the email account you've just set up.

Step 20 of 43

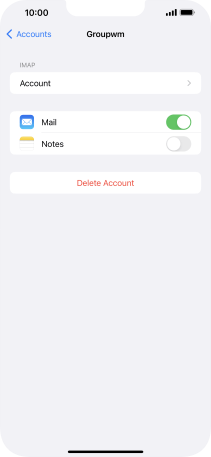

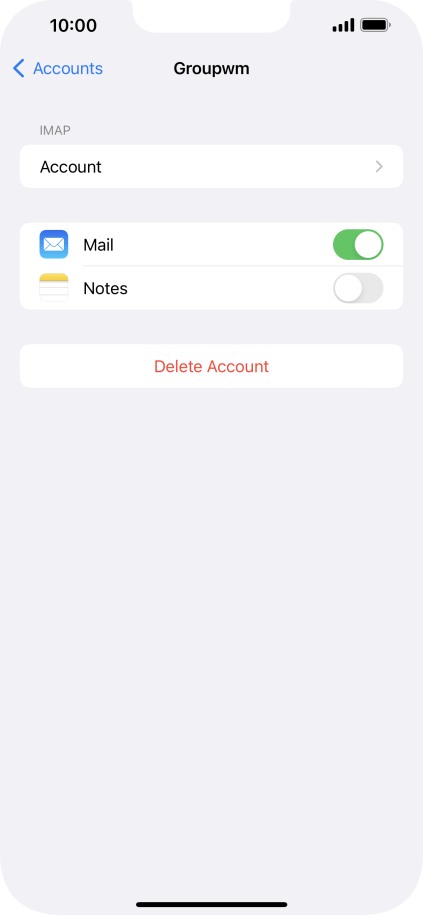

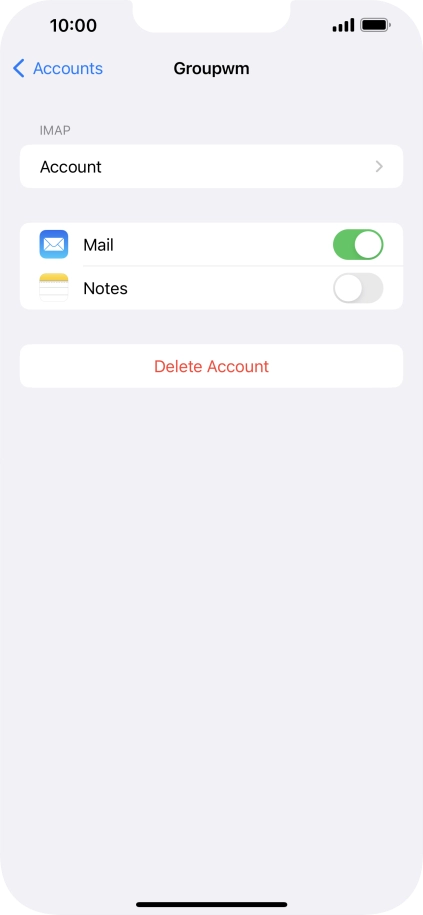

11. Select email account

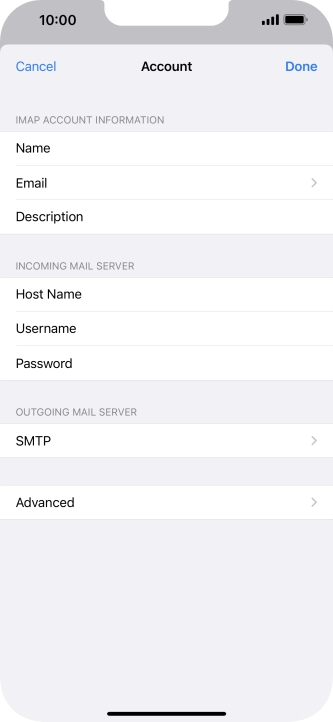

Press Account.

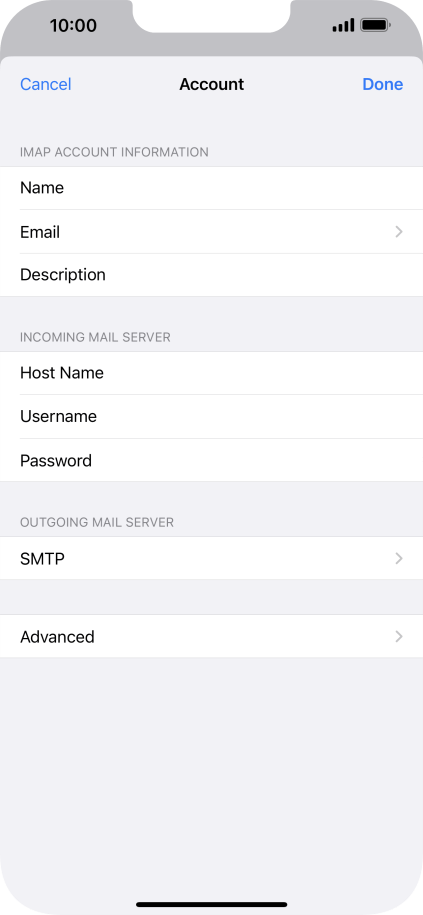

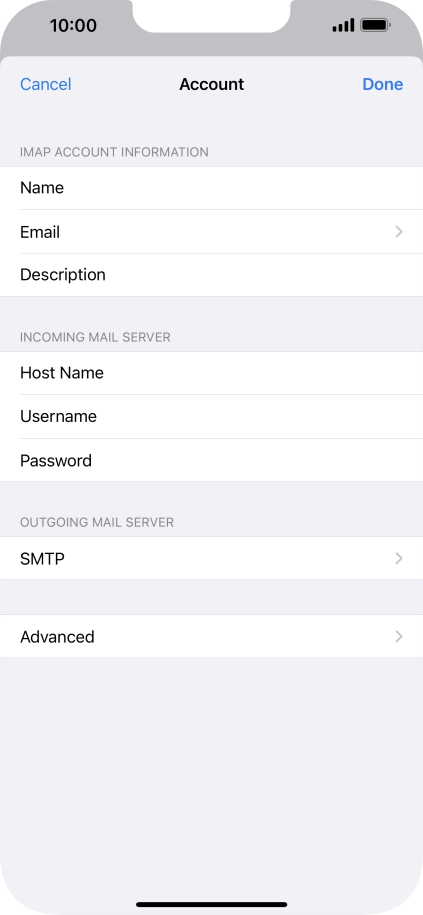

Step 21 of 43

12. Turn off encryption of outgoing email messages

Press SMTP.

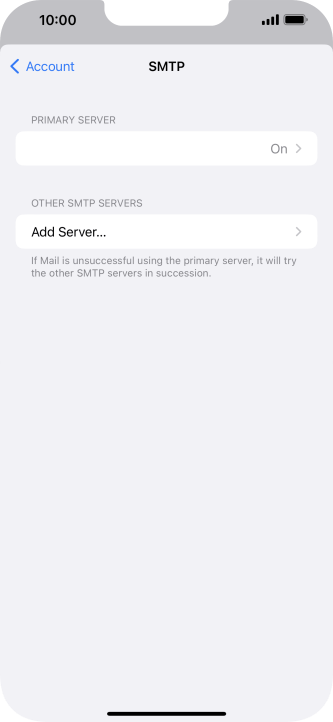

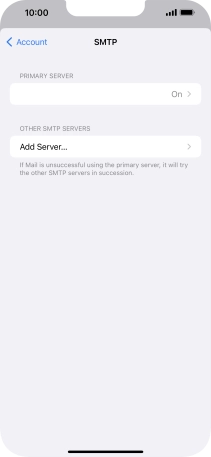

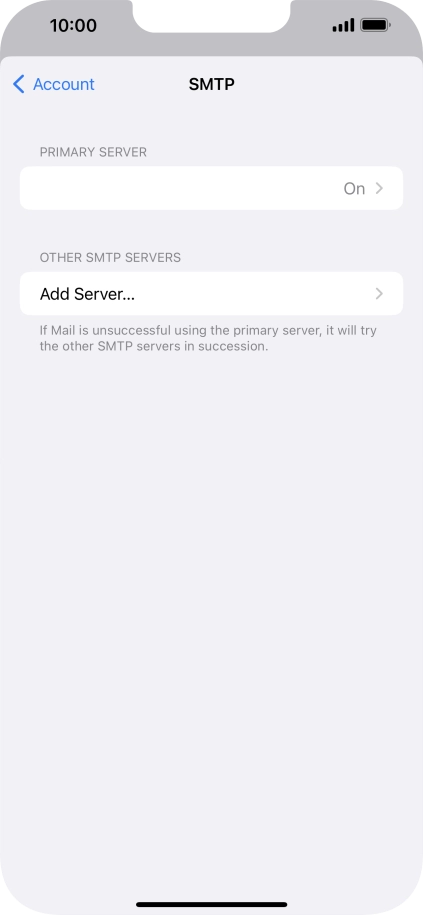

Step 22 of 43

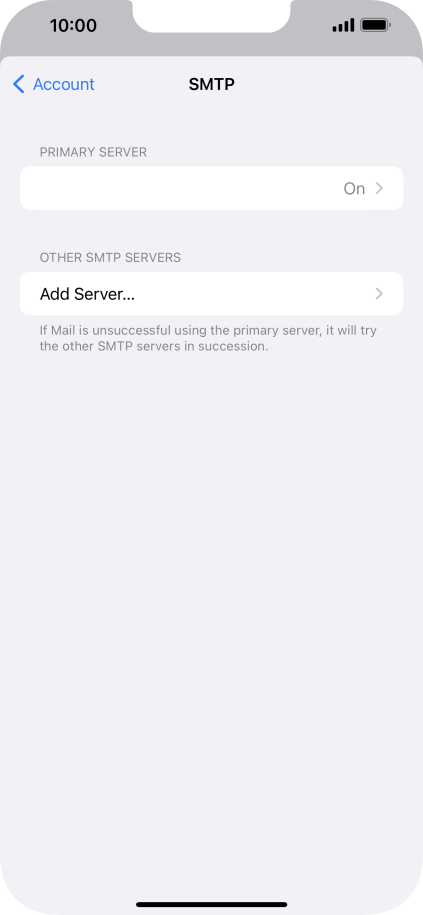

12. Turn off encryption of outgoing email messages

Press the field below "PRIMARY SERVER".

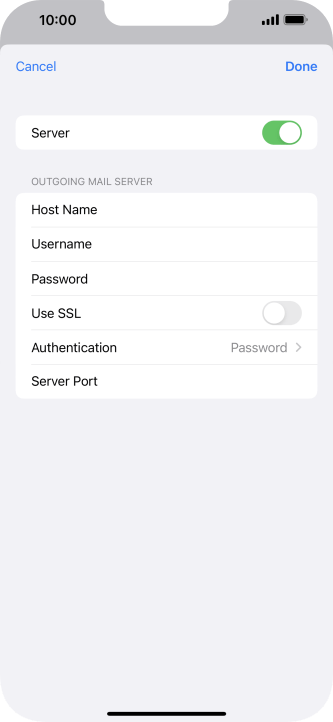

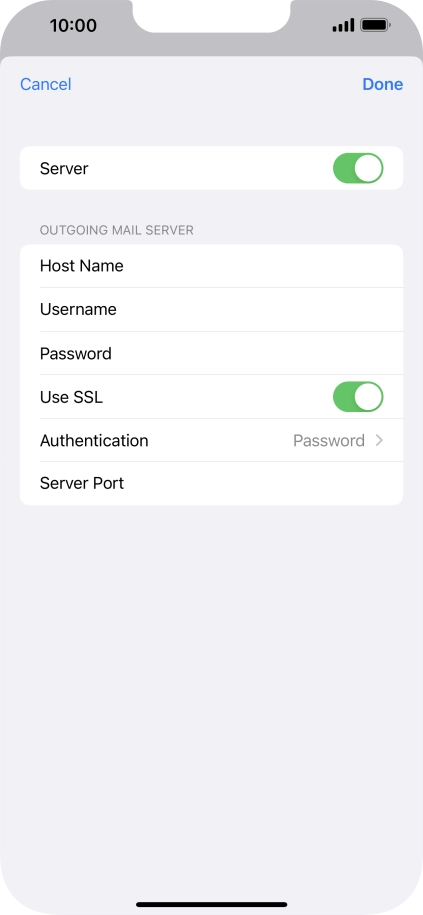

Step 23 of 43

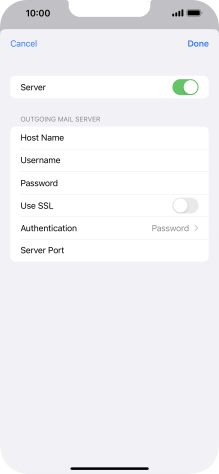

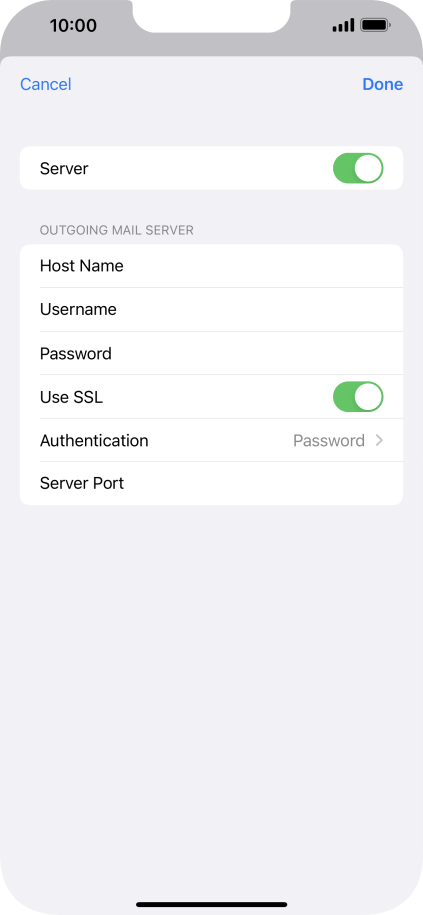

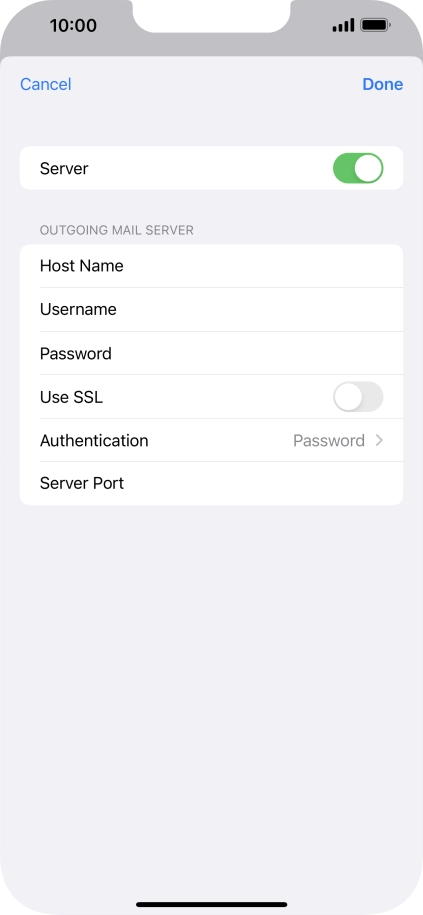

12. Turn off encryption of outgoing email messages

Press the indicator next to "Use SSL" to turn off the function.

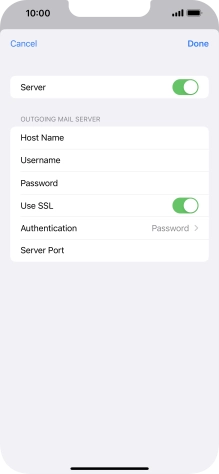

Step 24 of 43

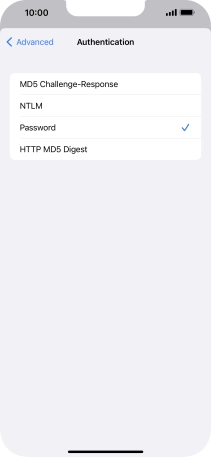

13. Turn off password encryption

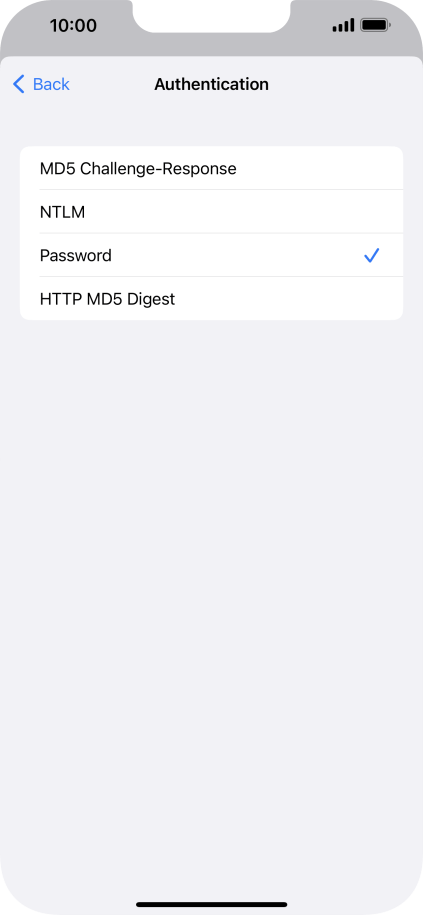

Press Authentication.

Step 25 of 43

13. Turn off password encryption

Press Password.

Step 26 of 43

13. Turn off password encryption

Press arrow left.

25
Step 27 of 43

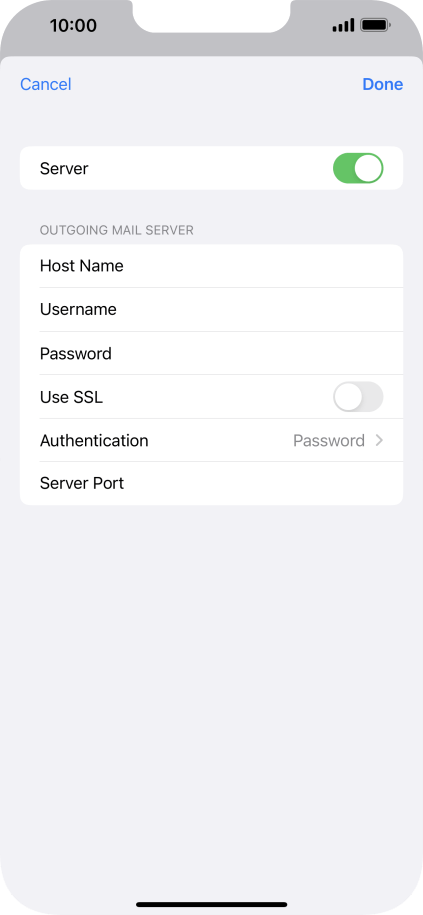

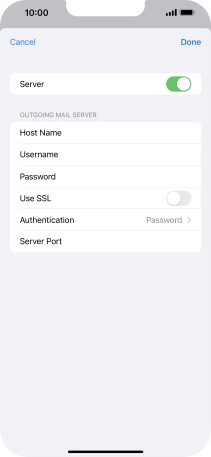

14. Enter outgoing port

Press Server Port and key in 25.

Step 28 of 43

14. Enter outgoing port

Press Done.

Step 29 of 43

14. Enter outgoing port

Press arrow left.

Step 30 of 43

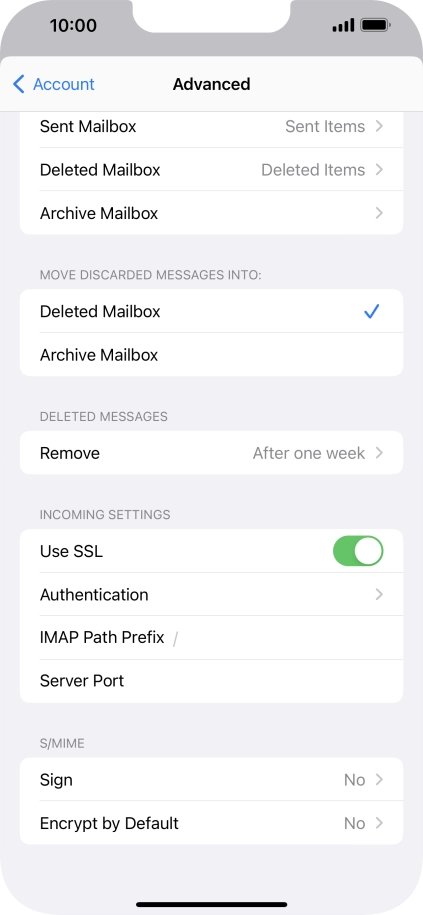

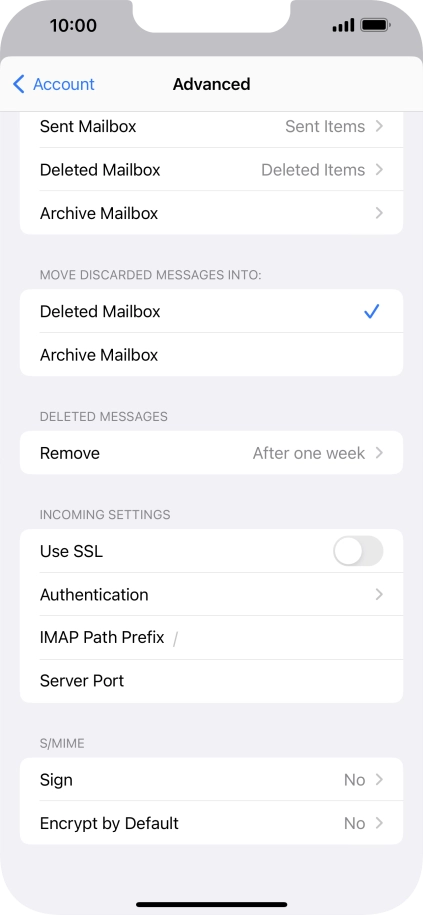

15. Turn off encryption of incoming email messages

Press Advanced.

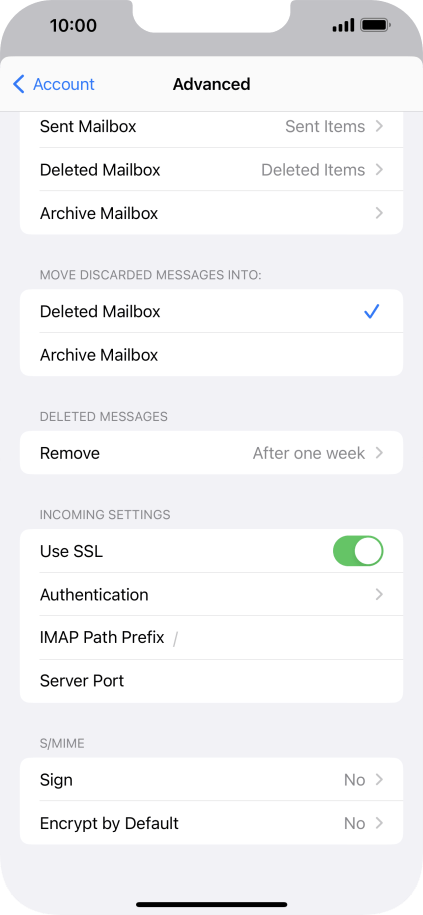

Step 31 of 43

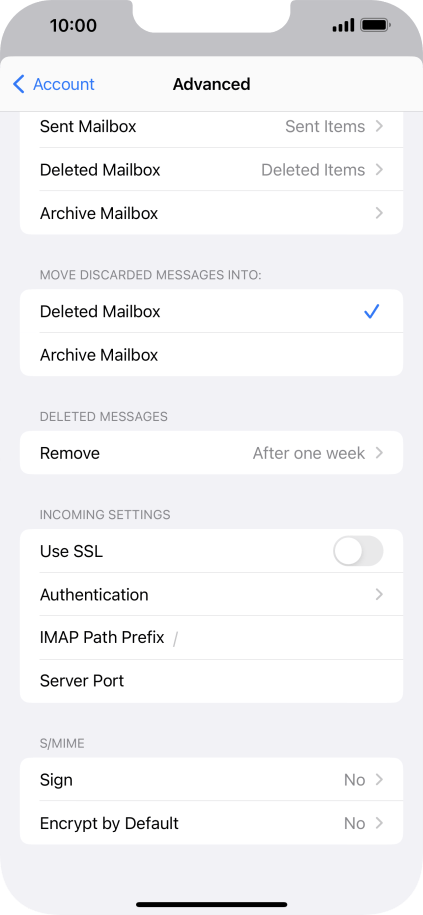

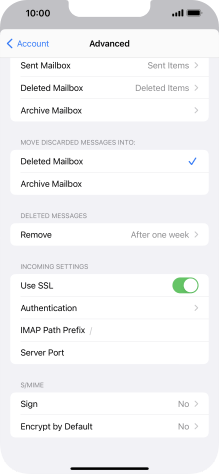

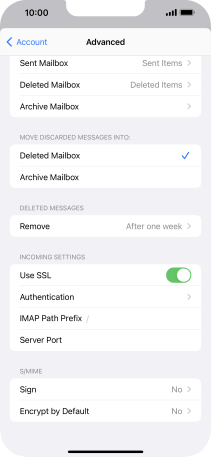

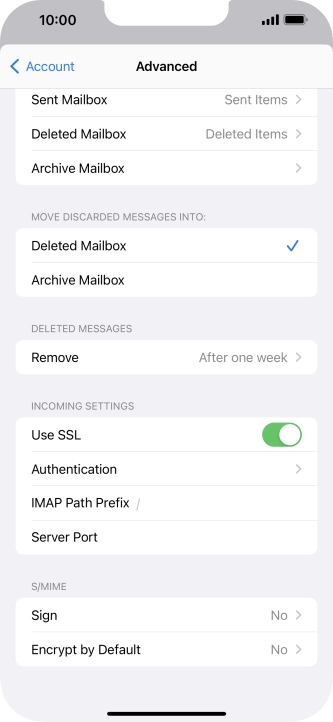

15. Turn off encryption of incoming email messages

Press the indicator next to "Use SSL" to turn off the function.

Step 32 of 43

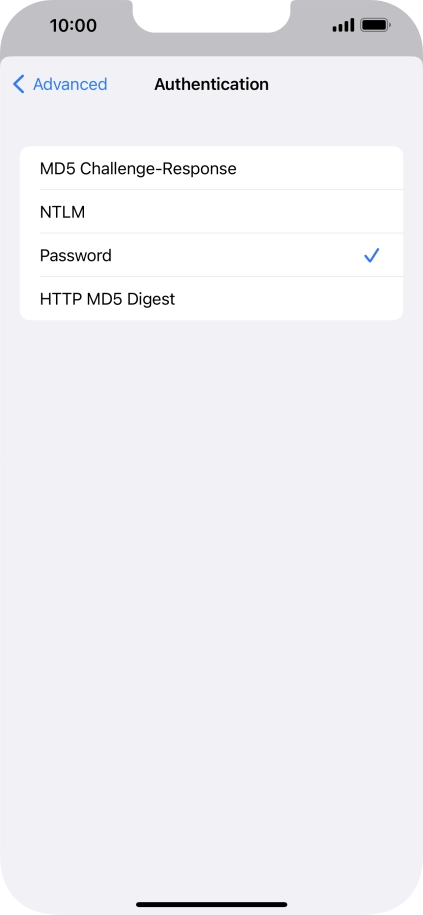

16. Turn off password encryption

Press Authentication.

Step 33 of 43

16. Turn off password encryption

Press Password.

Step 34 of 43

16. Turn off password encryption

Press arrow left.

143
Step 35 of 43

17. Enter incoming port

Press Server Port and key in 143.

Step 36 of 43

17. Enter incoming port

Press arrow left.

Step 37 of 43

17. Enter incoming port

Press Done.

Step 38 of 43

17. Enter incoming port

Press arrow left.

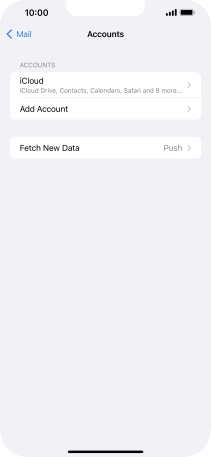

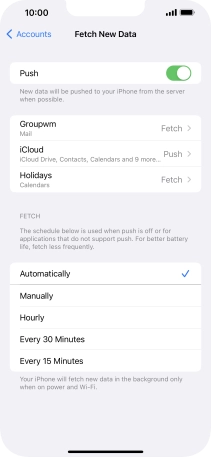

Step 39 of 43

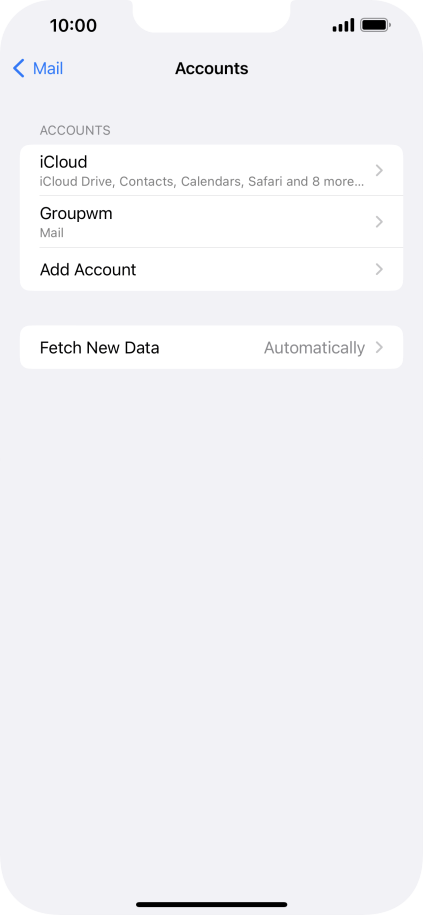

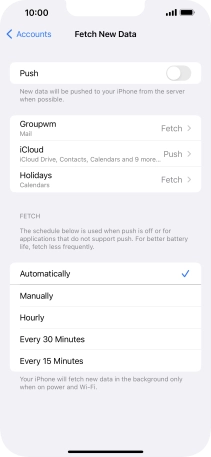

18. Select setting for retrieval of new email messages

Press Fetch New Data.

Step 40 of 43

18. Select setting for retrieval of new email messages

Press the indicator next to "Push" to turn the function on or off.

Step 41 of 43

18. Select setting for retrieval of new email messages

If you turn off the function, press the required setting.

Step 42 of 43

18. Select setting for retrieval of new email messages

Press the required email account and follow the instructions on the screen to select settings for the specific account.

Step 43 of 43

19. Return to the home screen

Slide your finger upwards starting from the bottom of the screen to return to the home screen.

1. Find "Accounts"

Press Settings.
Press Mail.
Press Accounts.

2. Create new email account

Press Add Account.
Press Other.
If the name of your email provider is on the list, press this instead.
Press Add Mail Account.

3. Enter sender name

Press Name and key in the required sender name.

4. Enter email address

Press Email and key in your email address.

5. Enter password

Press Password and key in the password for your email account.

6. Enter email account name

Press Description and key in the required name.
Press Next.
If this screen is displayed, you email account has been recognised and set up automatically. Follow the instructions on the screen to key in more information and finish setting up your phone.

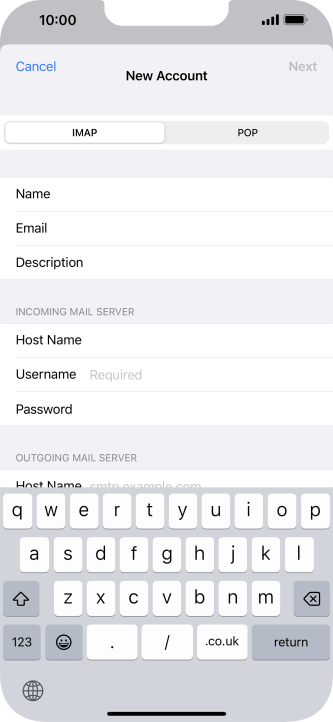

7. Select server type

Press IMAP.

8. Enter incoming server

Press Host Name and key in the name of your email provider's incoming server.

9. Enter username

Press Username and key in the username for your email account.

10. Enter outgoing server

Press Host Name and key in mail.vodafone.ie.
mail.vodafone.ie
Press Next.
Press Save. Your email account has now been set up. To select more settings for incoming and outgoing server, proceed with the following steps.

11. Select email account

Press the name of the email account you've just set up.
Press Account.

12. Turn off encryption of outgoing email messages

Press SMTP.
Press the field below "PRIMARY SERVER".
Press the indicator next to "Use SSL" to turn off the function.

13. Turn off password encryption

Press Authentication.
Press Password.
Press arrow left.

14. Enter outgoing port

Press Server Port and key in 25.
25
Press Done.
Press arrow left.

15. Turn off encryption of incoming email messages

Press Advanced.
Press the indicator next to "Use SSL" to turn off the function.

16. Turn off password encryption

Press Authentication.
Press Password.
Press arrow left.

17. Enter incoming port

Press Server Port and key in 143.
143
Press arrow left.
Press Done.
Press arrow left.

18. Select setting for retrieval of new email messages

Press Fetch New Data.
Press the indicator next to "Push" to turn the function on or off.
If you turn off the function, press the required setting.
Press the required email account and follow the instructions on the screen to select settings for the specific account.

19. Return to the home screen

Slide your finger upwards starting from the bottom of the screen to return to the home screen.
