1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-32cc8eec-6445-4e8f-8b47-bd4d3dda1913.png?width=216&height=386)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-eaee2628-3f3b-4a73-8d68-4905dc65756f.png?width=216&height=386)

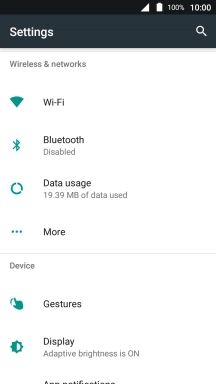

Press More.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0396dc38-5cf4-4528-9a6a-ec776cae8d27.png?width=216&height=386)

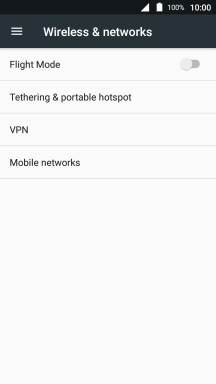

Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d9329edc-d631-4ef1-889d-15b2248b72d9.png?width=216&height=386)

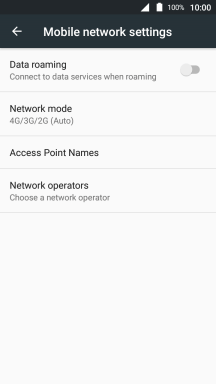

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-614479bb-f72d-40e2-a0dc-0002c5acc027.png?width=216&height=386)
2. Create new data connection

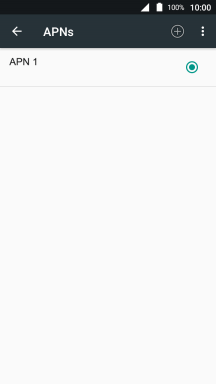

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8c6242c6-981e-454a-a37e-9deaea9f5908.png?width=216&height=386)

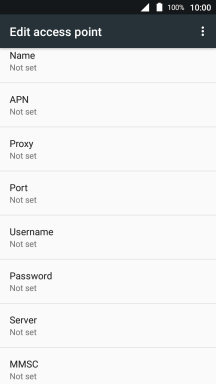

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b28b471d-d360-43c8-afa9-6f4d8f37d67a.png?width=216&height=386)
Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-297a8464-1497-40bf-af9d-6c89063b4c67.png?width=216&height=386)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b28b471d-d360-43c8-afa9-6f4d8f37d67a.png?width=216&height=386)
Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5ffefc14-a78b-43df-8755-6724b9c76996.png?width=216&height=386)
mms.vodafone.net
4. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b28b471d-d360-43c8-afa9-6f4d8f37d67a.png?width=216&height=386)
Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ace250cf-c3cb-491d-9a0d-50ad59486bd1.png?width=216&height=386)
http://www.vodafone.ie/mms
5. Enter IP address

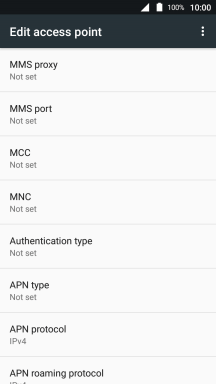

Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3270445b-564d-43b7-97c8-17f90f56118c.png?width=216&height=386)

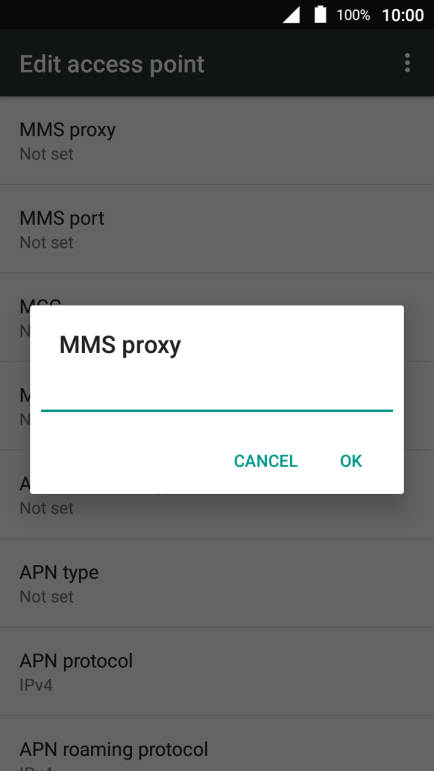

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f3e0215e-3e61-4fa1-9e03-5bb30a05811a.png?width=216&height=386)
10.24.59.200
6. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3270445b-564d-43b7-97c8-17f90f56118c.png?width=216&height=386)

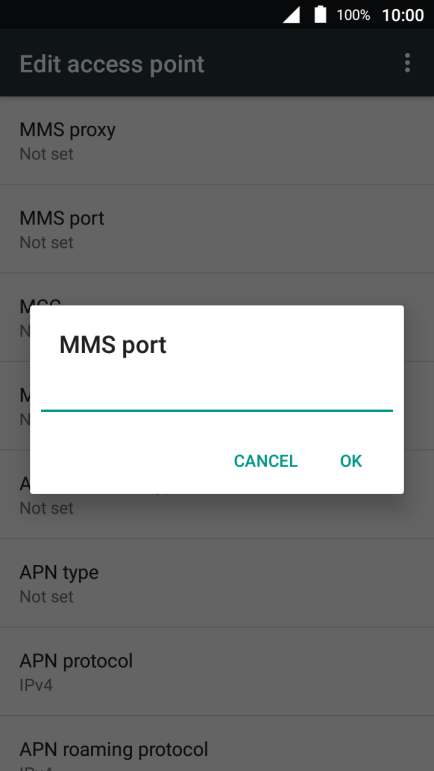

Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-61f869d5-33ee-4bda-a087-0bfb4c18151f.png?width=216&height=386)
80
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3270445b-564d-43b7-97c8-17f90f56118c.png?width=216&height=386)

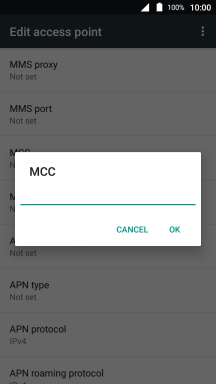

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7f715698-29ec-487b-90dd-eb1838a14e7d.png?width=216&height=386)
272
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3270445b-564d-43b7-97c8-17f90f56118c.png?width=216&height=386)
Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5a5f0796-6111-4613-9a65-8ccbc15a57af.png?width=216&height=386)
01
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3270445b-564d-43b7-97c8-17f90f56118c.png?width=216&height=386)

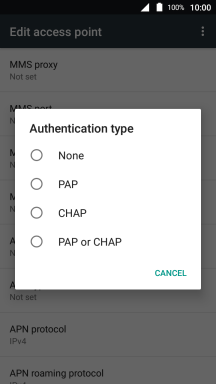

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-166e5d63-d0a8-4ad8-9159-6d389ce073da.png?width=216&height=386)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3270445b-564d-43b7-97c8-17f90f56118c.png?width=216&height=386)

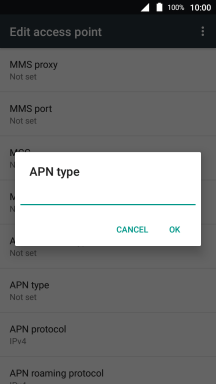

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-76114844-5723-4c32-b93e-12a9ec74c100.png?width=216&height=386)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3270445b-564d-43b7-97c8-17f90f56118c.png?width=216&height=386)

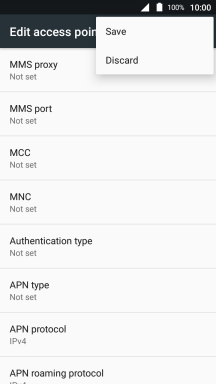

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-643b43c9-113b-48ba-9665-2f5cb3145cbb.png?width=216&height=386)
12. Return to the home screen

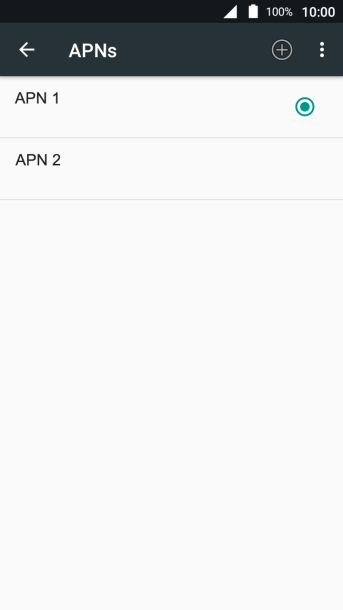

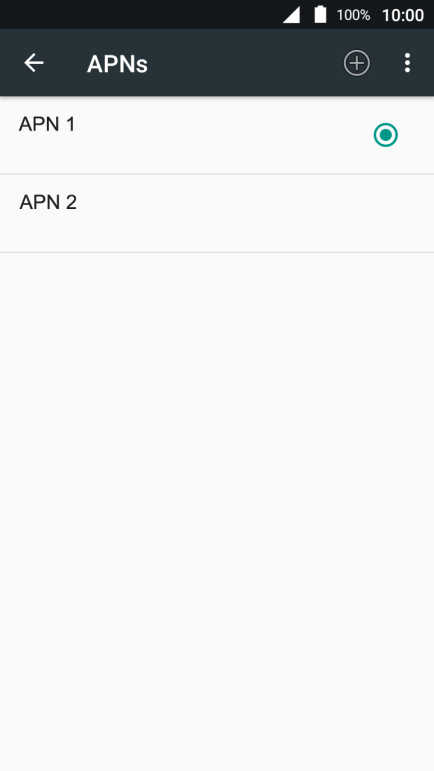

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1dcec276-24e7-45b6-b0ca-3efbaffd7bba.png?width=216&height=386)
