Set up your Xiaomi Redmi 9AT Android 10.0 for internet

Read help info

The internet connection is shared by many functions on your phone such as internet browsing, receiving email messages and installing apps. You can access the internet as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for internet manually.

Press Settings.
Step 1 of 25

1. Find "Access point names"

Press Settings.

Press SIM cards & mobile networks.
Step 2 of 25

1. Find "Access point names"

Press SIM cards & mobile networks.

Press the required SIM.
Step 3 of 25

1. Find "Access point names"

Press the required SIM.

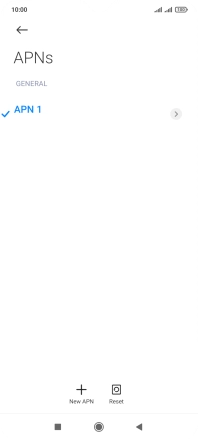

Press Access point names.
Step 4 of 25

1. Find "Access point names"

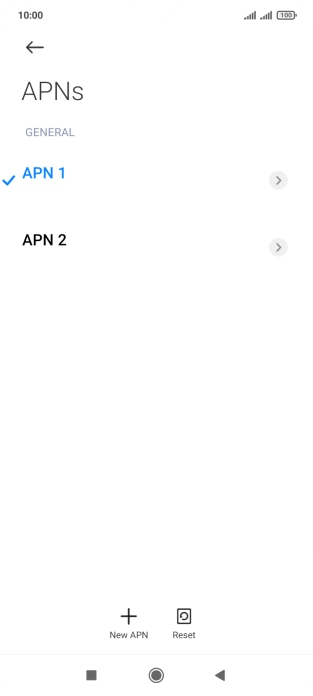

Press Access point names.

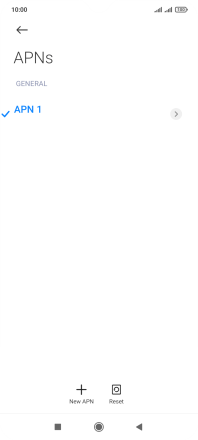

Press New APN.
Step 5 of 25

2. Create new data connection

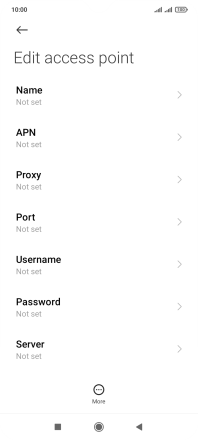

Press New APN.

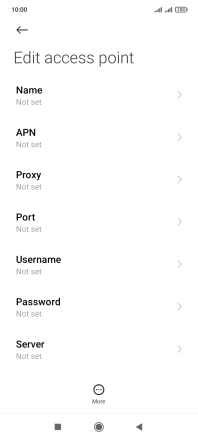

Press Name.
Step 6 of 25

3. Enter a name for the connection

Press Name.

Key in Vodafone Internet and press OK.
Vodafone Internet
Step 7 of 25

3. Enter a name for the connection

Key in Vodafone Internet and press OK.

Press APN.
Step 8 of 25

4. Enter APN

Press APN.

Key in live.vodafone.com and press OK.
live.vodafone.com
Step 9 of 25

4. Enter APN

Key in live.vodafone.com and press OK.

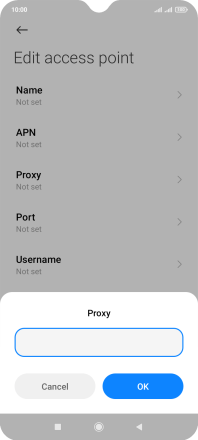

Press Proxy.
Step 10 of 25

5. Enter IP address

Press Proxy.

Key in 10.24.59.100 and press OK.
10.24.59.100
Step 11 of 25

5. Enter IP address

Key in 10.24.59.100 and press OK.

Press Port.
Step 12 of 25

6. Enter port number

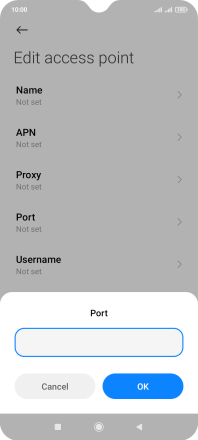

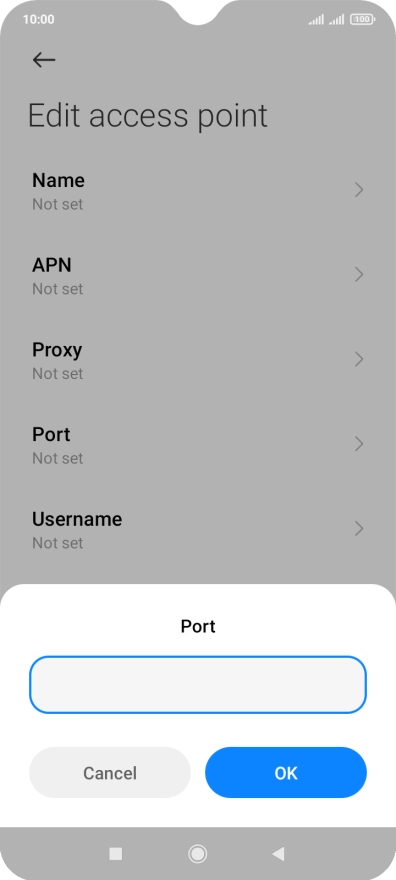

Press Port.

Key in 80 and press OK.
80
Step 13 of 25

6. Enter port number

Key in 80 and press OK.

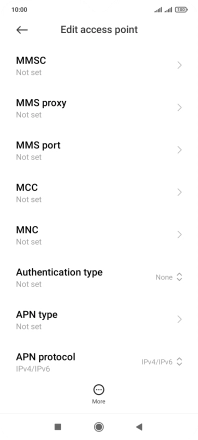

Press MCC.
Step 14 of 25

7. Enter country code

Press MCC.

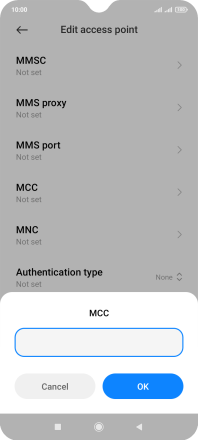

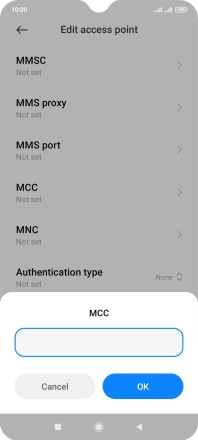

Key in 272 and press OK.
272
Step 15 of 25

7. Enter country code

Key in 272 and press OK.

Press MNC.
Step 16 of 25

8. Enter network code

Press MNC.

Key in 01 and press OK.
01
Step 17 of 25

8. Enter network code

Key in 01 and press OK.

Press Authentication type.
Step 18 of 25

9. Select authentication type

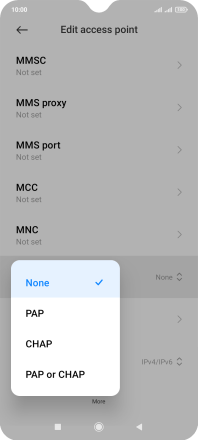

Press Authentication type.

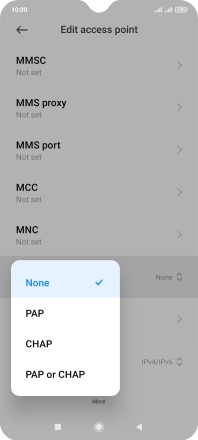

Press PAP.
Step 19 of 25

9. Select authentication type

Press PAP.

Press APN type.
Step 20 of 25

10. Enter APN type

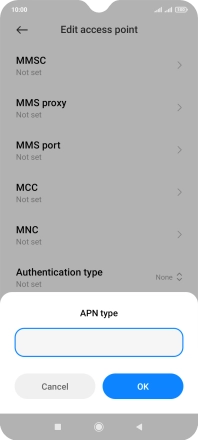

Press APN type.

Key in default and press OK.
default
Step 21 of 25

10. Enter APN type

Key in default and press OK.

Press More.
Step 22 of 25

11. Save data connection

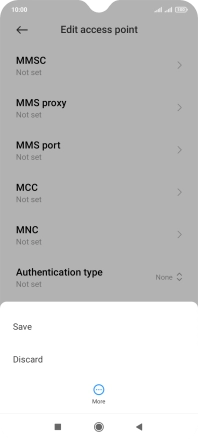

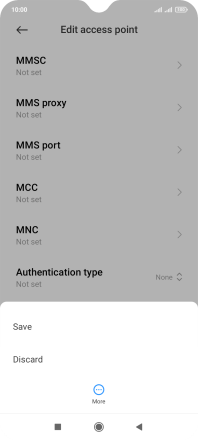

Press More.

Press Save.
Step 23 of 25

11. Save data connection

Press Save.

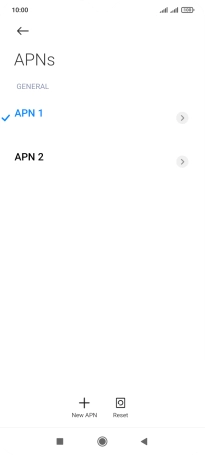

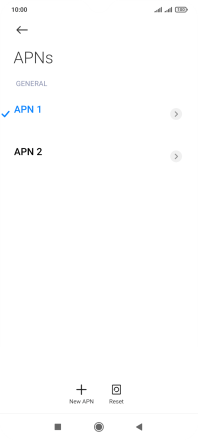

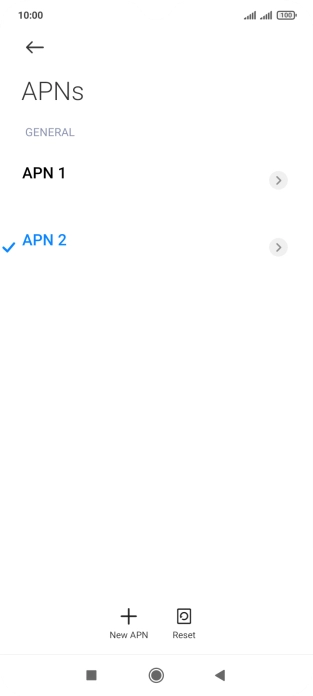

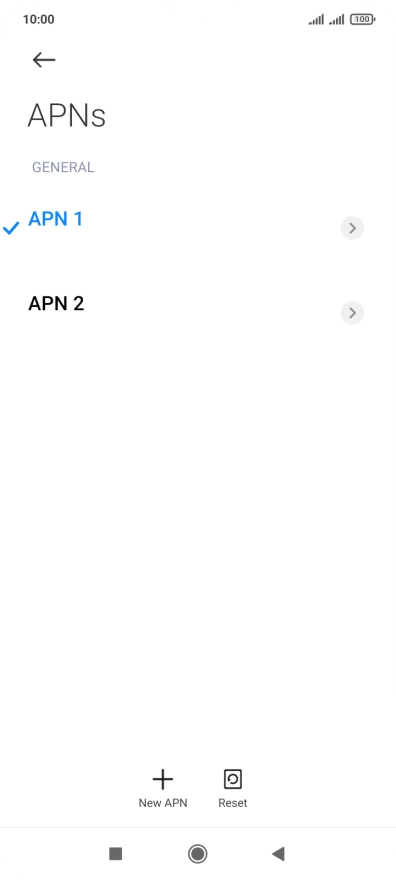

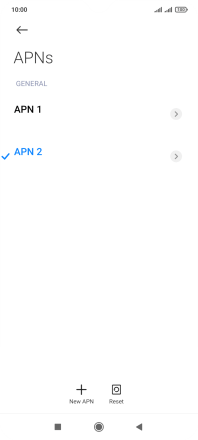

Press the required data connection to activate it.
Step 24 of 25

11. Save data connection

Press the required data connection to activate it.

Press the Home key to return to the home screen.
Step 25 of 25

12. Return to the home screen

Press the Home key to return to the home screen.

1. Find "Access point names"

Press Settings.
Press SIM cards & mobile networks.
Press the required SIM.
Press Access point names.

2. Create new data connection

Press New APN.

3. Enter a name for the connection

Press Name.
Key in Vodafone Internet and press OK.
Vodafone Internet

4. Enter APN

Press APN.
Key in live.vodafone.com and press OK.
live.vodafone.com

5. Enter IP address

Press Proxy.
Key in 10.24.59.100 and press OK.
10.24.59.100

6. Enter port number

Press Port.
Key in 80 and press OK.
80

7. Enter country code

Press MCC.
Key in 272 and press OK.
272

8. Enter network code

Press MNC.
Key in 01 and press OK.
01

9. Select authentication type

Press Authentication type.
Press PAP.

10. Enter APN type

Press APN type.
Key in default and press OK.
default

11. Save data connection

Press More.
Press Save.
Press the required data connection to activate it.

12. Return to the home screen

Press the Home key to return to the home screen.
