1. Find "Access point names"

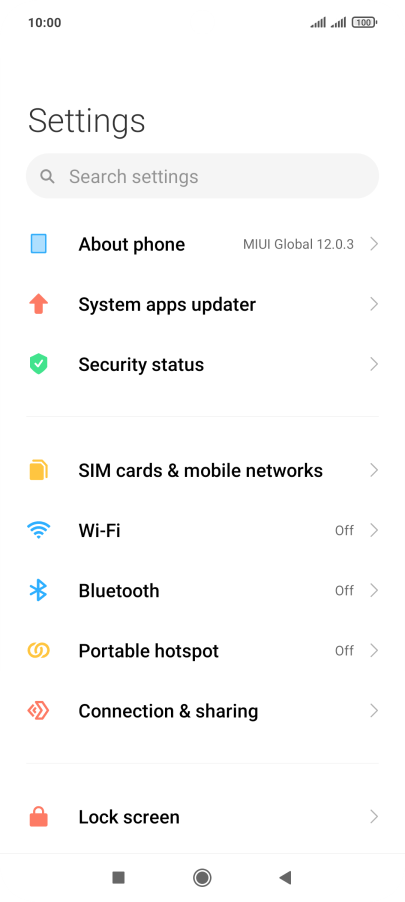

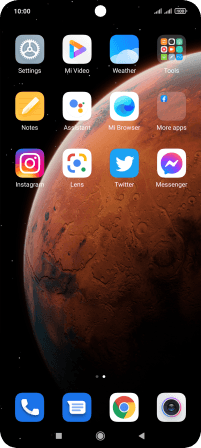

Press Settings.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-83b6c051-494b-41a7-b4c3-ef4b312d038e.png?width=202&height=448)
Press SIM cards & mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-dad08f07-0159-4cfd-816c-b1ff54ed9168.png?width=202&height=448)

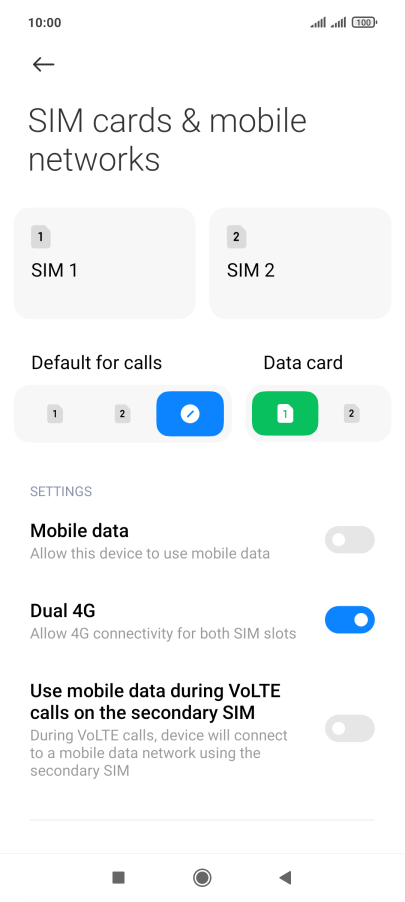

Press the required SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-be0c78b0-4432-4457-a7f2-627625d720db.png?width=202&height=448)

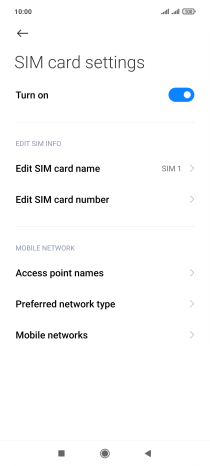

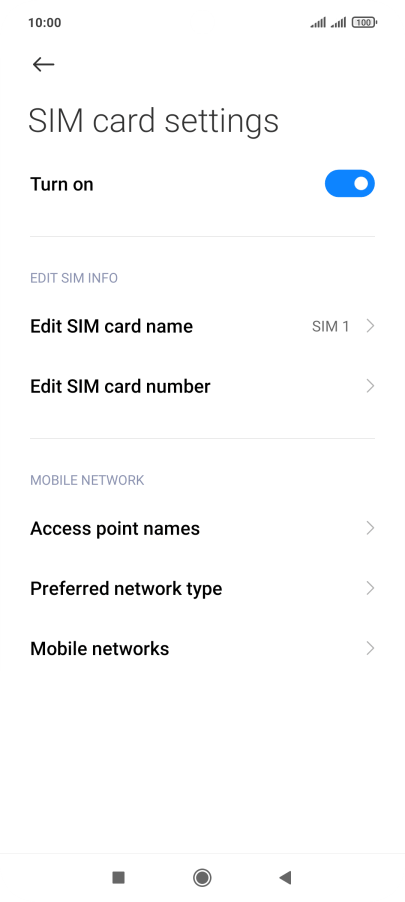

Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d2b98270-6711-4c35-b660-7f2297b362bd.png?width=202&height=448)
2. Create new data connection

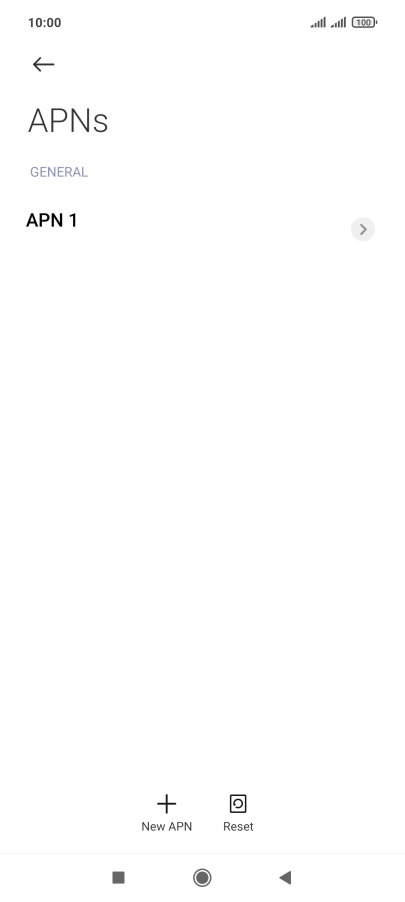

Press New APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d0ade981-a0d1-47e2-acaf-95684160df5c.png?width=202&height=448)
3. Enter a name for the connection

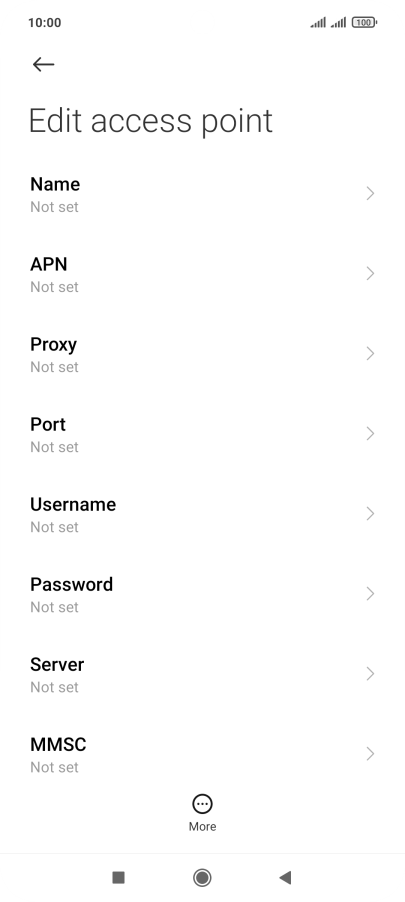

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ff653664-4799-4b10-b497-21b74b0fe66f.png?width=202&height=448)
Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4493ba89-af5d-4f11-94c9-ab60bfc40b32.png?width=202&height=448)
Vodafone MMS
4. Enter APN

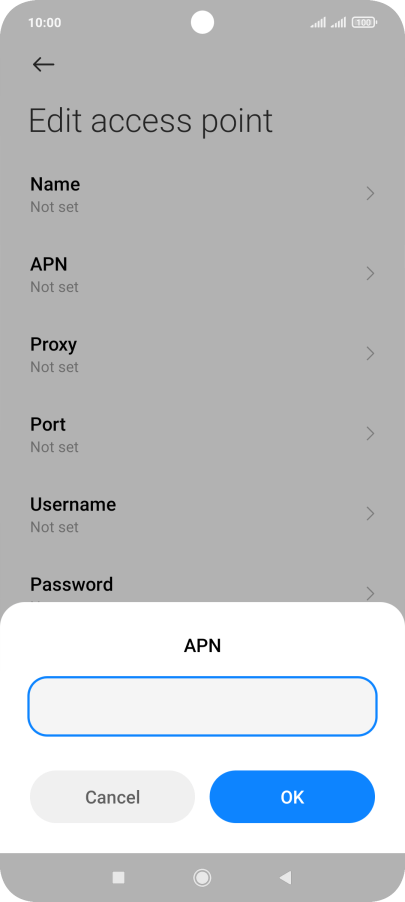

Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ff653664-4799-4b10-b497-21b74b0fe66f.png?width=202&height=448)
Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f24323e5-a335-4538-85f2-e8e7d11e7cf6.png?width=202&height=448)
mms.vodafone.net
5. Enter picture messaging server
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ff653664-4799-4b10-b497-21b74b0fe66f.png?width=202&height=448)

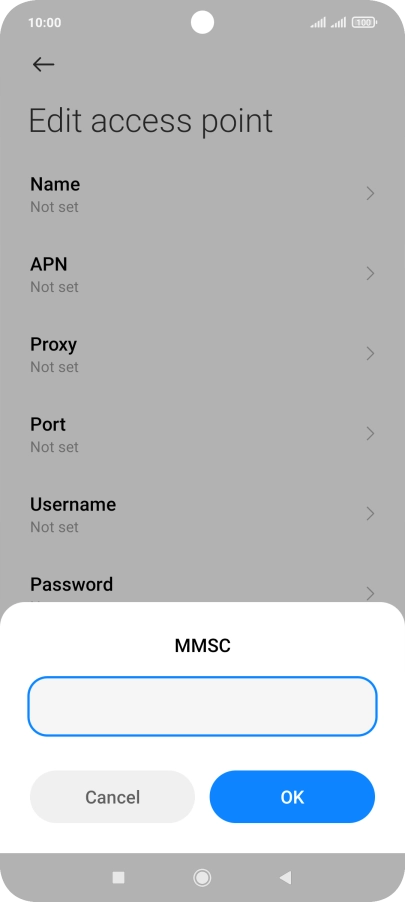

Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ec359fea-9565-4b88-97c4-8b99cc5f00bc.png?width=202&height=448)
http://www.vodafone.ie/mms
6. Enter IP address

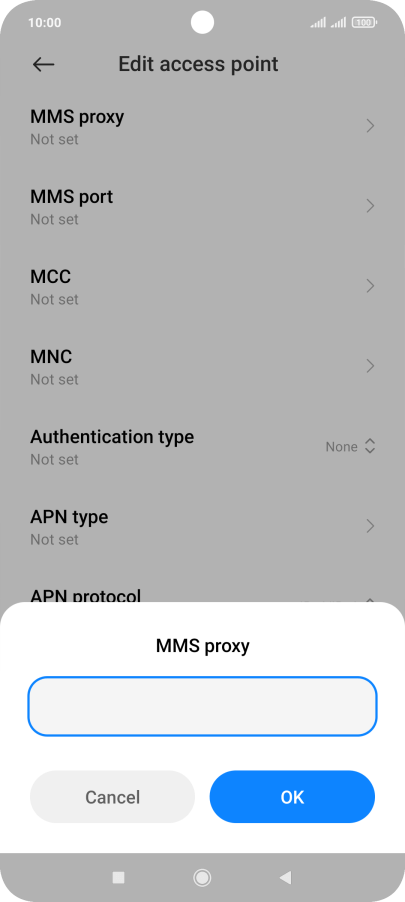

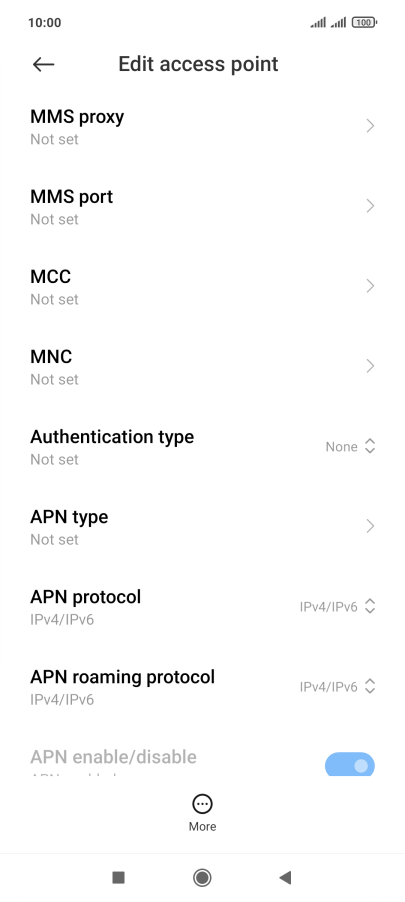

Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5a60f21f-e3c2-4f32-a867-741a564ade3a.png?width=202&height=448)

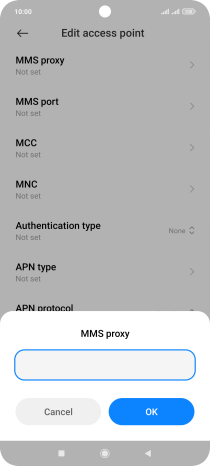

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-bca3a90b-73df-4bd4-a2de-21bf9e22c9f2.png?width=202&height=448)
10.24.59.200
7. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5a60f21f-e3c2-4f32-a867-741a564ade3a.png?width=202&height=448)
Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6f0eeab2-f1a5-4990-8803-1edf9e6d69d4.png?width=202&height=448)
80
8. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5a60f21f-e3c2-4f32-a867-741a564ade3a.png?width=202&height=448)

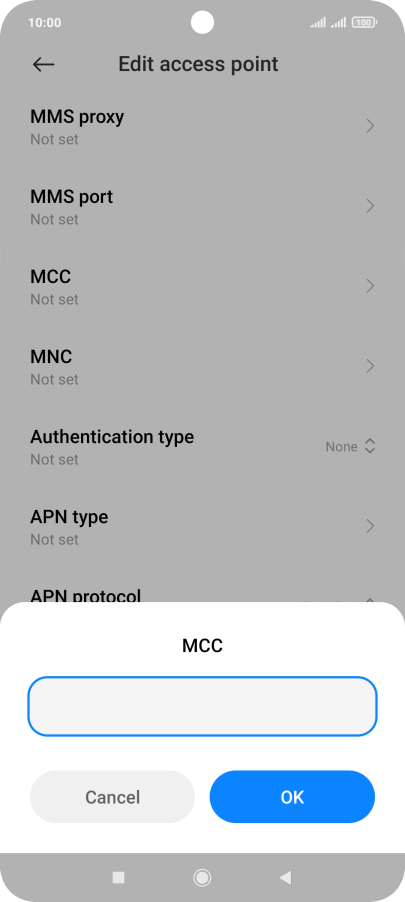

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-513d8326-6ddc-4306-8ed6-b0b2fab9df05.png?width=202&height=448)
272
9. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5a60f21f-e3c2-4f32-a867-741a564ade3a.png?width=202&height=448)
Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d22808d3-d429-4ac6-9097-9f073aa3eeba.png?width=202&height=448)
01
10. Select authentication type

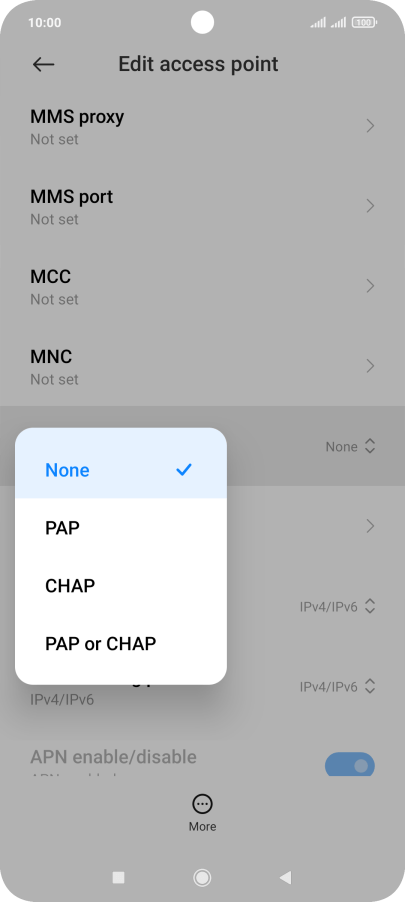

Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5a60f21f-e3c2-4f32-a867-741a564ade3a.png?width=202&height=448)
Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2472b3c7-d906-4839-b60b-291865e9668a.png?width=202&height=448)
11. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5a60f21f-e3c2-4f32-a867-741a564ade3a.png?width=202&height=448)
Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ece2f407-31dd-4790-923a-5deff4eecb6c.png?width=202&height=448)
mms
12. Save data connection
Press More.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5a60f21f-e3c2-4f32-a867-741a564ade3a.png?width=202&height=448)

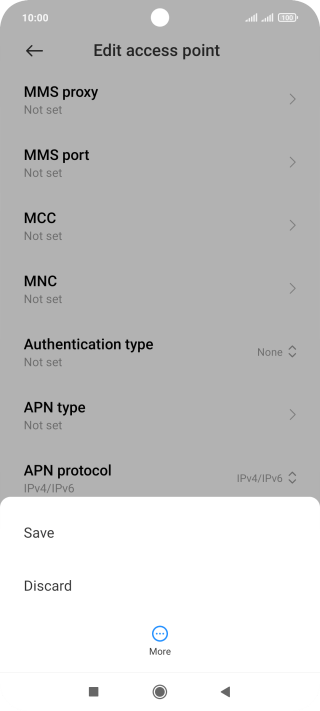

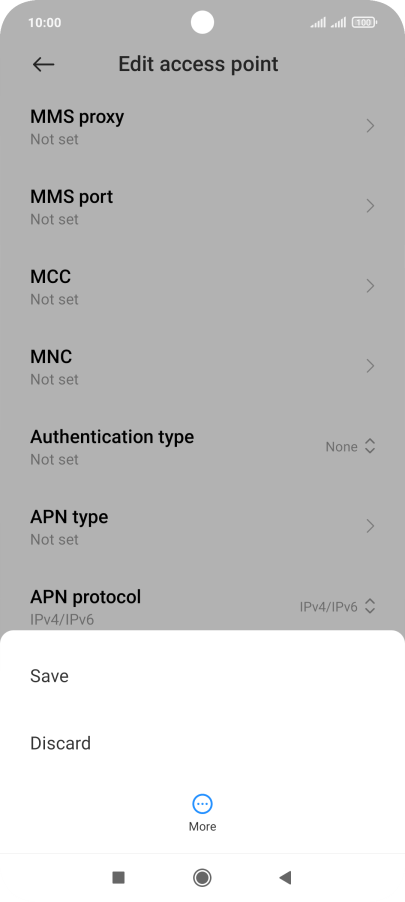

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a7dd45ca-366a-422c-8b86-2f099815fc7a.png?width=202&height=448)

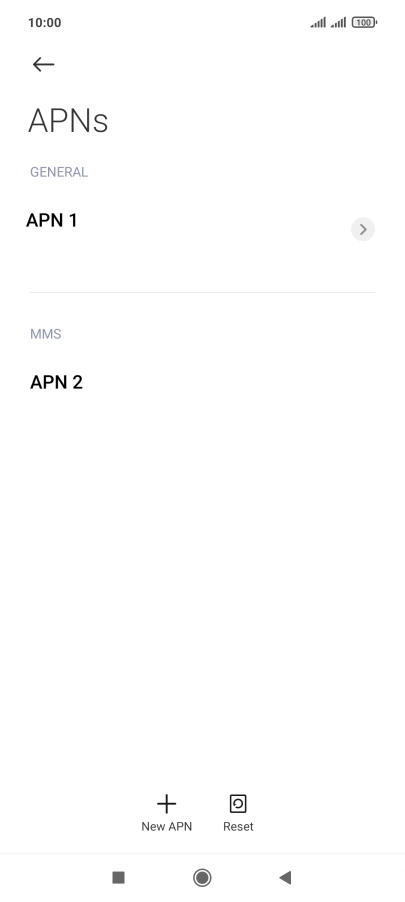

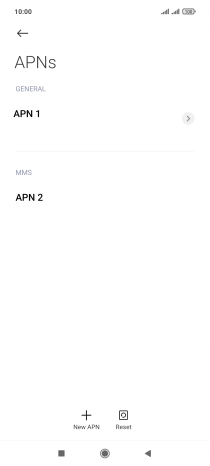

13. Return to the home screen

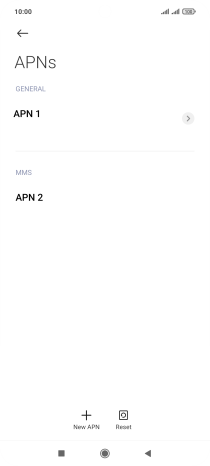

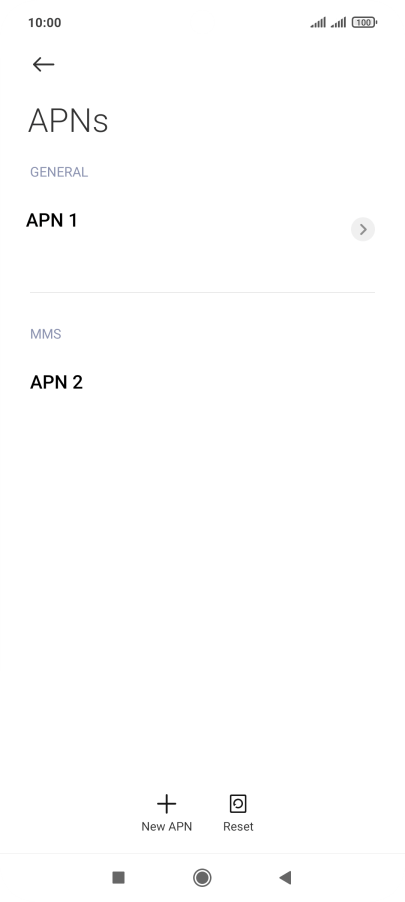

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5762df49-4704-432c-a558-d6d21cba8bac.png?width=202&height=448)
