1. Find "Access point names"
Press Settings.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-359f4746-f5e5-4414-a314-b86cd9e0495f.png?width=206&height=456)
Press SIM cards & mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b80d71c2-6fcf-441f-b931-35dec75474fc.png?width=206&height=456)
Press the required SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e298096d-aa46-4ada-8a24-6acc58ed8737.png?width=206&height=456)
Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ed0f6271-b048-4a53-b558-a19afc4a701d.png?width=206&height=456)
2. Create new data connection

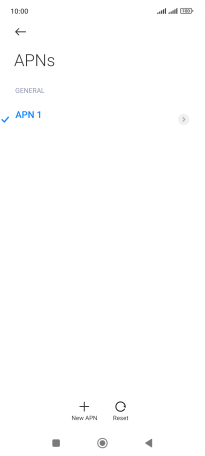

Press New APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d96b2d0e-7a93-4cf1-98f7-bd66e1803473.png?width=206&height=456)
3. Enter a name for the connection

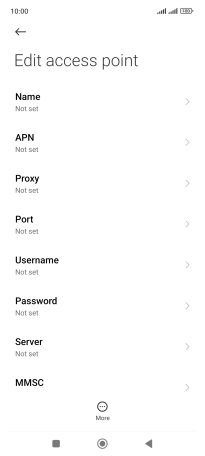

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5922c491-49ce-4efa-85a1-33abebfdeed5.png?width=206&height=456)
Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-09cf7deb-468c-4ac2-ae02-d8ddd489ddb9.png?width=206&height=456)
Vodafone MMS
4. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5922c491-49ce-4efa-85a1-33abebfdeed5.png?width=206&height=456)

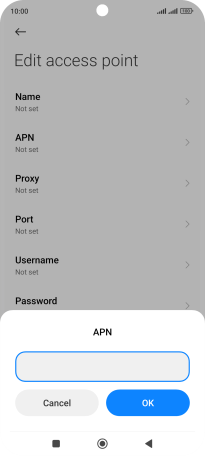

Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-303958a1-1315-43e8-b5aa-52c293856a00.png?width=206&height=456)
mms.vodafone.net
5. Enter picture messaging server
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5922c491-49ce-4efa-85a1-33abebfdeed5.png?width=206&height=456)
Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6e2b2531-1556-4497-a88e-fbc634cd16e9.png?width=206&height=456)
http://www.vodafone.ie/mms
6. Enter IP address

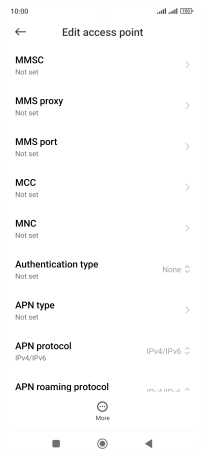

Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0d86566c-8d93-4fa9-8d8f-54fca9b2eb08.png?width=206&height=456)

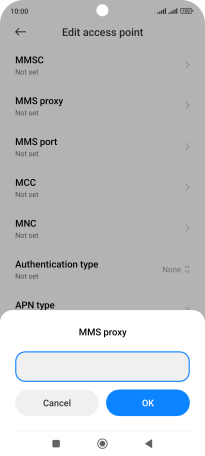

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2d5e3442-7b52-46eb-8905-957faeafecef.png?width=206&height=456)
10.24.59.200
7. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0d86566c-8d93-4fa9-8d8f-54fca9b2eb08.png?width=206&height=456)

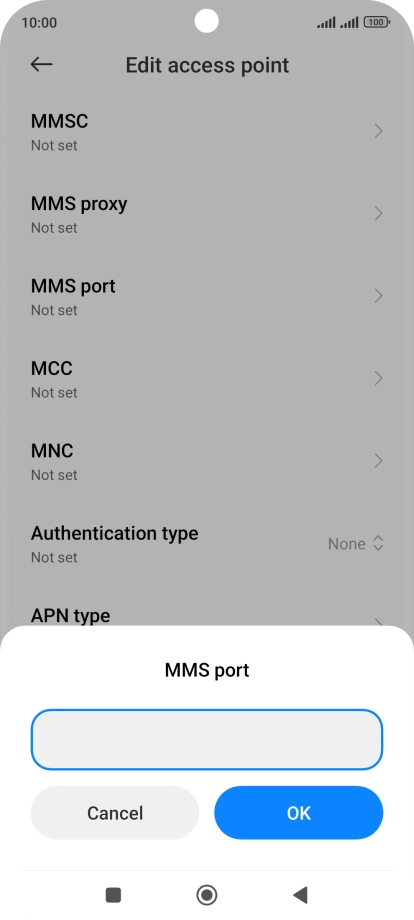

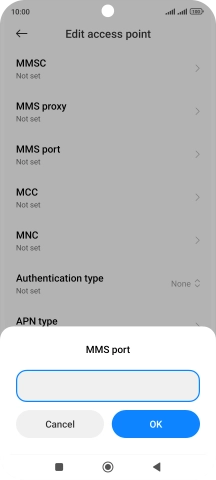

Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b7b4ed30-0db4-48d1-97c4-3e2087fdfe0a.png?width=206&height=456)
80
8. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0d86566c-8d93-4fa9-8d8f-54fca9b2eb08.png?width=206&height=456)
Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2069a3a4-cb15-4133-ab10-e31f8db08c1d.png?width=206&height=456)
272
9. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0d86566c-8d93-4fa9-8d8f-54fca9b2eb08.png?width=206&height=456)
Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-537c92b6-4b84-43aa-b859-5a1045d98e38.png?width=206&height=456)
01
10. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0d86566c-8d93-4fa9-8d8f-54fca9b2eb08.png?width=206&height=456)

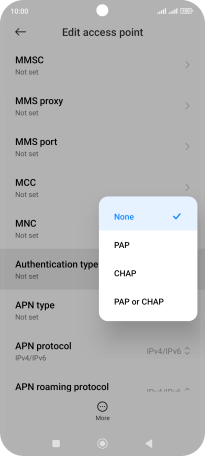

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-fe6b32ee-f9ef-403d-af35-77b49a0aea88.png?width=206&height=456)
11. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0d86566c-8d93-4fa9-8d8f-54fca9b2eb08.png?width=206&height=456)
Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-43a6a2e6-9772-4ef8-9c38-83c9566ae04d.png?width=206&height=456)
mms
12. Save data connection
Press More.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0d86566c-8d93-4fa9-8d8f-54fca9b2eb08.png?width=206&height=456)

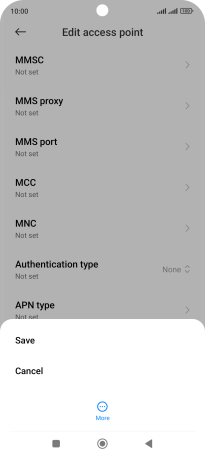

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f21fadff-b8c0-4f4e-8a25-781e7f97e5f8.png?width=206&height=456)
13. Return to the home screen

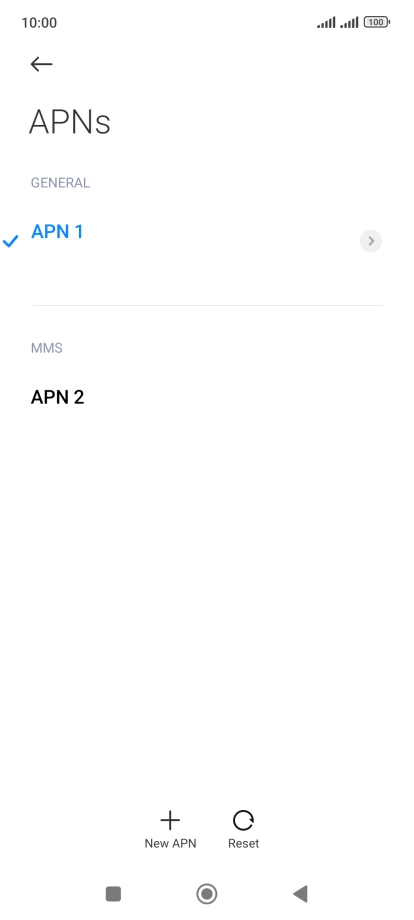

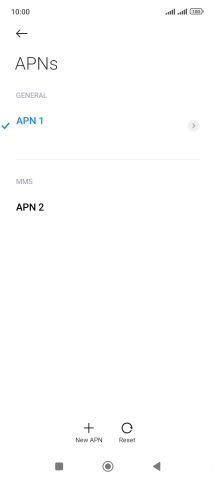

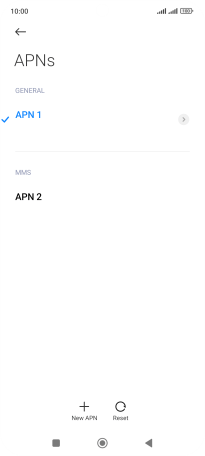

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3762424d-b7ad-4a55-a930-c653a99f3a19.png?width=206&height=456)
