Xiaomi 11T Pro

Xiaomi 11T Pro

Android 11.0

Set up your Xiaomi 11T Pro Android 11.0 for picture messaging

Read help info

A picture message is a message which can contain pictures and other media files and can be sent to other mobile phones. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for picture messaging manually.

Step 1 of 26

1. Find "Access point names"

Press Settings.

Step 2 of 26

1. Find "Access point names"

Press SIM cards & mobile networks.

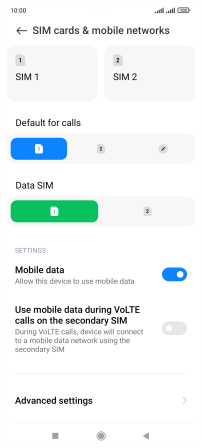

Step 3 of 26

1. Find "Access point names"

Press the required SIM.

Step 4 of 26

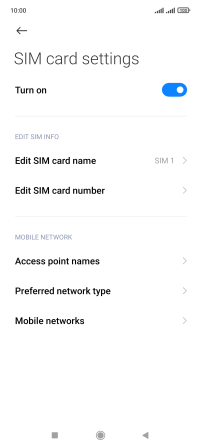

1. Find "Access point names"

Press Access point names.

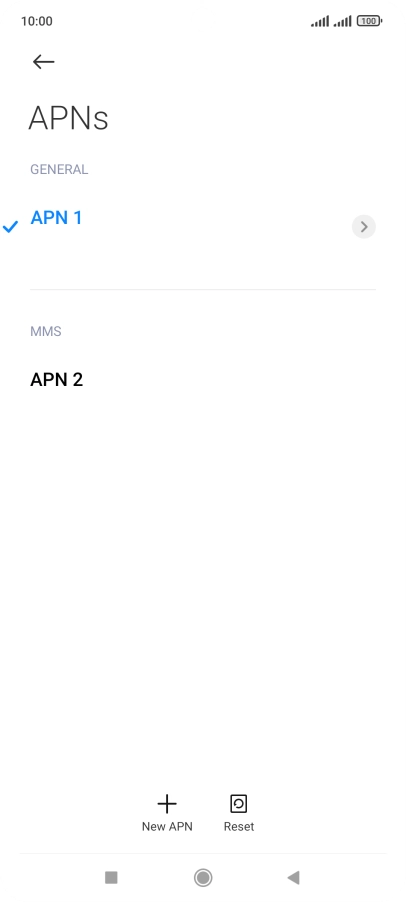

Step 5 of 26

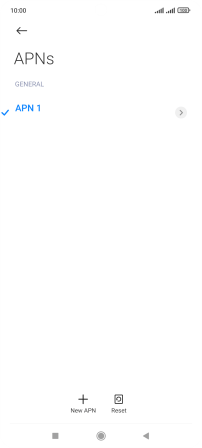

2. Create new data connection

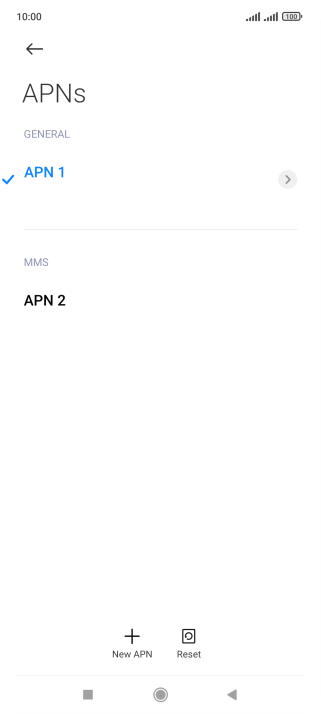

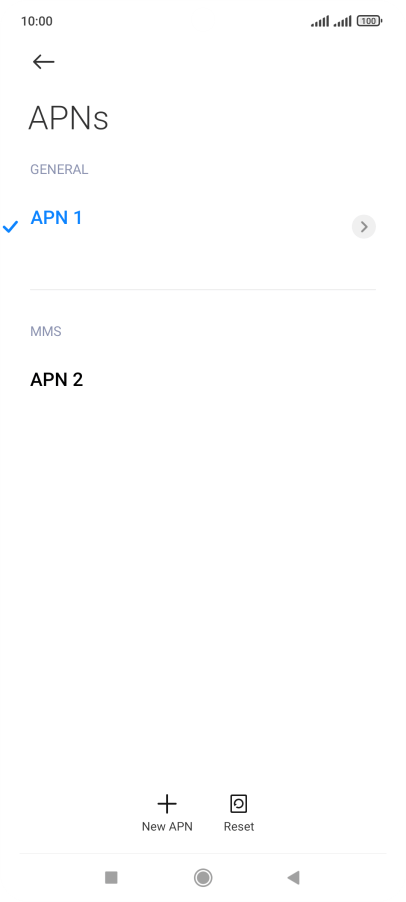

Press New APN.

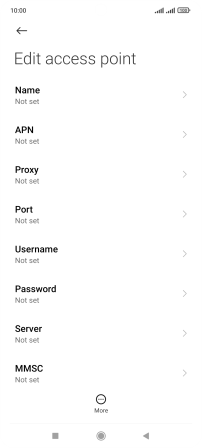

Step 6 of 26

3. Enter a name for the connection

Press Name.

Vodafone MMS
Step 7 of 26

3. Enter a name for the connection

Key in Vodafone MMS and press OK.

Step 8 of 26

4. Enter APN

Press APN.

mms.vodafone.net
Step 9 of 26

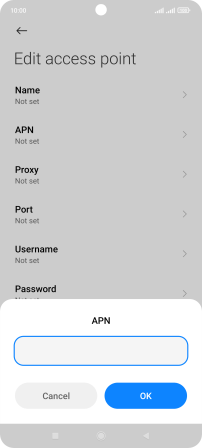

4. Enter APN

Key in mms.vodafone.net and press OK.

Step 10 of 26

5. Enter picture messaging server

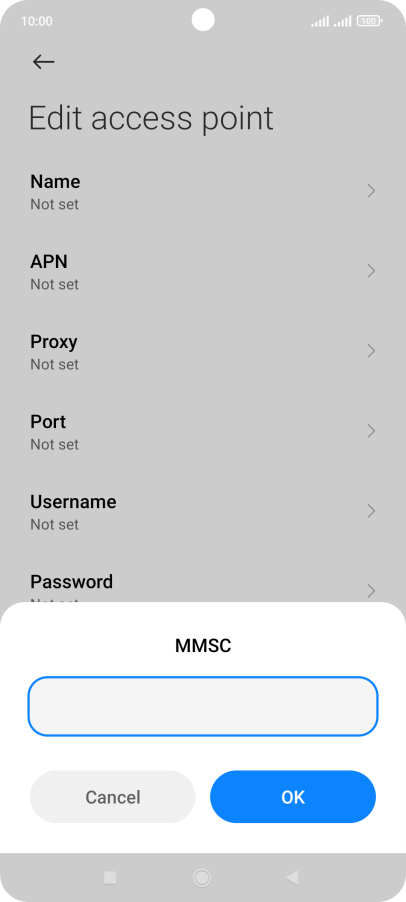

Press MMSC.

http://www.vodafone.ie/mms

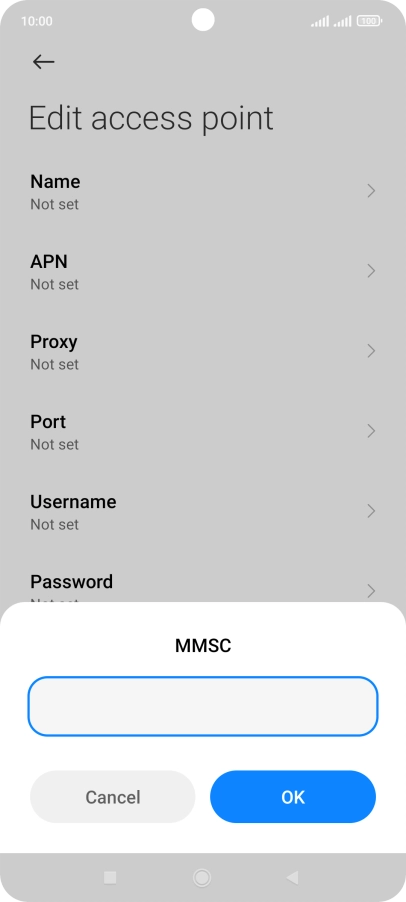

Step 11 of 26

5. Enter picture messaging server

Key in http://www.vodafone.ie/mms and press OK.

Step 12 of 26

6. Enter IP address

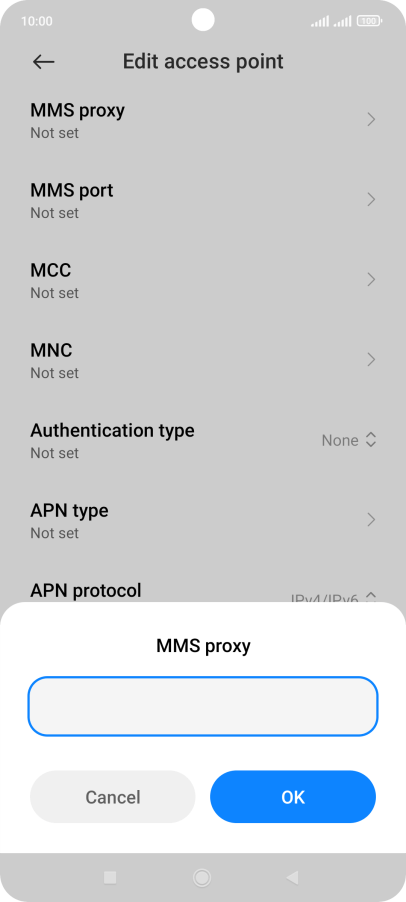

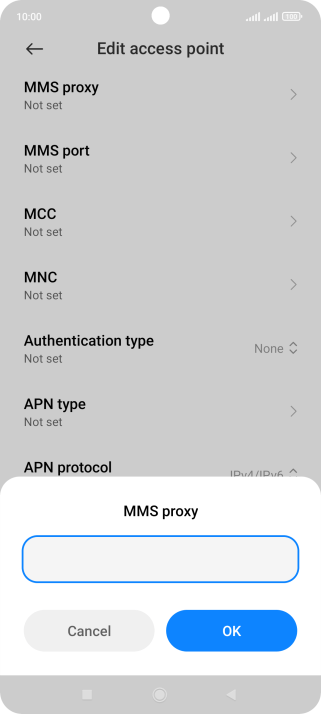

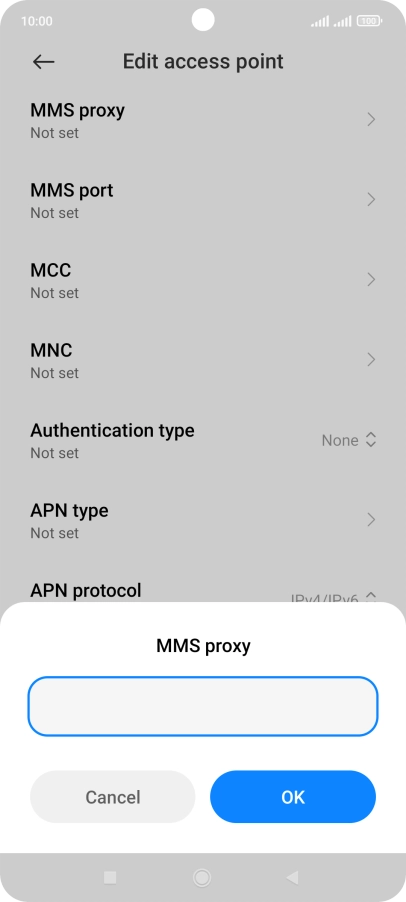

Press MMS proxy.

10.24.59.200
Step 13 of 26

6. Enter IP address

Key in 10.24.59.200 and press OK.

Step 14 of 26

7. Enter port number

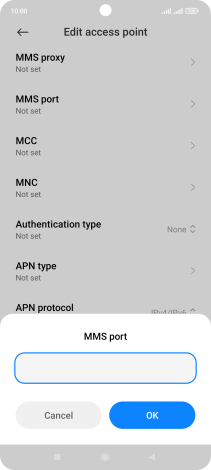

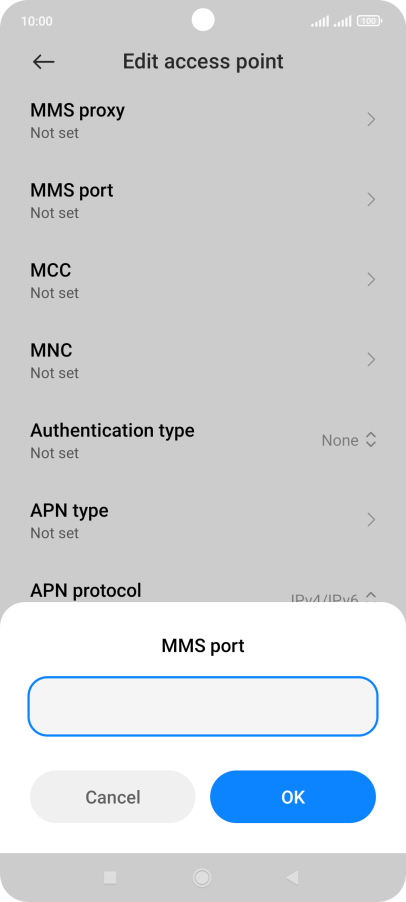

Press MMS port.

80

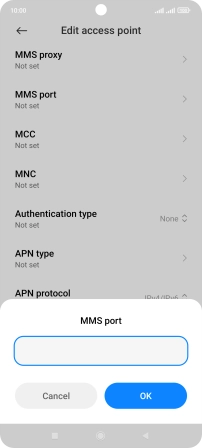

Step 15 of 26

7. Enter port number

Key in 80 and press OK.

Step 16 of 26

8. Enter country code

Press MCC.

272

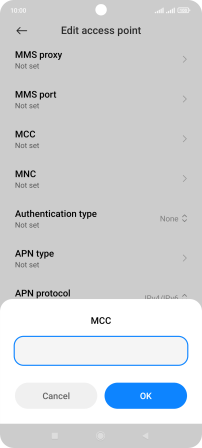

Step 17 of 26

8. Enter country code

Key in 272 and press OK.

Step 18 of 26

9. Enter network code

Press MNC.

01

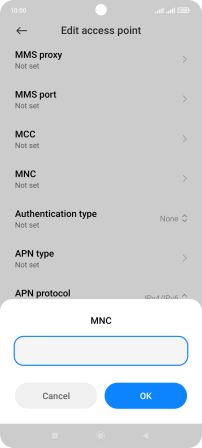

Step 19 of 26

9. Enter network code

Key in 01 and press OK.

Step 20 of 26

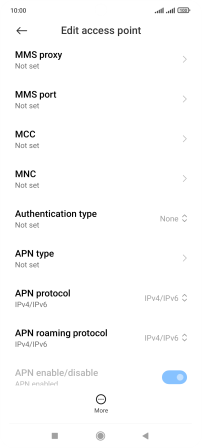

10. Select authentication type

Press Authentication type.

Step 21 of 26

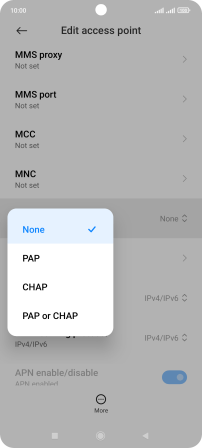

10. Select authentication type

Press PAP.

Step 22 of 26

11. Enter APN type

Press APN type.

mms
Step 23 of 26

11. Enter APN type

Key in mms and press OK.

Step 24 of 26

12. Save data connection

Press More.

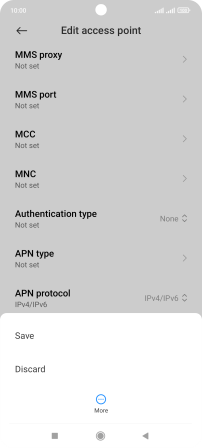

Step 25 of 26

12. Save data connection

Press Save.

Step 26 of 26

13. Return to the home screen

Press the Home key to return to the home screen.

1. Find "Access point names"

Press Settings.
Press SIM cards & mobile networks.
Press the required SIM.
Press Access point names.

2. Create new data connection

Press New APN.

3. Enter a name for the connection

Press Name.
Key in Vodafone MMS and press OK.
Vodafone MMS

4. Enter APN

Press APN.
Key in mms.vodafone.net and press OK.
mms.vodafone.net

5. Enter picture messaging server

Press MMSC.
Key in http://www.vodafone.ie/mms and press OK.
http://www.vodafone.ie/mms

6. Enter IP address

Press MMS proxy.
Key in 10.24.59.200 and press OK.
10.24.59.200

7. Enter port number

Press MMS port.
Key in 80 and press OK.
80

8. Enter country code

Press MCC.
Key in 272 and press OK.
272

9. Enter network code

Press MNC.
Key in 01 and press OK.
01

10. Select authentication type

Press Authentication type.
Press PAP.

11. Enter APN type

Press APN type.
Key in mms and press OK.
mms

12. Save data connection

Press More.
Press Save.

13. Return to the home screen

Press the Home key to return to the home screen.
