Vodafone Smart N8

Vodafone Smart N8

Android 7.0

Set up your Vodafone Smart N8 Android 7.0 for IMAP email

Read help info

You can set up your phone to send and receive email messages from your email accounts. Using IMAP, your email messages are kept on the server and are synchronised between all of your devices. You're then able to access your email messages from other devices. To set up your phone for IMAP email, you need to set up your phone for internet.

Step 1 of 34

1. Find "Accounts"

Slide two fingers downwards starting from the top of the screen.

Step 2 of 34

1. Find "Accounts"

Press the settings icon.

Step 3 of 34

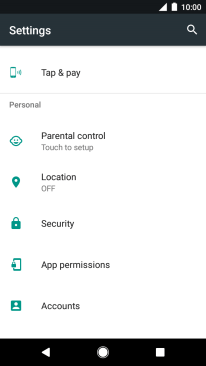

1. Find "Accounts"

Press Accounts.

Step 4 of 34

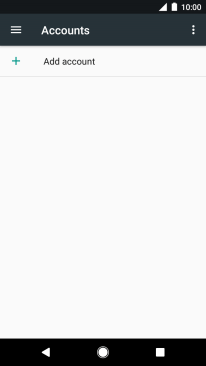

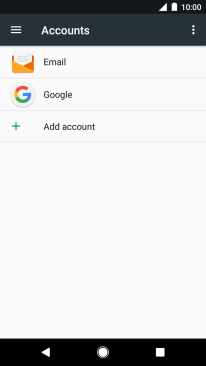

2. Create new email account

Press Add account.

Step 5 of 34

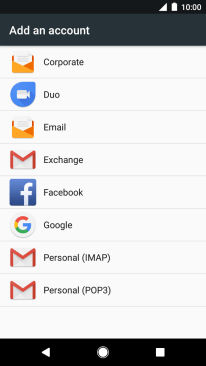

2. Create new email account

Press Email.

Step 6 of 34

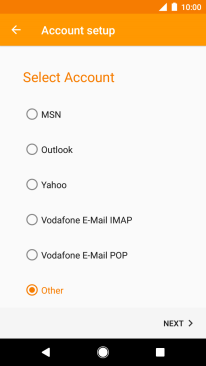

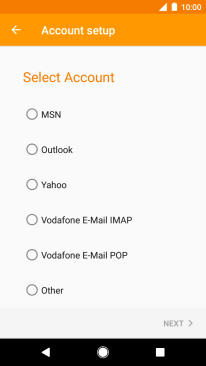

2. Create new email account

Press Other.

Step 7 of 34

2. Create new email account

Press NEXT.

Step 8 of 34

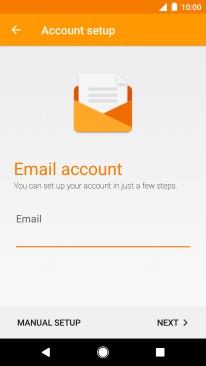

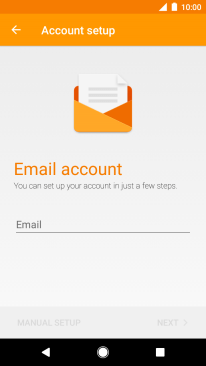

3. Enter email address

Press Email and key in your email address.

Step 9 of 34

3. Enter email address

Press NEXT.

Step 10 of 34

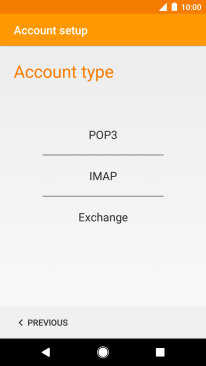

4. Select server type

Press IMAP.

Step 11 of 34

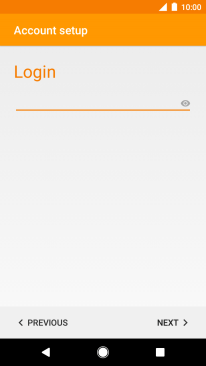

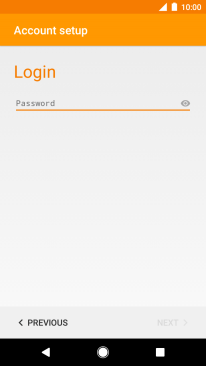

5. Enter password

Press Password and key in the password for your email account.

Step 12 of 34

5. Enter password

Press NEXT.

Step 13 of 34

5. Enter password

If this screen is displayed, you email account has been recognised and set up automatically. Follow the instructions on the screen to key in more information and finish setting up your phone.

Step 14 of 34

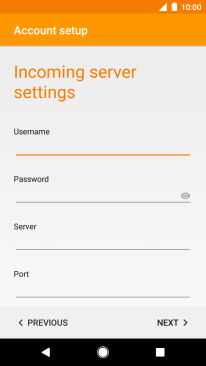

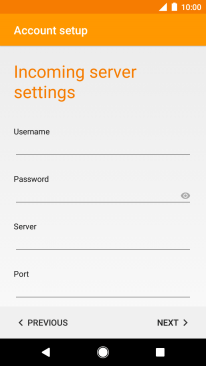

6. Enter username

Press the field below "Username" and key in the username for your email account.

Step 15 of 34

7. Enter incoming server

Press the field below "Server" and key in the name of your email provider's incoming server.

143
Step 16 of 34

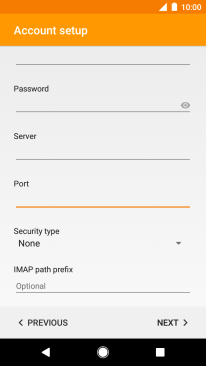

8. Enter incoming port

Press the field below "Port" and key in 143.

Step 17 of 34

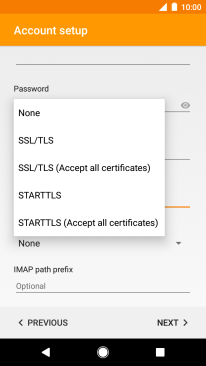

9. Turn off encryption of incoming email messages

Press the drop down list below "Security type".

Step 18 of 34

9. Turn off encryption of incoming email messages

Press None to turn off the function.

Step 19 of 34

9. Turn off encryption of incoming email messages

Press NEXT.

mail.vodafone.ie
Step 20 of 34

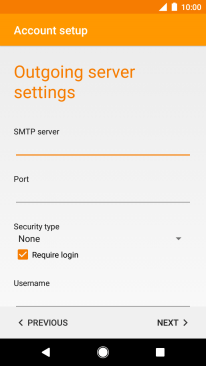

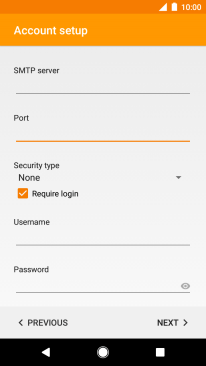

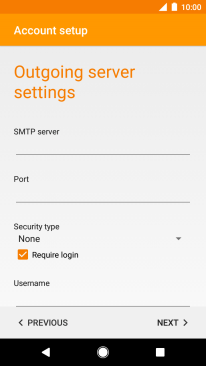

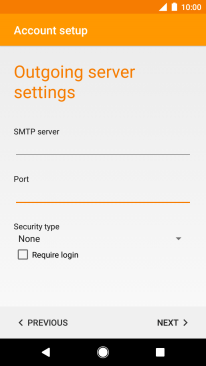

10. Enter outgoing server

Press the field below "SMTP server" and key in mail.vodafone.ie.

25
Step 21 of 34

11. Enter outgoing port

Press the field below "Port" and key in 25.

Step 22 of 34

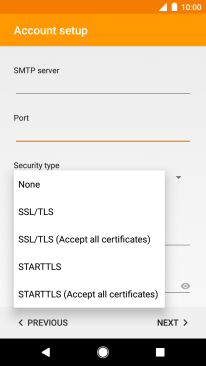

12. Turn off encryption of outgoing email messages

Press the drop down list below "Security type".

Step 23 of 34

12. Turn off encryption of outgoing email messages

Press None to turn off the function.

Step 24 of 34

13. Turn off SMTP authentication

Press Require login to turn off the function.

Step 25 of 34

13. Turn off SMTP authentication

Press NEXT.

Step 26 of 34

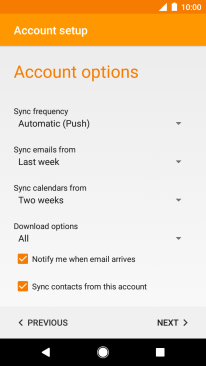

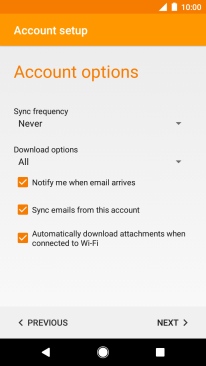

14. Select setting for retrieval of new email messages

Press the drop down list below "Sync frequency".

Step 27 of 34

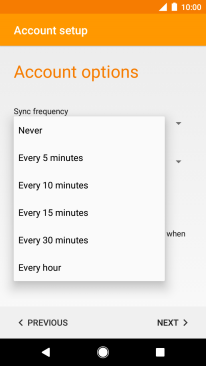

14. Select setting for retrieval of new email messages

Press the required setting.

Step 28 of 34

15. Turn email message notifications on or off

Press Notify me when email arrives to turn the function on or off.

Step 29 of 34

16. Turn on email message synchronisation

Press Sync emails from this account to turn on the function.

Step 30 of 34

16. Turn on email message synchronisation

Press NEXT.

Step 31 of 34

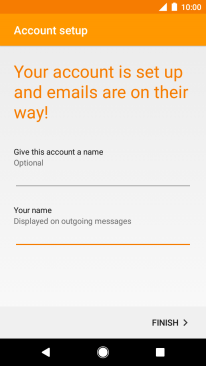

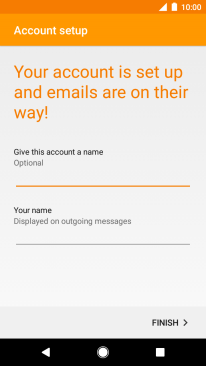

17. Enter email account name

Press the field below "Give this account a name" and key in the required name.

Step 32 of 34

18. Enter sender name

Press the field below "Your name" and key in the required sender name.

Step 33 of 34

18. Enter sender name

Press FINISH.

Step 34 of 34

19. Return to the home screen

Press the Home key to return to the home screen.

1. Find "Accounts"

Slide two fingers downwards starting from the top of the screen.
Press the settings icon.
Press Accounts.

2. Create new email account

Press Add account.
Press Email.
Press Other.
Press NEXT.

3. Enter email address

Press Email and key in your email address.
Press NEXT.

4. Select server type

Press IMAP.

5. Enter password

Press Password and key in the password for your email account.
Press NEXT.
If this screen is displayed, you email account has been recognised and set up automatically. Follow the instructions on the screen to key in more information and finish setting up your phone.

6. Enter username

Press the field below "Username" and key in the username for your email account.

7. Enter incoming server

Press the field below "Server" and key in the name of your email provider's incoming server.

8. Enter incoming port

Press the field below "Port" and key in 143.
143

9. Turn off encryption of incoming email messages

Press the drop down list below "Security type".
Press None to turn off the function.
Press NEXT.

10. Enter outgoing server

Press the field below "SMTP server" and key in mail.vodafone.ie.
mail.vodafone.ie

11. Enter outgoing port

Press the field below "Port" and key in 25.
25

12. Turn off encryption of outgoing email messages

Press the drop down list below "Security type".
Press None to turn off the function.

13. Turn off SMTP authentication

Press Require login to turn off the function.
Press NEXT.

14. Select setting for retrieval of new email messages

Press the drop down list below "Sync frequency".
Press the required setting.

15. Turn email message notifications on or off

Press Notify me when email arrives to turn the function on or off.

16. Turn on email message synchronisation

Press Sync emails from this account to turn on the function.
Press NEXT.

17. Enter email account name

Press the field below "Give this account a name" and key in the required name.

18. Enter sender name

Press the field below "Your name" and key in the required sender name.
Press FINISH.

19. Return to the home screen

Press the Home key to return to the home screen.
