1. Find "Access point names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7407ce5c-5f96-464a-b691-9eb946597a4e.png?width=202&height=420)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-680b8d39-5a1e-473a-a314-b9c8e226b77d.png?width=202&height=420)
Press Network & Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-15c53287-e614-42ab-918c-10bc38484d89.png?width=202&height=420)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c824e6b2-e698-4547-8b7a-5519c742743c.png?width=202&height=420)
Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-81d18971-9ca7-417f-a133-b3e3ccd7328b.png?width=202&height=420)
2. Create new data connection

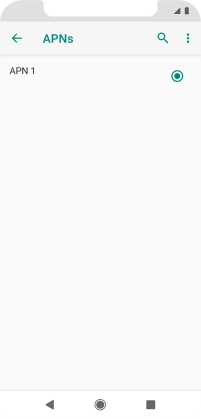

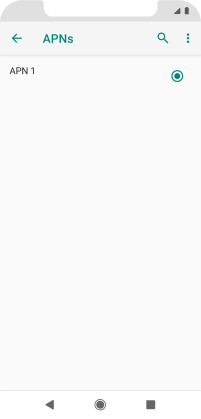

Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2fbb5e59-61ff-4bdd-90be-51a0f55ac7a3.png?width=202&height=420)

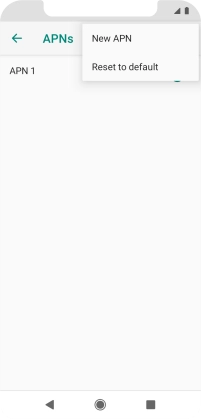

Press New APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8194e2fb-f5ff-47df-b9dd-1fc66481406e.png?width=202&height=420)
3. Enter a name for the connection

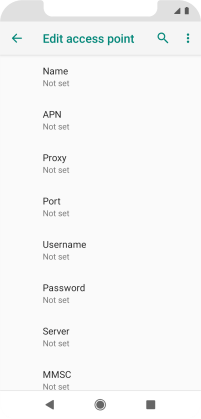

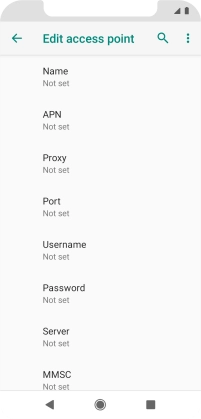

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c0b2cce5-3ccb-4ee1-8876-ed6713bd33a6.png?width=202&height=420)

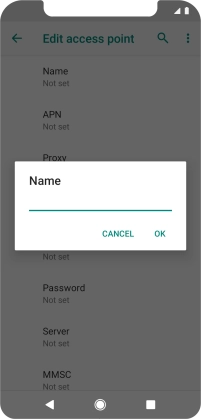

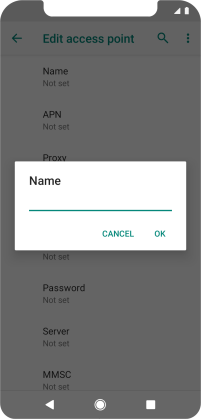

Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-69c72197-d40c-4b7a-b70e-4a41a1932b1d.png?width=202&height=420)
Vodafone Internet
4. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c0b2cce5-3ccb-4ee1-8876-ed6713bd33a6.png?width=202&height=420)

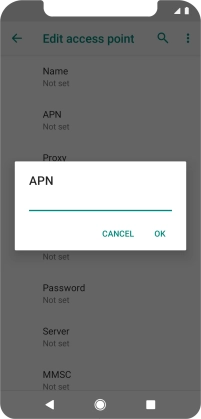

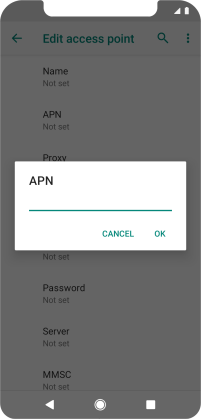

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-eaa5f07f-fc21-46c6-9046-29e6c779f8a9.png?width=202&height=420)
live.vodafone.com
5. Enter country code

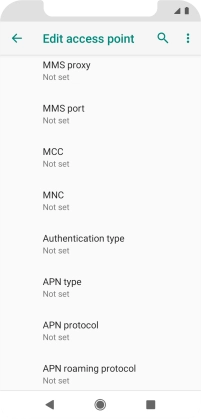

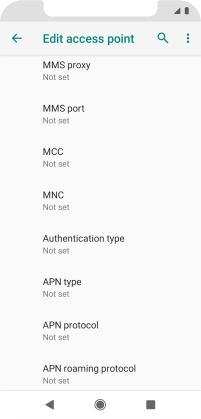

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-89ac78b3-2308-4f2a-8d21-865e6a703332.png?width=202&height=420)

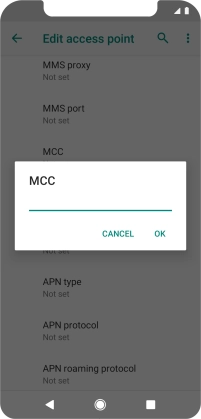

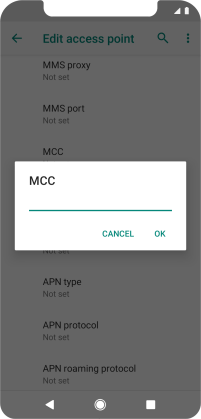

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6f57a35e-1669-4958-859f-2fe84c2991b9.png?width=202&height=420)
272
6. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-89ac78b3-2308-4f2a-8d21-865e6a703332.png?width=202&height=420)

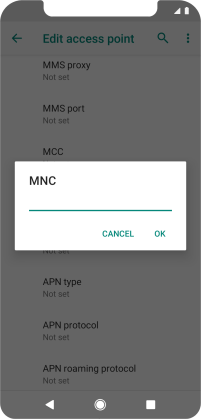

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-75d9343a-3c4c-4a6a-baff-8da6ef5d3f3b.png?width=202&height=420)
01
7. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-89ac78b3-2308-4f2a-8d21-865e6a703332.png?width=202&height=420)

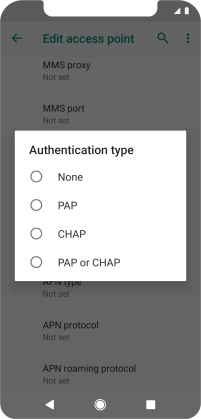

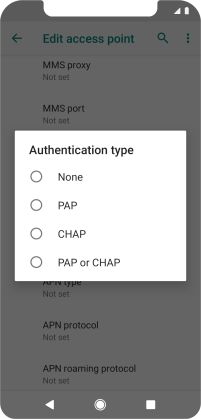

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-20a8fc4b-c7b6-4e28-a5f2-1774c169c21e.png?width=202&height=420)
8. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-89ac78b3-2308-4f2a-8d21-865e6a703332.png?width=202&height=420)

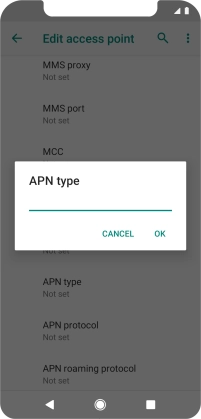

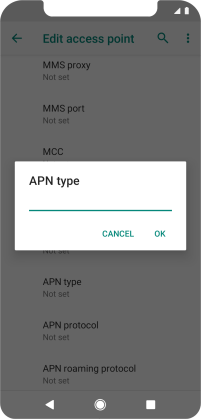

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7db4870b-ab5d-4590-a7a8-ee67e6eb6595.png?width=202&height=420)
default
9. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-89ac78b3-2308-4f2a-8d21-865e6a703332.png?width=202&height=420)

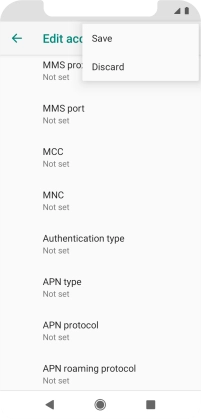

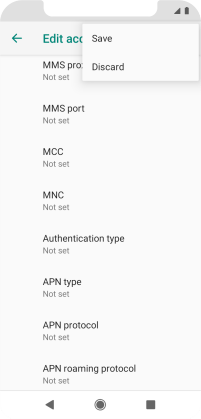

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9bc8d231-1e78-4a01-b1c2-5503af2ea236.png?width=202&height=420)

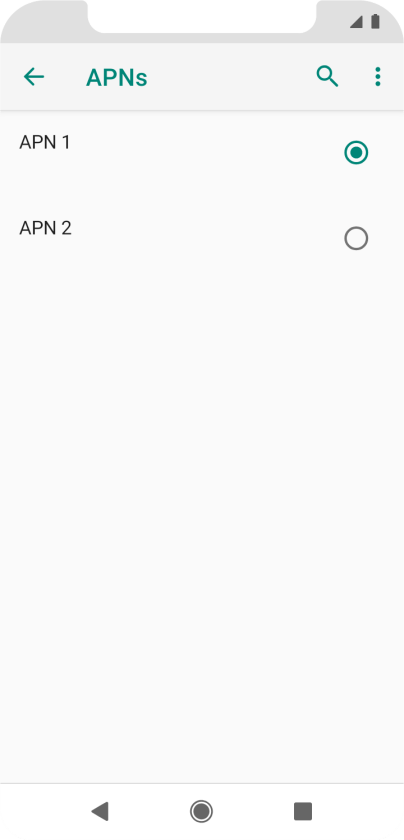

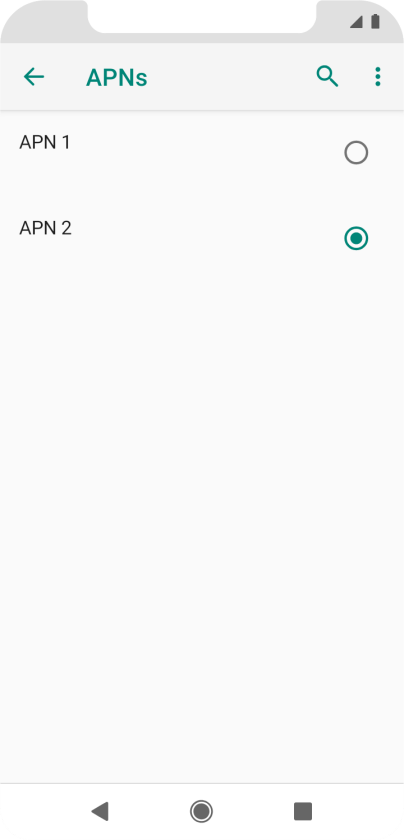

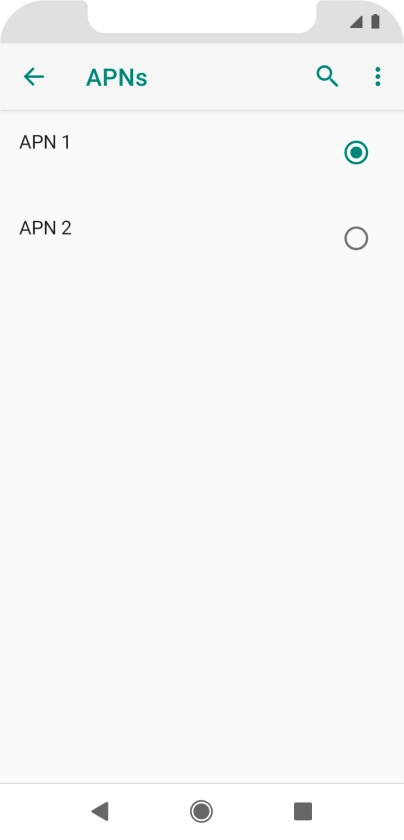

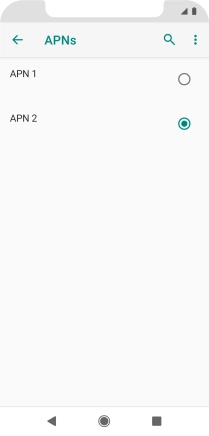

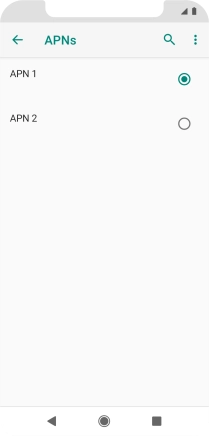

Press the field next to the required data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0cf7a8fd-6c93-4ba4-a2f3-a0b78c5307f5.png?width=202&height=420)
10. Return to the home screen

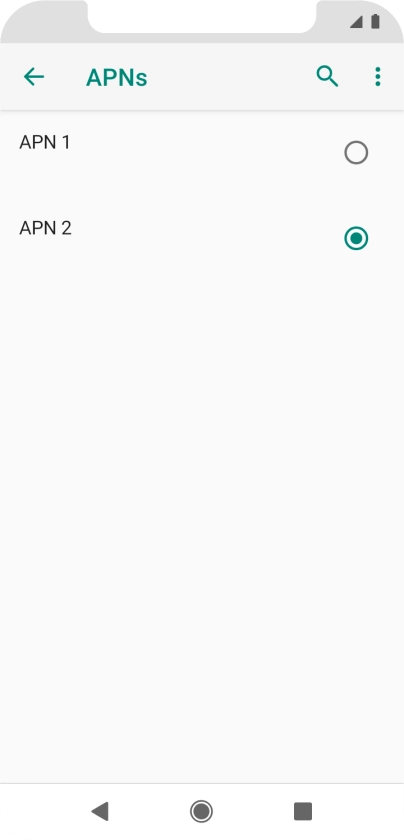

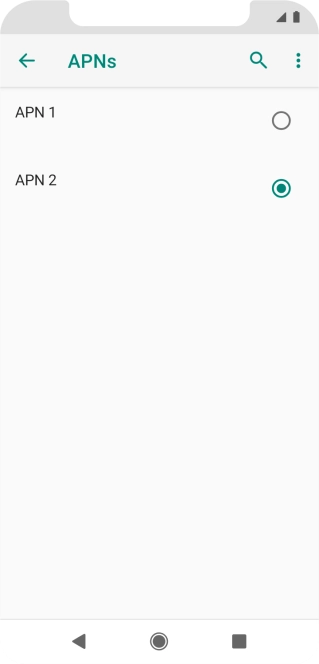

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-683321a6-576c-4b14-876c-74a6307b39ed.png?width=202&height=420)
