1. Find "Access Point Names"
Slide two fingers downwards starting from the top the screen.
1. Find "Access Point Names"
Press the settings icon.
1. Find "Access Point Names"

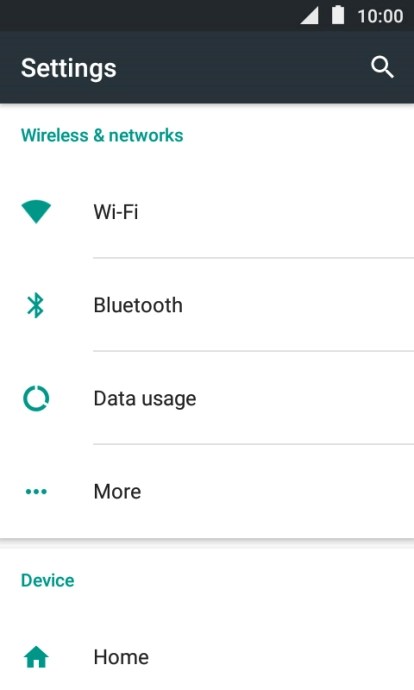

Press More.
1. Find "Access Point Names"

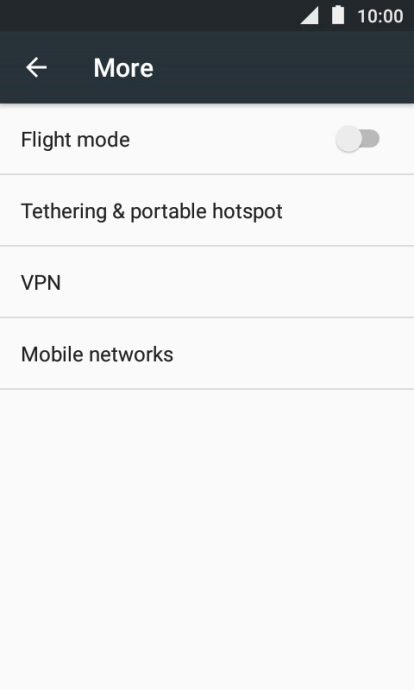

Press Mobile networks.
1. Find "Access Point Names"

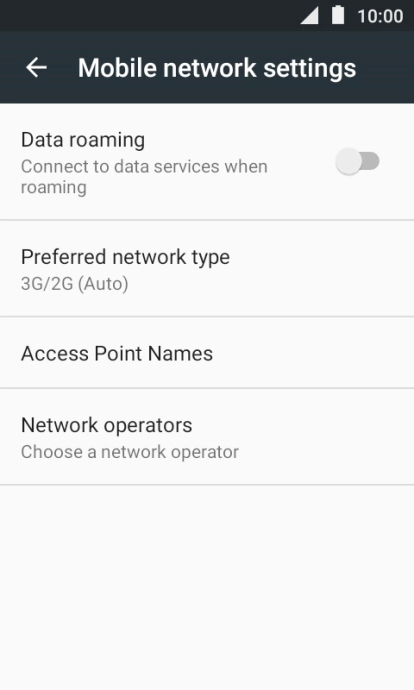

Press Access Point Names.

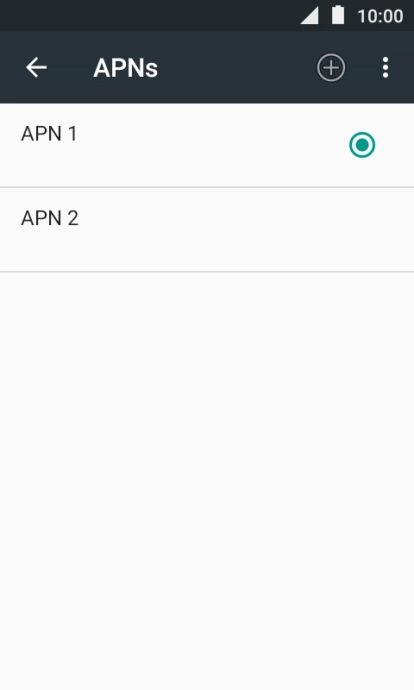

2. Create new data connection

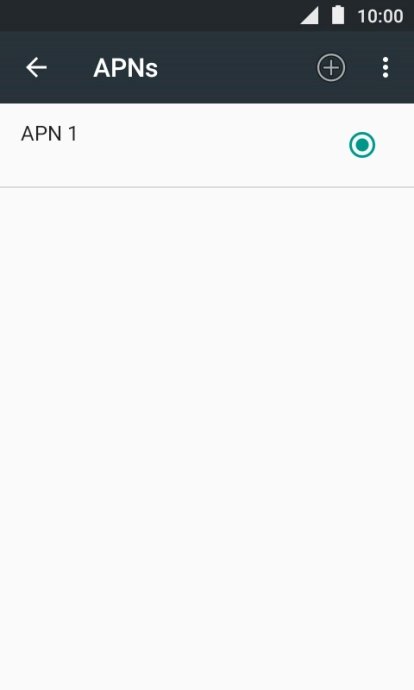

Press the new data connection icon.

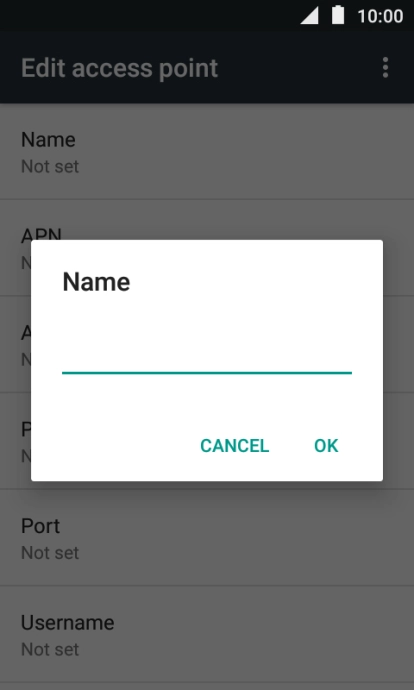

2. Create new data connection

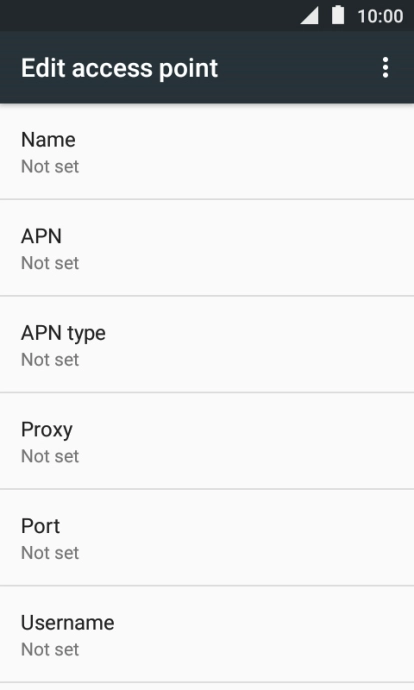

Press Name.
2. Create new data connection
Key in Vodafone MMS and press OK.

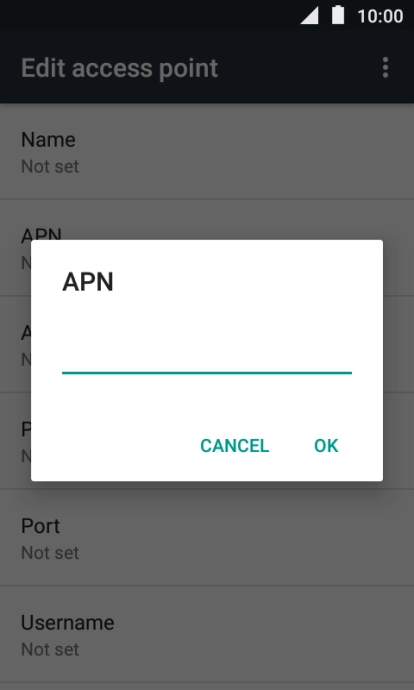

3. Enter APN
Press APN.
3. Enter APN
Key in mms.vodafone.net and press OK.

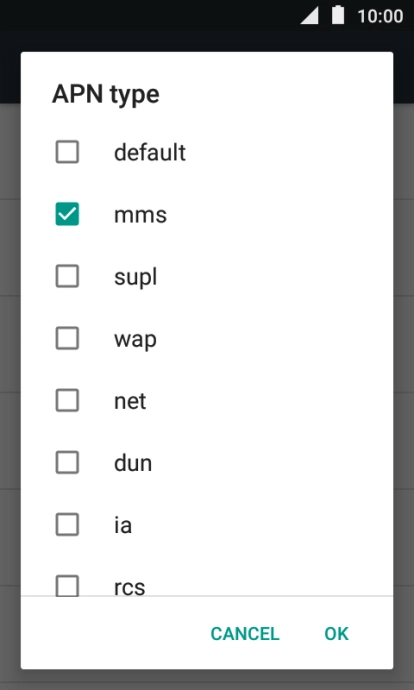

4. Select APN type
Press APN type.
4. Select APN type
Make sure only mms is selected.
4. Select APN type
Press OK.

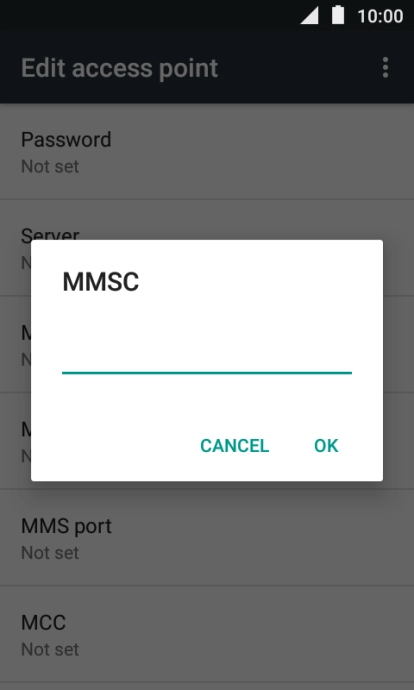

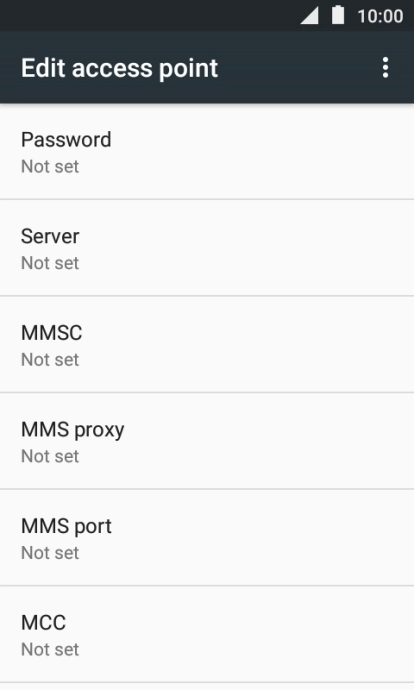

5. Enter MMSC
Press MMSC.
5. Enter MMSC

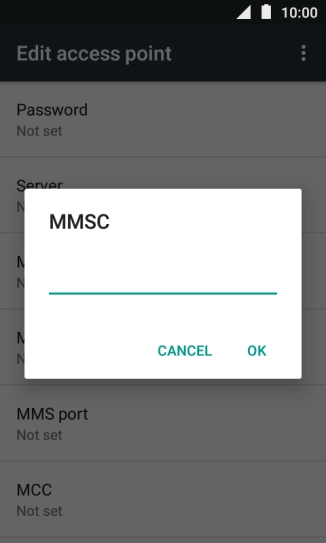

Key in http://www.vodafone.ie/mms and press OK.

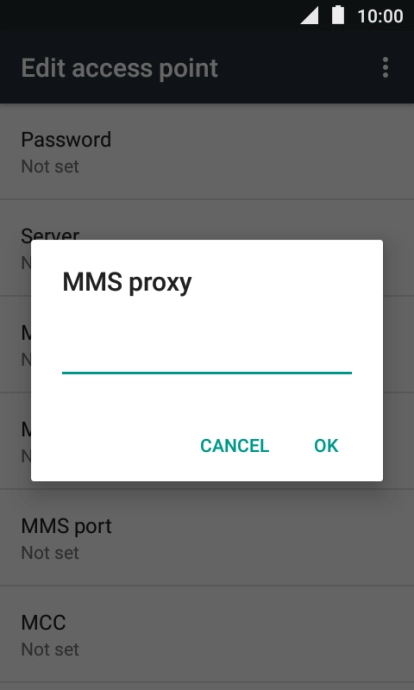

6. Enter IP address
Press MMS proxy.
6. Enter IP address
Key in 10.24.59.200 and press OK.

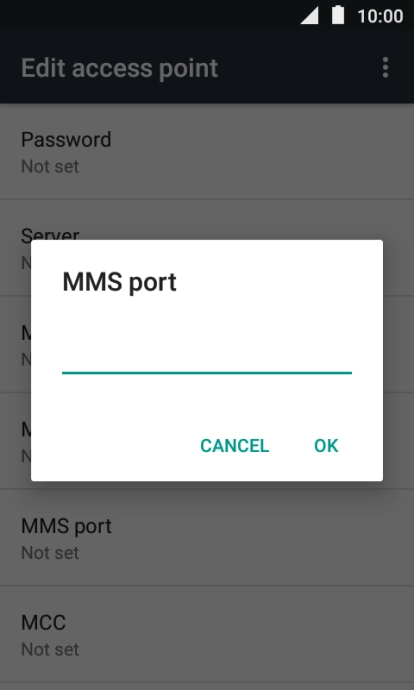

7. Enter port number
Press MMS port.
7. Enter port number
Key in 80 and press OK.
8. Enter country code
Press MCC.
8. Enter country code
Key in 272 and press OK.
9. Enter network code
Press MNC.
9. Enter network code

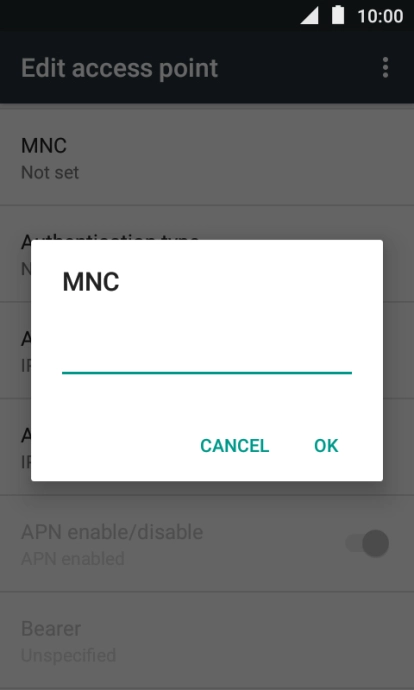

Key in 01 and press OK.

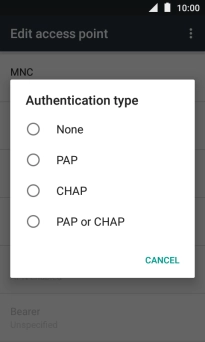

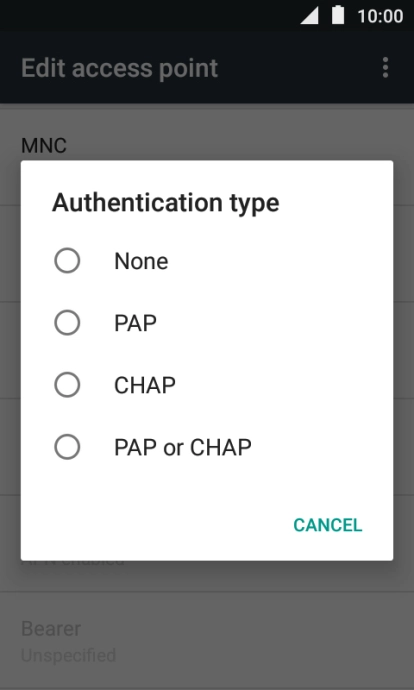

10. Select authentication type

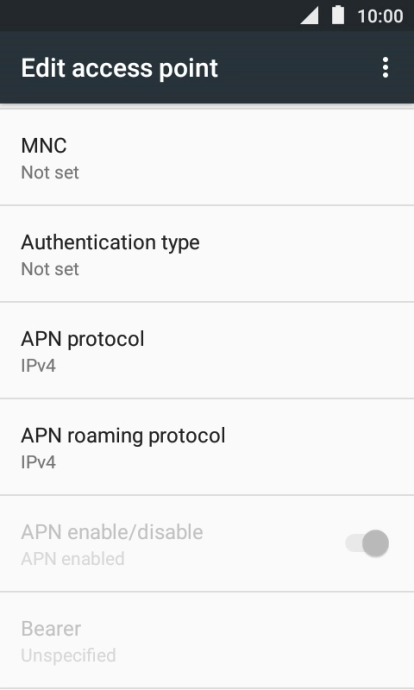

Press Authentication type.
10. Select authentication type
Press PAP.

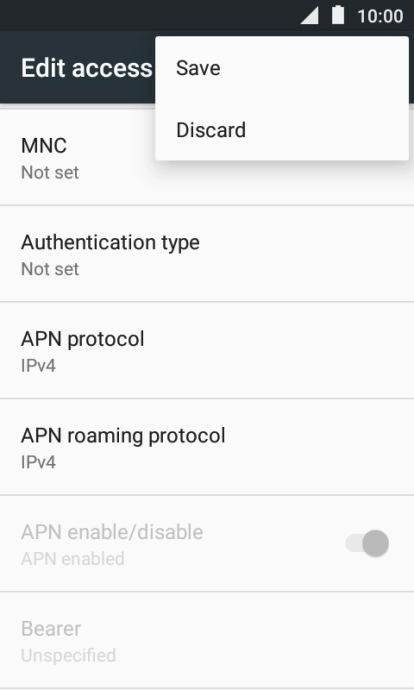

11. Save data connection
Press the menu icon.
11. Save data connection
Press Save.
12. Return to the home screen
Press the Home key to return to the home screen.
