Set up your Vodafone Smart E8 Android 7.1 for IMAP email

Read help info

You can set up your phone to send and receive email messages from your email accounts. Using IMAP, your email messages are kept on the server and are synchronised between all of your devices. You're then able to access your email messages from other devices. To set up your phone for IMAP email, you need to set up your phone for internet.

Step 1 of 31

Find "Accounts"

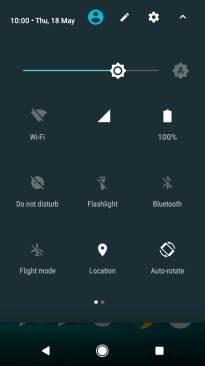

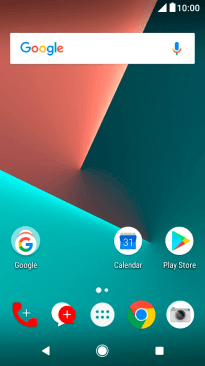

Slide two fingers downwards starting from the top the screen.

Step 2 of 31

Find "Accounts"

Press the settings icon.

Step 3 of 31

Find "Accounts"

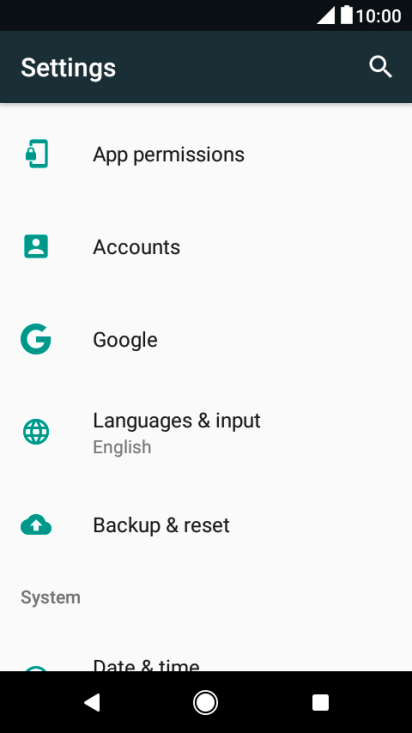

Press Accounts.

Step 4 of 31

Create new email account

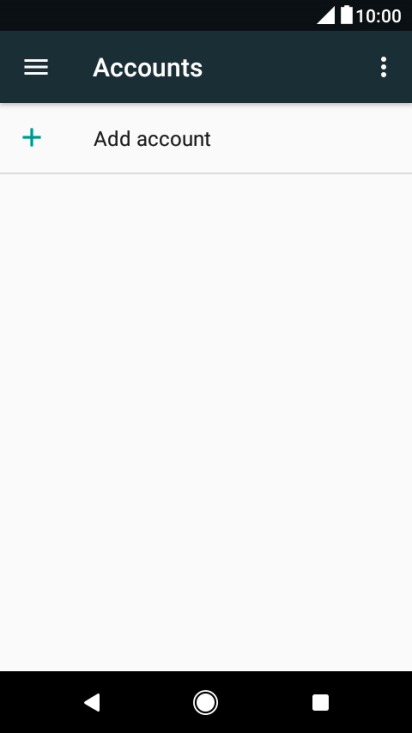

Press Add account.

Step 5 of 31

Select server type

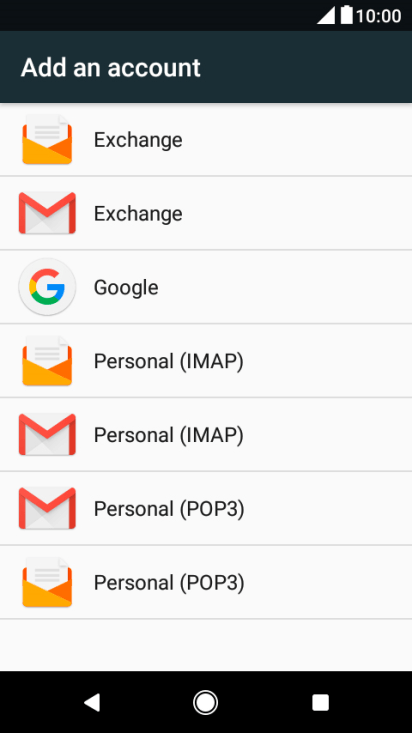

Press Personal (IMAP).

Step 6 of 31

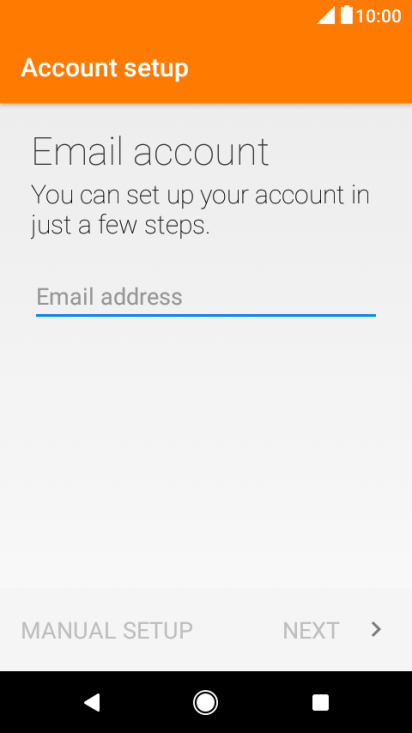

Enter email address

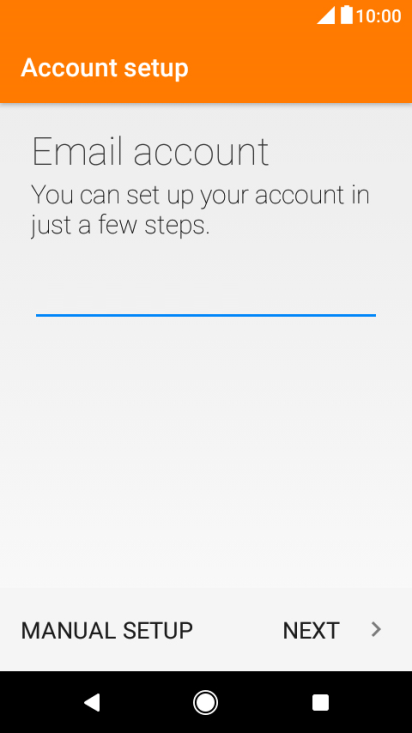

Press the text input field and key in your email address.

Step 7 of 31

Enter email address

Press NEXT.

Step 8 of 31

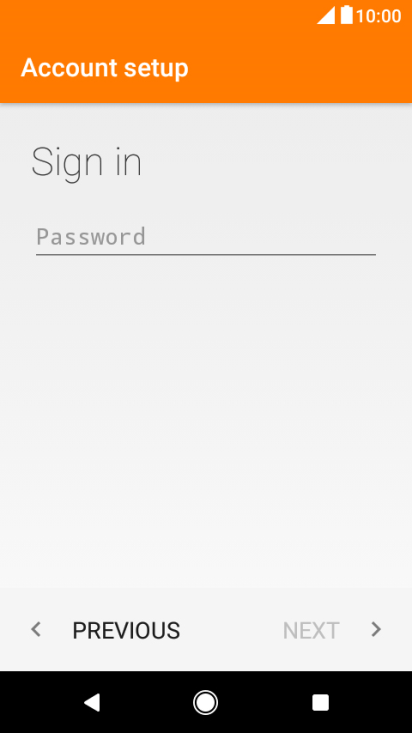

Enter password

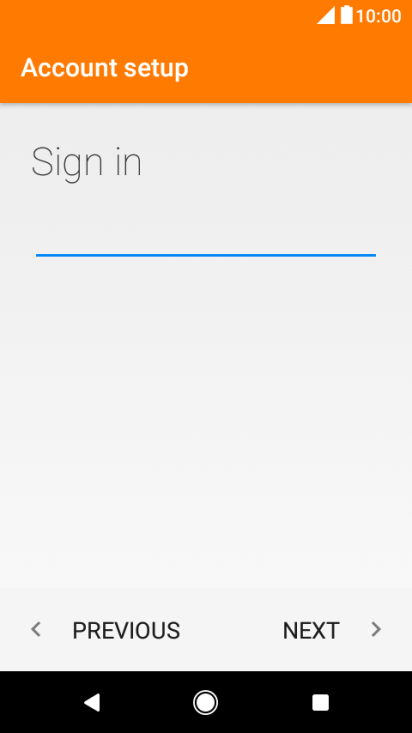

Press the text input field and key in the password for your email account.

Step 9 of 31

Enter password

Press NEXT.

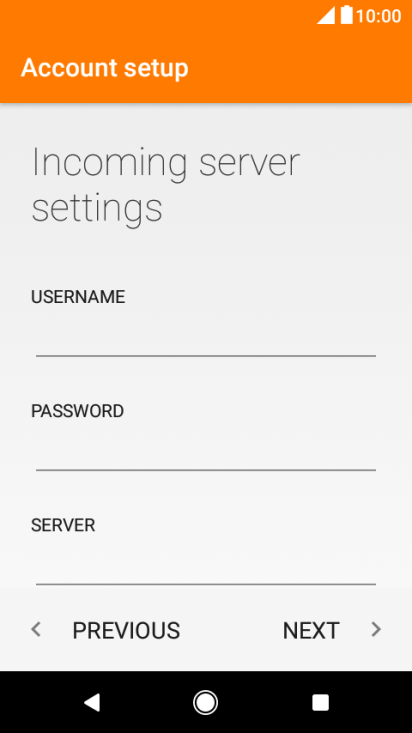

Step 10 of 31

Enter password

If this screen is displayed, you email account has been recognised and set up automatically. Follow the instructions on the screen to key in more information and finish setting up your phone.

Step 11 of 31

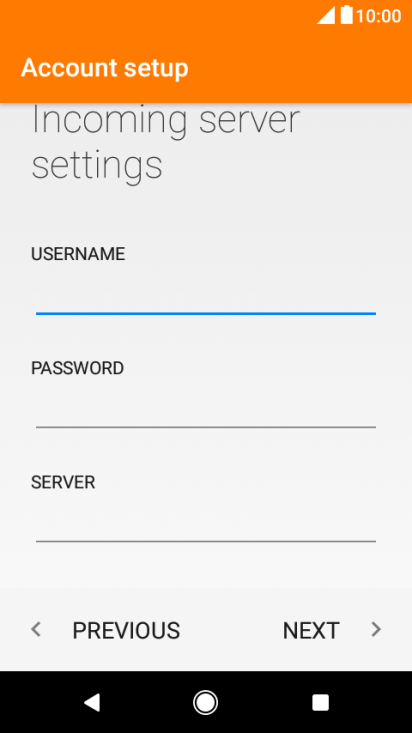

Enter username

Press the field below "USERNAME" and key in the username for your email account.

Step 12 of 31

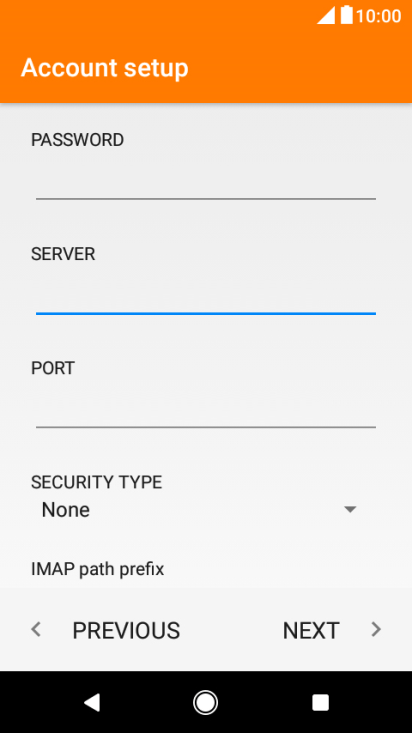

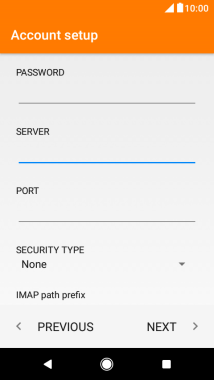

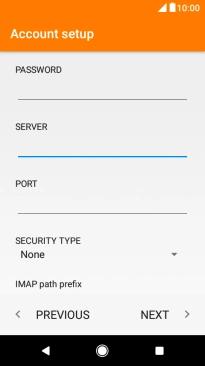

Enter incoming server

Press the field below "SERVER" and key in the name of your email provider's incoming server.

143
Step 13 of 31

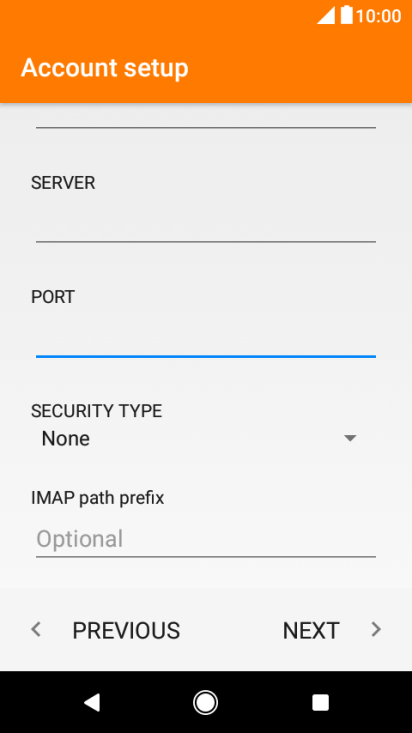

Enter incoming port

Press the field below "PORT" and key in 143.

Step 14 of 31

Turn off encryption of incoming email messages

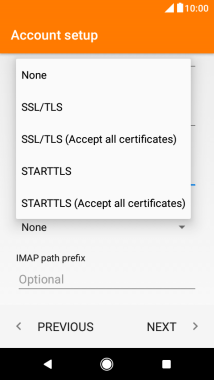

Press the drop down list below "SECURITY TYPE".

Step 15 of 31

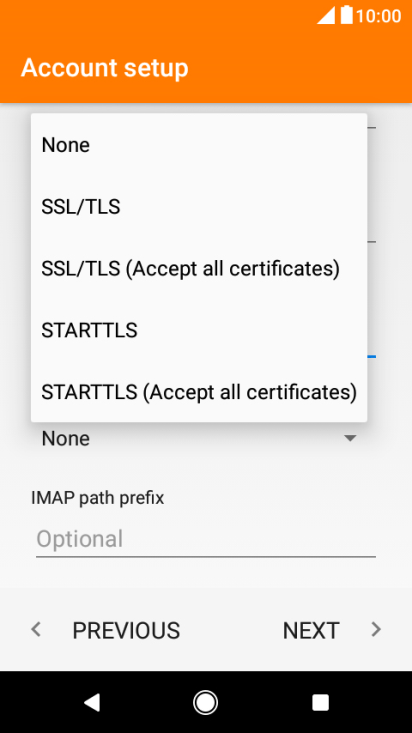

Turn off encryption of incoming email messages

Press None to turn off the function.

Step 16 of 31

Turn off encryption of incoming email messages

Press NEXT.

mail.vodafone.ie
Step 17 of 31

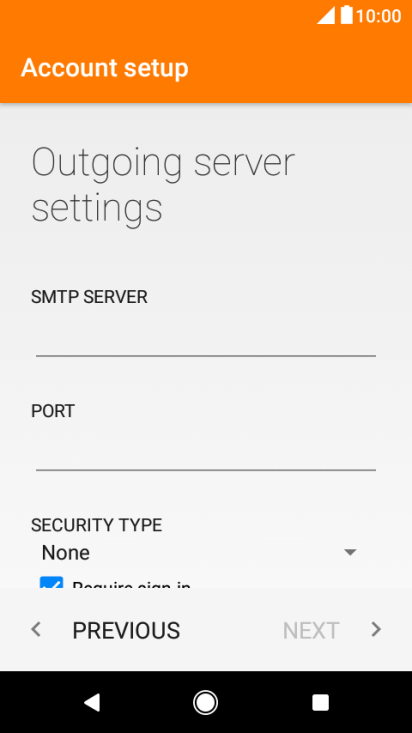

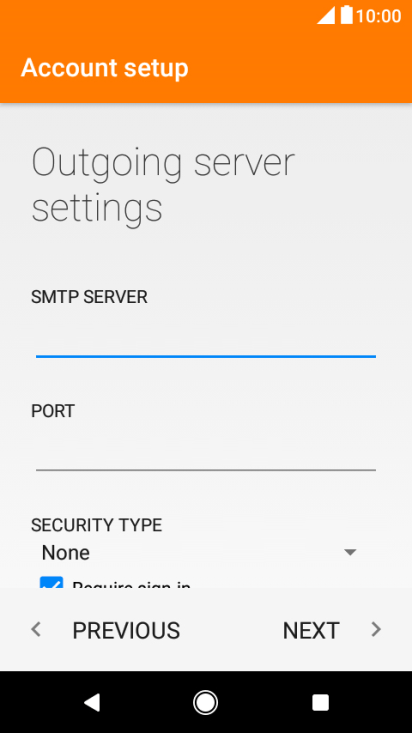

Enter outgoing server

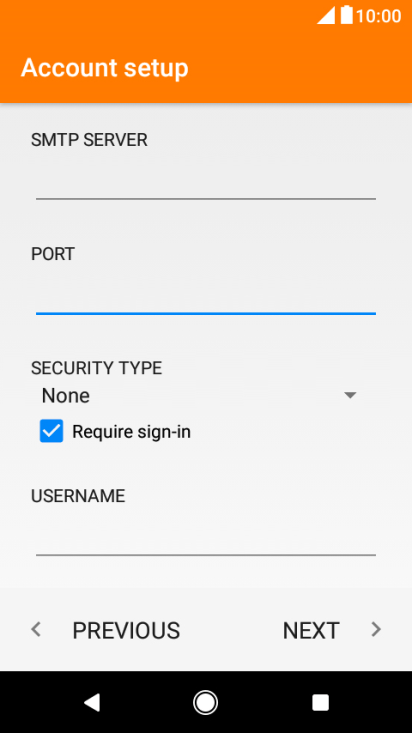

Press the field below "SMTP SERVER" and key in mail.vodafone.ie.

25
Step 18 of 31

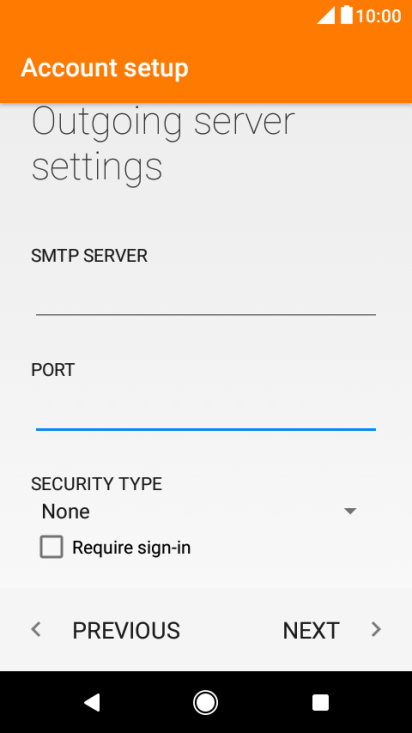

Enter outgoing port

Press the field below "PORT" and key in 25.

Step 19 of 31

Turn off encryption of outgoing email messages

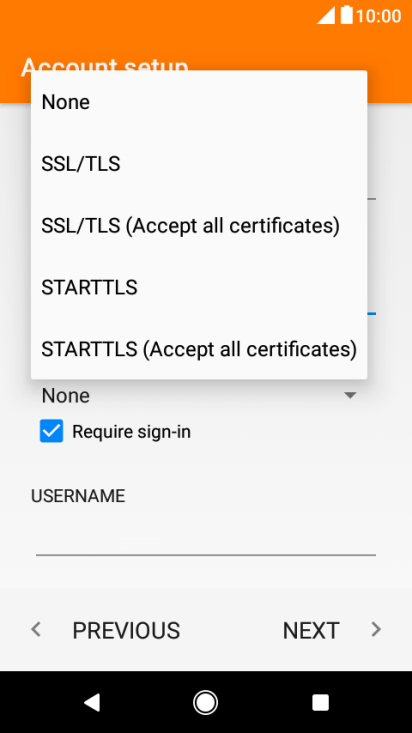

Press the drop down list below "SECURITY TYPE".

Step 20 of 31

Turn off encryption of outgoing email messages

Press None to turn off the function.

Step 21 of 31

Turn off SMTP authentication

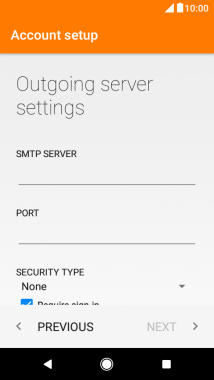

Press Require sign-in to turn off the function.

Step 22 of 31

Turn off SMTP authentication

Press NEXT.

Step 23 of 31

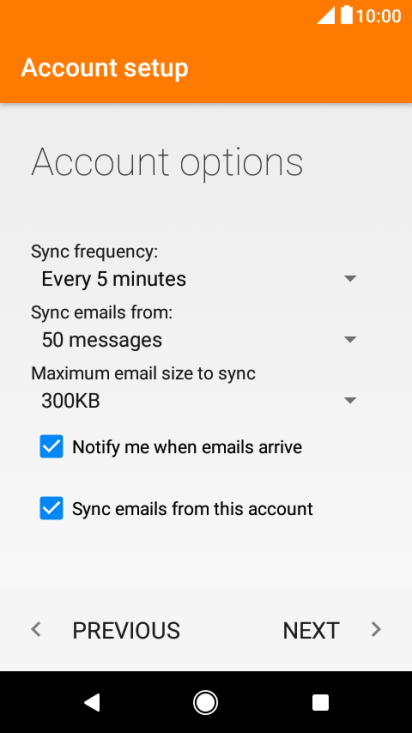

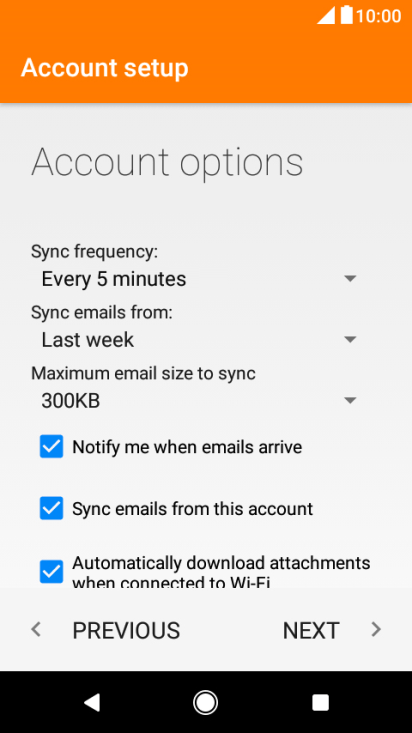

Select setting for retrieval of new email messages

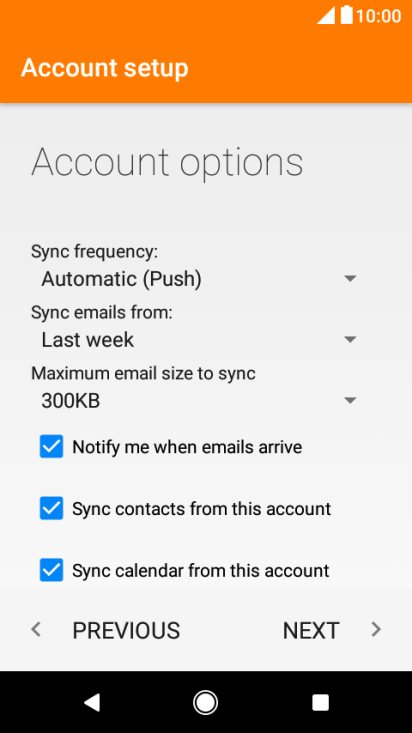

Press the drop down list next to "Sync frequency".

Step 24 of 31

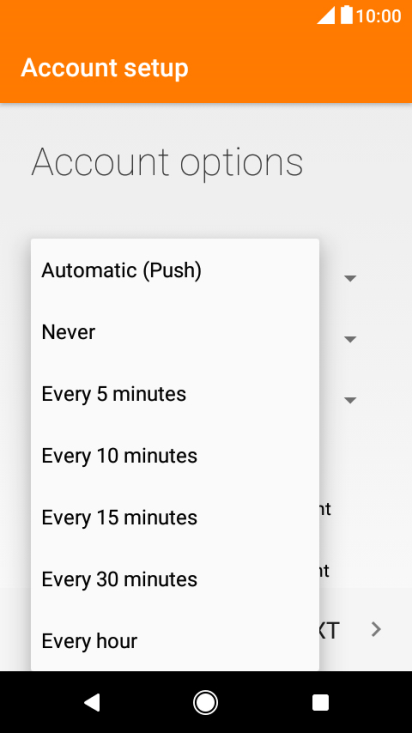

Select setting for retrieval of new email messages

Press the required setting.

Step 25 of 31

Select notification for new email messages

Press Notify me when emails arrive to turn the function on or off.

Step 26 of 31

Turn on email message synchronisation

Press Sync emails from this account to turn on the function.

Step 27 of 31

Turn on email message synchronisation

Press NEXT.

Step 28 of 31

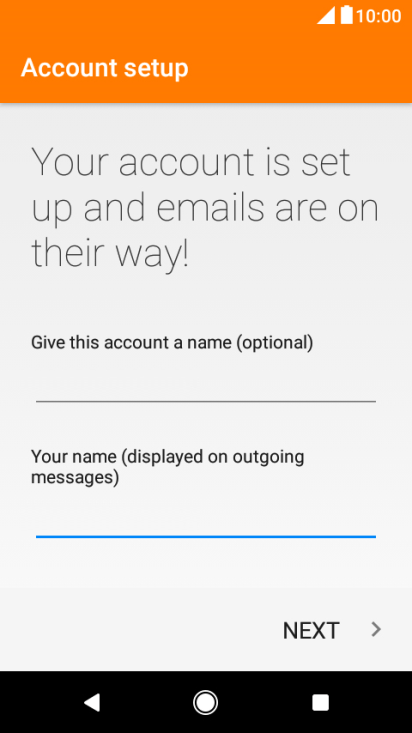

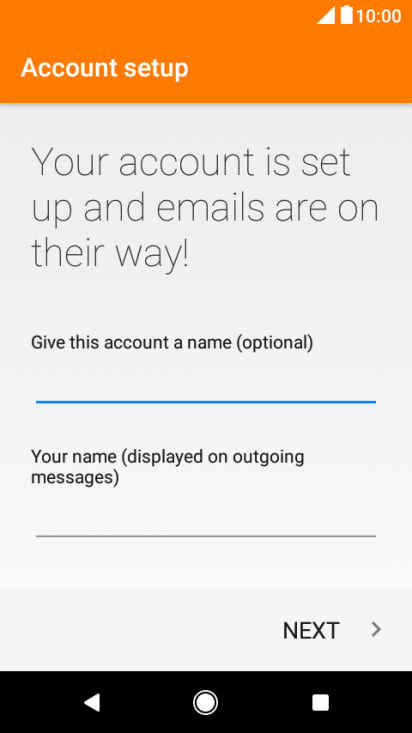

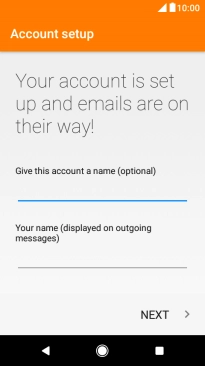

Enter email account name

Press the field below "Give this account a name (optional)" and key in the required sender name.

Step 29 of 31

Enter sender name

Press the field below "Your name (displayed on outgoing messages)".

Step 30 of 31

Enter sender name

Press NEXT.

Step 31 of 31

Return to the home screen

Press the Home key to return to the home screen.

1. Find "Accounts"

Slide two fingers downwards starting from the top the screen.
Press the settings icon.
Press Accounts.

2. Create new email account

Press Add account.

3. Select server type

Press Personal (IMAP).

4. Enter email address

Press the text input field and key in your email address.
Press NEXT.

5. Enter password

Press the text input field and key in the password for your email account.
Press NEXT.
If this screen is displayed, you email account has been recognised and set up automatically. Follow the instructions on the screen to key in more information and finish setting up your phone.

6. Enter username

Press the field below "USERNAME" and key in the username for your email account.

7. Enter incoming server

Press the field below "SERVER" and key in the name of your email provider's incoming server.

8. Enter incoming port

Press the field below "PORT" and key in 143.
143

9. Turn off encryption of incoming email messages

Press the drop down list below "SECURITY TYPE".
Press None to turn off the function.
Press NEXT.

10. Enter outgoing server

Press the field below "SMTP SERVER" and key in mail.vodafone.ie.
mail.vodafone.ie

11. Enter outgoing port

Press the field below "PORT" and key in 25.
25

12. Turn off encryption of outgoing email messages

Press the drop down list below "SECURITY TYPE".
Press None to turn off the function.

13. Turn off SMTP authentication

Press Require sign-in to turn off the function.
Press NEXT.

14. Select setting for retrieval of new email messages

Press the drop down list next to "Sync frequency".
Press the required setting.

15. Select notification for new email messages

Press Notify me when emails arrive to turn the function on or off.

16. Turn on email message synchronisation

Press Sync emails from this account to turn on the function.
Press NEXT.

17. Enter email account name

Press the field below "Give this account a name (optional)" and key in the required sender name.

18. Enter sender name

Press the field below "Your name (displayed on outgoing messages)".
Press NEXT.

19. Return to the home screen

Press the Home key to return to the home screen.
