Set up your phone for picture messaging - Vodafone Smart 4 mini

Read help info

A picture message is a message which can contain pictures and other media files and can be sent to other mobile phones and email addresses. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for picture messaging manually.

Slide two fingers down the display starting from the top edge of your phone.Press SETTINGS.
Step 1 of 30

Find "Access Point Names"

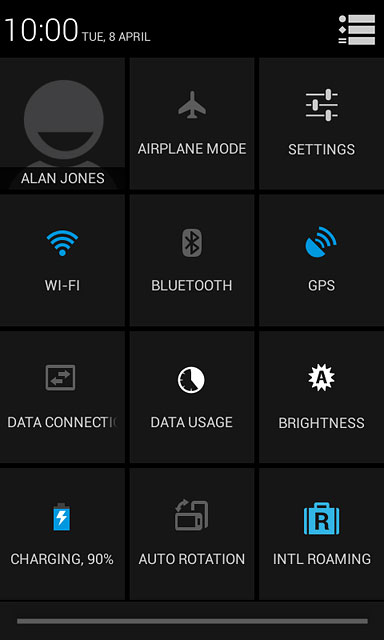

Slide two fingers down the display starting from the top edge of your phone.

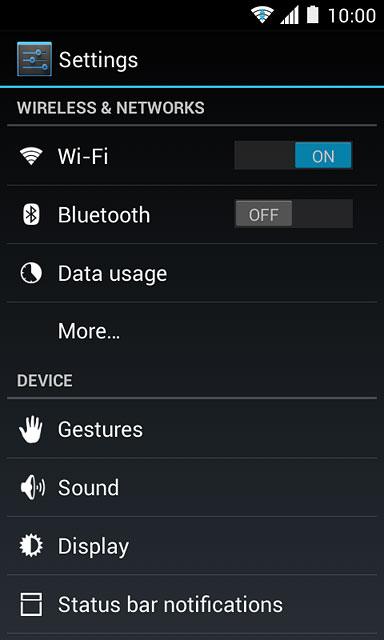

Press SETTINGS.

Press More....
Step 2 of 30

Find "Access Point Names"

Press More....

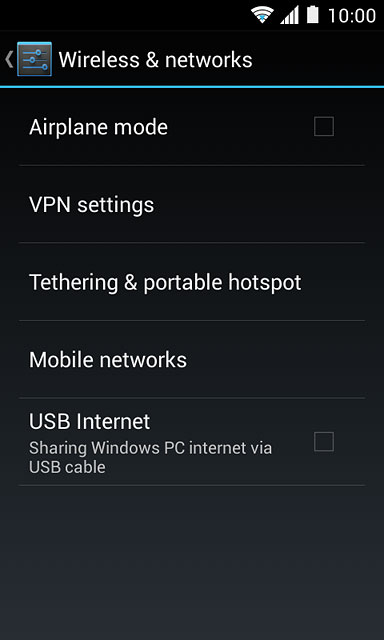

Press Mobile networks.
Step 3 of 30

Find "Access Point Names"

Press Mobile networks.

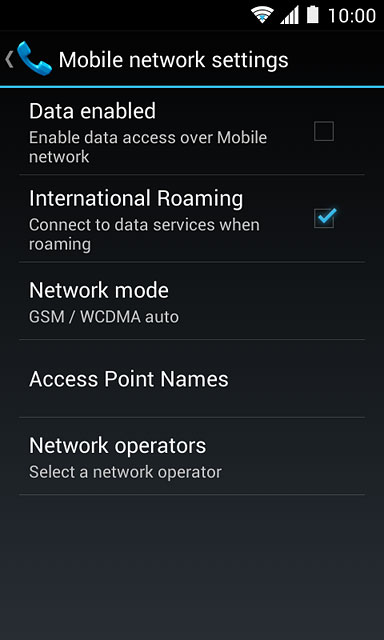

Press Access Point Names.
Step 4 of 30

Find "Access Point Names"

Press Access Point Names.

Press the Menu key.
Step 5 of 30

Create new data connection

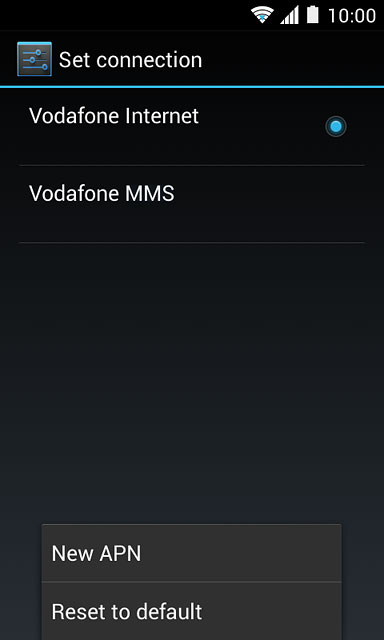

Press the Menu key.

Press New APN.
Step 6 of 30

Create new data connection

Press New APN.

Press Name.
Step 7 of 30

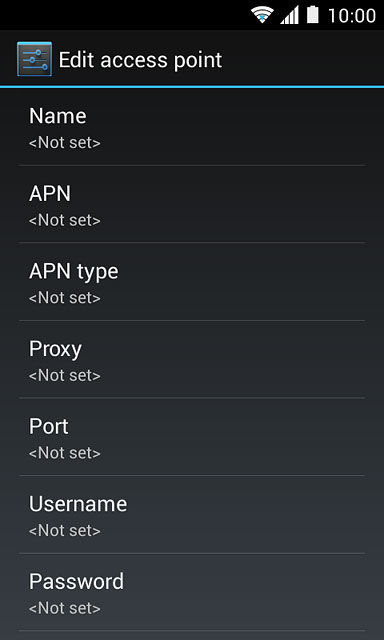

Enter data connection name

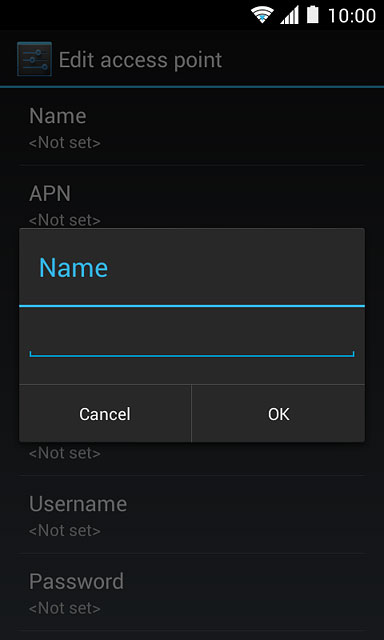

Press Name.

Key in Vodafone MMS and press OK.
Step 8 of 30

Enter data connection name

Key in Vodafone MMS and press OK.

Press APN.Key in mms.vodafone.net
Step 9 of 30

Enter APN

Press APN.
Key in mms.vodafone.net

Press OK.
Step 10 of 30

Enter APN

Press OK.

Press APN type.

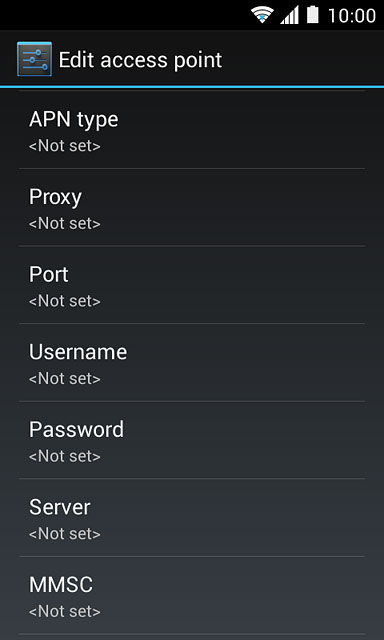

Step 11 of 30

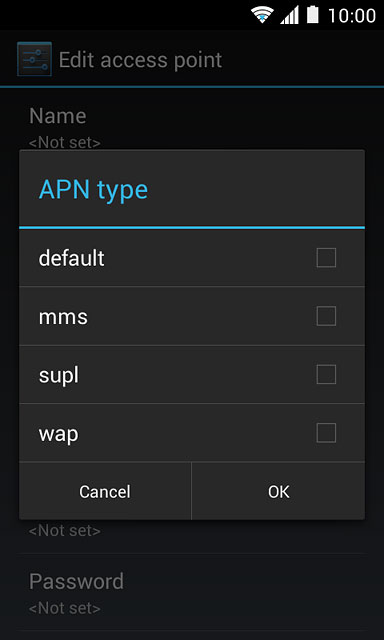

Select APN type

Press APN type.

Press mms.
Step 12 of 30

Select APN type

Press mms.

Press OK.
Step 13 of 30

Select APN type

Press OK.

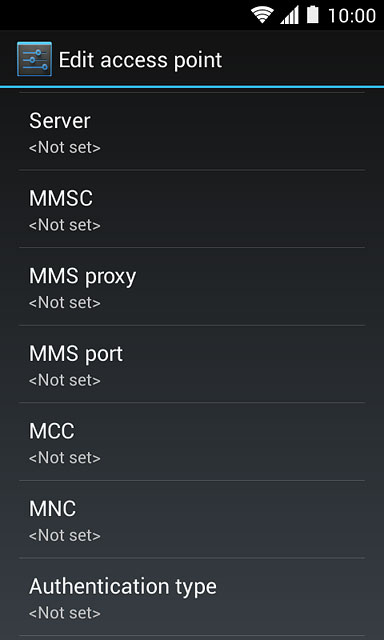

Press MMSC.
Step 14 of 30

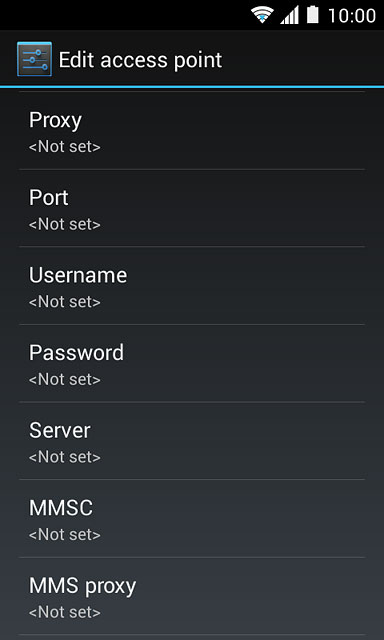

Enter picture messaging server

Press MMSC.

Key in http://www.vodafone.ie/mms and press OK.
Step 15 of 30

Enter picture messaging server

Key in http://www.vodafone.ie/mms and press OK.

Press MMS proxy.
Step 16 of 30

Enter IP address

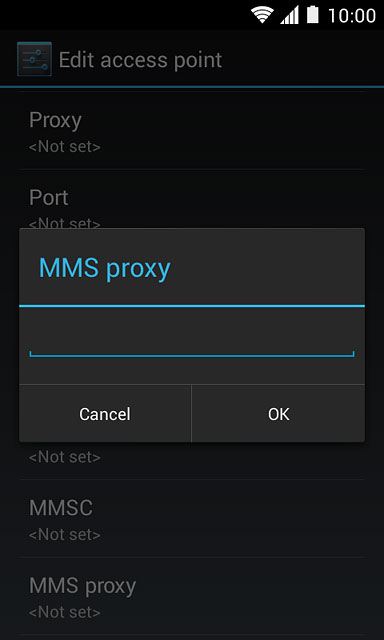

Press MMS proxy.

Key in 10.24.59.200 and press OK.
Step 17 of 30

Enter IP address

Key in 10.24.59.200 and press OK.

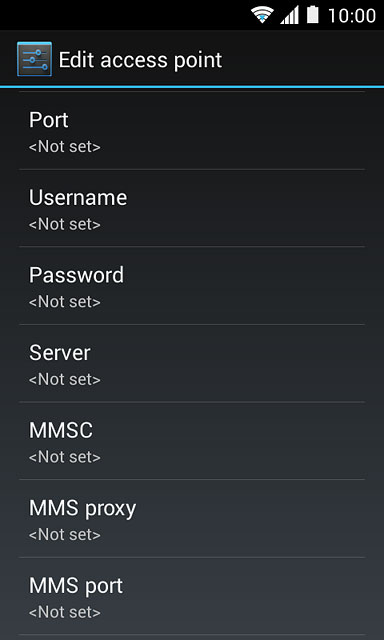

Press MMS port.
Step 18 of 30

Enter port number

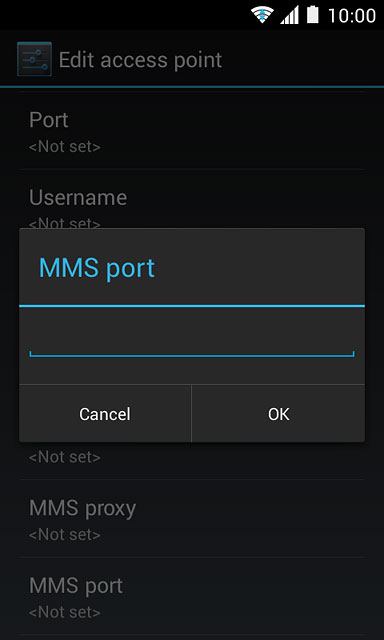

Press MMS port.

Key in 80 and press OK.
Step 19 of 30

Enter port number

Key in 80 and press OK.

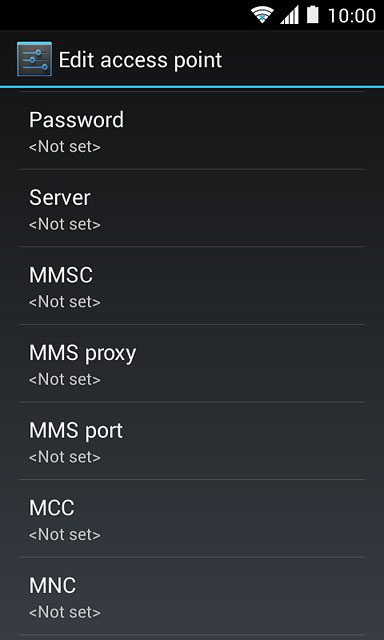

Press MCC.
Step 20 of 30

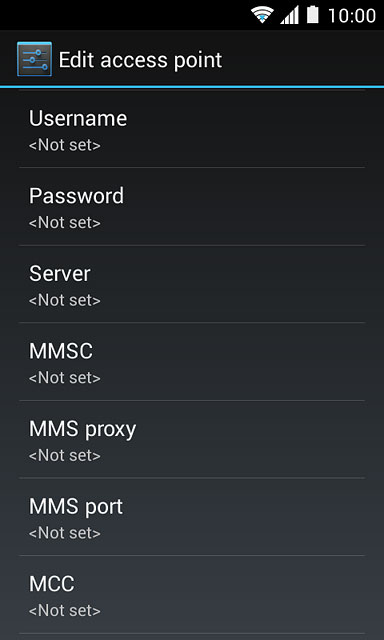

Enter country code

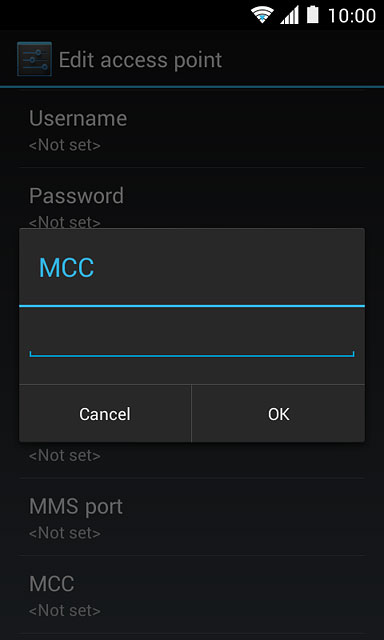

Press MCC.

Key in 272 and press OK.
Step 21 of 30

Enter country code

Key in 272 and press OK.

Press MNC.
Step 22 of 30

Enter network code

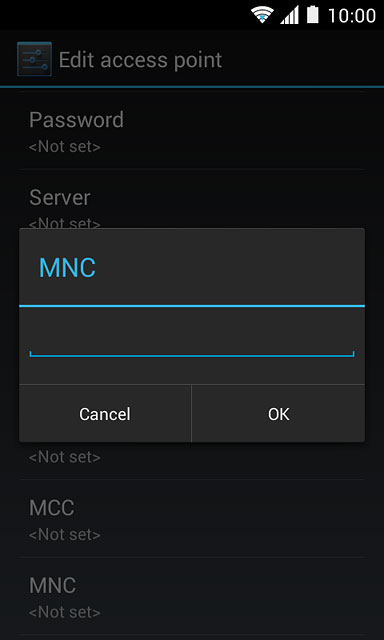

Press MNC.

Key in 01 and press OK.
Step 23 of 30

Enter network code

Key in 01 and press OK.

Press Authentication type.
Step 24 of 30

Select authentication type

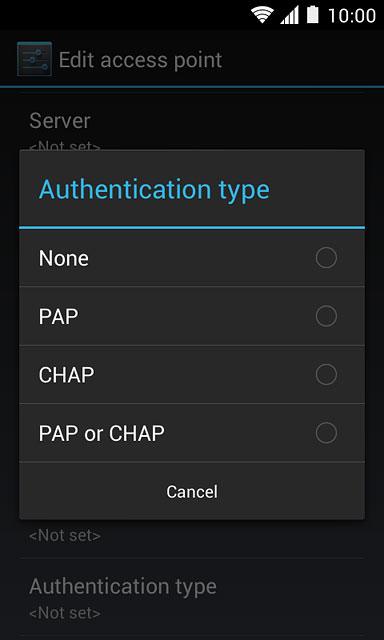

Press Authentication type.

Press PAP.
Step 25 of 30

Select authentication type

Press PAP.

Press Bearer.
Step 26 of 30

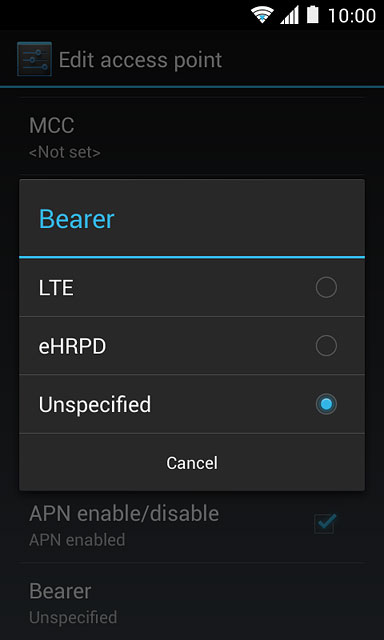

Select data bearer

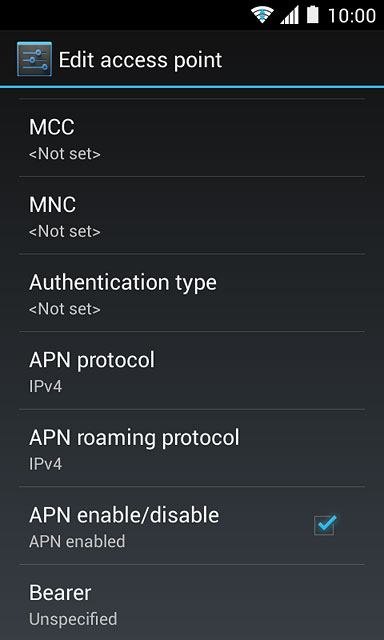

Press Bearer.

Press Unspecified.
Step 27 of 30

Select data bearer

Press Unspecified.

Press the Menu key.
Step 28 of 30

Save data connection

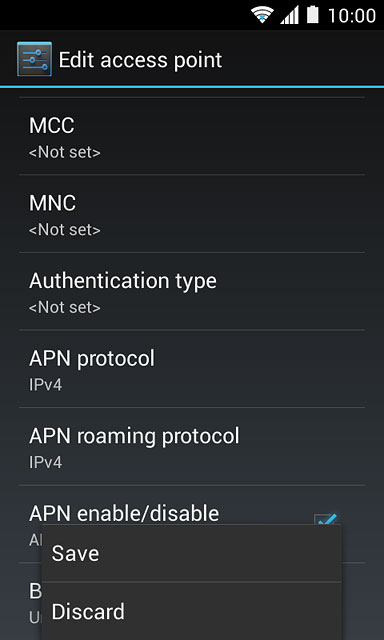

Press the Menu key.

Press Save.
Step 29 of 30

Save data connection

Press Save.

Press the Home key to return to the home screen.
Step 30 of 30

Return to the home screen

Press the Home key to return to the home screen.

Find "Access Point Names"

Slide two fingers down the display starting from the top edge of your phone.
Press SETTINGS.
Press More....
Press Mobile networks.
Press Access Point Names.

Create new data connection

Press the Menu key.
Press New APN.

Enter data connection name

Press Name.
Key in Vodafone MMS and press OK.

Enter APN

Press APN.
Key in mms.vodafone.net
Press OK.

Select APN type

Press APN type.
Press mms.
Press OK.

Enter picture messaging server

Press MMSC.
Key in http://www.vodafone.ie/mms and press OK.

Enter IP address

Press MMS proxy.
Key in 10.24.59.200 and press OK.

Enter port number

Press MMS port.
Key in 80 and press OK.

Enter country code

Press MCC.
Key in 272 and press OK.

Enter network code

Press MNC.
Key in 01 and press OK.

Select authentication type

Press Authentication type.
Press PAP.

Select data bearer

Press Bearer.
Press Unspecified.

Save data connection

Press the Menu key.
Press Save.

Return to the home screen

Press the Home key to return to the home screen.
