Set up your data card for internet manually - Vodafone K4605 / Leopard

Read help info

Usually, you can connect to the internet from within the data card application (Vodafone Mobile Broadband) as soon as it has been installed on your computer. If this isn't the case, you can set up your data card for internet manually. Follow these instructions to set up your data card for internet manually.
If you have an active internet connection, it needs to be ended. Click here for information on how to end an internet connection.

Step 1 of 14

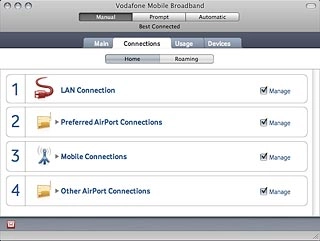

Find "Mobile Connections"

Click Connections.

Step 2 of 14

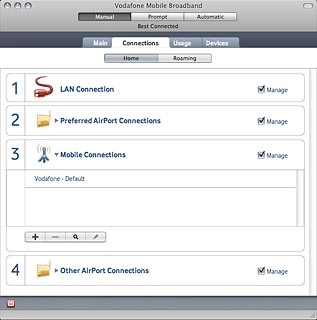

Find "Mobile Connections"

Click Mobile Connections.

Step 3 of 14

Create new data connection

Click +.
Key in the required name of the data connection.

Step 4 of 14

Select roaming settings

Click Networks.

Step 5 of 14

Select roaming settings

Highlight one of the following options:

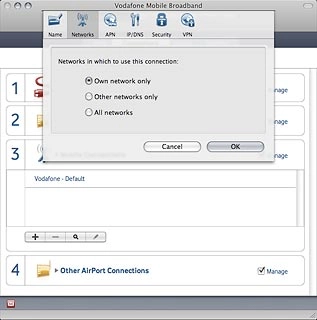

Own network only

Step 6 of 14

Select roaming settings

Other networks only

Step 7 of 14

Select roaming settings

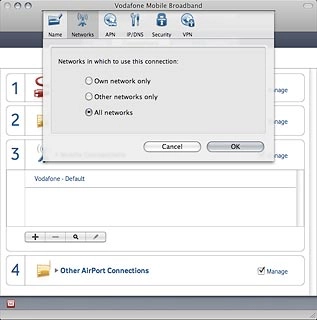

All networks

Step 8 of 14

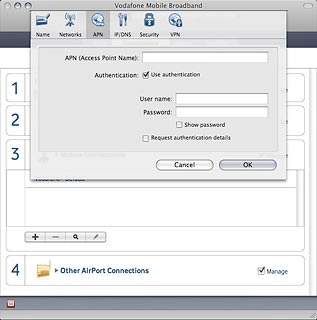

Enter APN

Click APN.

Step 9 of 14

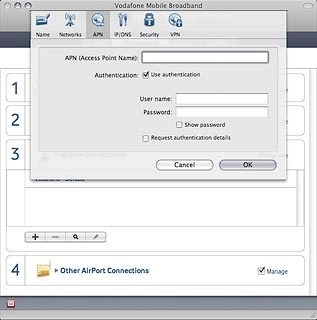

Enter APN

Highlight the field next to APN (Access Point Name) and key in hs.vodafone.ie

Step 10 of 14

Turn on authentication

Click the box next to Use authentification to turn on authentication.

Step 11 of 14

Turn on authentication

When the box next to the menu item is ticked (V), authentication is turned on.

Step 12 of 14

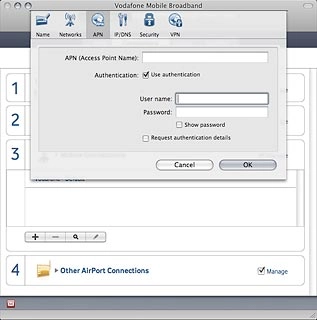

Enter username

Highlight the field next to User name and key in vodafone

Step 13 of 14

Enter password

Highlight the field next to Password and key in vodafone

Step 14 of 14

Exit

Click OK to close the window.

Find "Mobile Connections"

Click Connections.
Click Mobile Connections.

Create new data connection

Click +.
Key in the required name of the data connection.

Select roaming settings

Click Networks.
Highlight one of the following options:
Own network only
Other networks only
All networks

Enter APN

Click APN.
Highlight the field next to APN (Access Point Name) and key in hs.vodafone.ie

Turn on authentication

Click the box next to Use authentification to turn on authentication.
When the box next to the menu item is ticked (V), authentication is turned on.

Enter username

Highlight the field next to User name and key in vodafone

Enter password

Highlight the field next to Password and key in vodafone

Exit

Click OK to close the window.
