Start using your router - Vodafone HG658c/Windows 8

Read help info

Before you start using your router, you need to follow these initial steps.

Step 1 of 6

Connect DSL connection

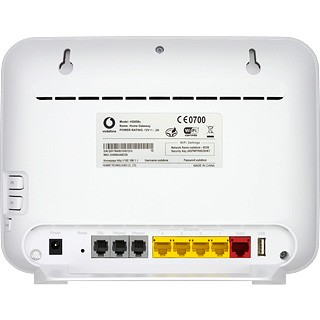

Turn the back of your router towards you.

Step 2 of 6

Connect DSL connection

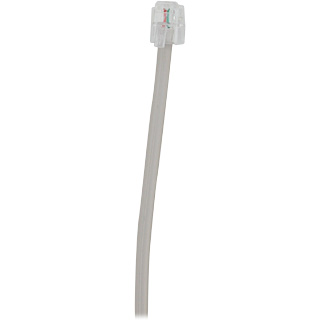

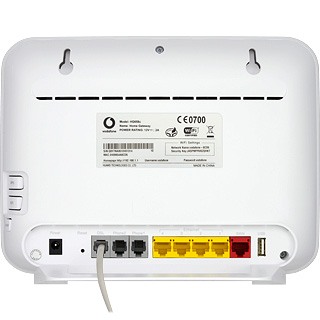

Connect the phone cable to "the DSL socket" in your router.

Step 3 of 6

Connect DSL connection

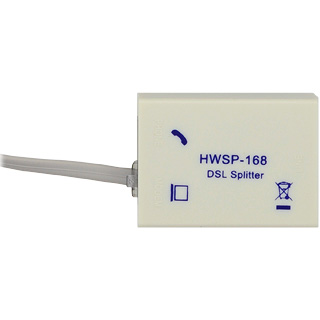

If the wall phone socket has only one socket, you need to connect the filter to this socket. Then connect the phone cable to the broadband socket in the filter.

Step 4 of 6

Connect DSL connection

If the wall phone socket has two sockets, you don't need to use the filter. Connect the phone cable to the broadband wall socket.

Step 5 of 6

Turn on your router

Connect the power supply to the "Power" socket and to a wall socket.

Step 6 of 6

Turn on your router

Press "On/Off" to turn on your router.

1. Connect DSL connection

Turn the back of your router towards you.
Connect the phone cable to "the DSL socket" in your router.
If the wall phone socket has only one socket, you need to connect the filter to this socket. Then connect the phone cable to the broadband socket in the filter.
If the wall phone socket has two sockets, you don't need to use the filter. Connect the phone cable to the broadband wall socket.

2. Turn on your router

Connect the power supply to the "Power" socket and to a wall socket.
Press "On/Off" to turn on your router.
