Set up port forwarding - Vodafone HG658c/Windows 8

Read help info

You can open and forward the router ports to a computer or game console on your local network. Remember, you need to know the IP address of the device you want to forward the ports to. Remember, you need to establish a connection to the router web interface.

Step 1 of 12

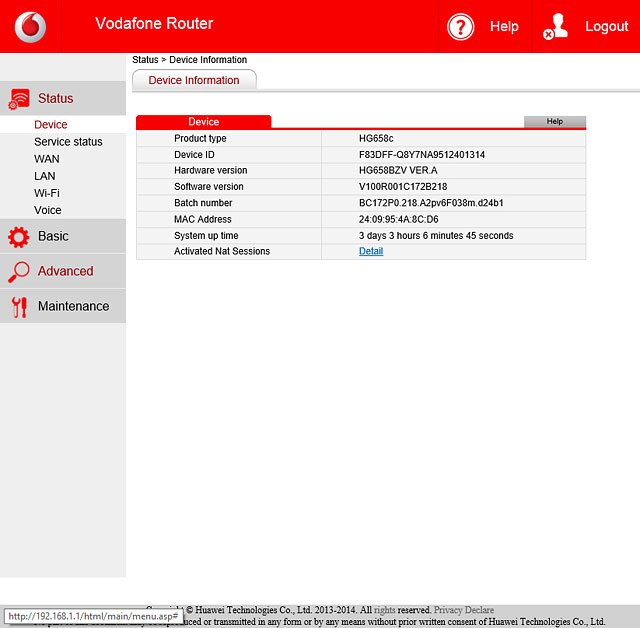

Find "Port Mapping"

Click Advanced.

Step 2 of 12

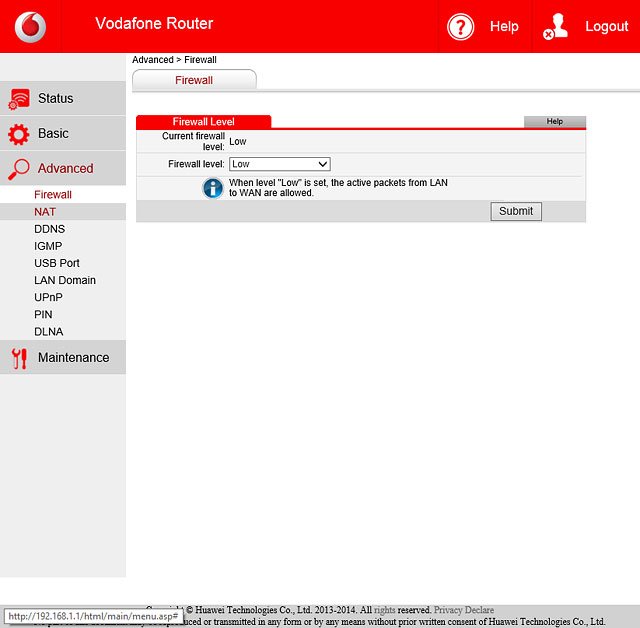

Find "Port Mapping"

Click NAT.

Step 3 of 12

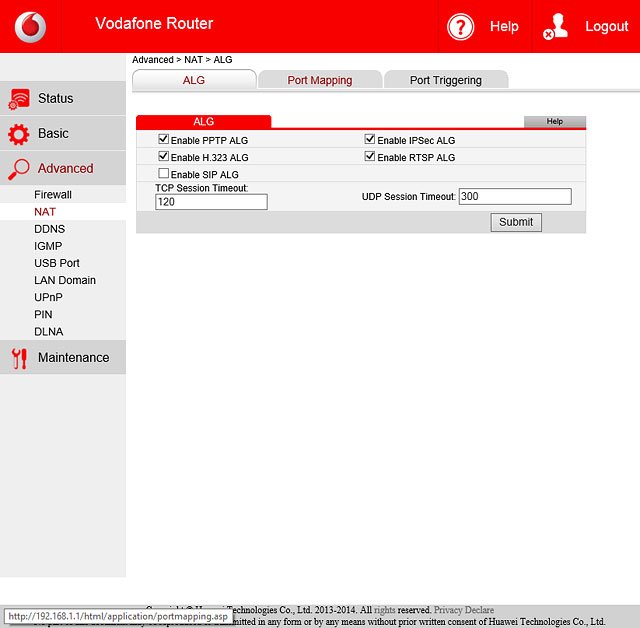

Find "Port Mapping"

Click Port Mapping.

Step 4 of 12

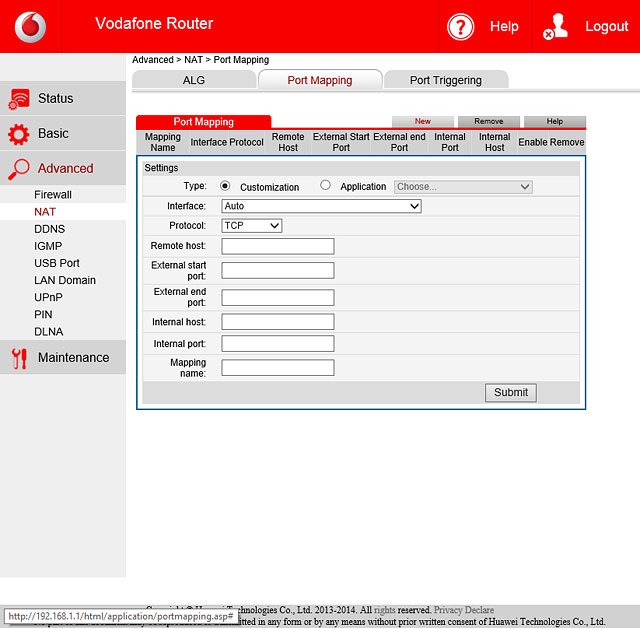

Set up new port mapping

Click New.

Step 5 of 12

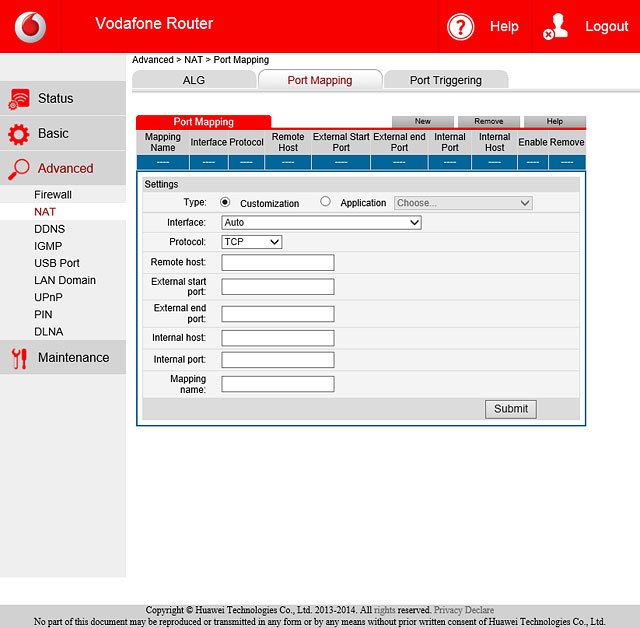

Select protocol

Click the drop down list next to "Protocol".

Step 6 of 12

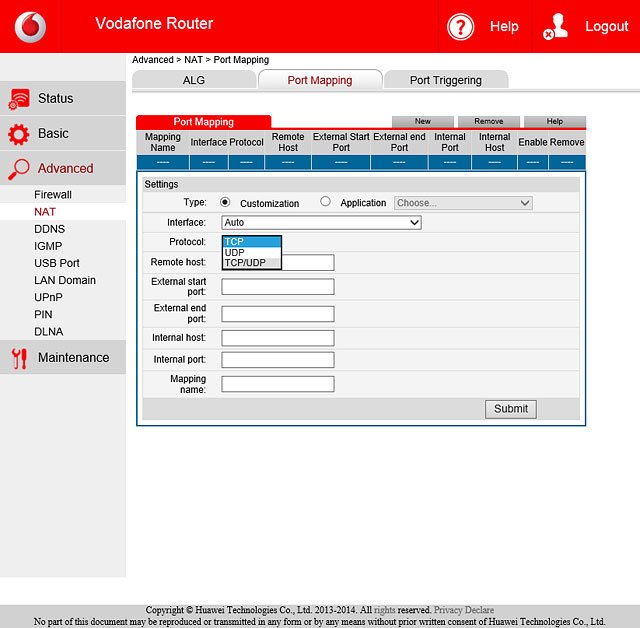

Select protocol

Highlight the required protocol.

Step 7 of 12

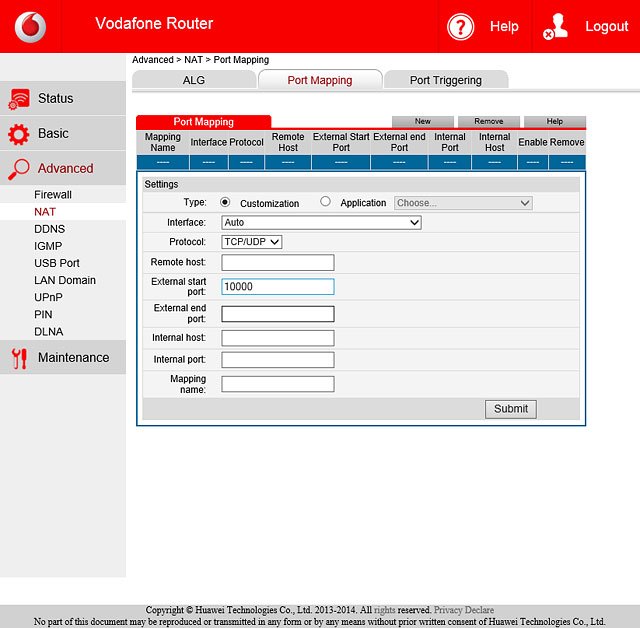

Enter external port numbers

Highlight the field next to "External start port" and key in the first port number at the required interval.

To forward a single port, you need to key in the same port number in both fields.
Step 8 of 12

Enter external port numbers

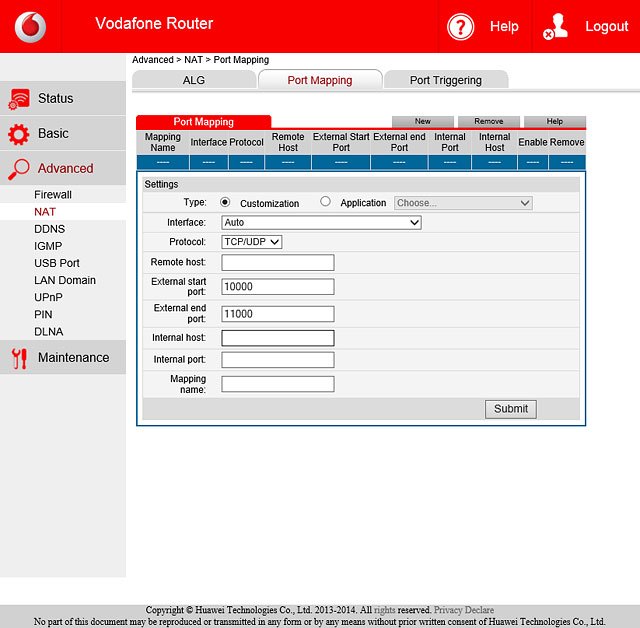

Highlight the field next to "External end port" and key in the last port number at the required interval.

To forward a single port, you need to key in the same port number in both fields.
Step 9 of 12

Enter internal IP address

Highlight the field next to "Internal host" and key in the IP address of the device to which the external port numbers are to be forwarded.

Step 10 of 12

Enter internal port number

Highlight the field next to "Internal port" and key in the port number of the device to which the external port numbers are to be forwarded.

Step 11 of 12

Enter mapping name

Highlight the field next to "Mapping name" and key in the required mapping name.

Step 12 of 12

Save mapping

Click Submit.
