Vodafone HG658c/Mavericks

Vodafone HG658c

Use file sharing - Vodafone HG658c/Mavericks

Read help info

You can share files with other devices on the network by connecting various USB storage devices (USB keys or external hard drives formatted to the file system FAT32) to your router. Remember, you need to establish a connection to the router web interface.

Step 1 of 20

Connect USB storage device

Turn the back of your router towards you.

Step 2 of 20

Connect USB storage device

Connect a USB storage device to the "USB" socket.

Step 3 of 20

Turn on file sharing

Click Advanced.

Step 4 of 20

Turn on file sharing

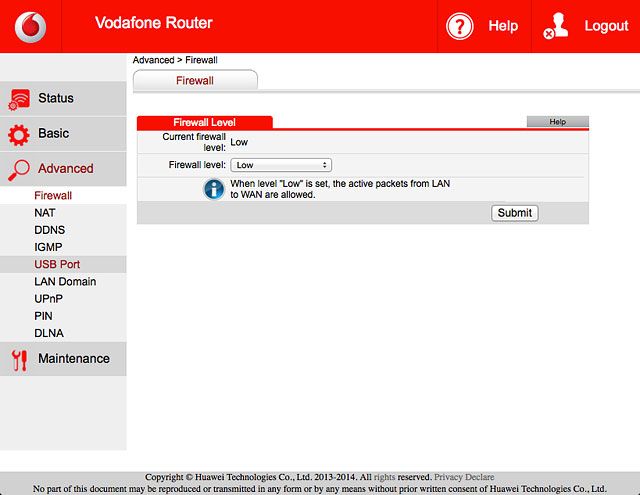

Click USB Port.

Step 5 of 20

Turn on file sharing

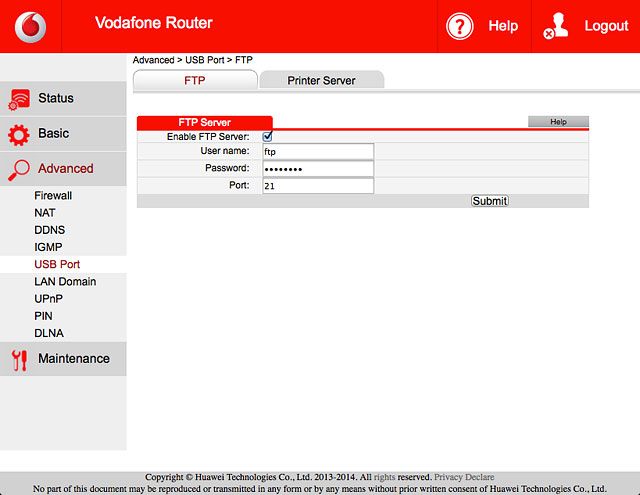

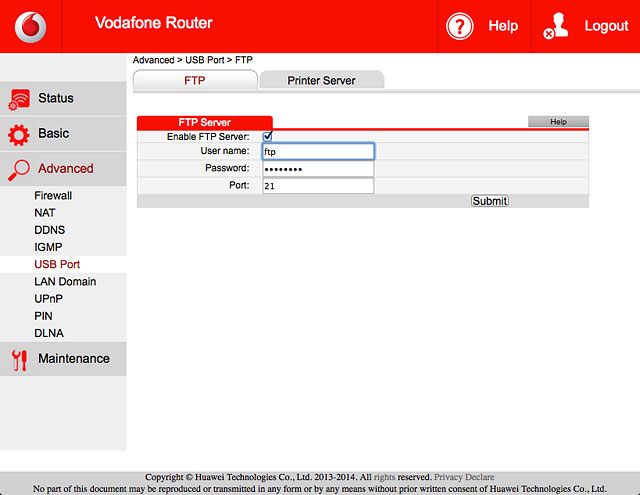

Click the box next to "Enable FTP Server" until the function is turned on.

Step 6 of 20

Create new user

Highlight the field next to "User name" and key in the required username.

Step 7 of 20

Create new user

Highlight the field next to "Password" and key in the required password.

Step 8 of 20

Create new user

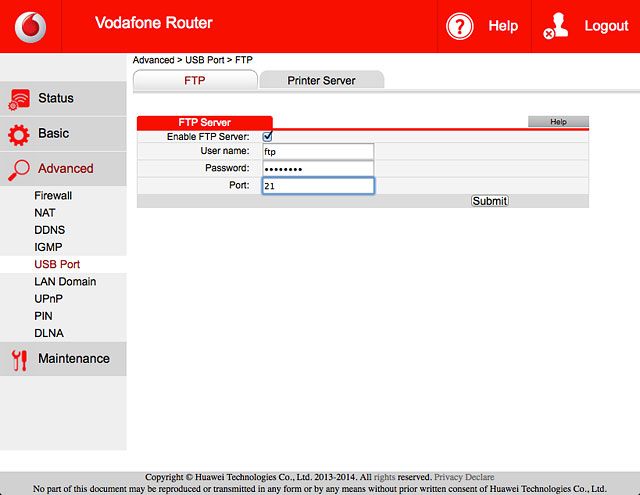

Highlight the field next to "Port" and key in 21

Step 9 of 20

Create new user

Click Submit.

Step 10 of 20

Use file sharing

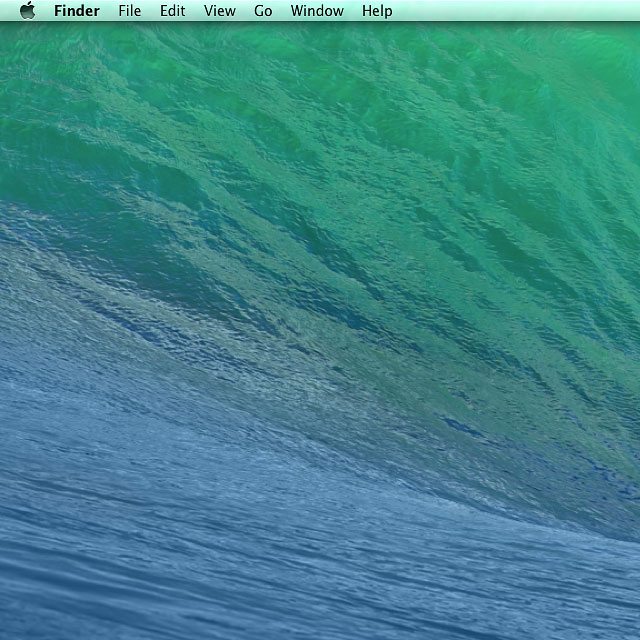

Click the desktop.

Step 11 of 20

Use file sharing

Click Go.

Step 12 of 20

Use file sharing

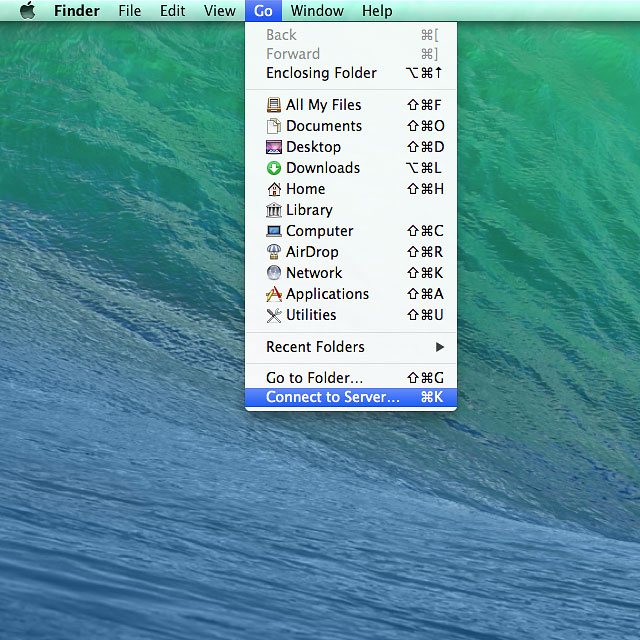

Click Connect to Server....

Step 13 of 20

Use file sharing

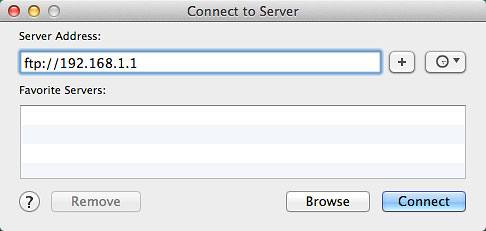

Highlight the field below "Server Address" and key in ftp://192.168.1.1

Step 14 of 20

Use file sharing

Click Connect.

Step 15 of 20

Use file sharing

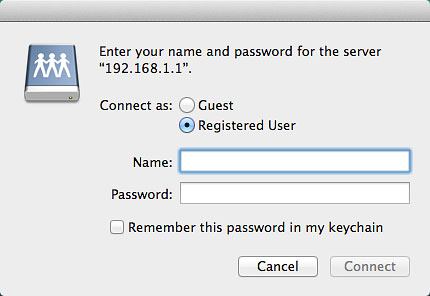

Highlight Registered User.

Step 16 of 20

Use file sharing

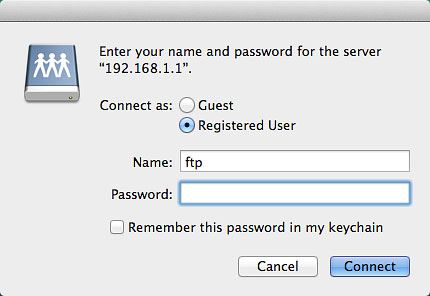

Highlight the field next to "Name" and key in your username.

Step 17 of 20

Use file sharing

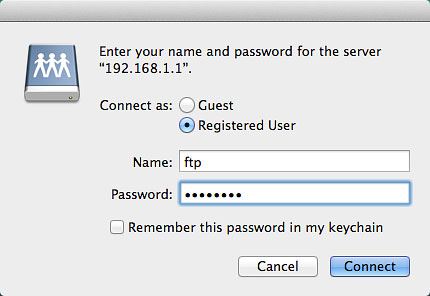

Highlight the field next to "Password" and key in your password.

Step 18 of 20

Use file sharing

Click Connect.

Step 19 of 20

Use file sharing

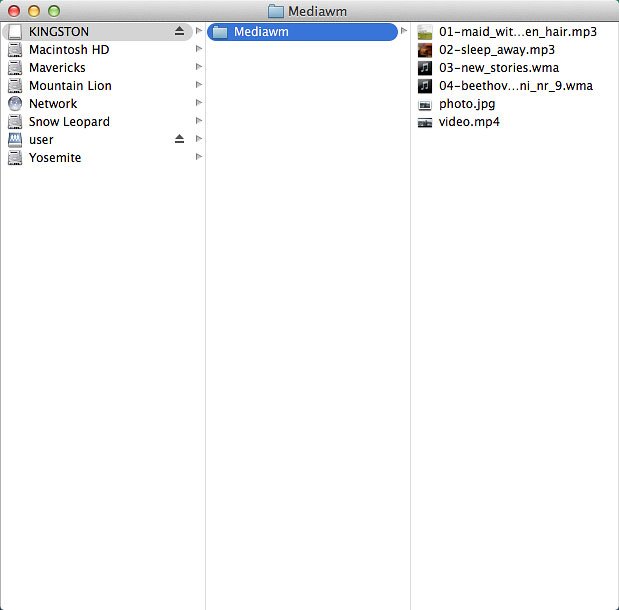

Go to the required folder in the file system.

Step 20 of 20

Use file sharing

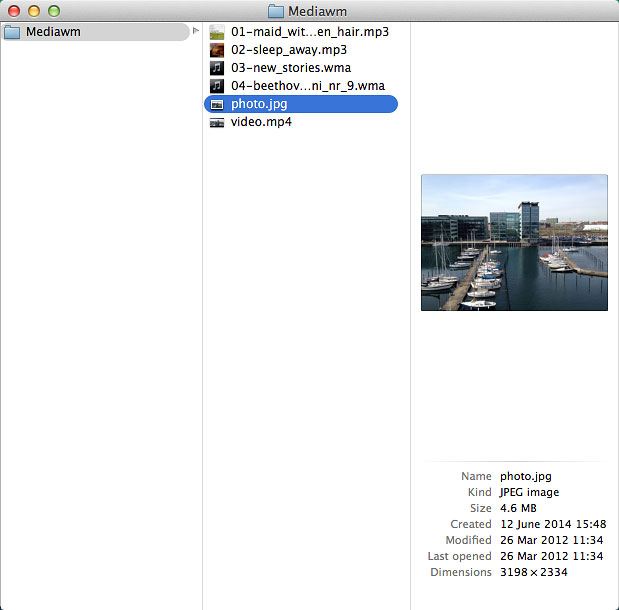

Highlight a file and move or copy it to the required location.

1. Connect USB storage device

Turn the back of your router towards you.
Connect a USB storage device to the "USB" socket.

2. Turn on file sharing

Click Advanced.
Click USB Port.
Click the box next to "Enable FTP Server" until the function is turned on.

3. Create new user

Highlight the field next to "User name" and key in the required username.
Highlight the field next to "Password" and key in the required password.
Highlight the field next to "Port" and key in 21
Click Submit.

4. Use file sharing

Click the desktop.
Click Go.
Click Connect to Server....
Highlight the field below "Server Address" and key in ftp://192.168.1.1
Click Connect.
Highlight Registered User.
Highlight the field next to "Name" and key in your username.
Highlight the field next to "Password" and key in your password.
Click Connect.
Go to the required folder in the file system.
Highlight a file and move or copy it to the required location.
