Set up your phone for picture messaging - Vodafone Chat VF655

Read help info

Follow these instructions to set up your phone for picture messaging.

Step 1 of 46

Find "Data account"

Press the Navigation key.

Step 2 of 46

Find "Data account"

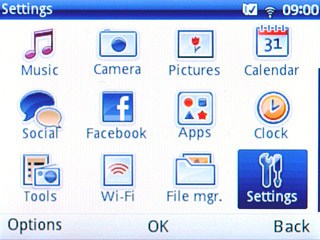

Scroll to Settings and press the Navigation key.

Step 3 of 46

Find "Data account"

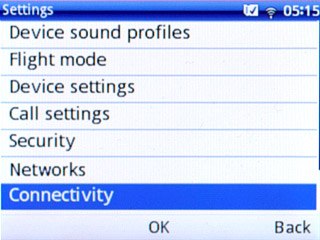

Scroll to Connectivity and press the Navigation key.

Step 4 of 46

Find "Data account"

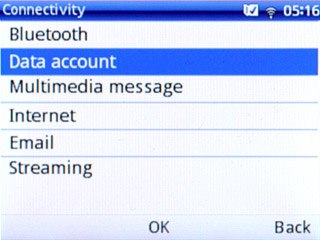

Scroll to Data account and press the Navigation key.

Step 5 of 46

Create new data connection

Press Options.

Step 6 of 46

Create new data connection

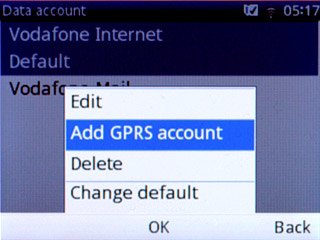

Scroll to Add GPRS account and press the Navigation key.

Step 7 of 46

Enter name

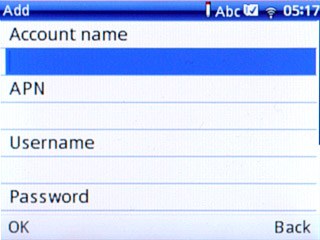

Highlight the field below Account name and key in Vodafone MMS

Step 8 of 46

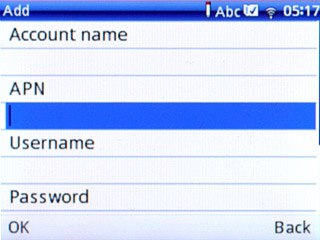

Enter APN

Highlight the field below APN.
Key in mms.vodafone.net

An APN is used to create a data connection. In order to send and receive picture messages, your phone needs a data connection.
Step 9 of 46

Select authentication type

Highlight the field below Authorization type.

Step 10 of 46

Select authentication type

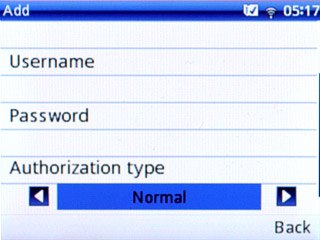

Press Navigation key right or Navigation key left to select Normal.

Step 11 of 46

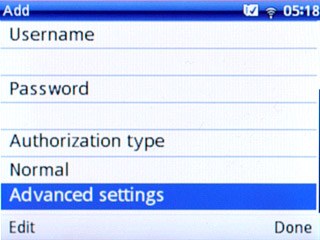

Enter picture messaging server

Scroll to Advanced settings and press the Navigation key.

Step 12 of 46

Enter picture messaging server

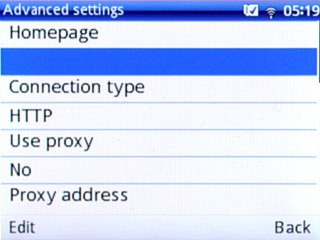

Highlight the field below Homepage and press Edit.

Step 13 of 46

Enter picture messaging server

Key in http://www.vodafone.ie/mms and press Options.

Step 14 of 46

Enter picture messaging server

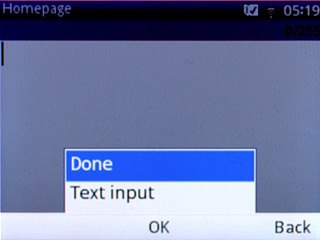

Scroll to Done and press the Navigation key.

Step 15 of 46

Enter IP address

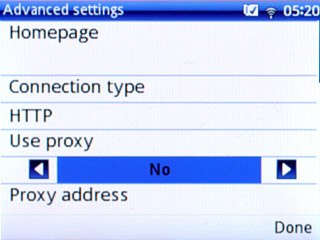

Highlight the field below Use proxy.

Step 16 of 46

Enter IP address

Press Navigation key right or Navigation key left to select Yes.

Step 17 of 46

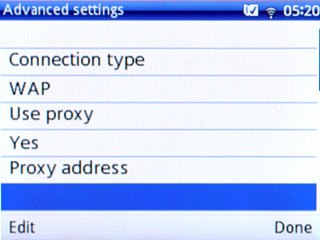

Enter IP address

Highlight the field below Proxy address and press Edit.

Step 18 of 46

Enter IP address

Key in 10.24.59.200 and press Options.

Step 19 of 46

Enter IP address

Scroll to Done and press the Navigation key.

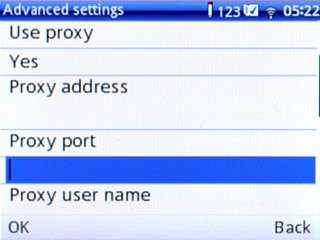

Step 20 of 46

Enter port number

Highlight the field below Proxy port and key in 80

Step 21 of 46

Enter port number

Press OK.

Step 22 of 46

Save data connection

Press Done.

Step 23 of 46

Save data connection

Press the Navigation key to confirm.

Step 24 of 46

Save data connection

Press Disconnect to return to standby mode.

Step 25 of 46

Find "Data account"

Press the Navigation key.

Step 26 of 46

Find "Data account"

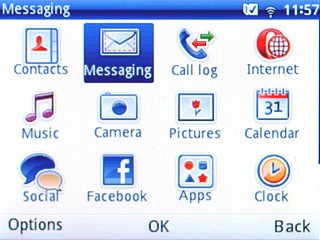

Scroll to Messaging and press the Navigation key.

Step 27 of 46

Find "Data account"

Press Options.

Step 28 of 46

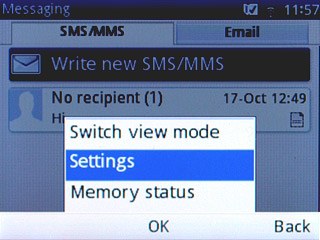

Find "Data account"

Scroll to Settings and press the Navigation key.

Step 29 of 46

Find "Data account"

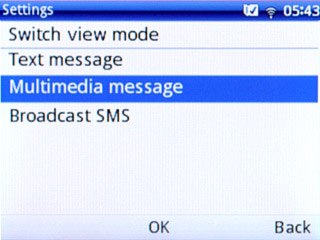

Scroll to Multimedia message and press the Navigation key.

Step 30 of 46

Find "Data account"

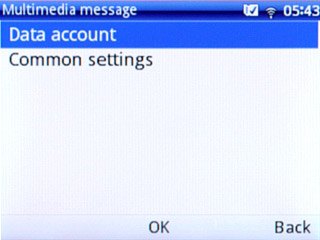

Scroll to Data account and press the Navigation key.

Step 31 of 46

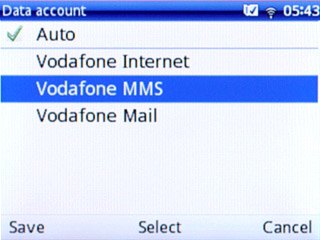

Select data connection

Scroll to Vodafone MMS and press the Navigation key to select data connection.

Step 32 of 46

Select data connection

Press Save.

Step 33 of 46

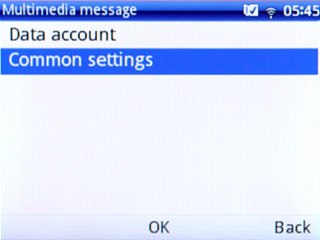

Edit general settings

Scroll to Common settings and press the Navigation key.

Step 34 of 46

Edit general settings

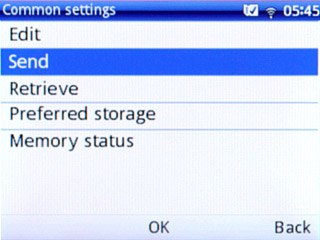

Scroll to Send and press the Navigation key.

Step 35 of 46

Turn request for delivery reports on or off

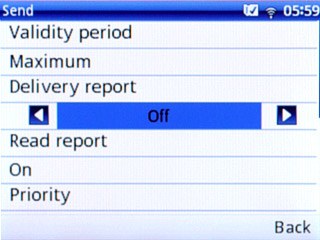

Highlight the field below Delivery report.

If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
Step 36 of 46

Turn request for delivery reports on or off

Press Navigation key right or Navigation key left to select On or Off.

If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
Step 37 of 46

Turn request for delivery reports on or off

Press Done.

If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
Step 38 of 46

Turn request for delivery reports on or off

Press the Navigation key to confirm.

If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
Step 39 of 46

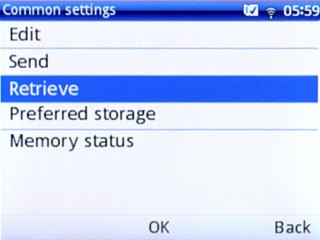

Select setting for picture message download in home network

Scroll to Retrieve and press the Navigation key.

If you select Immediate, you'll receive all picture messages.
If you select Delayed, only headers are retrieved. You then have to retrieve the picture message manually.
If you select Reject, you'll not receive any picture messages.
Step 40 of 46

Select setting for picture message download in home network

Highlight the field below Home network.

If you select Immediate, you'll receive all picture messages.
If you select Delayed, only headers are retrieved. You then have to retrieve the picture message manually.
If you select Reject, you'll not receive any picture messages.
Step 41 of 46

Select setting for picture message download in home network

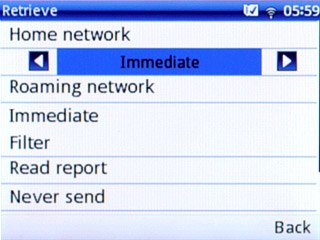

Press Navigation key right or Navigation key left to select Immediate.

If you select Immediate, you'll receive all picture messages.
If you select Delayed, only headers are retrieved. You then have to retrieve the picture message manually.
If you select Reject, you'll not receive any picture messages.
Step 42 of 46

Select setting for picture message download when roaming

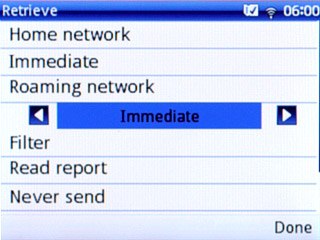

Highlight the field below Roaming network.

If you select Immediate, you'll receive all picture messages.
If you select Delayed, only headers are retrieved. You then have to retrieve the picture message manually.
If you select Reject, you'll not receive any picture messages.
If you select As home, the same setting is used when you're in your home network.
Step 43 of 46

Select setting for picture message download when roaming

Press Navigation key right or Navigation key left to select Immediate.

If you select Immediate, you'll receive all picture messages.
If you select Delayed, only headers are retrieved. You then have to retrieve the picture message manually.
If you select Reject, you'll not receive any picture messages.
If you select As home, the same setting is used when you're in your home network.
Step 44 of 46

Select setting for picture message download when roaming

Press Done.

If you select Immediate, you'll receive all picture messages.
If you select Delayed, only headers are retrieved. You then have to retrieve the picture message manually.
If you select Reject, you'll not receive any picture messages.
If you select As home, the same setting is used when you're in your home network.
Step 45 of 46

Select setting for picture message download when roaming

Press the Navigation key to confirm.

If you select Immediate, you'll receive all picture messages.
If you select Delayed, only headers are retrieved. You then have to retrieve the picture message manually.
If you select Reject, you'll not receive any picture messages.
If you select As home, the same setting is used when you're in your home network.
Step 46 of 46

Exit

Press Disconnect to return to standby mode.

1. Find "Data account"

Press the Navigation key.
Scroll to Settings and press the Navigation key.
Scroll to Connectivity and press the Navigation key.
Scroll to Data account and press the Navigation key.

2. Create new data connection

Press Options.
Scroll to Add GPRS account and press the Navigation key.

3. Enter name

Highlight the field below Account name and key in Vodafone MMS

4. Enter APN

Highlight the field below APN.
Key in mms.vodafone.net
An APN is used to create a data connection. In order to send and receive picture messages, your phone needs a data connection.

5. Select authentication type

Highlight the field below Authorization type.
Press Navigation key right or Navigation key left to select Normal.

6. Enter picture messaging server

Scroll to Advanced settings and press the Navigation key.
Highlight the field below Homepage and press Edit.
Key in http://www.vodafone.ie/mms and press Options.
Scroll to Done and press the Navigation key.

7. Enter IP address

Highlight the field below Use proxy.
Press Navigation key right or Navigation key left to select Yes.
Highlight the field below Proxy address and press Edit.
Key in 10.24.59.200 and press Options.
Scroll to Done and press the Navigation key.

8. Enter port number

Highlight the field below Proxy port and key in 80
Press OK.

9. Save data connection

Press Done.
Press the Navigation key to confirm.
Press Disconnect to return to standby mode.

10. Find "Data account"

Press the Navigation key.
Scroll to Messaging and press the Navigation key.
Press Options.
Scroll to Settings and press the Navigation key.
Scroll to Multimedia message and press the Navigation key.
Scroll to Data account and press the Navigation key.

11. Select data connection

Scroll to Vodafone MMS and press the Navigation key to select data connection.
Press Save.

12. Edit general settings

Scroll to Common settings and press the Navigation key.
Scroll to Send and press the Navigation key.

13. Turn request for delivery reports on or off

Highlight the field below Delivery report.
If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
Press Navigation key right or Navigation key left to select On or Off.
If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
Press Done.
If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
Press the Navigation key to confirm.
If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.

14. Select setting for picture message download in home network

Scroll to Retrieve and press the Navigation key.
If you select Immediate, you'll receive all picture messages.
If you select Delayed, only headers are retrieved. You then have to retrieve the picture message manually.
If you select Reject, you'll not receive any picture messages.
Highlight the field below Home network.
If you select Immediate, you'll receive all picture messages.
If you select Delayed, only headers are retrieved. You then have to retrieve the picture message manually.
If you select Reject, you'll not receive any picture messages.
Press Navigation key right or Navigation key left to select Immediate.
If you select Immediate, you'll receive all picture messages.
If you select Delayed, only headers are retrieved. You then have to retrieve the picture message manually.
If you select Reject, you'll not receive any picture messages.

15. Select setting for picture message download when roaming

Highlight the field below Roaming network.
If you select Immediate, you'll receive all picture messages.
If you select Delayed, only headers are retrieved. You then have to retrieve the picture message manually.
If you select Reject, you'll not receive any picture messages.
If you select As home, the same setting is used when you're in your home network.
Press Navigation key right or Navigation key left to select Immediate.
If you select Immediate, you'll receive all picture messages.
If you select Delayed, only headers are retrieved. You then have to retrieve the picture message manually.
If you select Reject, you'll not receive any picture messages.
If you select As home, the same setting is used when you're in your home network.
Press Done.
If you select Immediate, you'll receive all picture messages.
If you select Delayed, only headers are retrieved. You then have to retrieve the picture message manually.
If you select Reject, you'll not receive any picture messages.
If you select As home, the same setting is used when you're in your home network.
Press the Navigation key to confirm.
If you select Immediate, you'll receive all picture messages.
If you select Delayed, only headers are retrieved. You then have to retrieve the picture message manually.
If you select Reject, you'll not receive any picture messages.
If you select As home, the same setting is used when you're in your home network.

16. Exit

Press Disconnect to return to standby mode.
