1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-caf28dfb-fff7-4cf9-ad5d-8845fd0a5408.png?width=204&height=442)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-cff0f046-5a2f-45f8-b412-1909a19229ac.png?width=204&height=442)
Press Network & internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f226f4e9-5d37-44e7-8c22-70108e29bffc.png?width=204&height=442)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8833d4aa-2a1f-43db-ab33-5ad875bf7d2b.png?width=204&height=442)

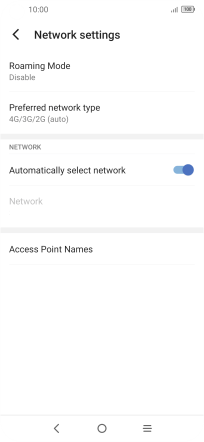

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c52553cf-929a-42ab-a0b4-49f73494ac3d.png?width=204&height=442)
2. Create new data connection

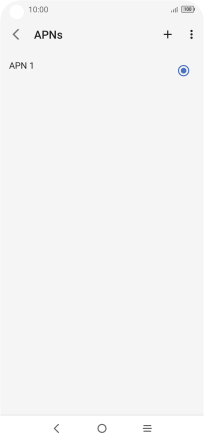

Press the add icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ddb24de1-0ee7-49d6-ba7b-b6d4ec5dbb8c.png?width=204&height=442)

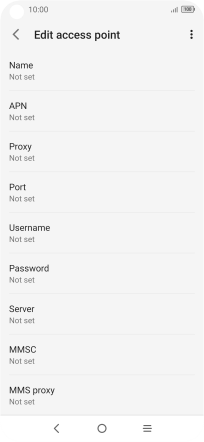

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-bfa6c8d5-fca3-4cc9-b8b8-a7b69ba8361d.png?width=204&height=442)

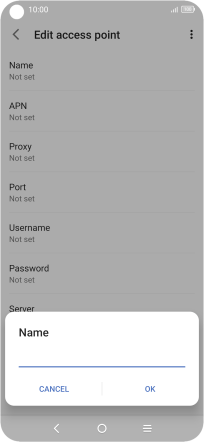

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-98f8c70c-3aeb-4da6-9489-9c6c30451d89.png?width=204&height=442)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-bfa6c8d5-fca3-4cc9-b8b8-a7b69ba8361d.png?width=204&height=442)

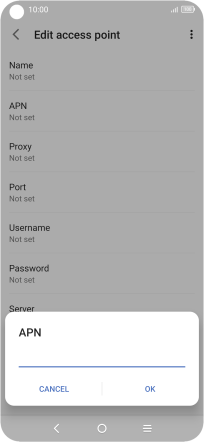

Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4ecdd53f-f072-4159-84f0-eae7faa38557.png?width=204&height=442)
mms.vodafone.net
4. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-bfa6c8d5-fca3-4cc9-b8b8-a7b69ba8361d.png?width=204&height=442)

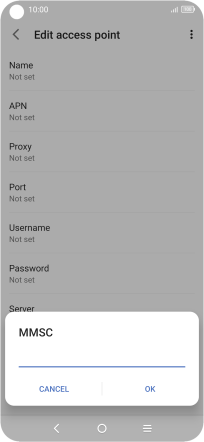

Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-59a4a7af-6398-40cd-9514-d01ee642752e.png?width=204&height=442)
http://www.vodafone.ie/mms
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-bfa6c8d5-fca3-4cc9-b8b8-a7b69ba8361d.png?width=204&height=442)

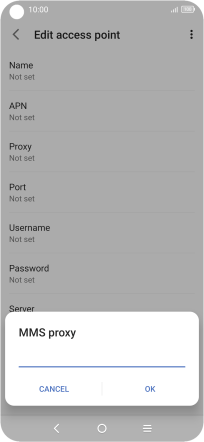

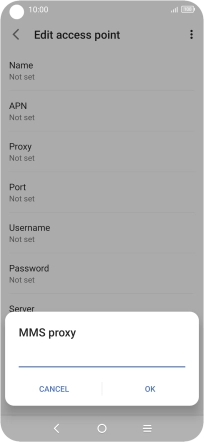

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-074916f5-8344-4f78-9130-4d904287112d.png?width=204&height=442)
10.24.59.200
6. Enter port number

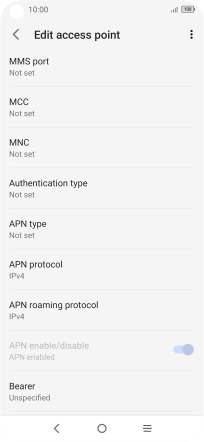

Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4b98c4f5-3cd9-438b-8d8a-afadfbf04ade.png?width=204&height=442)

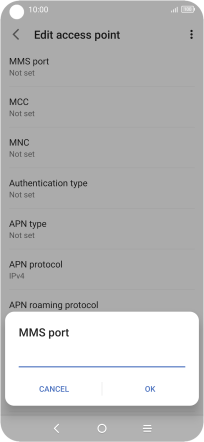

Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9ab1ec74-aa8b-4031-8854-0d40606243a0.png?width=204&height=442)
80
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4b98c4f5-3cd9-438b-8d8a-afadfbf04ade.png?width=204&height=442)

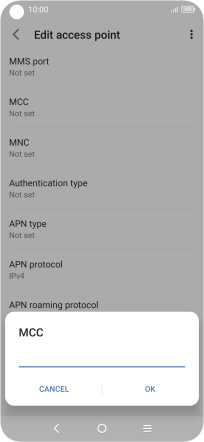

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-540d1b8c-41e7-4fe5-9d0a-ec5812f75c00.png?width=204&height=442)
272
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4b98c4f5-3cd9-438b-8d8a-afadfbf04ade.png?width=204&height=442)
Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a9902718-7f25-4f19-9929-f06bc27ee1bf.png?width=204&height=442)
01
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4b98c4f5-3cd9-438b-8d8a-afadfbf04ade.png?width=204&height=442)

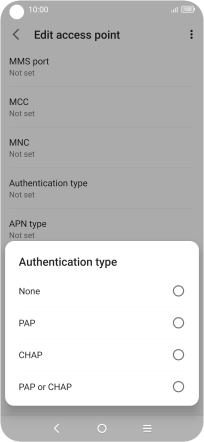

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-efc4ae29-0f2e-42d1-8eca-34f23d7e5f88.png?width=204&height=442)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4b98c4f5-3cd9-438b-8d8a-afadfbf04ade.png?width=204&height=442)

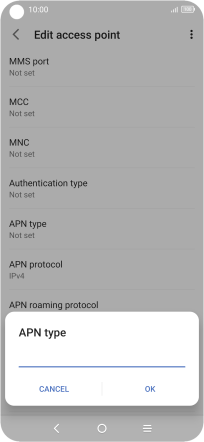

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e2a37d13-23dc-48df-92e6-7afc82512518.png?width=204&height=442)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4b98c4f5-3cd9-438b-8d8a-afadfbf04ade.png?width=204&height=442)

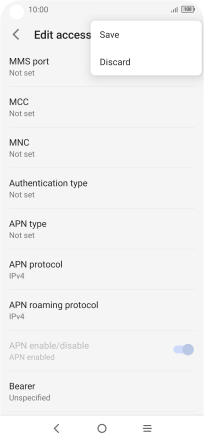

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c1f82694-0eda-45b5-b188-61bb80081111.png?width=204&height=442)
12. Return to the home screen

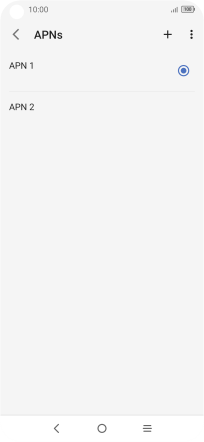

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d15f41d3-27c2-41ee-b713-c0fee16d6ff4.png?width=204&height=442)
