TCL 10 5G

TCL 10 5G

Android 10.0

Set up your TCL 10 5G Android 10.0 for internet

Read help info

The internet connection is shared by many functions on your phone such as internet browsing, receiving email messages and installing apps. You can access the internet as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for internet manually.

Step 1 of 22

1. Find "Access Point Names"

Slide two fingers downwards starting from the top of the screen.

Step 2 of 22

1. Find "Access Point Names"

Press the settings icon.

Step 3 of 22

1. Find "Access Point Names"

Press Network & internet.

Step 4 of 22

1. Find "Access Point Names"

Press Mobile network.

Step 5 of 22

1. Find "Access Point Names"

Press Access Point Names.

Step 6 of 22

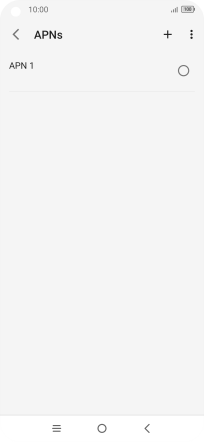

2. Create new data connection

Press the add icon.

Step 7 of 22

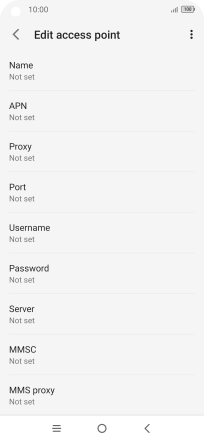

2. Create new data connection

Press Name.

Vodafone Internet
Step 8 of 22

2. Create new data connection

Key in Vodafone Internet and press OK.

Step 9 of 22

3. Enter APN

Press APN.

live.vodafone.com

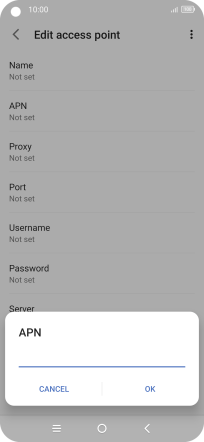

Step 10 of 22

3. Enter APN

Key in live.vodafone.com and press OK.

Step 11 of 22

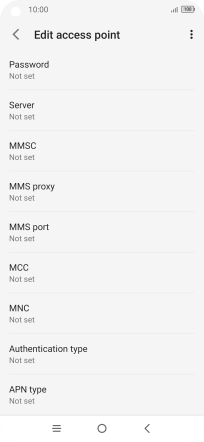

4. Enter country code

Press MCC.

272
Step 12 of 22

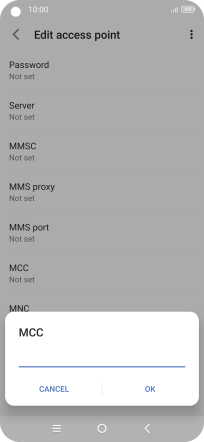

4. Enter country code

Key in 272 and press OK.

Step 13 of 22

5. Enter network code

Press MNC.

01
Step 14 of 22

5. Enter network code

Key in 01 and press OK.

Step 15 of 22

6. Select authentication type

Press Authentication type.

Step 16 of 22

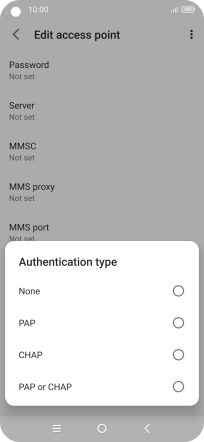

6. Select authentication type

Press PAP.

Step 17 of 22

7. Enter APN type

Press APN type.

default
Step 18 of 22

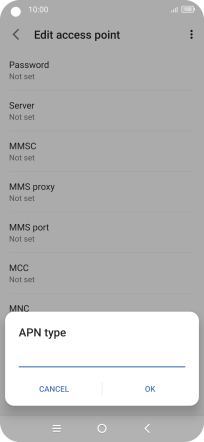

7. Enter APN type

Key in default and press OK.

Step 19 of 22

8. Save data connection

Press the menu icon.

Step 20 of 22

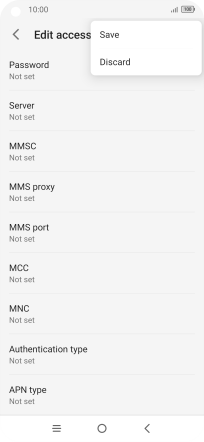

8. Save data connection

Press Save.

Step 21 of 22

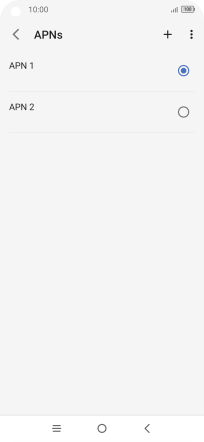

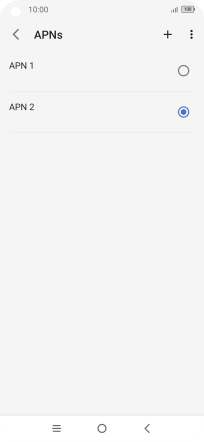

8. Save data connection

Press the field next to the data connection to activate it.

Step 22 of 22

9. Return to the home screen

Press the Home key to return to the home screen.

1. Find "Access Point Names"

Slide two fingers downwards starting from the top of the screen.
Press the settings icon.
Press Network & internet.
Press Mobile network.
Press Access Point Names.

2. Create new data connection

Press the add icon.
Press Name.
Key in Vodafone Internet and press OK.
Vodafone Internet

3. Enter APN

Press APN.
Key in live.vodafone.com and press OK.
live.vodafone.com

4. Enter country code

Press MCC.
Key in 272 and press OK.
272

5. Enter network code

Press MNC.
Key in 01 and press OK.
01

6. Select authentication type

Press Authentication type.
Press PAP.

7. Enter APN type

Press APN type.
Key in default and press OK.
default

8. Save data connection

Press the menu icon.
Press Save.
Press the field next to the data connection to activate it.

9. Return to the home screen

Press the Home key to return to the home screen.
