1. Find "Access Point Names"

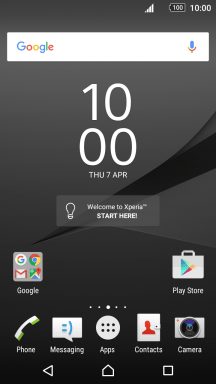

Slide two fingers downwards starting from the top the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-051867c9-3b73-4b31-b413-69c26f078966.png?width=216&height=384)

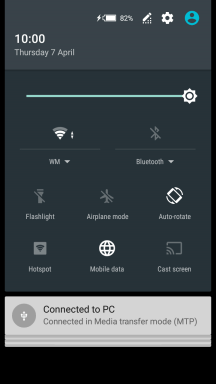

Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6f0f4a46-6ebe-4c2a-9d3e-60cd5bcb4dd8.png?width=216&height=384)

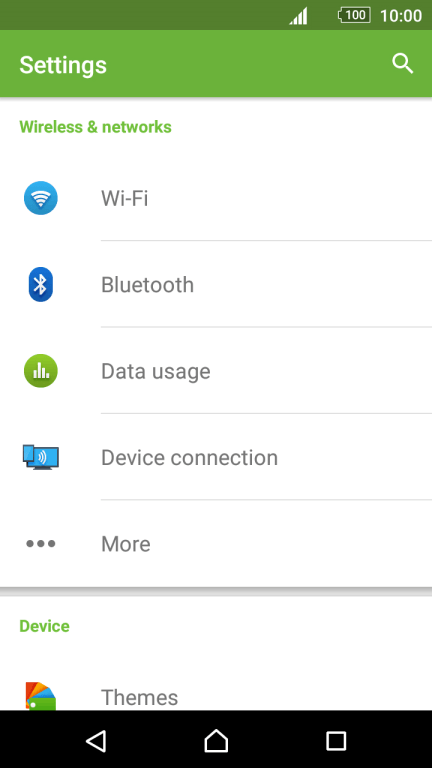

Press More.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3650b634-e3b3-4a44-98c5-b7adc8e0f4b0.png?width=216&height=384)

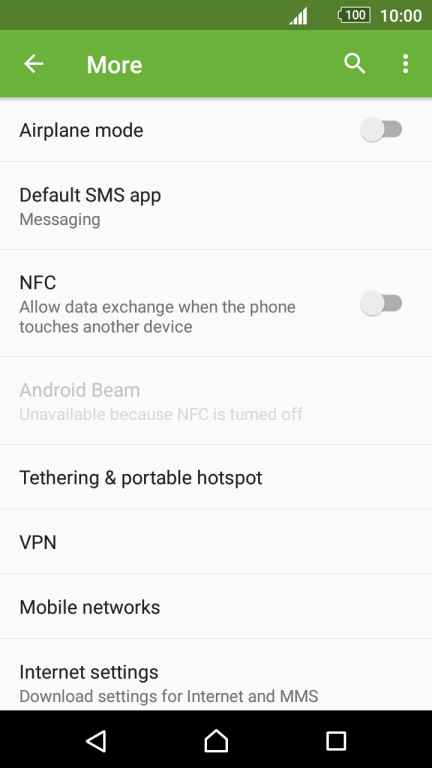

Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-10219e08-515a-4819-aeae-8c07bc937e58.png?width=216&height=384)

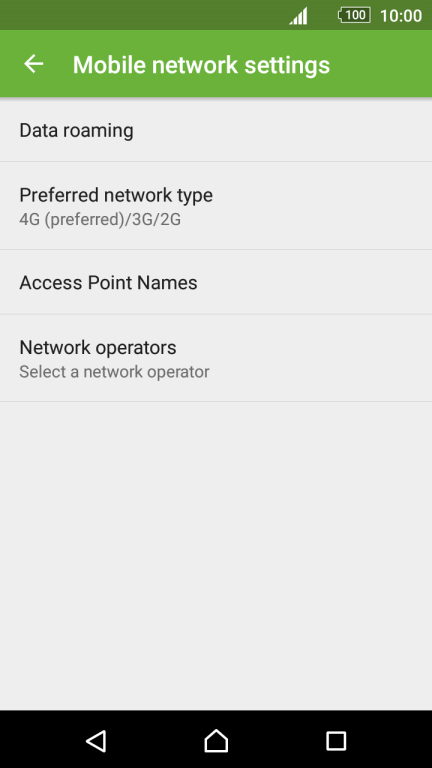

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2f54b7e0-c9ae-48b0-ab69-c1194999a619.png?width=216&height=384)
2. Create new data connection

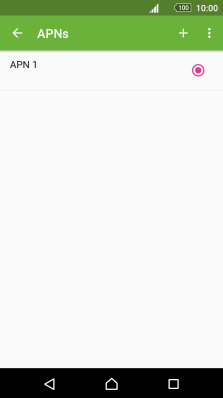

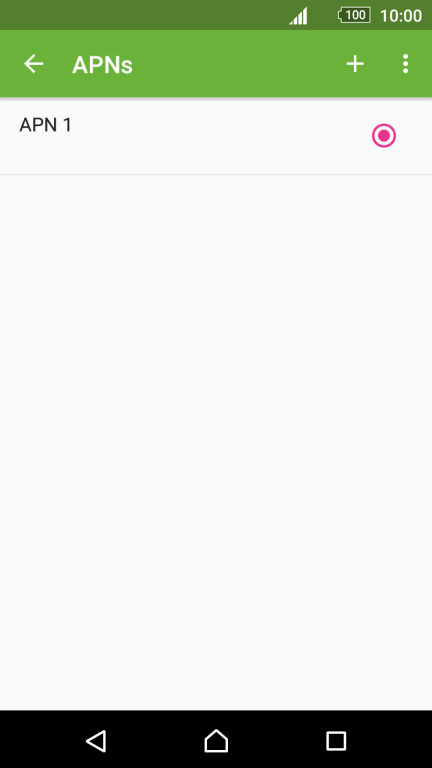

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-191dc845-8e50-4741-83f5-fdb46dfe5dfa.png?width=216&height=384)

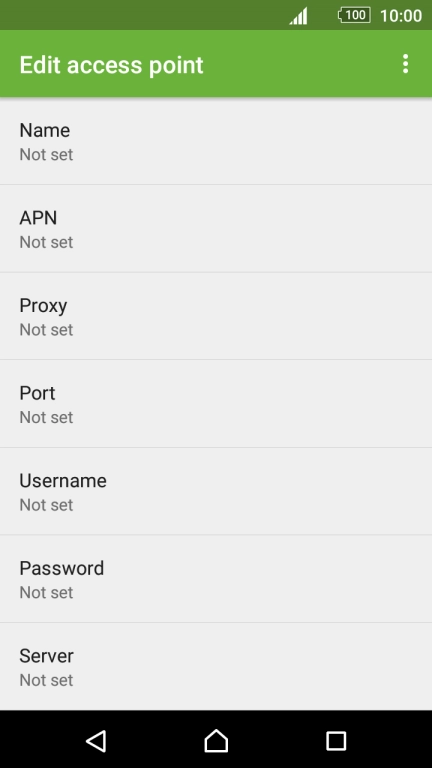

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-86b06af3-b442-443c-94ff-114f9d815e43.png?width=216&height=384)

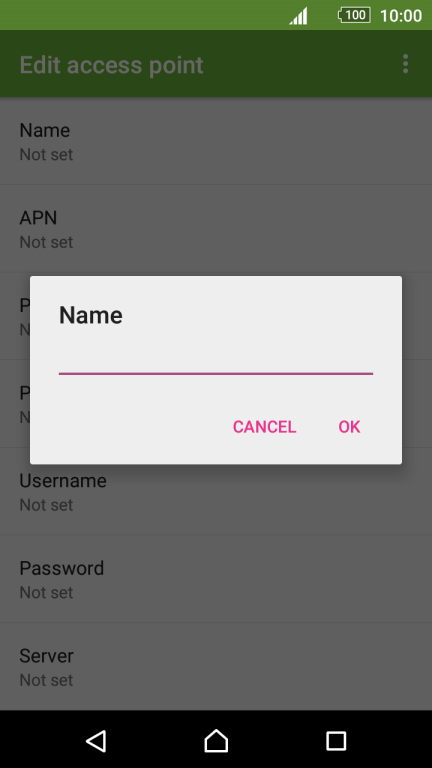

Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3536c372-d339-4115-a954-e9f2bd15ec0b.png?width=216&height=384)
Vodafone Internet
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-86b06af3-b442-443c-94ff-114f9d815e43.png?width=216&height=384)

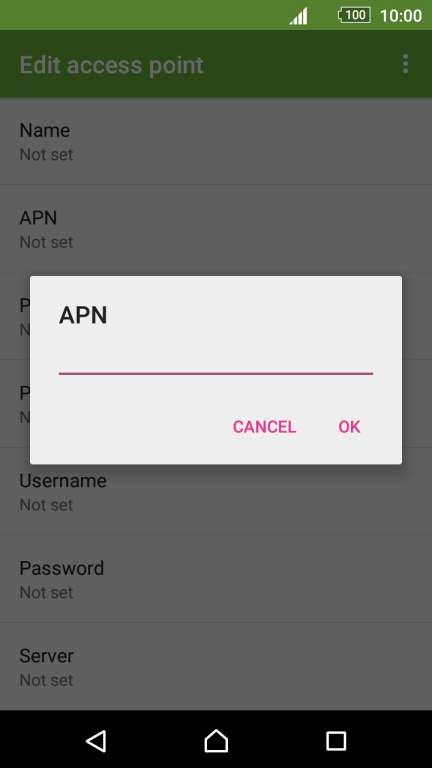

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2a133513-05d3-40ca-96fe-a7acd90ee99a.png?width=216&height=384)
live.vodafone.com
4. Enter country code

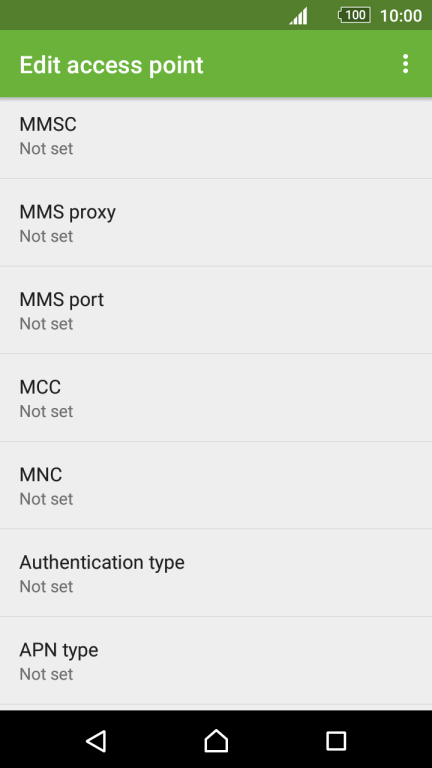

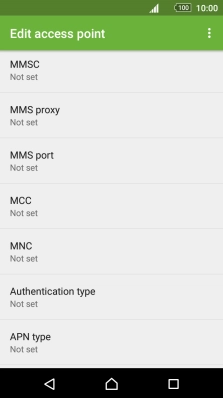

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2f204fb3-d326-442a-b7ae-0890a2c31b32.png?width=216&height=384)

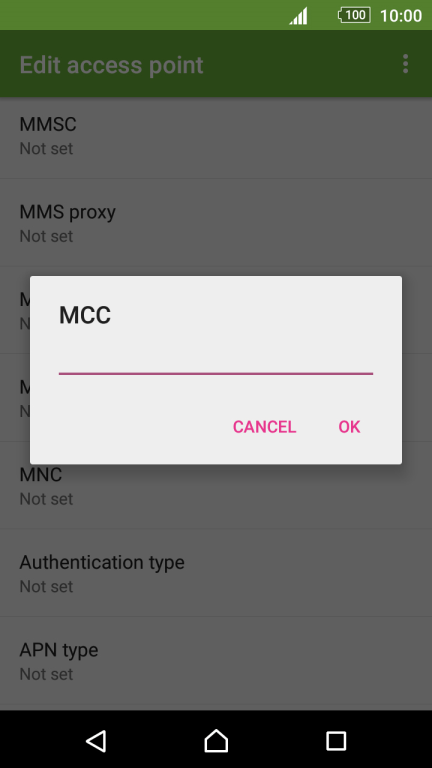

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5821bbe7-49f0-42eb-aab2-201314ebc79c.png?width=216&height=384)
272
5. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2f204fb3-d326-442a-b7ae-0890a2c31b32.png?width=216&height=384)
Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-340499f9-2016-4284-aa98-65723d6ce401.png?width=216&height=384)
01
6. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2f204fb3-d326-442a-b7ae-0890a2c31b32.png?width=216&height=384)

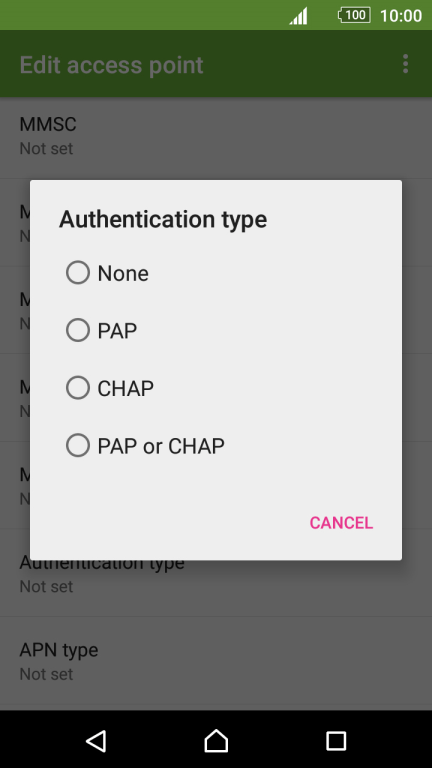

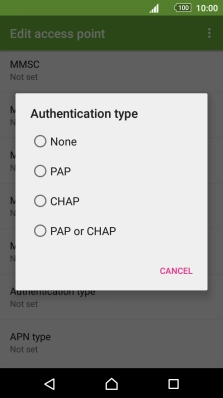

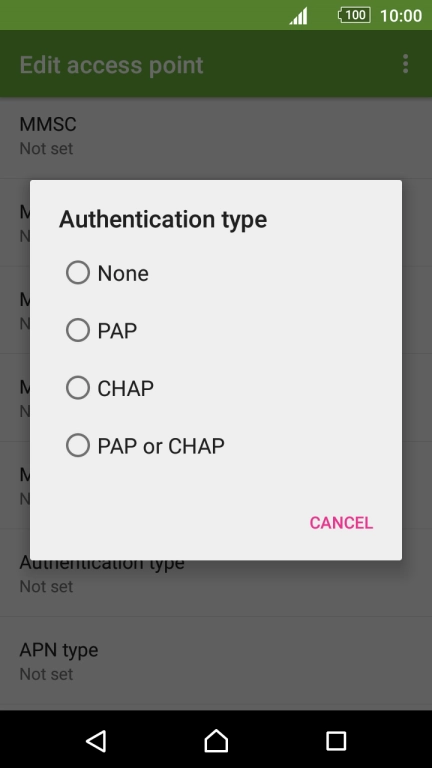

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b5cf40aa-0e87-4195-a380-af1dc138d9ea.png?width=216&height=384)
7. Select APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2f204fb3-d326-442a-b7ae-0890a2c31b32.png?width=216&height=384)

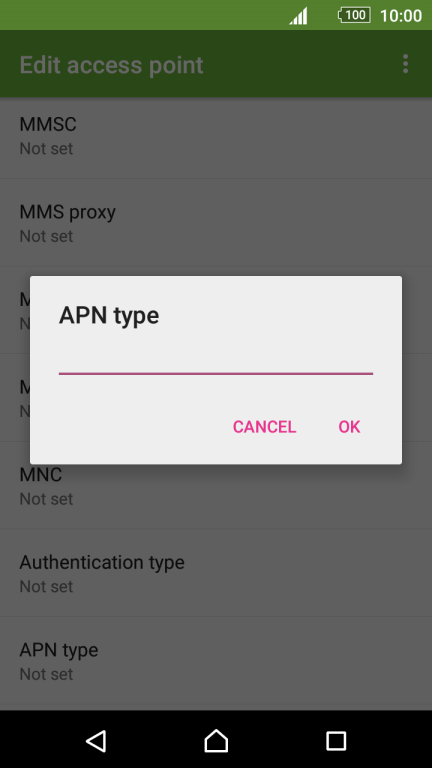

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-67670f97-4511-4532-a399-ea177086a481.png?width=216&height=384)
default
8. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2f204fb3-d326-442a-b7ae-0890a2c31b32.png?width=216&height=384)

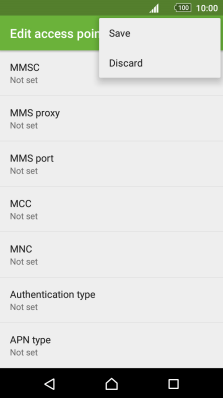

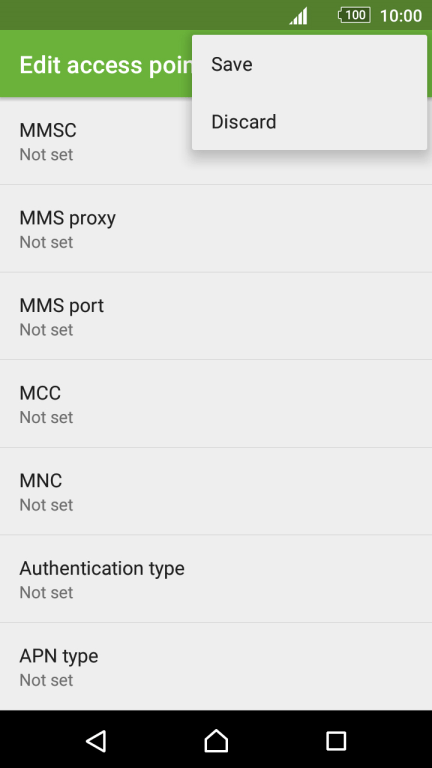

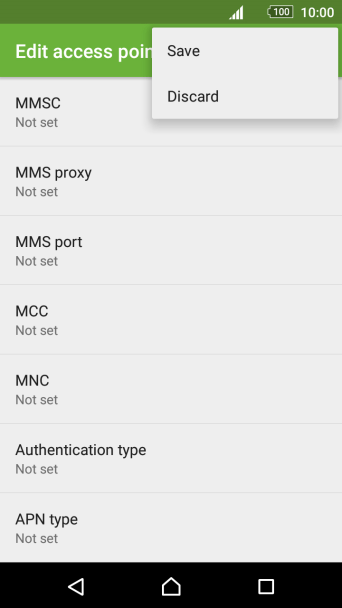

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4b5f5cdc-d8f0-44ab-b898-0a5f25db3f04.png?width=216&height=384)

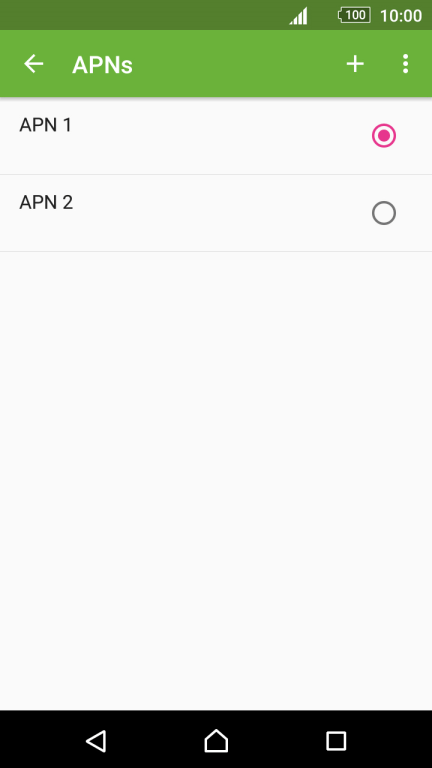

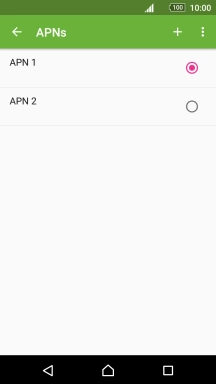

Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2bc90efe-a596-4e9b-8e9d-0be6a9ec9daf.png?width=216&height=384)
9. Return to the home screen

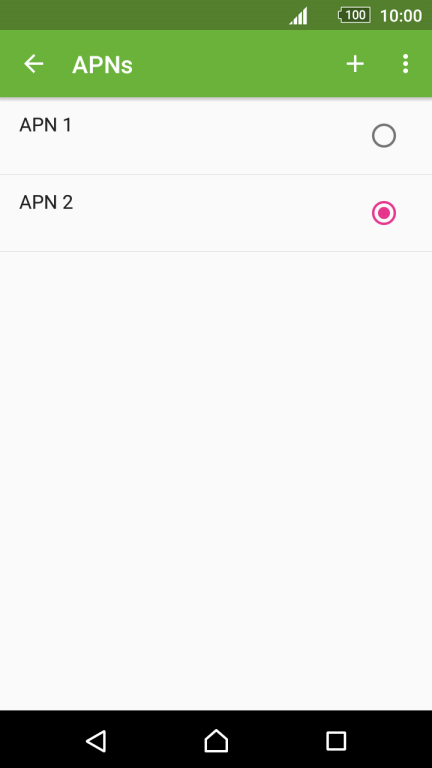

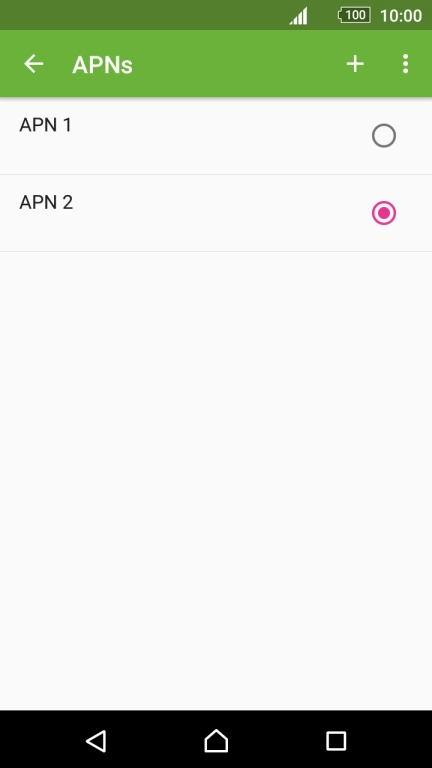

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b9e55193-81d1-4eb1-98ee-a496cc9a2ad1.png?width=216&height=384)
