Sony Xperia XZ2

Sony Xperia XZ2

Android 8.0

Set up your Sony Xperia XZ2 Android 8.0 for IMAP email

Read help info

You can set up your phone to send and receive email messages from your email accounts. Using IMAP, your email messages are kept on the server and are synchronised between all of your devices. You're then able to access your email messages from other devices. To set up your phone for IMAP email, you need to set up your phone for internet.

Step 1 of 35

1. Find "Users & accounts"

Slide your finger downwards starting from the top of the screen.

Step 2 of 35

1. Find "Users & accounts"

Press the settings icon.

Step 3 of 35

1. Find "Users & accounts"

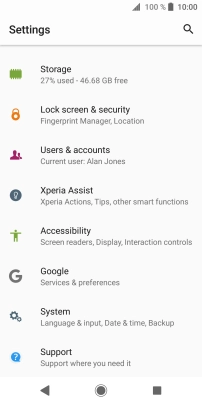

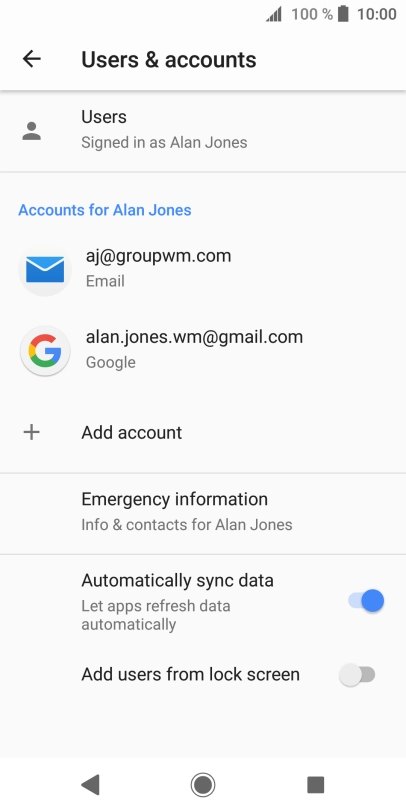

Press Users & accounts.

Step 4 of 35

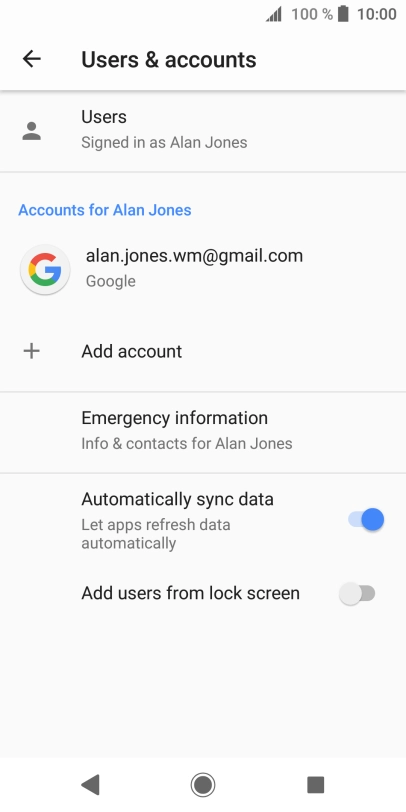

2. Create new email account

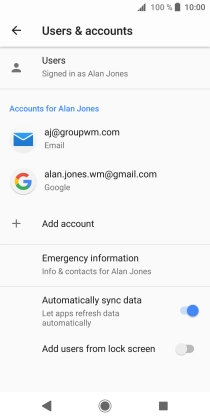

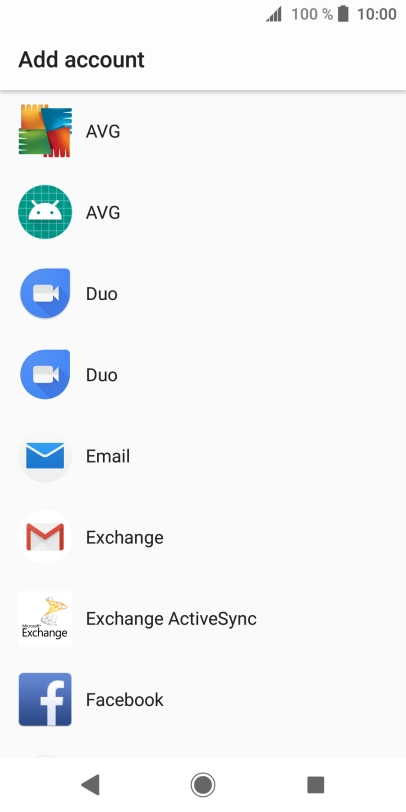

Press Add account.

Step 5 of 35

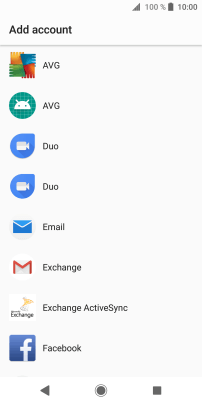

2. Create new email account

Press Email.

Step 6 of 35

3. Enter email address

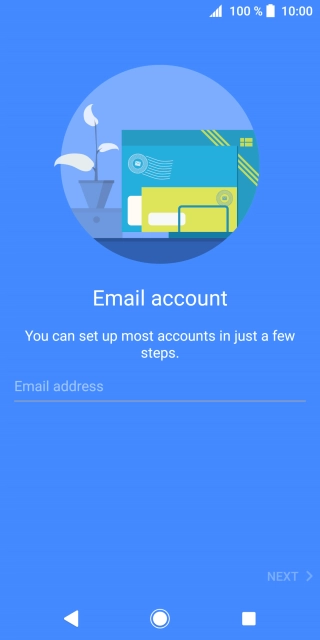

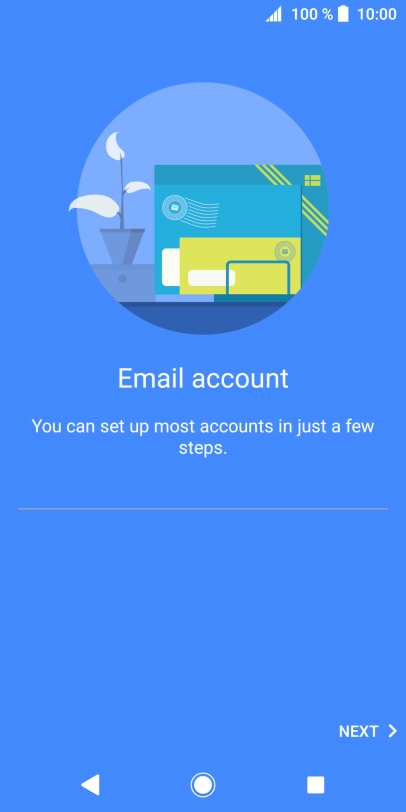

Press Email address and key in your email address.

Step 7 of 35

3. Enter email address

Press NEXT.

Step 8 of 35

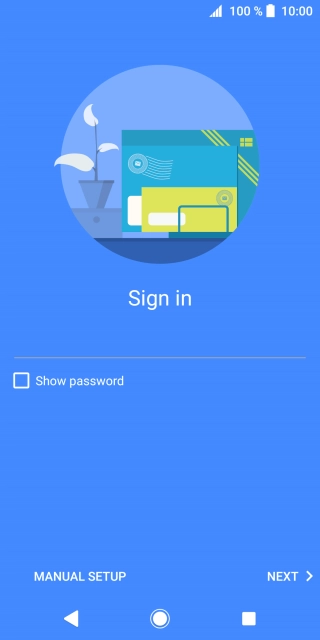

4. Enter password

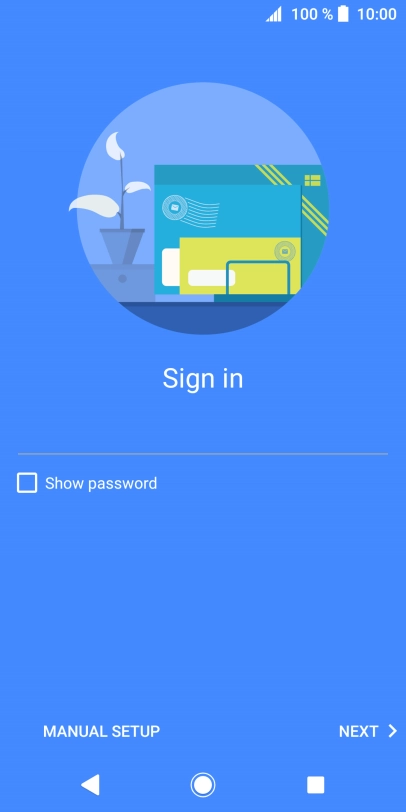

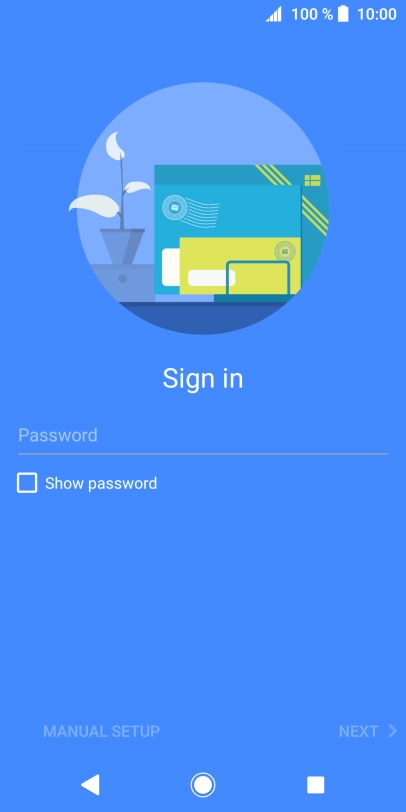

Press Password and key in the password for your email account.

Step 9 of 35

4. Enter password

Press NEXT.

Step 10 of 35

4. Enter password

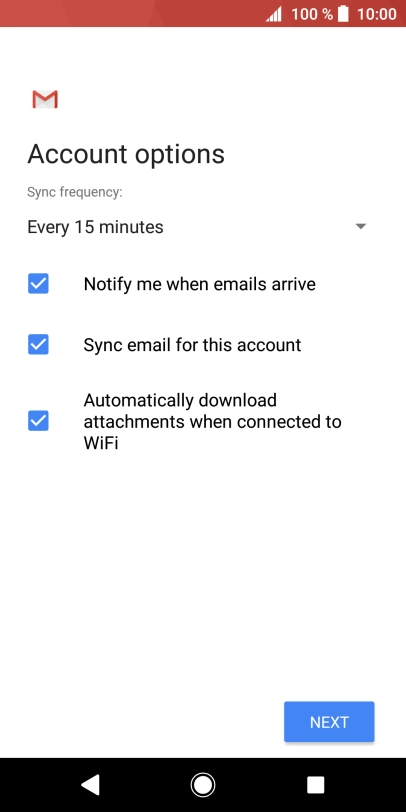

If this screen is displayed, you email account has been recognised and set up automatically. Follow the instructions on the screen to key in more information and finish setting up your phone.

Step 11 of 35

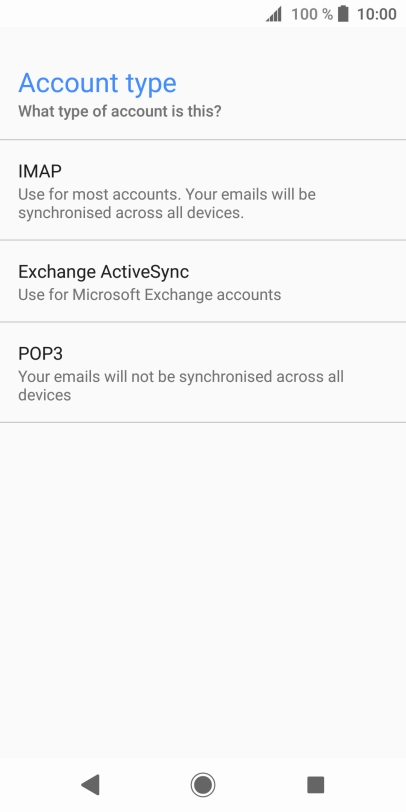

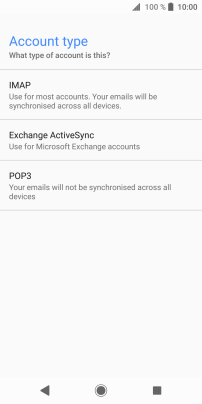

5. Select server type

Press IMAP.

Step 12 of 35

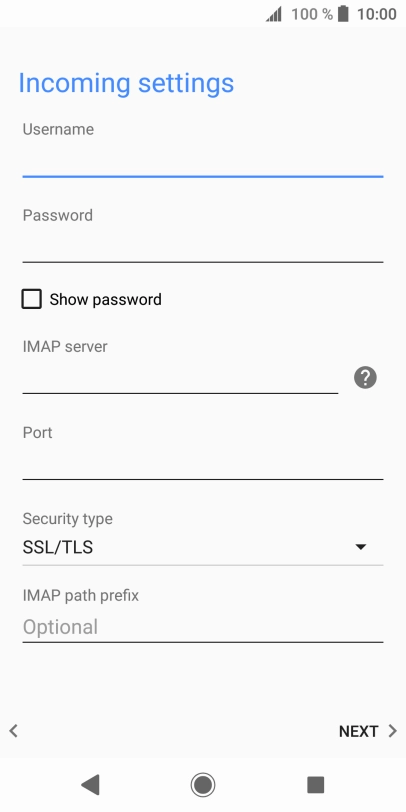

6. Enter username

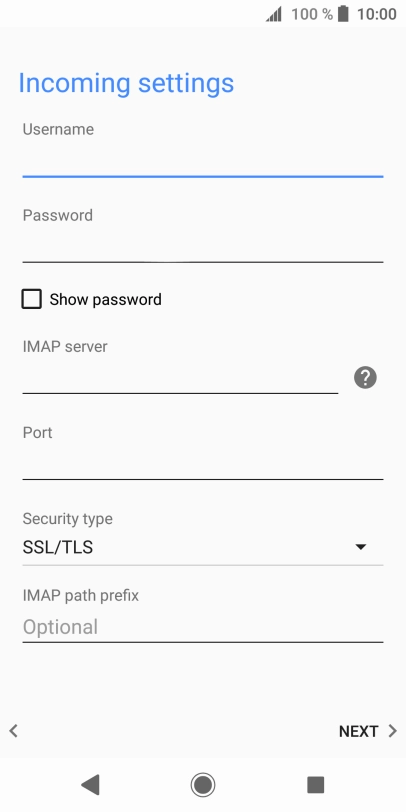

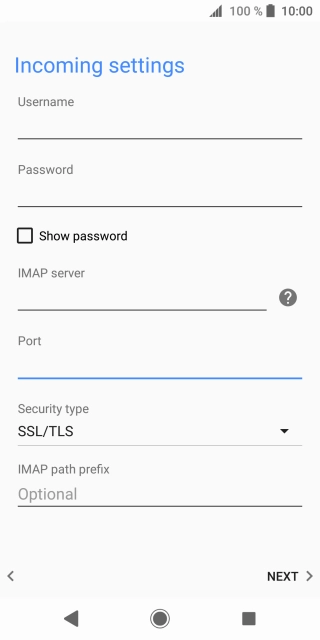

Press the field below "Username" and key in the username for your email account.

Step 13 of 35

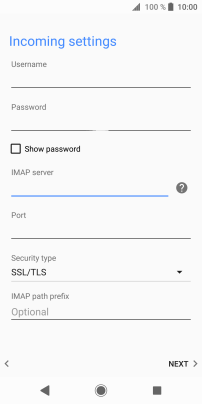

7. Enter incoming server

Press the field below "IMAP server" and key in the name of your email provider's incoming server.

143
Step 14 of 35

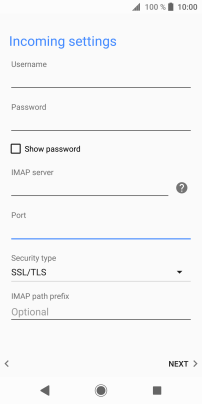

8. Enter incoming port

Press the field below "Port" and key in 143.

Step 15 of 35

9. Turn off encryption of incoming email messages

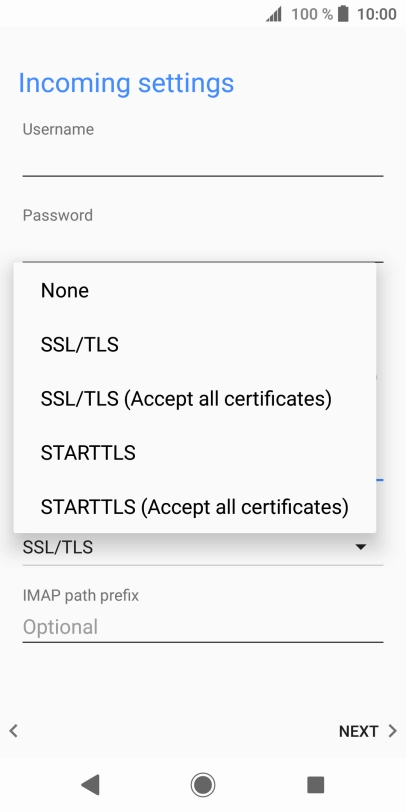

Press the drop down list below "Security type".

Step 16 of 35

9. Turn off encryption of incoming email messages

Press None to turn off the function.

Step 17 of 35

9. Turn off encryption of incoming email messages

Press NEXT.

mail.vodafone.ie
Step 18 of 35

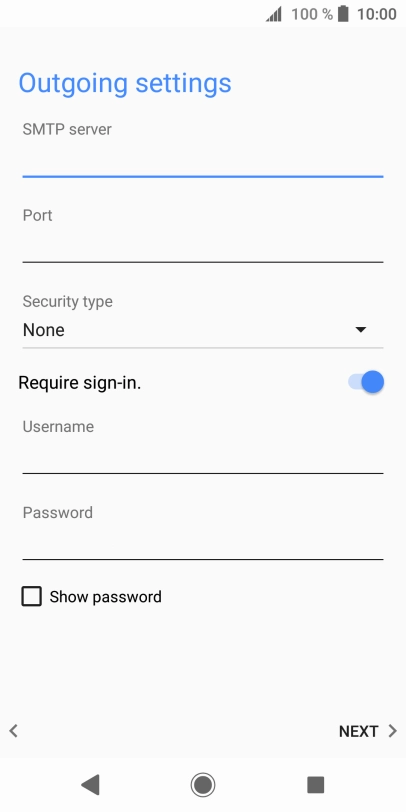

10. Enter outgoing server

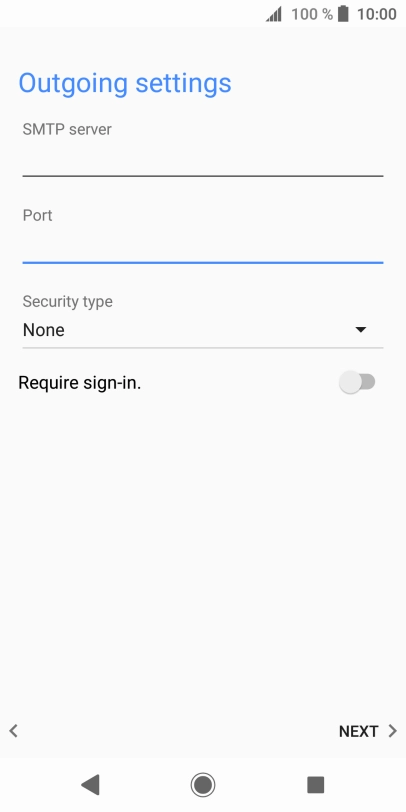

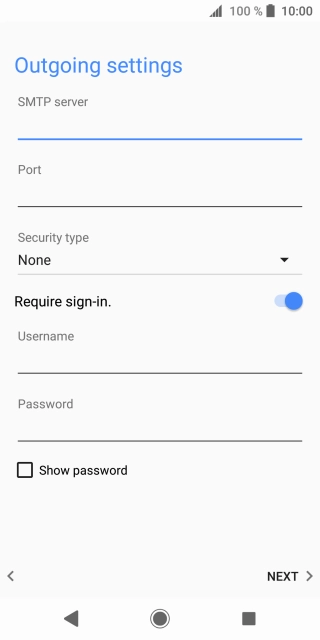

Press the field below "SMTP server" and key in mail.vodafone.ie.

25
Step 19 of 35

11. Enter outgoing port

Press the field below "Port" and key in 25.

Step 20 of 35

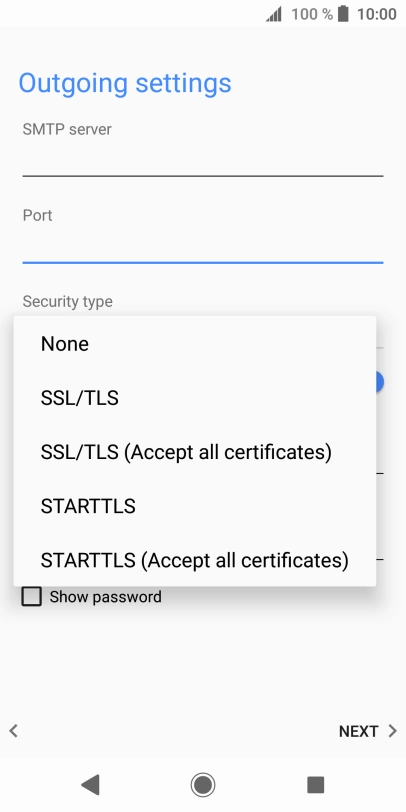

12. Turn off encryption of outgoing email messages

Press the drop down list below "Security type".

Step 21 of 35

12. Turn off encryption of outgoing email messages

Press None to turn off the function.

Step 22 of 35

13. Turn off SMTP authentication

Press the indicator next to "Require sign-in." to turn off the function.

Step 23 of 35

13. Turn off SMTP authentication

Press NEXT.

Step 24 of 35

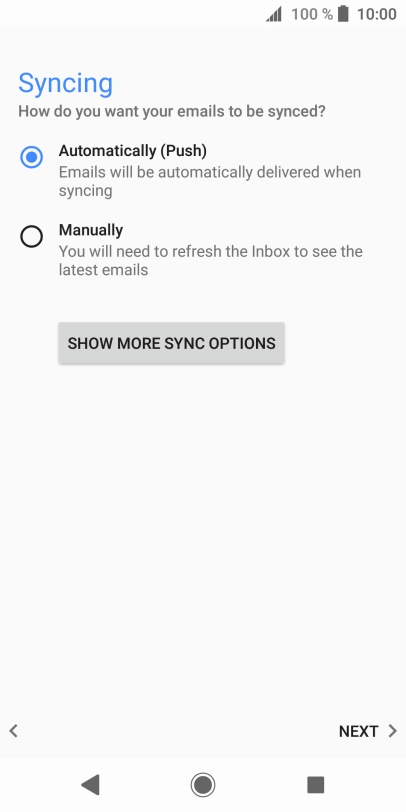

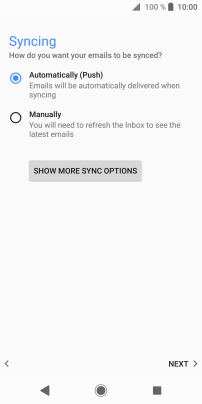

14. Select setting for retrieval of new email messages

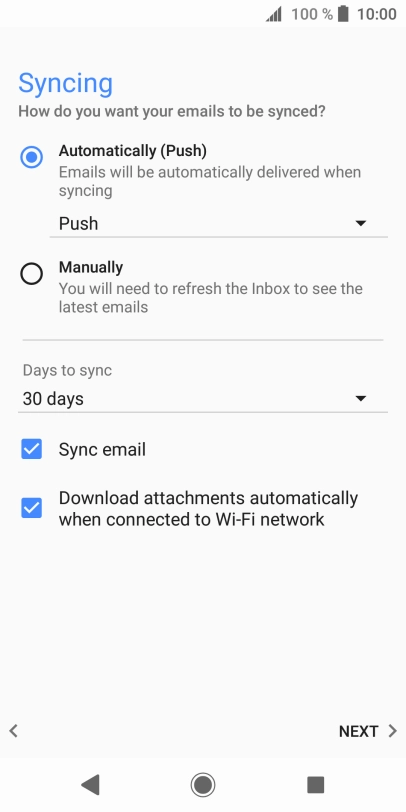

Press SHOW MORE SYNC OPTIONS.

Step 25 of 35

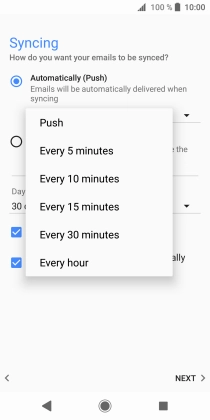

14. Select setting for retrieval of new email messages

Press the drop down list below "Automatically".

Step 26 of 35

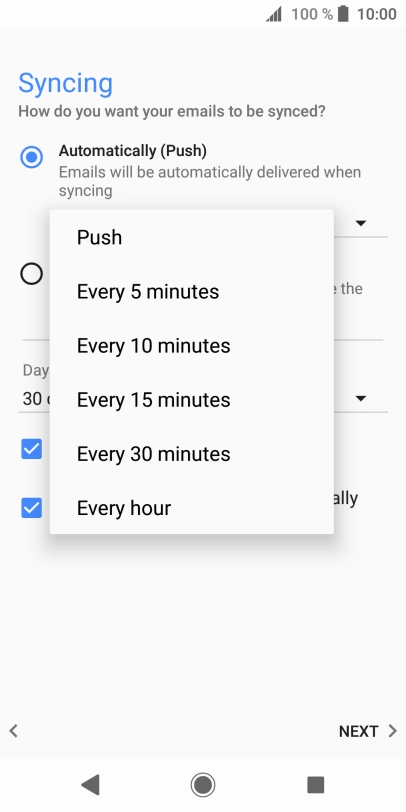

14. Select setting for retrieval of new email messages

Press the required setting.

Step 27 of 35

14. Select setting for retrieval of new email messages

To turn on manual retrieval of email messages, press Manually.

Step 28 of 35

15. Turn on email message synchronisation

Press Sync email to turn on the function.

Step 29 of 35

15. Turn on email message synchronisation

Press NEXT.

Step 30 of 35

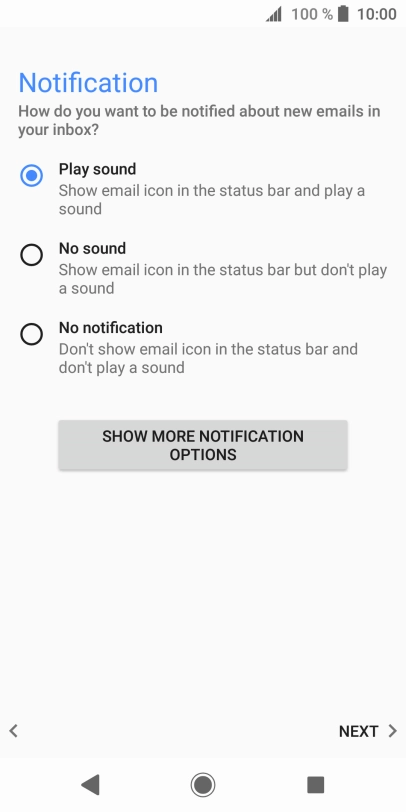

16. Select notification for new email messages

Press the required setting.

Step 31 of 35

16. Select notification for new email messages

Press NEXT.

Step 32 of 35

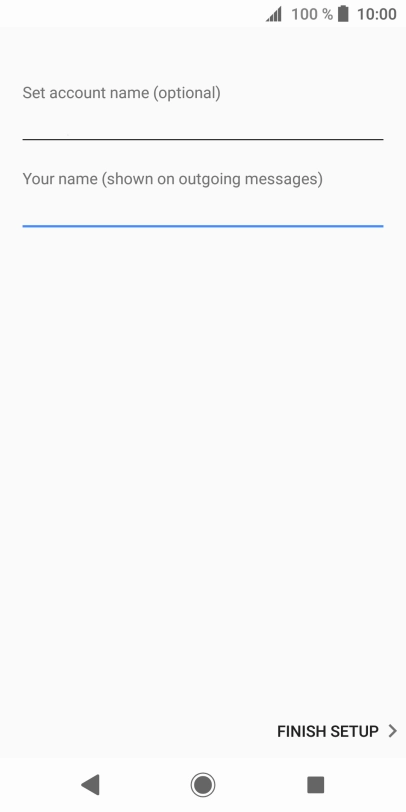

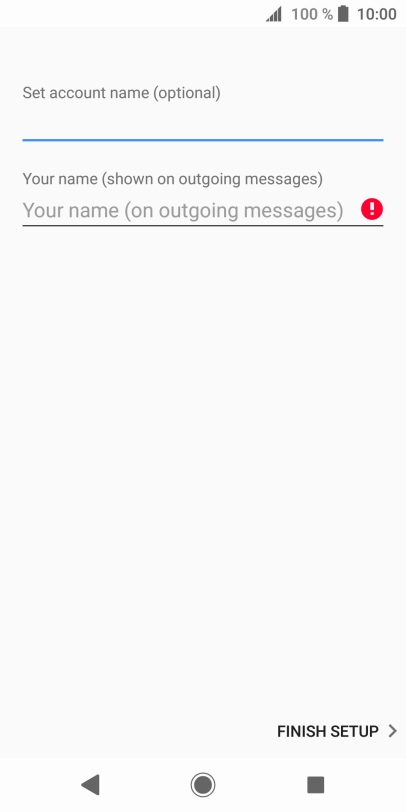

17. Enter email account name

Press the field below "Set account name (optional)" and key in the required name.

Step 33 of 35

18. Enter sender name

Press the field below "Your name (shown on outgoing messages)" and key in the required sender name.

Step 34 of 35

18. Enter sender name

Press FINISH SETUP.

Step 35 of 35

19. Return to the home screen

Press the Home key to return to the home screen.

1. Find "Users & accounts"

Slide your finger downwards starting from the top of the screen.
Press the settings icon.
Press Users & accounts.

2. Create new email account

Press Add account.
Press Email.

3. Enter email address

Press Email address and key in your email address.
Press NEXT.

4. Enter password

Press Password and key in the password for your email account.
Press NEXT.
If this screen is displayed, you email account has been recognised and set up automatically. Follow the instructions on the screen to key in more information and finish setting up your phone.

5. Select server type

Press IMAP.

6. Enter username

Press the field below "Username" and key in the username for your email account.

7. Enter incoming server

Press the field below "IMAP server" and key in the name of your email provider's incoming server.

8. Enter incoming port

Press the field below "Port" and key in 143.
143

9. Turn off encryption of incoming email messages

Press the drop down list below "Security type".
Press None to turn off the function.
Press NEXT.

10. Enter outgoing server

Press the field below "SMTP server" and key in mail.vodafone.ie.
mail.vodafone.ie

11. Enter outgoing port

Press the field below "Port" and key in 25.
25

12. Turn off encryption of outgoing email messages

Press the drop down list below "Security type".
Press None to turn off the function.

13. Turn off SMTP authentication

Press the indicator next to "Require sign-in." to turn off the function.
Press NEXT.

14. Select setting for retrieval of new email messages

Press SHOW MORE SYNC OPTIONS.
Press the drop down list below "Automatically".
Press the required setting.
To turn on manual retrieval of email messages, press Manually.

15. Turn on email message synchronisation

Press Sync email to turn on the function.
Press NEXT.

16. Select notification for new email messages

Press the required setting.
Press NEXT.

17. Enter email account name

Press the field below "Set account name (optional)" and key in the required name.

18. Enter sender name

Press the field below "Your name (shown on outgoing messages)" and key in the required sender name.
Press FINISH SETUP.

19. Return to the home screen

Press the Home key to return to the home screen.
