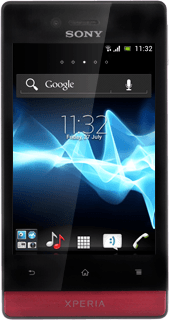

Sony Xperia miro

Sony Xperia miro

Set up your phone for Exchange email - Sony Xperia miro

Read help info

Follow these instructions to set up your phone for Exchange email.

Step 1 of 56

Find "Access Point Names"

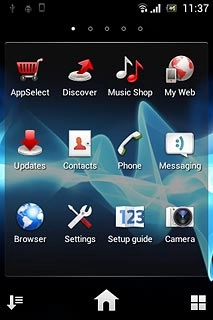

Press the menu icon.

Step 2 of 56

Find "Access Point Names"

Press Settings.

Step 3 of 56

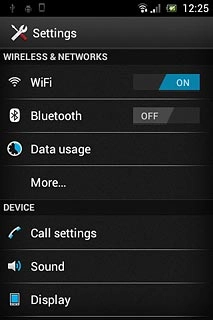

Find "Access Point Names"

Press More....

Step 4 of 56

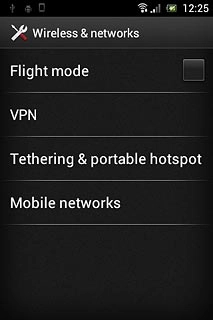

Find "Access Point Names"

Press Mobile networks.

Step 5 of 56

Find "Access Point Names"

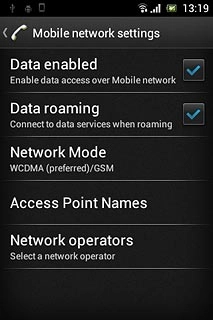

Press Access Point Names.

Step 6 of 56

Create new data connection

Press the Menu key.

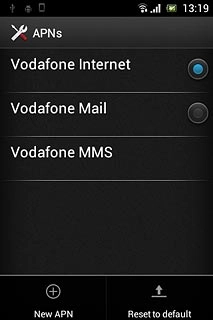

Step 7 of 56

Create new data connection

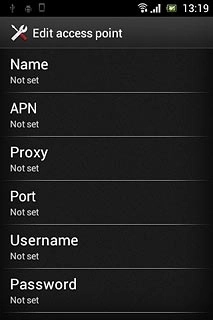

Press New APN.

Step 8 of 56

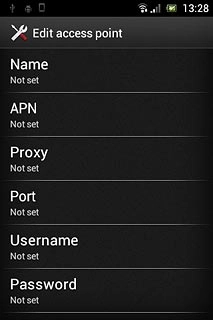

Enter data connection name

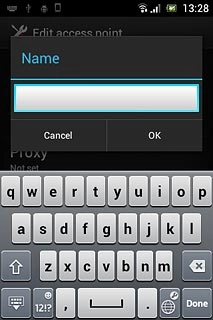

Press Name.

Step 9 of 56

Enter data connection name

Key in Vodafone Mail and press OK.

Step 10 of 56

Enter APN

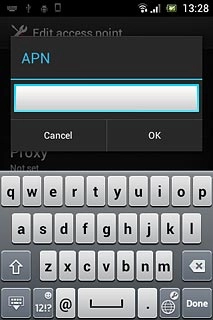

Press APN.

An APN is used to establish a data connection.
Step 11 of 56

Enter APN

Key in live.vodafone.com and press OK.

An APN is used to establish a data connection.
Step 12 of 56

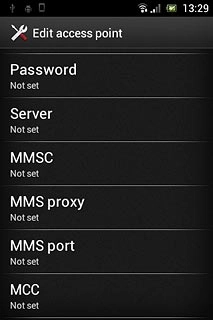

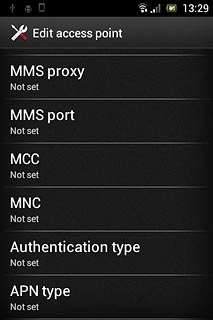

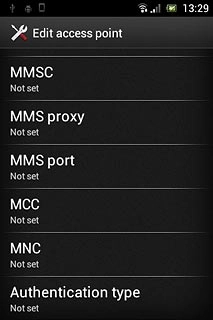

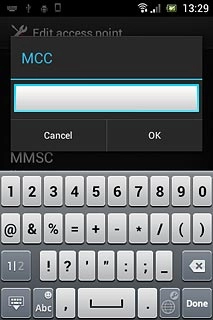

Enter country code

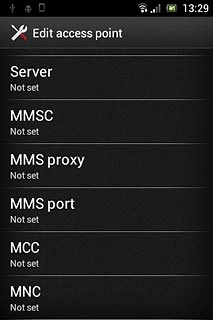

Press MCC.

Step 13 of 56

Enter country code

Key in 272 and press OK.

Step 14 of 56

Enter network code

Press MNC.

Step 15 of 56

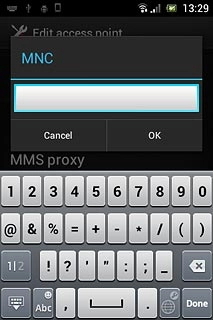

Enter network code

Key in 01 and press OK.

Step 16 of 56

Select authentication type

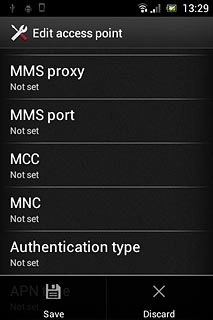

Press Authentication type.

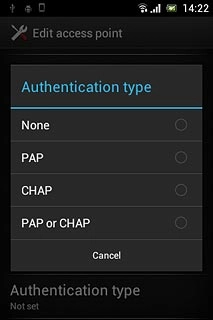

Step 17 of 56

Select authentication type

Press PAP.

Step 18 of 56

Select APN type

Press APN type.

Step 19 of 56

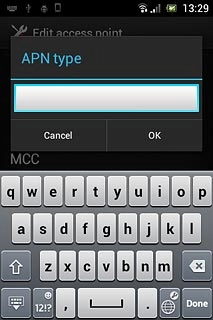

Select APN type

Key in default and press OK.

Step 20 of 56

Save and activate data connection

Press the Menu key.

Step 21 of 56

Save and activate data connection

Press Save.

Step 22 of 56

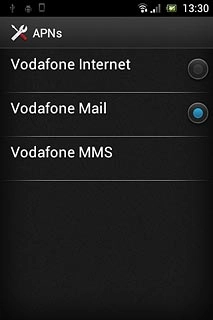

Save and activate data connection

Press the field next to Vodafone Mail to activate the data connection.

Step 23 of 56

Save and activate data connection

When the field is marked, the data connection is activated.

Step 24 of 56

Save and activate data connection

Press the Home key to return to standby mode.

Step 25 of 56

Find "Corporate"

Press the menu icon.

Step 26 of 56

Find "Corporate"

Press Settings.

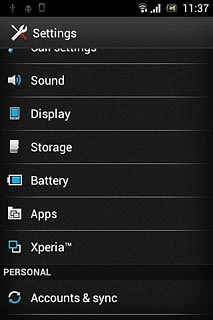

Step 27 of 56

Find "Corporate"

Press Accounts & sync.

Step 28 of 56

Find "Corporate"

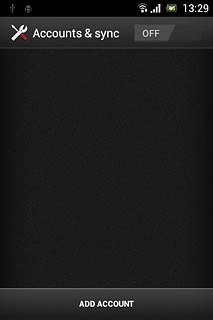

Press ADD ACCOUNT.

Step 29 of 56

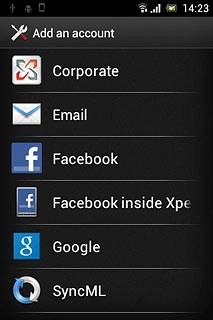

Find "Corporate"

Press Corporate.

Sony Xperia miro
Step 30 of 56

Enter email address

Key in your email address.

Step 31 of 56

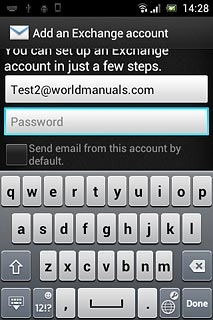

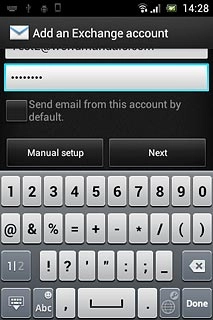

Enter password

Press Password and key in your password.

Step 32 of 56

Enter password

Press Next.

Sony Xperia miro
Step 33 of 56

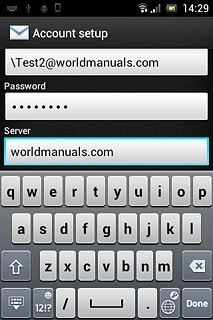

Enter domain and username

Key in the domain and username separated by a "\".

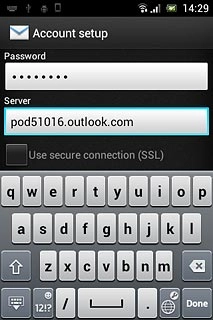

Step 34 of 56

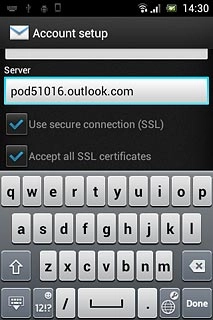

Enter server address

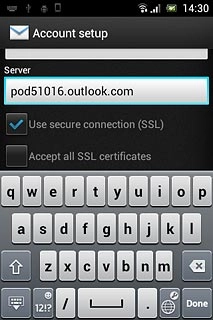

Press the field below Server and key in the server address.

Step 35 of 56

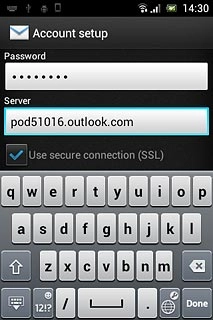

Turn SSL encryption on or off

Press Use secure connection (SSL) to turn SSL encryption on or off.

SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
Step 36 of 56

Turn SSL encryption on or off

When the box next to the menu item is ticked (V), the function is turned on.

SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
Step 37 of 56

Turn authentication of SSL certificates on or off

Press Accept all SSL certificates to turn the function on or off.

The menu item is only available if you turned on SSL encryption in step 15.
Step 38 of 56

Turn authentication of SSL certificates on or off

When the box next to the menu item is ticked (V), the function is turned on.

The menu item is only available if you turned on SSL encryption in step 15.

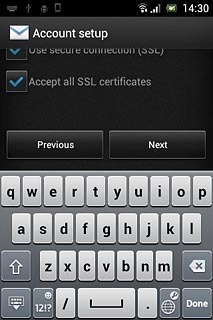

Step 39 of 56

Turn authentication of SSL certificates on or off

Press Next.

The menu item is only available if you turned on SSL encryption in step 15.
Step 40 of 56

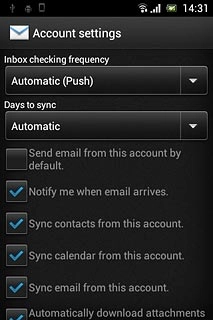

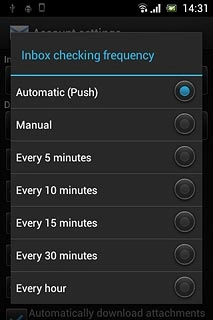

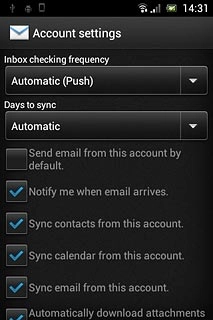

Select setting for retrieving new email messages

Press the drop down list below Inbox checking frequency.

Step 41 of 56

Select setting for retrieving new email messages

Press Automatic (Push), Manual or the required interval.
Please note:
Each time your phone connects to the server to synchronise, data charges will apply.

Step 42 of 56

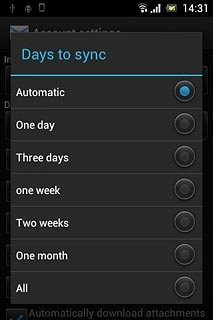

Choose synchronisation period

Press the drop down list below Days to sync.

Step 43 of 56

Choose synchronisation period

Press the required setting.

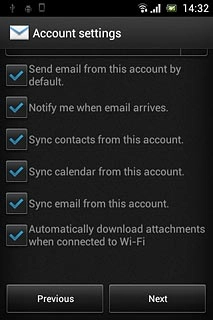

Step 44 of 56

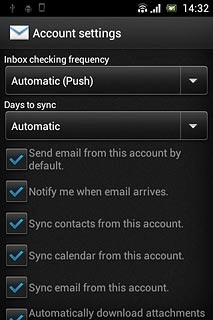

Select default email account

Press Send email from this account by default to turn the function on or off.

Step 45 of 56

Select default email account

When the box next to the menu item is ticked (V), the function is turned on.

Step 46 of 56

Turn email message notification on or off

Press Notify me when email arrives to turn the function on or off.

Step 47 of 56

Turn email message notification on or off

When the box next to the menu item is ticked (V), the function is turned on.

Step 48 of 56

Turn synchronisation of contacts on or off

Press Sync contacts from this account to turn the function on or off.

Step 49 of 56

Turn synchronisation of contacts on or off

When the box next to the menu item is ticked (V), the function is turned on.

Step 50 of 56

Turn synchronisation of calendar on or off

Press Sync calendar from this account to turn the function on or off.

Step 51 of 56

Turn synchronisation of calendar on or off

When the box next to the menu item is ticked (V), the function is turned on.

Step 52 of 56

Turn synchronisation of calendar on or off

Press Next.

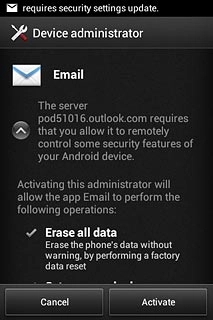

Step 53 of 56

Turn synchronisation of calendar on or off

Press Activate.

Step 54 of 56

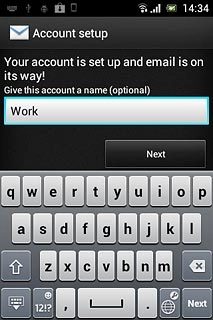

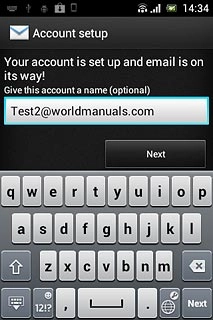

Enter account name

Press the field below Give this account a name (optional) and key in the required name.

Step 55 of 56

Enter account name

Press Next.

Step 56 of 56

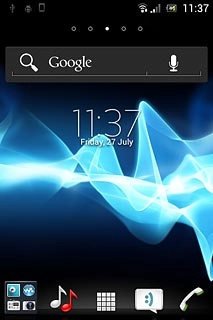

Exit

Press the Home key to return to standby mode.
