Set up your phone for picture messaging - Samsung GT-E2600 Sundance

Read help info

Follow these instructions to set up your phone for picture messaging.

Step 1 of 30

Find "Connections"

Press Menu.

Step 2 of 30

Find "Connections"

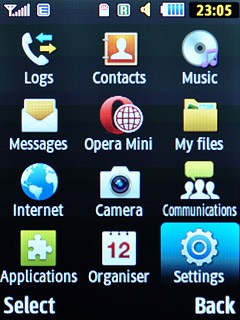

Scroll to Settings and press the Navigation key.

Step 3 of 30

Find "Connections"

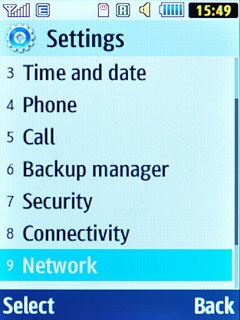

Scroll to Network and press the Navigation key.

Step 4 of 30

Find "Connections"

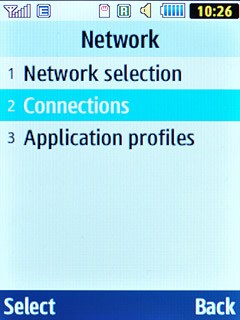

Scroll to Connections and press the Navigation key.

Step 5 of 30

Create new data connection

Press the Navigation key to continue.

Step 6 of 30

Create new data connection

Press Options.

Step 7 of 30

Create new data connection

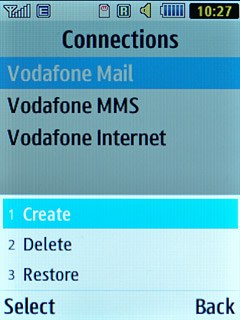

Scroll to Create and press the Navigation key.

Step 8 of 30

Enter name

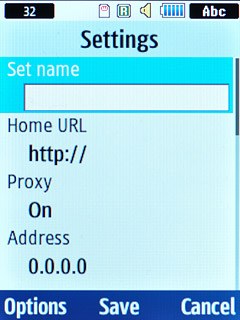

Scroll to Set name and key in Vodafone MMS

Step 9 of 30

Enter picture messaging server

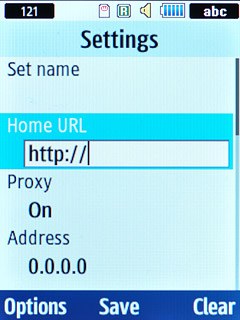

Scroll to Home URL and key in http://www.vodafone.ie/mms

Step 10 of 30

Turn on proxy

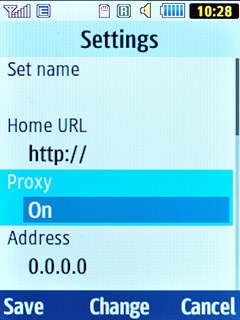

Scroll to Proxy and press the Navigation key to select On.

Step 11 of 30

Enter IP address

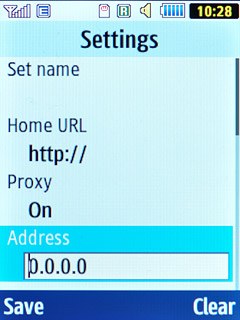

Scroll to Address and key in 10.24.59.200

Step 12 of 30

Enter port

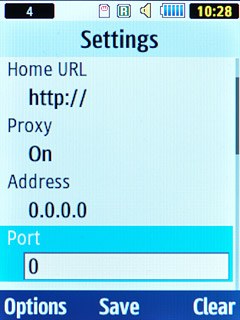

Scroll to Port and key in 80

Step 13 of 30

Enter APN

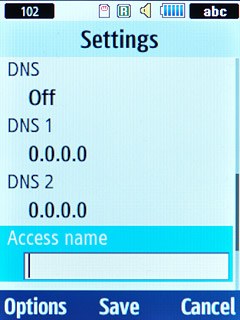

Scroll to Access name and key in mms.vodafone.net

Step 14 of 30

Save data connection

Press the Navigation key to save the data connection.

Step 15 of 30

Save data connection

Press Disconnect to return to standby mode.

Step 16 of 30

Find "Multimedia message profiles"

Press Menu.

Step 17 of 30

Find "Multimedia message profiles"

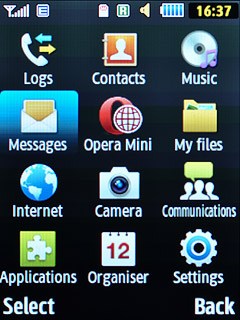

Scroll to Messages and press the Navigation key.

Step 18 of 30

Find "Multimedia message profiles"

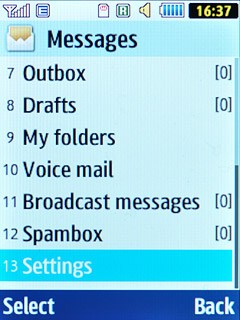

Scroll to Settings and press the Navigation key.

Step 19 of 30

Find "Multimedia message profiles"

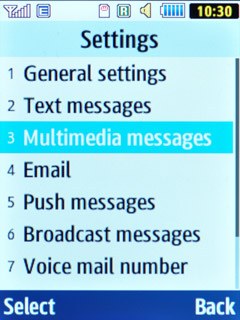

Scroll to Multimedia messages and press the Navigation key.

Step 20 of 30

Find "Multimedia message profiles"

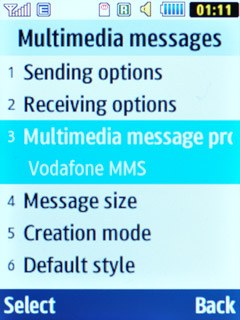

Scroll to Multimedia message profiles and press the Navigation key.

Step 21 of 30

Select data connection

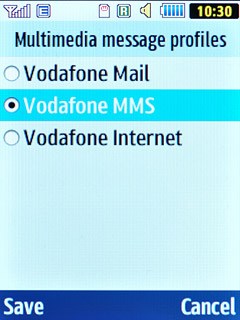

Scroll to Vodafone MMS and press the Navigation key.

Step 22 of 30

Turn request for delivery reports on or off

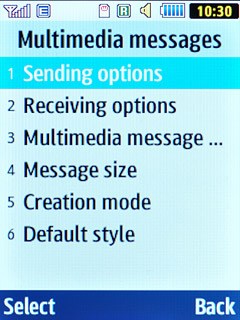

Scroll to Sending options and press the Navigation key.

If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
Step 23 of 30

Turn request for delivery reports on or off

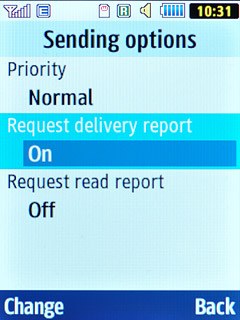

Scroll to Request delivery report and press the Navigation key to select On or Off.

If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
Step 24 of 30

Turn request for delivery reports on or off

Press Back to return to the picture message settings.

If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
Step 25 of 30

Select settings for picture message download

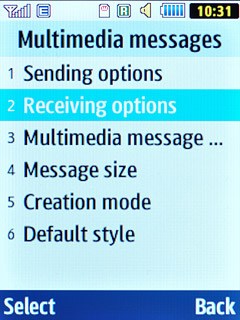

Scroll to Receiving options and press the Navigation key.

If you select Auto download, you'll automatically receive new picture messages.
If you select Manual, you'll always be notified before you receive picture messages.
If you select Reject, only headers are retrieved. You then have to retrieve the picture message manually.
Step 26 of 30

Select settings for picture message download

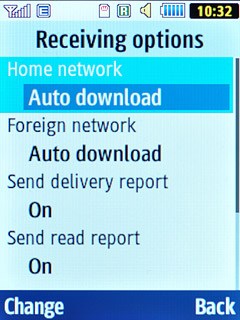

Scroll to Home network and press the Navigation key.

If you select Auto download, you'll automatically receive new picture messages.
If you select Manual, you'll always be notified before you receive picture messages.
If you select Reject, only headers are retrieved. You then have to retrieve the picture message manually.
Step 27 of 30

Select settings for picture message download

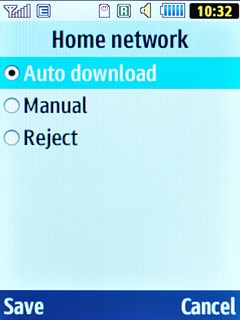

Scroll to Auto download and press the Navigation key.

If you select Auto download, you'll automatically receive new picture messages.
If you select Manual, you'll always be notified before you receive picture messages.
If you select Reject, only headers are retrieved. You then have to retrieve the picture message manually.
Step 28 of 30

Select settings for picture message download

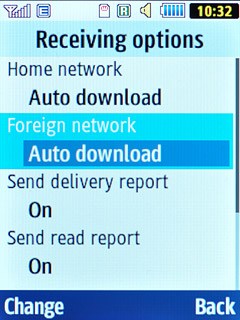

Scroll to Foreign network and press the Navigation key.

If you select Auto download, you'll automatically receive new picture messages.
If you select Manual, you'll always be notified before you receive picture messages.
If you select Reject, only headers are retrieved. You then have to retrieve the picture message manually.
Step 29 of 30

Select settings for picture message download

Scroll to Auto download and press the Navigation key.

If you select Auto download, you'll automatically receive new picture messages.
If you select Manual, you'll always be notified before you receive picture messages.
If you select Reject, only headers are retrieved. You then have to retrieve the picture message manually.
Step 30 of 30

Exit

Press Disconnect to return to standby mode.

Find "Connections"

Press Menu.
Scroll to Settings and press the Navigation key.
Scroll to Network and press the Navigation key.
Scroll to Connections and press the Navigation key.

Create new data connection

Press the Navigation key to continue.
Press Options.
Scroll to Create and press the Navigation key.

Enter name

Scroll to Set name and key in Vodafone MMS

Enter picture messaging server

Scroll to Home URL and key in http://www.vodafone.ie/mms

Turn on proxy

Scroll to Proxy and press the Navigation key to select On.

Enter IP address

Scroll to Address and key in 10.24.59.200

Enter port

Scroll to Port and key in 80

Enter APN

Scroll to Access name and key in mms.vodafone.net

Save data connection

Press the Navigation key to save the data connection.
Press Disconnect to return to standby mode.

Find "Multimedia message profiles"

Press Menu.
Scroll to Messages and press the Navigation key.
Scroll to Settings and press the Navigation key.
Scroll to Multimedia messages and press the Navigation key.
Scroll to Multimedia message profiles and press the Navigation key.

Select data connection

Scroll to Vodafone MMS and press the Navigation key.

Turn request for delivery reports on or off

Scroll to Sending options and press the Navigation key.
If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
Scroll to Request delivery report and press the Navigation key to select On or Off.
If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
Press Back to return to the picture message settings.
If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.

Select settings for picture message download

Scroll to Receiving options and press the Navigation key.
If you select Auto download, you'll automatically receive new picture messages.
If you select Manual, you'll always be notified before you receive picture messages.
If you select Reject, only headers are retrieved. You then have to retrieve the picture message manually.
Scroll to Home network and press the Navigation key.
If you select Auto download, you'll automatically receive new picture messages.
If you select Manual, you'll always be notified before you receive picture messages.
If you select Reject, only headers are retrieved. You then have to retrieve the picture message manually.
Scroll to Auto download and press the Navigation key.
If you select Auto download, you'll automatically receive new picture messages.
If you select Manual, you'll always be notified before you receive picture messages.
If you select Reject, only headers are retrieved. You then have to retrieve the picture message manually.
Scroll to Foreign network and press the Navigation key.
If you select Auto download, you'll automatically receive new picture messages.
If you select Manual, you'll always be notified before you receive picture messages.
If you select Reject, only headers are retrieved. You then have to retrieve the picture message manually.
Scroll to Auto download and press the Navigation key.
If you select Auto download, you'll automatically receive new picture messages.
If you select Manual, you'll always be notified before you receive picture messages.
If you select Reject, only headers are retrieved. You then have to retrieve the picture message manually.

Exit

Press Disconnect to return to standby mode.
