1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-35dc4cf4-62a0-4781-b91c-95aafcb2581d.png?width=206&height=462)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8d6ecee1-54af-490c-b8f1-f0643dc290bd.png?width=206&height=462)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6bf656d0-324d-4f1f-b36e-4cf60eb67c5e.png?width=206&height=462)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ff286bad-296f-442b-b01c-601de19085be.png?width=206&height=462)
Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ecd3d6ba-3b7d-4820-9f4e-e34ddaaa425f.png?width=206&height=462)
2. Create new data connection

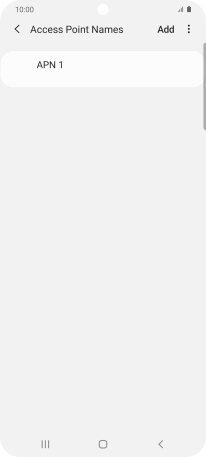

Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e7476560-cf72-4165-b2be-2bb2f4bcd3c1.png?width=206&height=462)

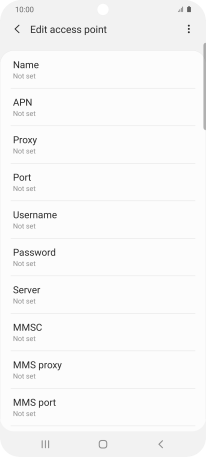

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c0e665c6-8c19-466f-a69e-02dbfd9a3216.png?width=206&height=462)
Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-81532103-2dfb-414e-a48c-7b3d8740695a.png?width=206&height=462)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c0e665c6-8c19-466f-a69e-02dbfd9a3216.png?width=206&height=462)

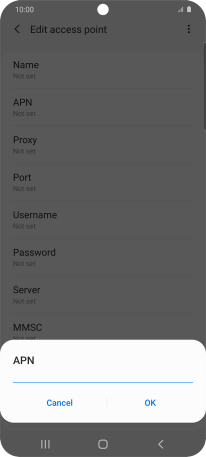

Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d30a42d0-3974-4518-b33e-a6e613f892a4.png?width=206&height=462)
mms.vodafone.net
4. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c0e665c6-8c19-466f-a69e-02dbfd9a3216.png?width=206&height=462)

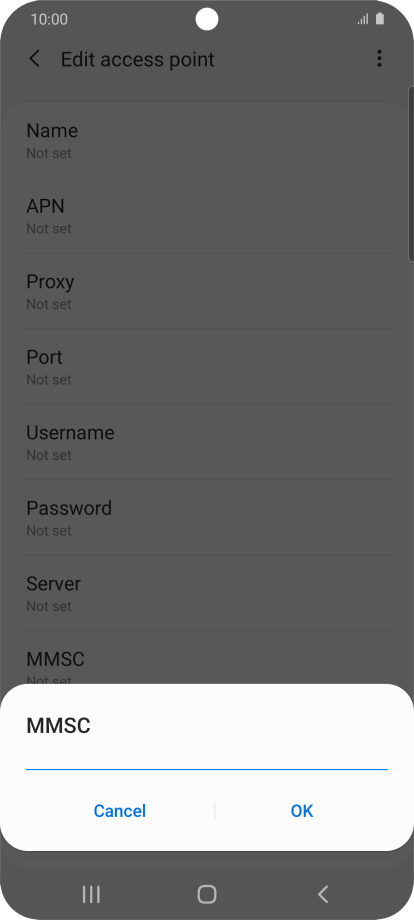

Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-edf12399-c990-437c-ad1c-a424dc395770.png?width=206&height=462)
http://www.vodafone.ie/mms
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c0e665c6-8c19-466f-a69e-02dbfd9a3216.png?width=206&height=462)

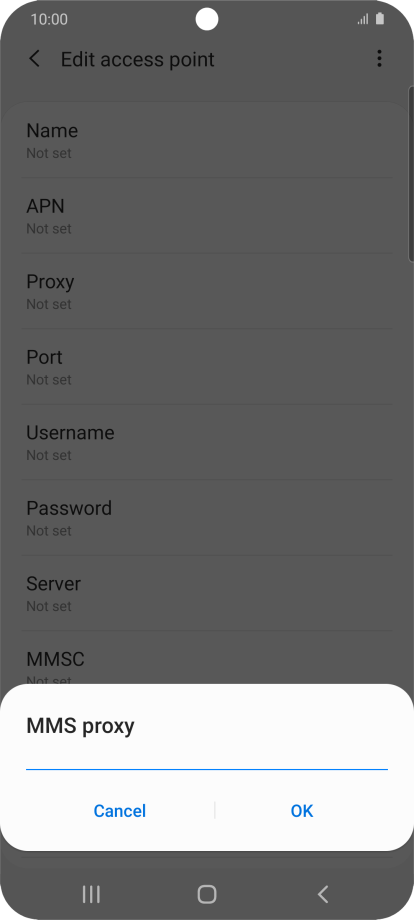

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-46fa367e-5a16-414b-9e14-7d81941d5f90.png?width=206&height=462)
10.24.59.200
6. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c0e665c6-8c19-466f-a69e-02dbfd9a3216.png?width=206&height=462)

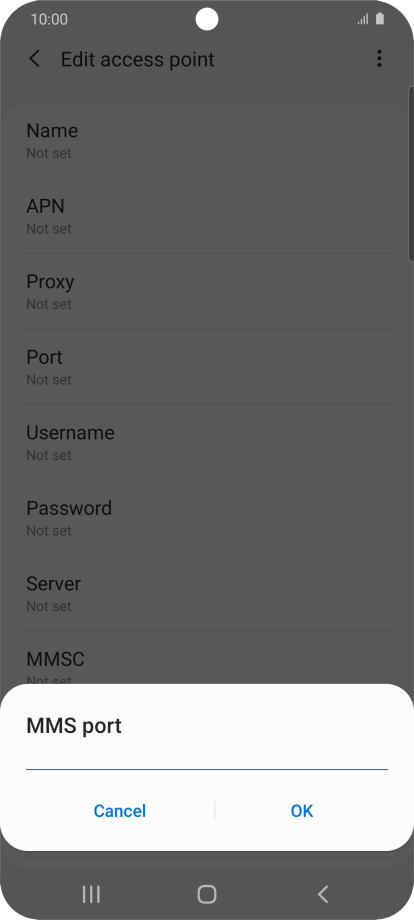

Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-bff44354-93ea-4c75-9990-4d679e12ed9d.png?width=206&height=462)
80
7. Enter country code

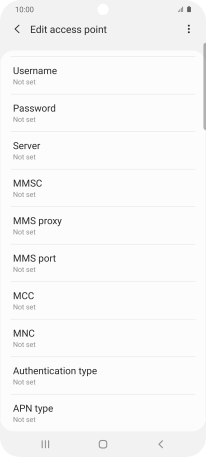

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5220a197-bc6a-4eba-a323-c0662e093ac2.png?width=206&height=462)

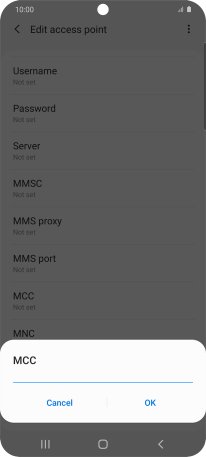

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-716e34e4-60db-40a7-8389-191874fada18.png?width=206&height=462)
272
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5220a197-bc6a-4eba-a323-c0662e093ac2.png?width=206&height=462)

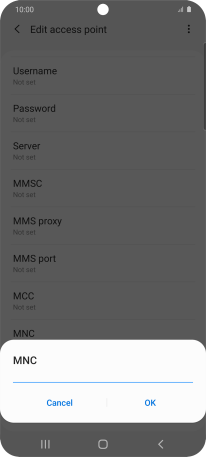

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0f97e1f6-b3df-486c-9d22-92f15bf7c861.png?width=206&height=462)
01
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5220a197-bc6a-4eba-a323-c0662e093ac2.png?width=206&height=462)

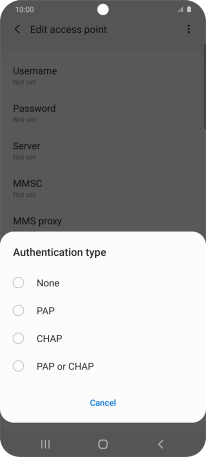

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-da3ffbcf-b77d-43cf-843c-e1433dc9a406.png?width=206&height=462)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5220a197-bc6a-4eba-a323-c0662e093ac2.png?width=206&height=462)

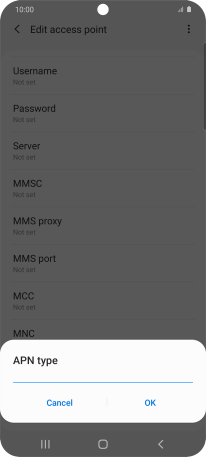

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8a6fff2d-e80a-4804-9f36-a5aa7b0eb563.png?width=206&height=462)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5220a197-bc6a-4eba-a323-c0662e093ac2.png?width=206&height=462)

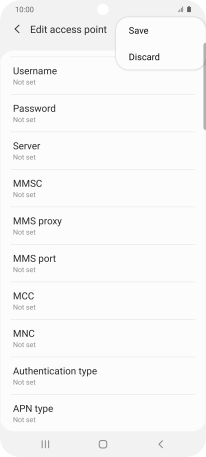

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c85884d8-dab2-447e-aa91-3315e7793243.png?width=206&height=462)
12. Return to the home screen

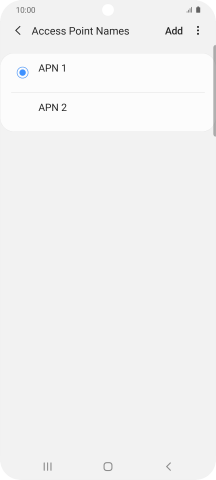

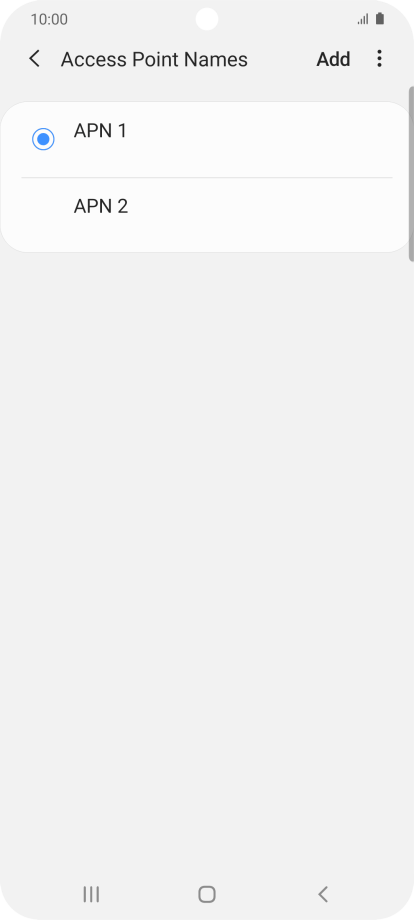

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0d6d8dc4-c659-44fe-996a-fa2f2a2fd1cd.png?width=206&height=462)
