1. Find "Access Point Names"

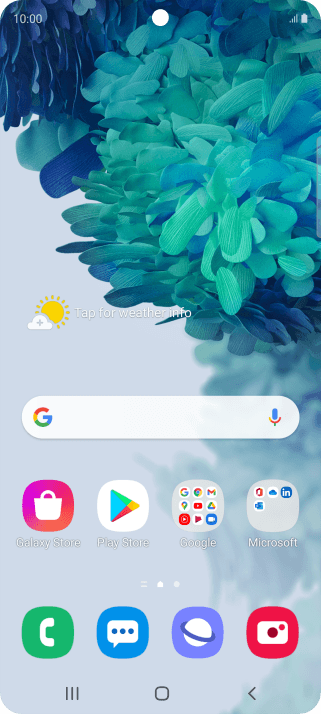

Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-09000b95-a726-4f7a-9b7e-a762d245e690.png?width=202&height=448)

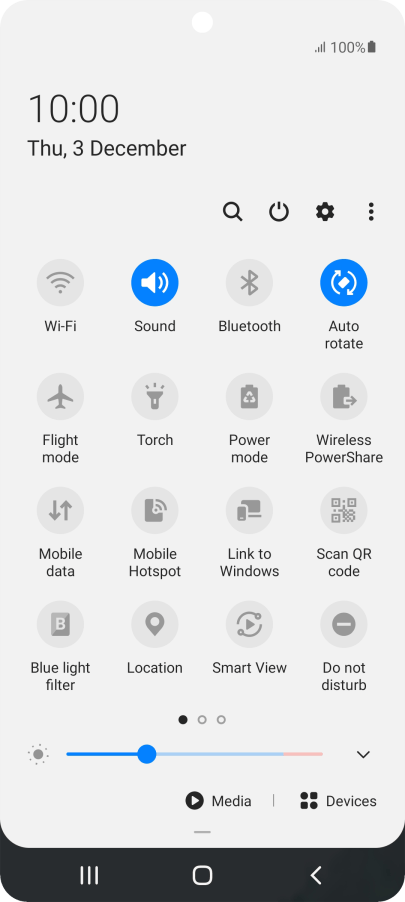

Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f1a4e613-5925-4f89-ac44-c03b864b75ae.png?width=202&height=448)

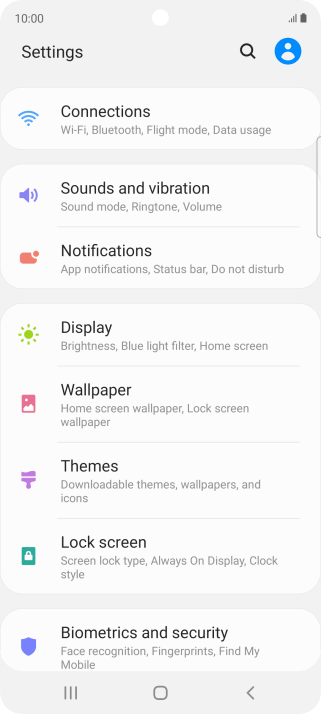

Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e9d16613-c903-4649-9aca-e94dbc070c5e.png?width=202&height=448)

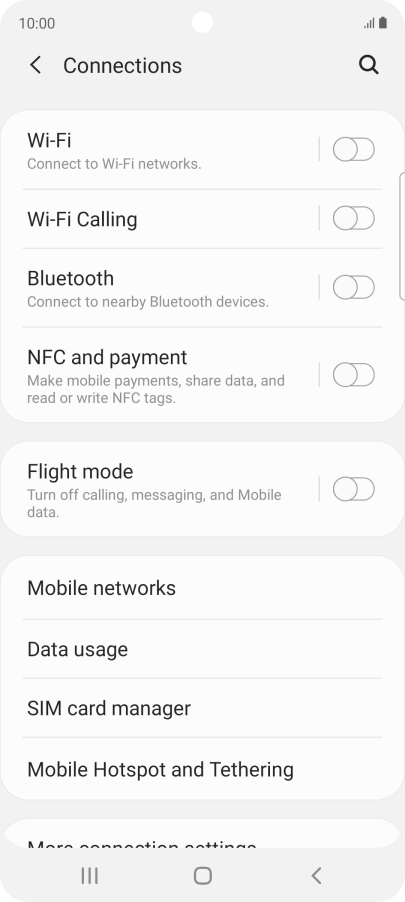

Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7228f0e8-0674-41fe-8703-b7a60bc393a7.png?width=202&height=448)

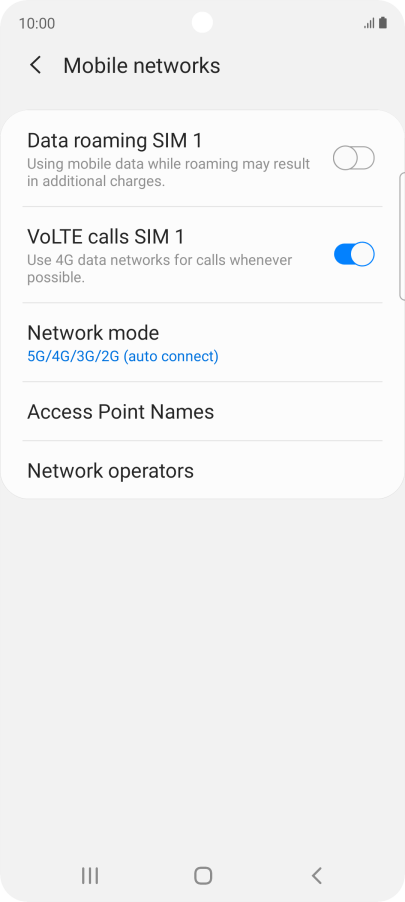

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f586a35c-c32d-49fa-9b2a-6939f884ecff.png?width=202&height=448)
2. Create new data connection

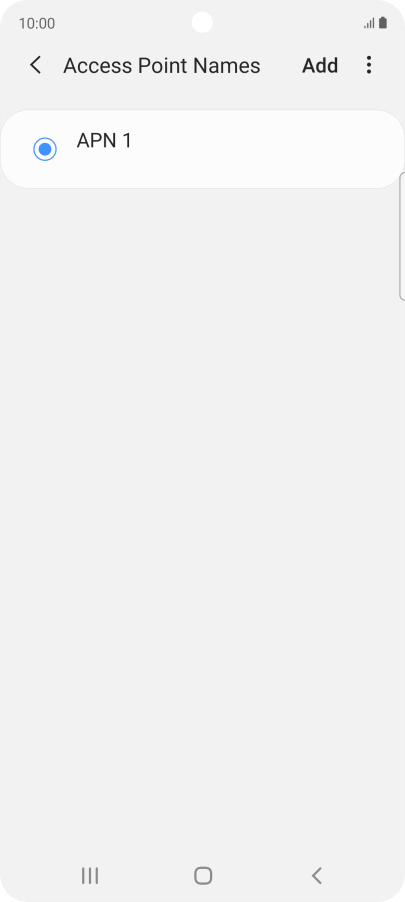

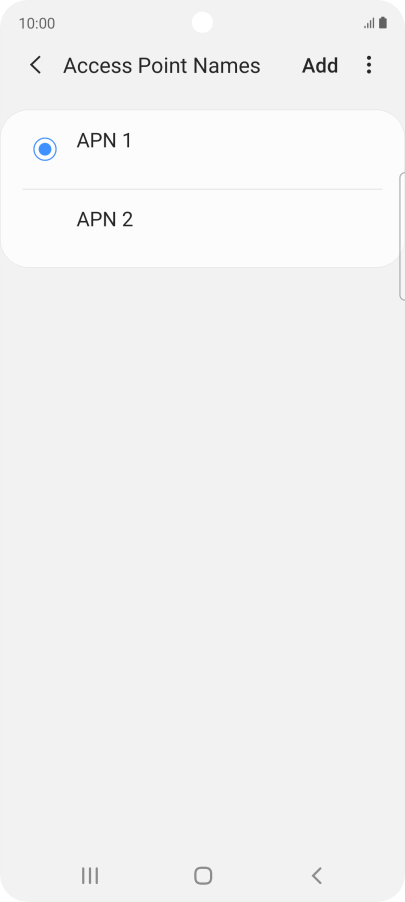

Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-212cc40b-0550-4e58-bd1c-fd53da219863.png?width=202&height=448)

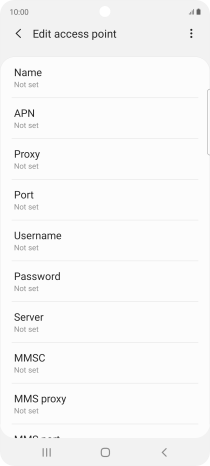

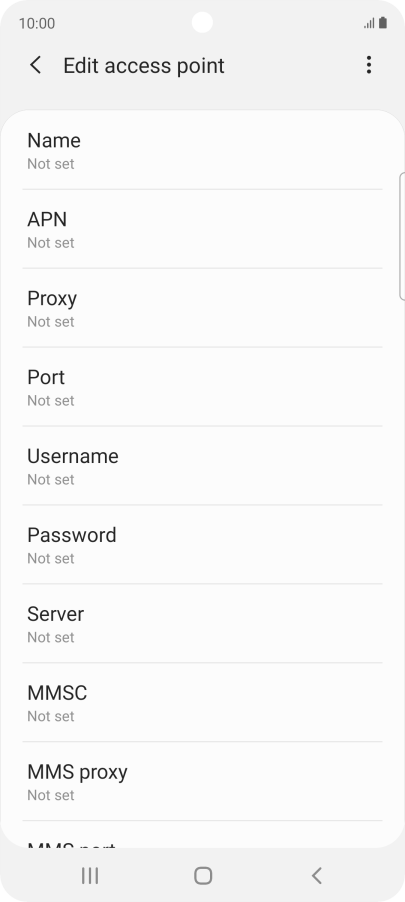

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8ec502ba-93cc-4247-bfc9-195d89289b59.png?width=202&height=448)

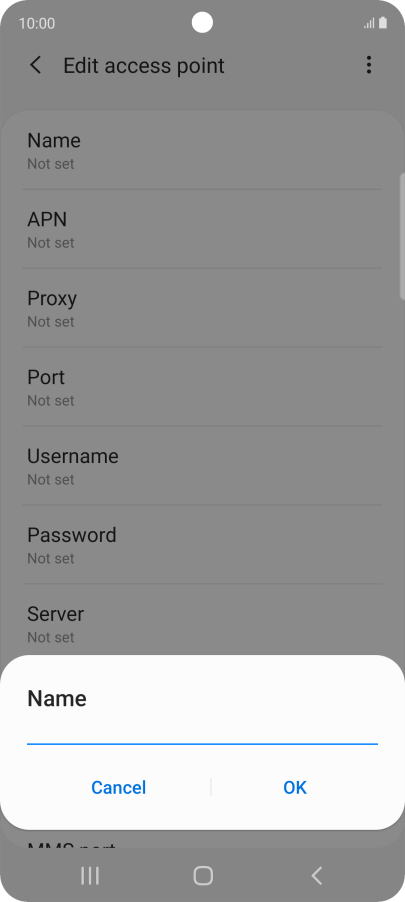

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-99038477-171a-4aa6-8c14-2403e4dc1e9a.png?width=202&height=448)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8ec502ba-93cc-4247-bfc9-195d89289b59.png?width=202&height=448)

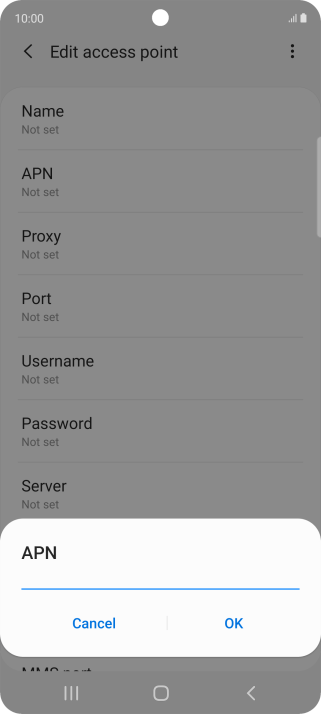

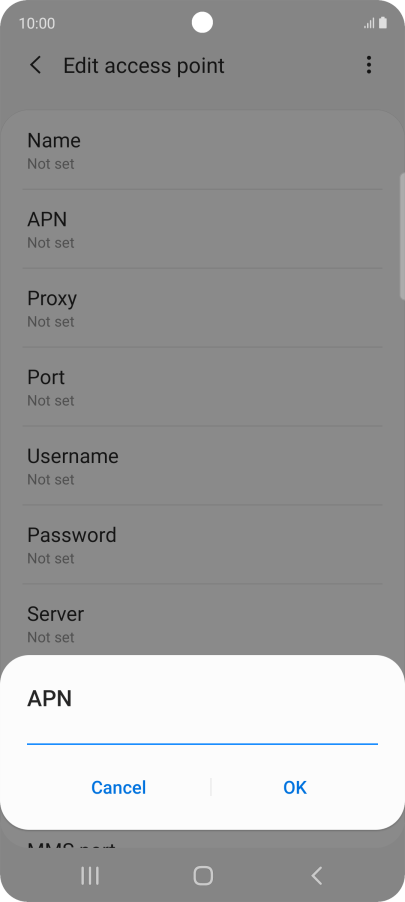

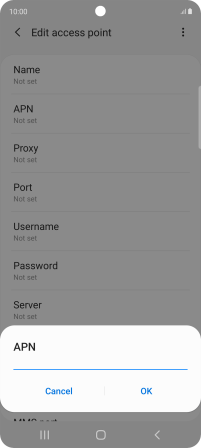

Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-876c8c68-c625-4ae1-a452-f0cfbc3ecc88.png?width=202&height=448)
mms.vodafone.net
4. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8ec502ba-93cc-4247-bfc9-195d89289b59.png?width=202&height=448)

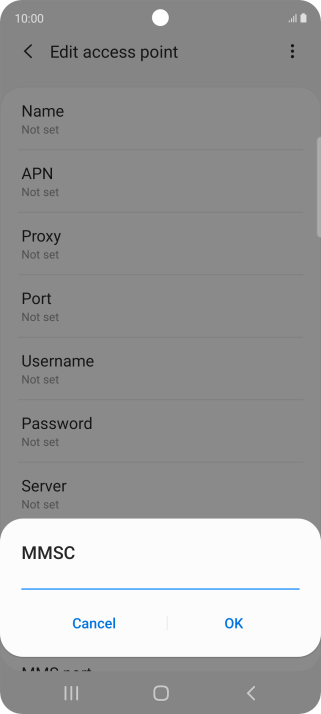

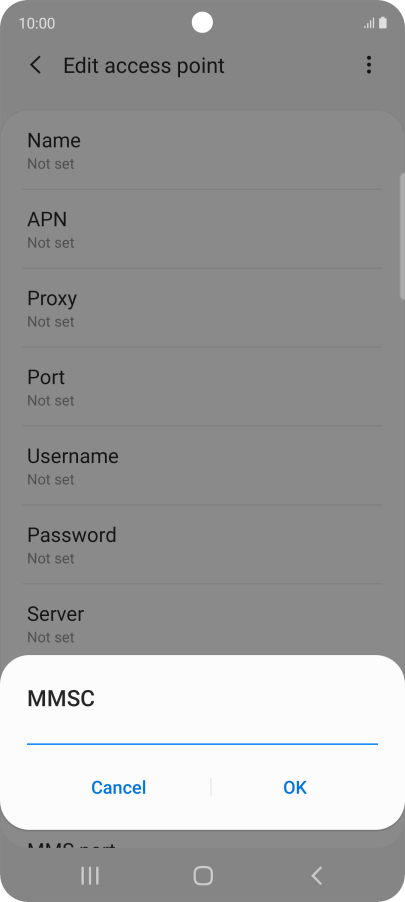

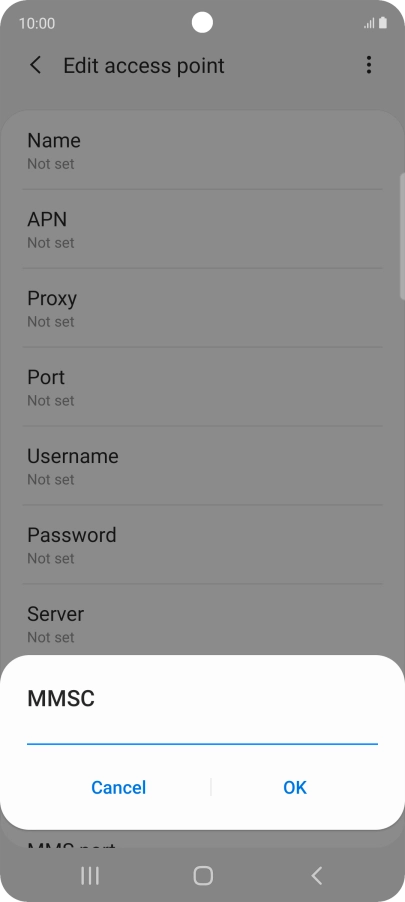

Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6d96742f-9474-48c4-8dc5-1d24367a89b8.png?width=202&height=448)
http://www.vodafone.ie/mms
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8ec502ba-93cc-4247-bfc9-195d89289b59.png?width=202&height=448)

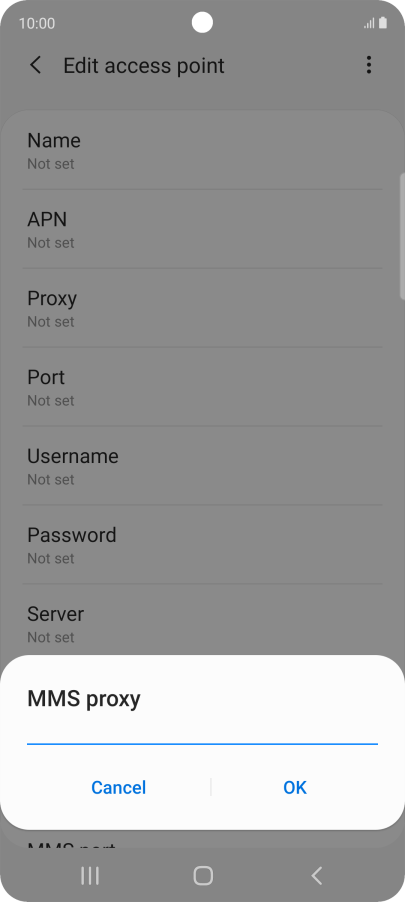

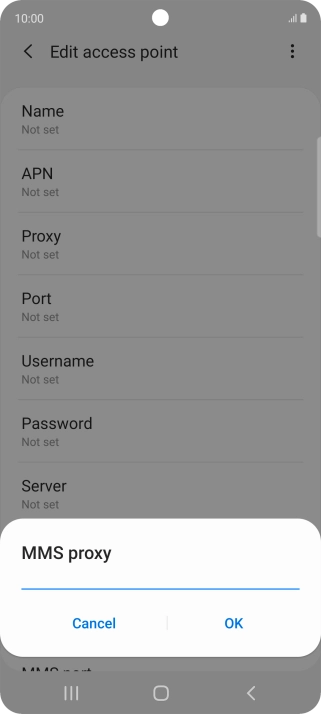

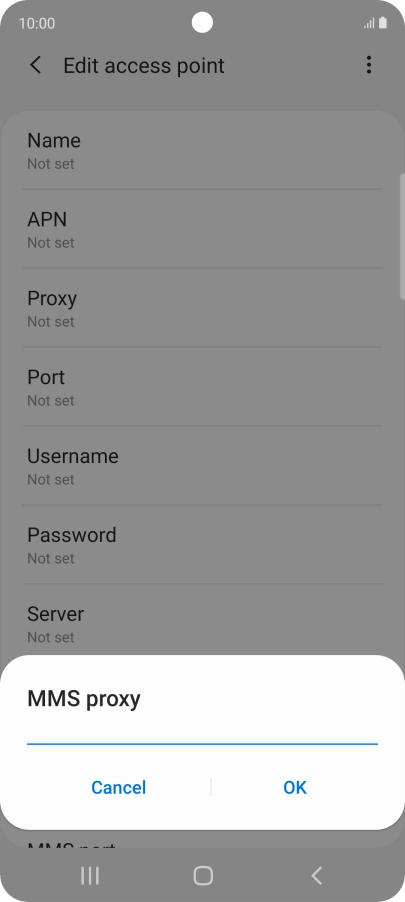

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0e34daf7-4245-4c3d-8e7a-ae7a9dbec3dd.png?width=202&height=448)
10.24.59.200
6. Enter port number

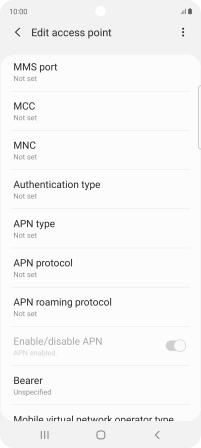

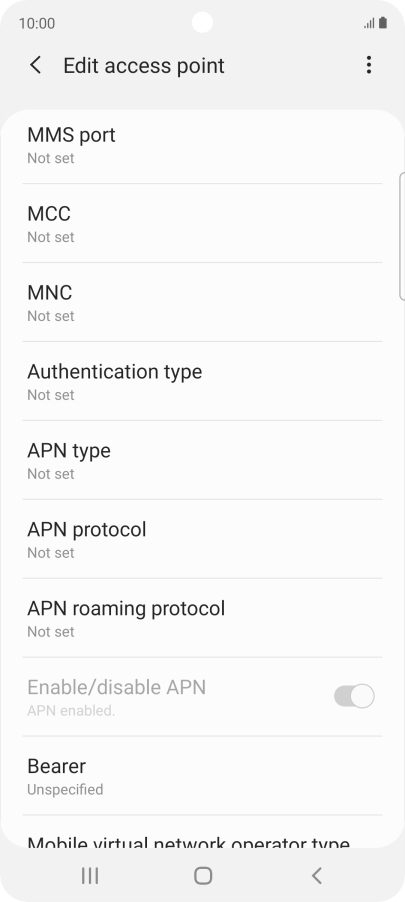

Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8f95af77-aa02-46c5-819c-4ecaffc71135.png?width=202&height=448)

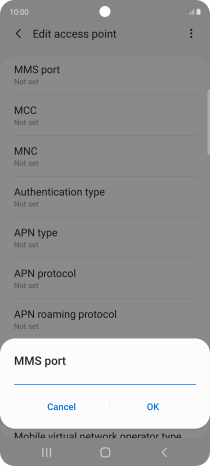

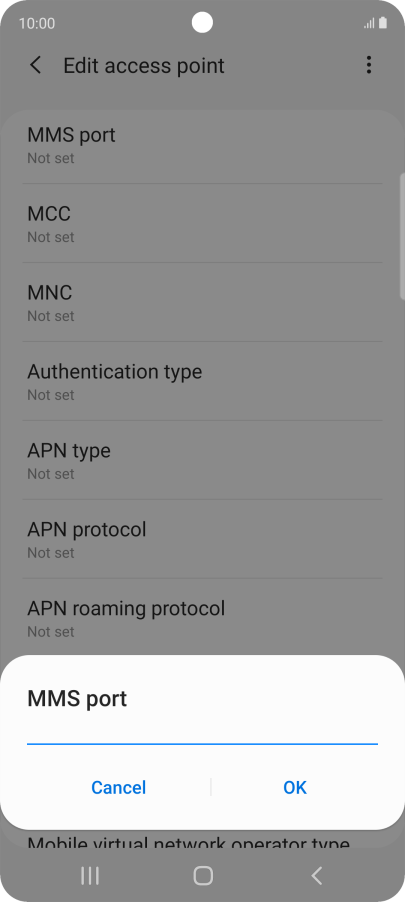

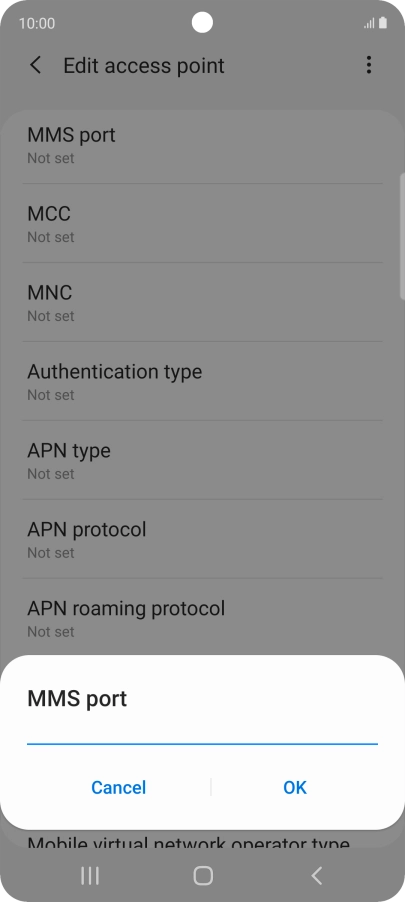

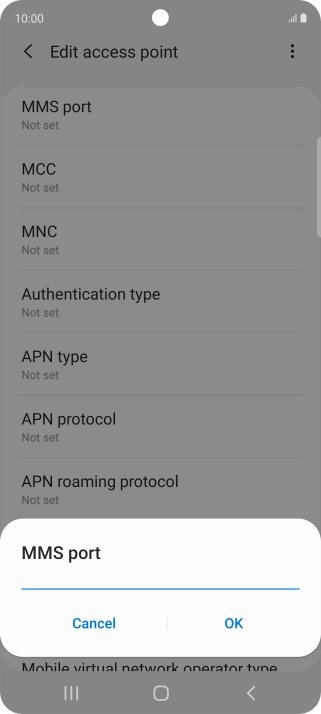

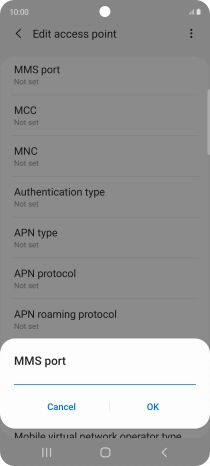

Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5f557d36-200b-4630-a325-5205724ea7c5.png?width=202&height=448)
80
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8f95af77-aa02-46c5-819c-4ecaffc71135.png?width=202&height=448)
Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-685c0ac6-5694-417b-b2a8-26850fcb4cc0.png?width=202&height=448)
272
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8f95af77-aa02-46c5-819c-4ecaffc71135.png?width=202&height=448)

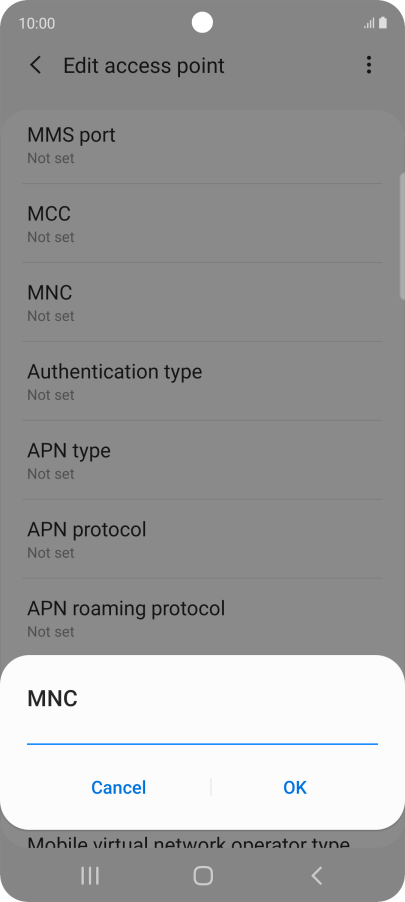

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-10c224d6-84fa-4303-9df8-4cdaa85a75a8.png?width=202&height=448)
01
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8f95af77-aa02-46c5-819c-4ecaffc71135.png?width=202&height=448)

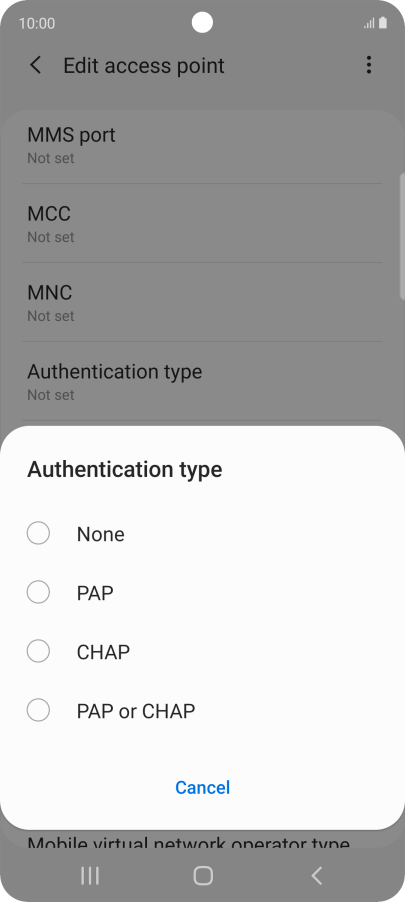

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ba0f1e6c-1a1a-4e6d-9e22-0389894d512f.png?width=202&height=448)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8f95af77-aa02-46c5-819c-4ecaffc71135.png?width=202&height=448)

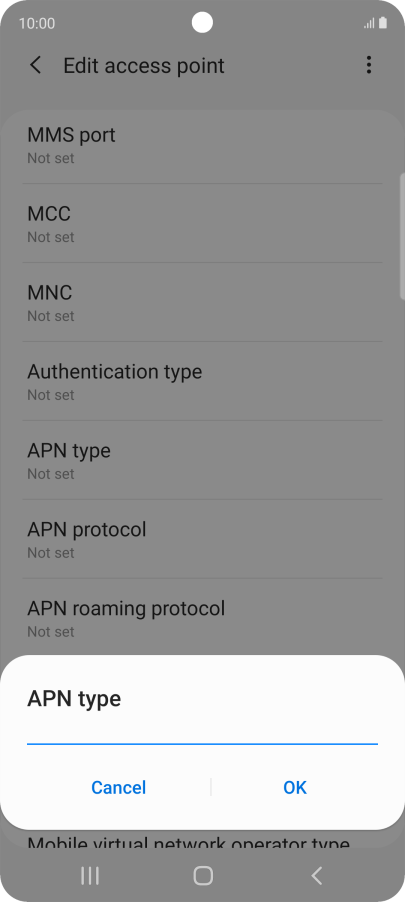

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d2ef1069-122a-4dba-9cca-5f7931489fad.png?width=202&height=448)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8f95af77-aa02-46c5-819c-4ecaffc71135.png?width=202&height=448)

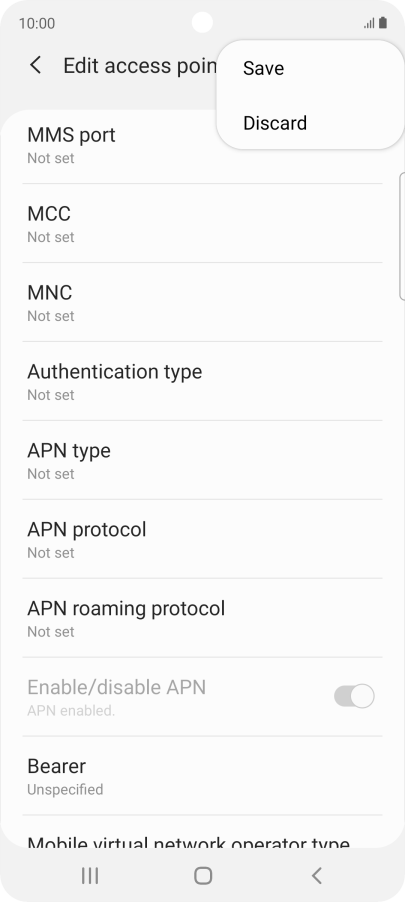

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-45b0bc3d-0dcc-4934-834a-be57d1febbcb.png?width=202&height=448)
12. Return to the home screen

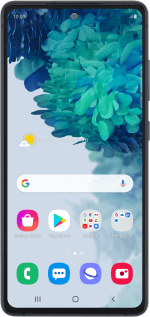

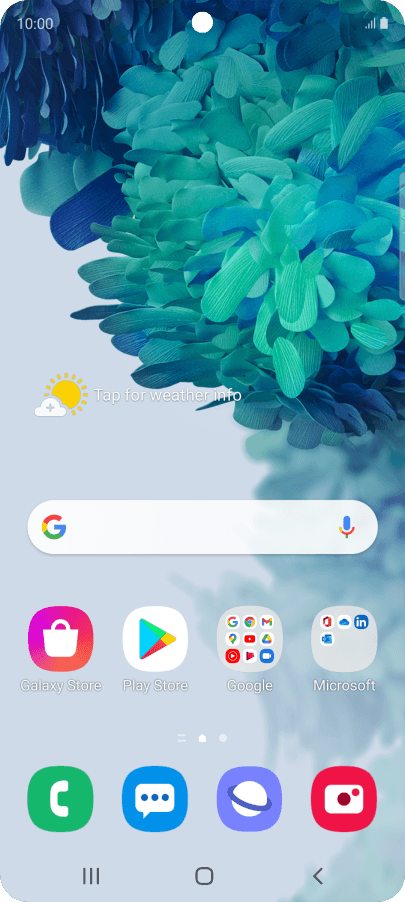

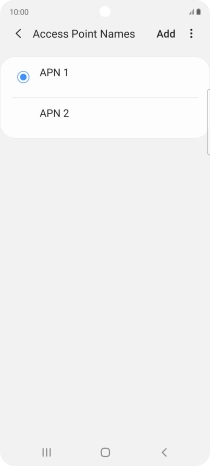

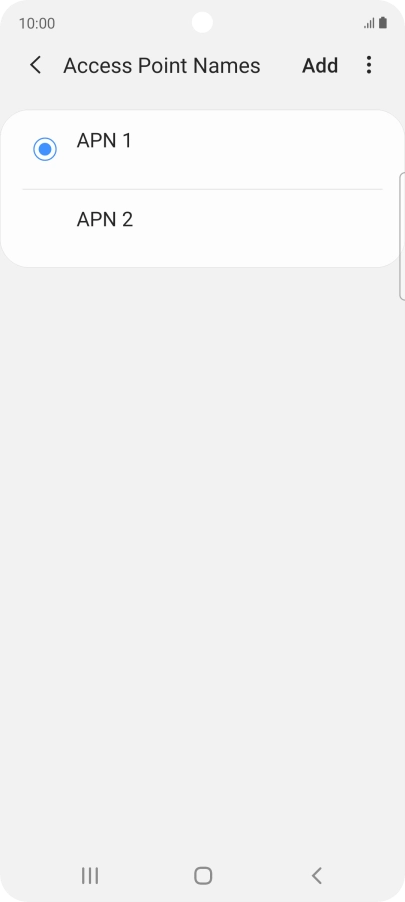

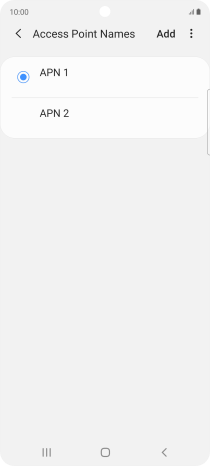

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-81acc995-9b3f-4cd5-a0e5-69c0b79b968b.png?width=202&height=448)
