1. Find "Access Point Names"

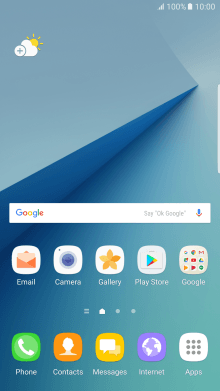

Slide your finger downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-cb4554cc-f1d2-4b41-b7db-2b4d785e436b.png?width=220&height=394)

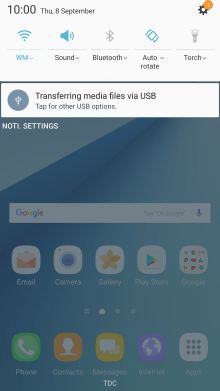

Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-88396f5a-f90f-48f8-b3ec-1004b15f0b78.png?width=220&height=394)

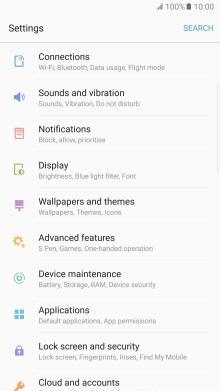

Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-30f304d8-58a0-4948-a6a5-8118e6aadb11.png?width=220&height=394)

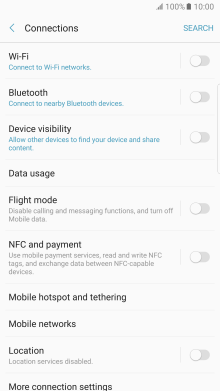

Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9e1bb3ea-908e-4a1f-95e1-db2a2755fcb6.png?width=220&height=394)

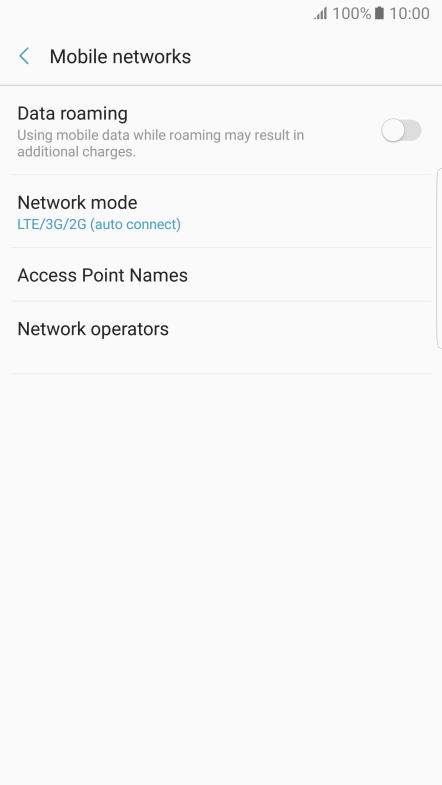

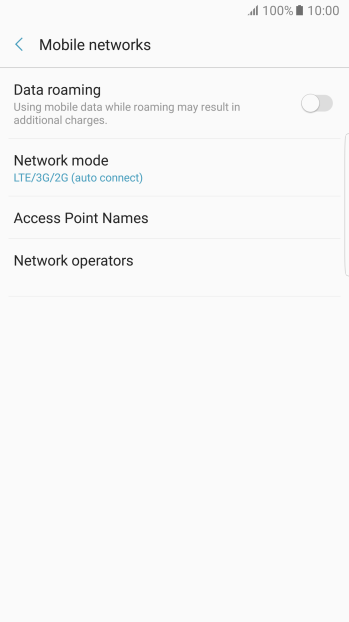

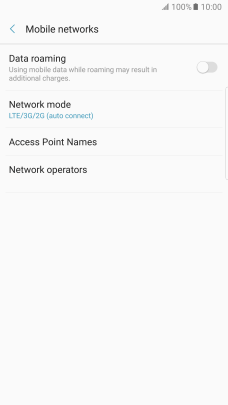

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-774b4421-fce9-4233-a81b-15f1d81a6c00.png?width=220&height=394)
2. Create new data connection

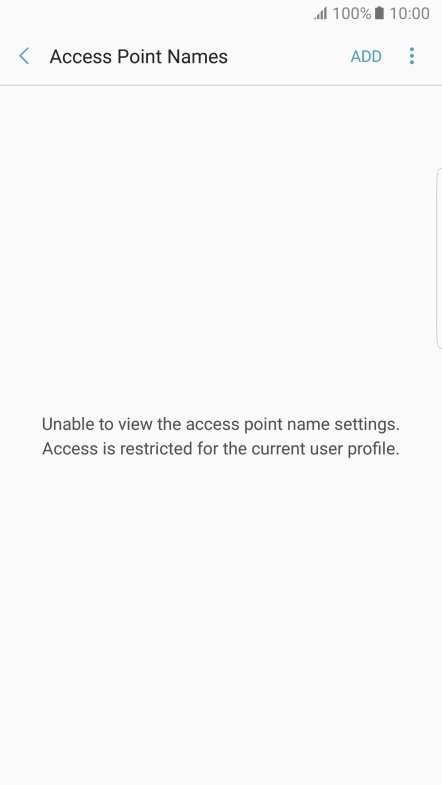

Press ADD.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-31edaa36-4fd5-4b8c-bb14-9be330c9c706.png?width=220&height=394)

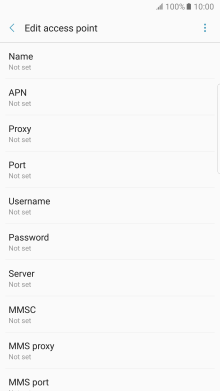

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-508cca8b-240d-4de8-9162-5f7ec00ec89b.png?width=220&height=394)

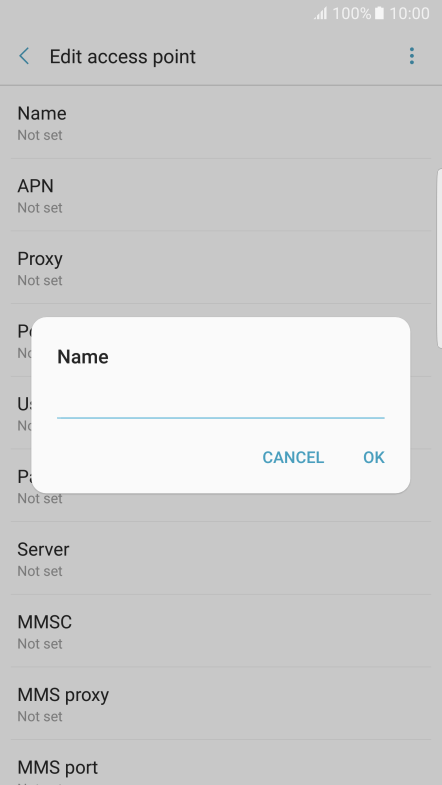

Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3e3e54b5-29c9-49dc-ba61-e0880fd792c9.png?width=220&height=394)
Vodafone Internet
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-508cca8b-240d-4de8-9162-5f7ec00ec89b.png?width=220&height=394)
Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d1698c85-6dbd-4726-b44a-dc113ebfce59.png?width=220&height=394)
live.vodafone.com
4. Enter IP address
Press Proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-508cca8b-240d-4de8-9162-5f7ec00ec89b.png?width=220&height=394)
Key in 10.24.59.100 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b3da9d72-42bb-4268-a772-fd5d82803f98.png?width=220&height=394)
10.24.59.100
5. Enter port number
Press Port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-508cca8b-240d-4de8-9162-5f7ec00ec89b.png?width=220&height=394)
Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-39ab98c0-8f0a-4a7f-8411-cc9a92463f87.png?width=220&height=394)
80
6. Enter country code

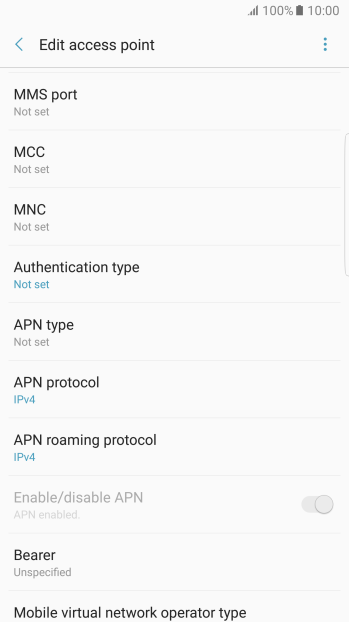

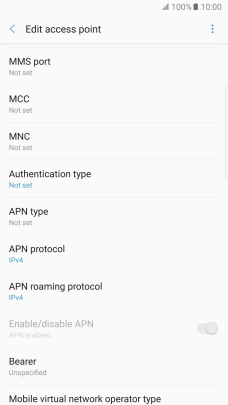

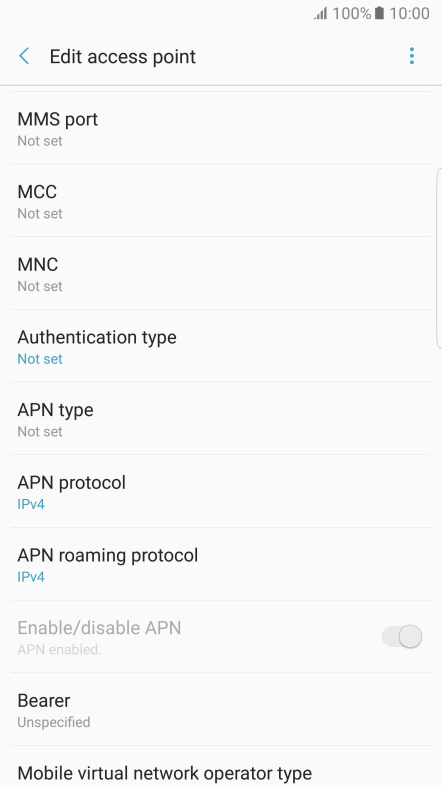

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6d5e3abd-84b6-45ed-916c-062a92ab4857.png?width=220&height=394)

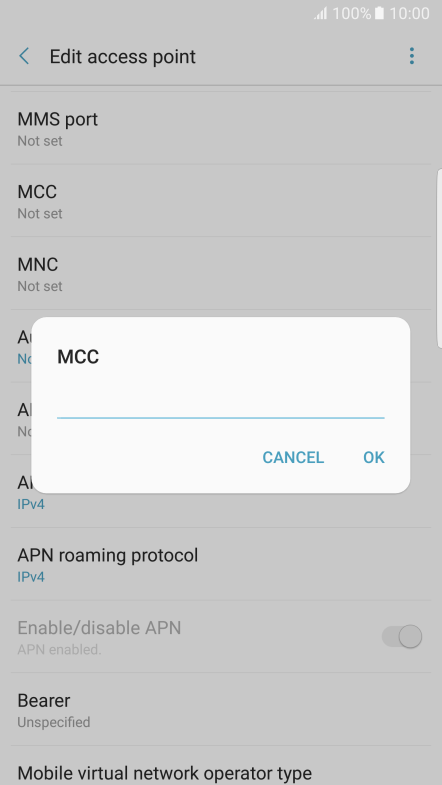

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7b8778e9-4639-47fd-9105-86da56645f8f.png?width=220&height=394)
272
7. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6d5e3abd-84b6-45ed-916c-062a92ab4857.png?width=220&height=394)

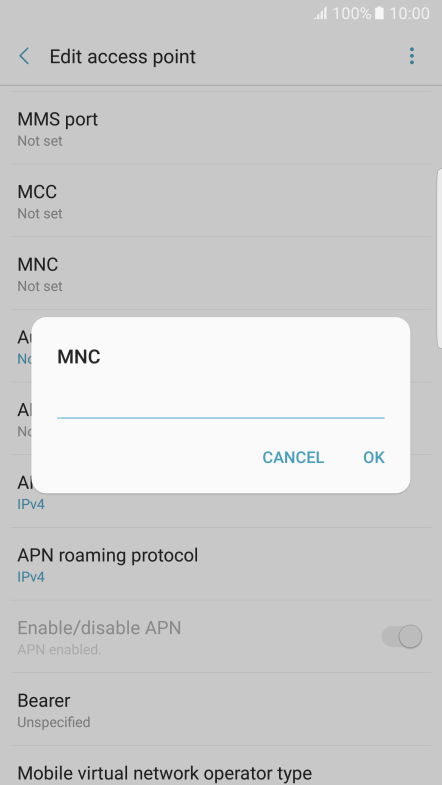

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-dd84f8e7-266f-4ef9-9fbb-5b44d4ec8f27.png?width=220&height=394)
01
8. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6d5e3abd-84b6-45ed-916c-062a92ab4857.png?width=220&height=394)

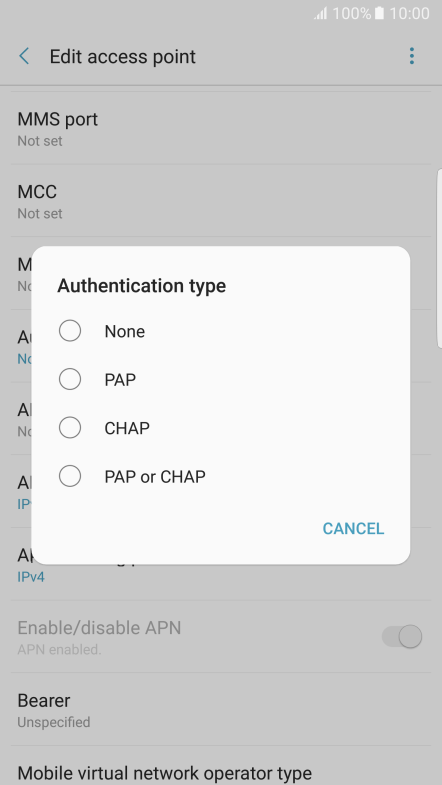

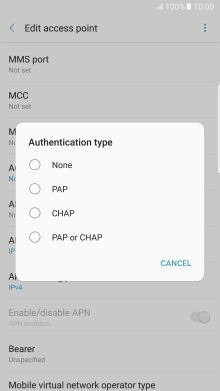

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ac981d95-a658-4304-88a9-7dc0a316b2b9.png?width=220&height=394)
9. Select APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6d5e3abd-84b6-45ed-916c-062a92ab4857.png?width=220&height=394)

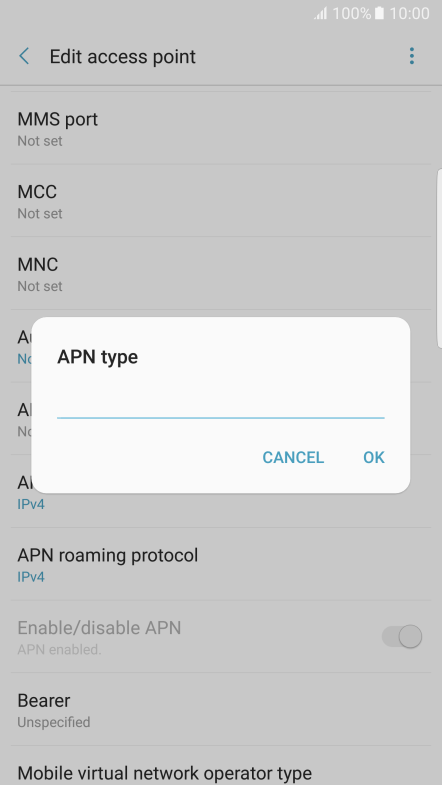

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b8a854a7-56d6-4019-b949-ec825d515d93.png?width=220&height=394)
default
10. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6d5e3abd-84b6-45ed-916c-062a92ab4857.png?width=220&height=394)

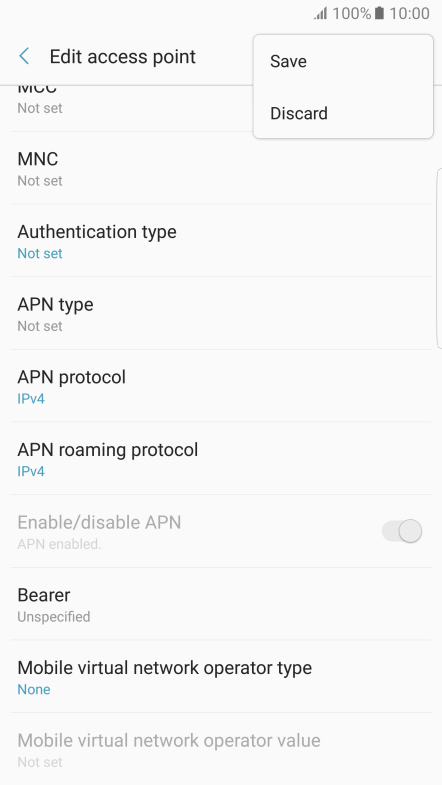

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5f30364e-cfae-49c9-a3d0-ab7792b8c48d.png?width=220&height=394)

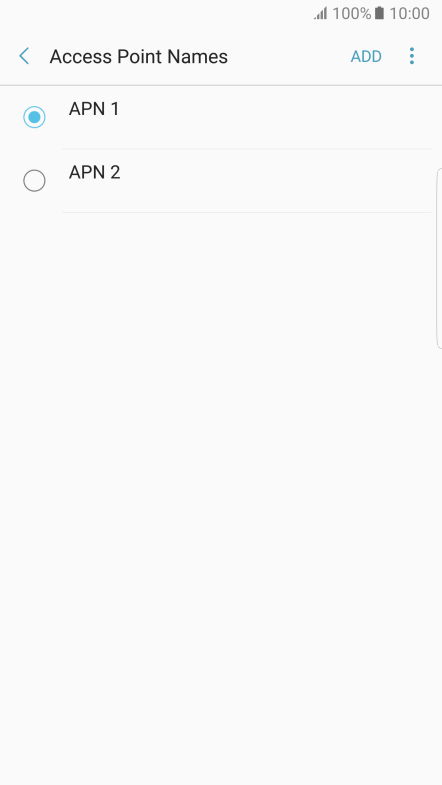

Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c24e647e-e4c5-4fbd-b1aa-8c13afd7b7de.png?width=220&height=394)
11. Return to the home screen
Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9acc53de-bb8e-45b1-ad5d-239a8d49eba1.png?width=220&height=394)
