1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8fed7c12-3b5b-4b30-b370-2b0eb7b38300.png?width=204&height=452)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-91b3148f-0814-49de-a858-cc41ae426a74.png?width=204&height=452)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-93d6c14c-26f1-4898-99c2-88f079b63fbf.png?width=204&height=452)

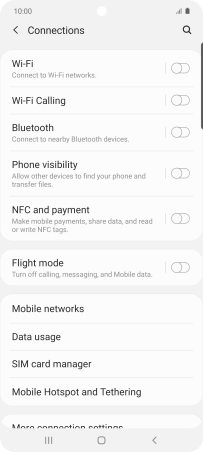

Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1b7ac161-7940-4dc3-b71b-5e8f9c370d32.png?width=204&height=452)

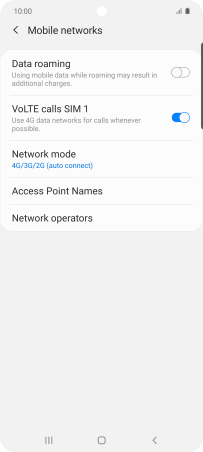

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-595b8533-ba71-4faa-8d70-5112a625a0b7.png?width=204&height=452)
2. Create new data connection

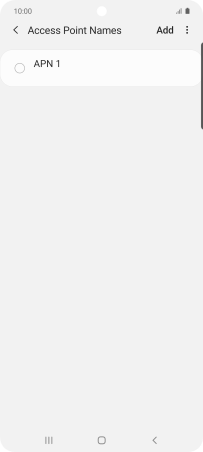

Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-11354d6a-966f-4fe6-9b7a-a8065b18a0e5.png?width=204&height=452)

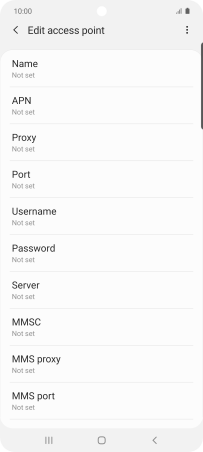

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f4352fb1-d4c5-44da-90b6-b9c9d25ffc11.png?width=204&height=452)
Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-01097c3f-6009-43fd-976f-8afb97584844.png?width=204&height=452)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f4352fb1-d4c5-44da-90b6-b9c9d25ffc11.png?width=204&height=452)

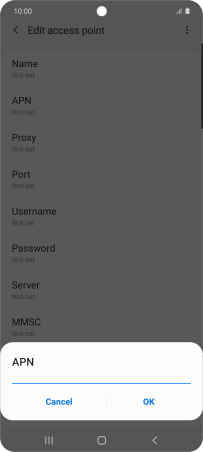

Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a63085eb-a719-4927-8a92-b89e06cf31d9.png?width=204&height=452)
mms.vodafone.net
4. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f4352fb1-d4c5-44da-90b6-b9c9d25ffc11.png?width=204&height=452)

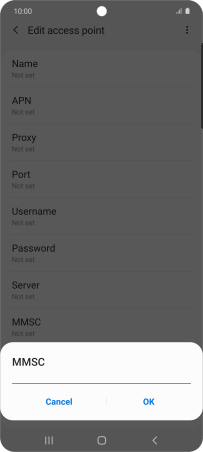

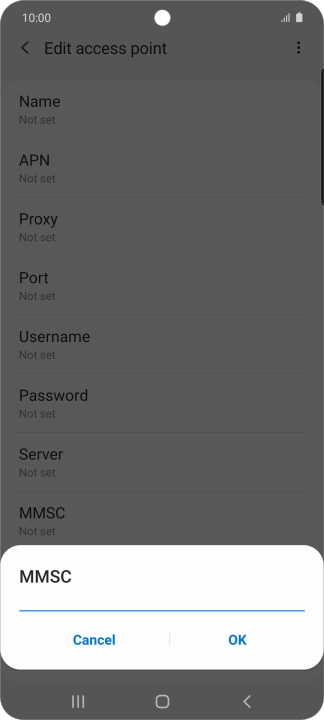

Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-71feeacf-ec1a-46ea-98ea-3c39dc060175.png?width=204&height=452)
http://www.vodafone.ie/mms
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f4352fb1-d4c5-44da-90b6-b9c9d25ffc11.png?width=204&height=452)

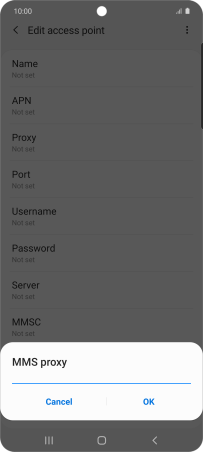

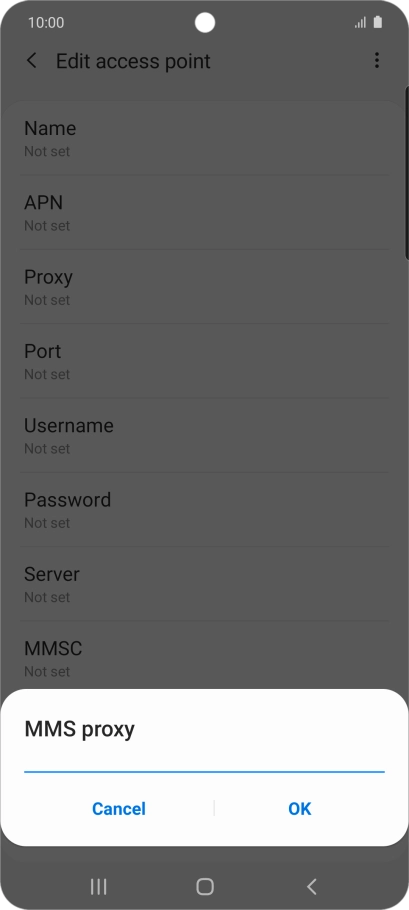

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-838e1071-8cfb-44cd-b599-38117184b75b.png?width=204&height=452)
10.24.59.200
6. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f4352fb1-d4c5-44da-90b6-b9c9d25ffc11.png?width=204&height=452)

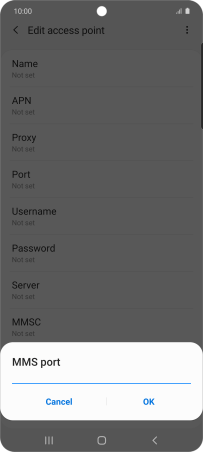

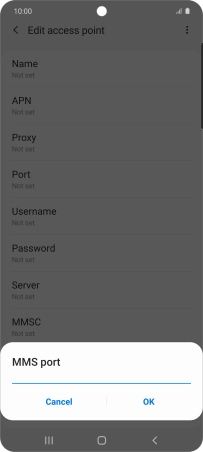

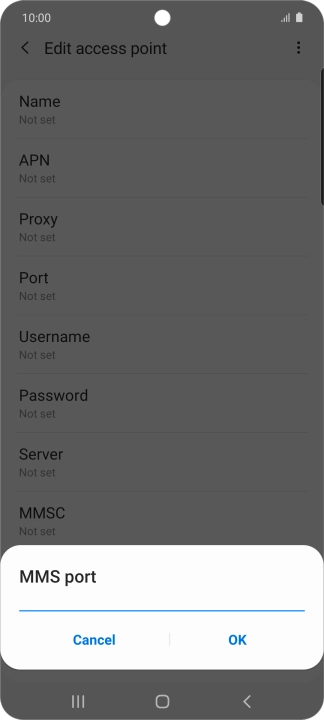

Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-37da158f-1cc0-4226-997f-04965223b62d.png?width=204&height=452)
80
7. Enter country code

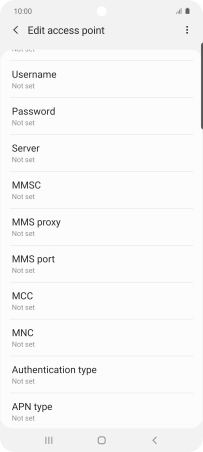

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-633b8e13-06a2-4099-bdd4-84eb7b6b3b9e.png?width=204&height=452)

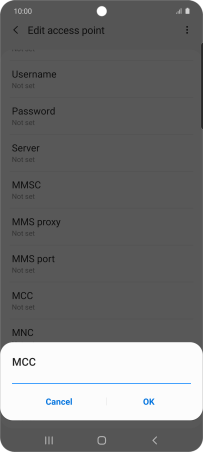

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-88f020b7-04b9-4547-9324-3378c9c96fea.png?width=204&height=452)
272
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-633b8e13-06a2-4099-bdd4-84eb7b6b3b9e.png?width=204&height=452)

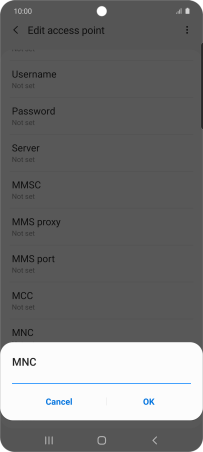

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-94e6252d-0074-4d60-88b1-f315b9cc15ab.png?width=204&height=452)
01
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-633b8e13-06a2-4099-bdd4-84eb7b6b3b9e.png?width=204&height=452)

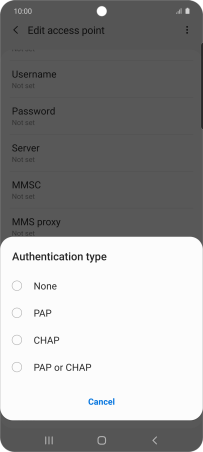

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-505cc045-71b8-4942-acf9-0fcc7162dcbd.png?width=204&height=452)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-633b8e13-06a2-4099-bdd4-84eb7b6b3b9e.png?width=204&height=452)

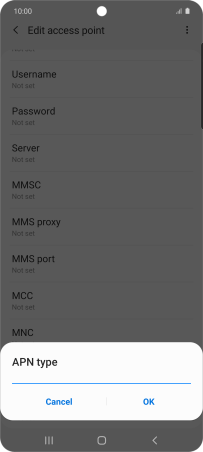

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ffc1a4fe-0e02-47b8-8224-b7b47410e8f3.png?width=204&height=452)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-633b8e13-06a2-4099-bdd4-84eb7b6b3b9e.png?width=204&height=452)

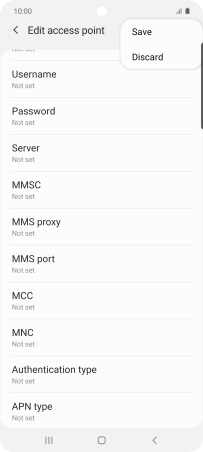

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-da1dd7d6-d2e9-47f9-9f07-b4f908d5919a.png?width=204&height=452)
12. Return to the home screen

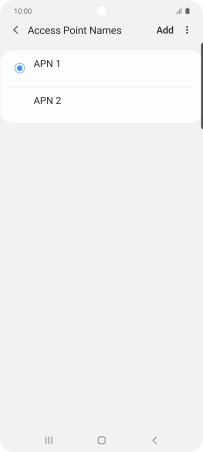

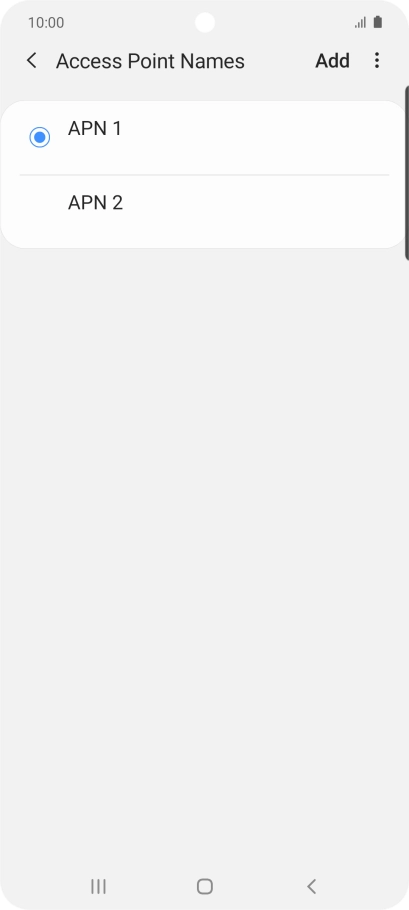

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-748d2288-a87f-4d94-aa46-6b30f6a95f9c.png?width=204&height=452)
