1. Find "Access Point Names"
Slide your finger downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e4104666-cfae-4a73-852a-06f55f906bfc.png?width=206&height=368)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-cb28a6d2-03ab-4122-b037-9688c51ef7c0.png?width=206&height=368)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-deb74a82-4e9c-4dbe-b6e2-d11c05e701a3.png?width=206&height=368)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-99fac6d5-a8a2-44a1-be03-13600cf78f30.png?width=206&height=368)
Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f4a2a771-af8a-40c0-bf68-25b0a8ec9083.png?width=206&height=368)
2. Create new data connection

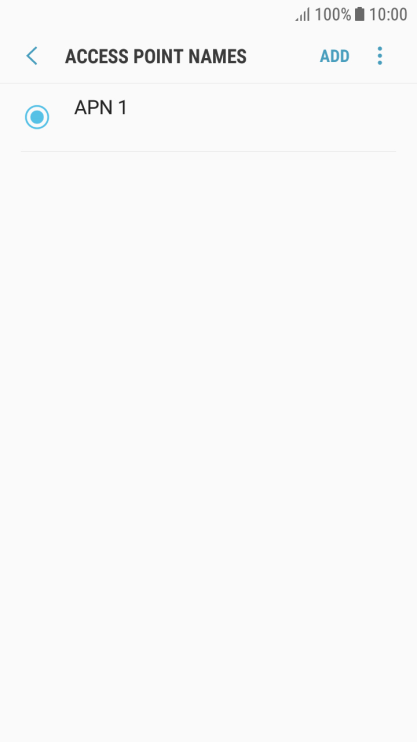

Press ADD.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a4b0871c-56fe-4822-b4cc-1333cedf32f9.png?width=206&height=368)

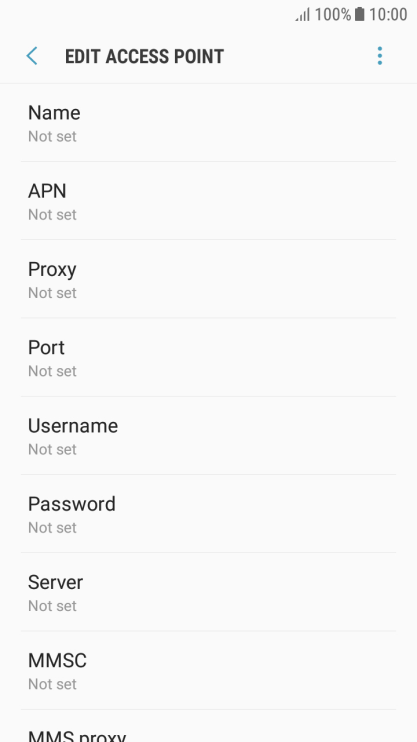

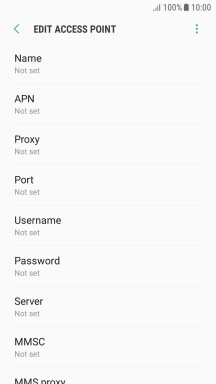

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-975078ed-ce41-4d38-894b-46c7418ac568.png?width=206&height=368)
Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8a67c76a-1ae7-4206-ae3c-ad3df2fa3804.png?width=206&height=368)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-975078ed-ce41-4d38-894b-46c7418ac568.png?width=206&height=368)

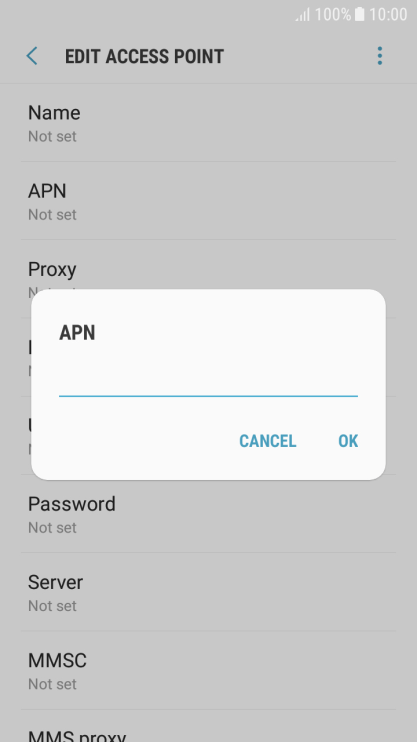

Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9198bd54-8ab1-451f-9bf3-dc7a198f4655.png?width=206&height=368)
mms.vodafone.net
4. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-975078ed-ce41-4d38-894b-46c7418ac568.png?width=206&height=368)

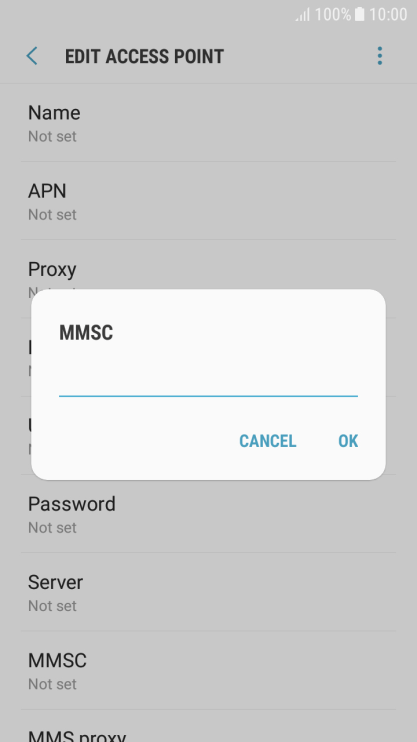

Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4a62d75e-b2f7-49b9-bc8c-7b672db86f23.png?width=206&height=368)
http://www.vodafone.ie/mms
5. Enter IP address

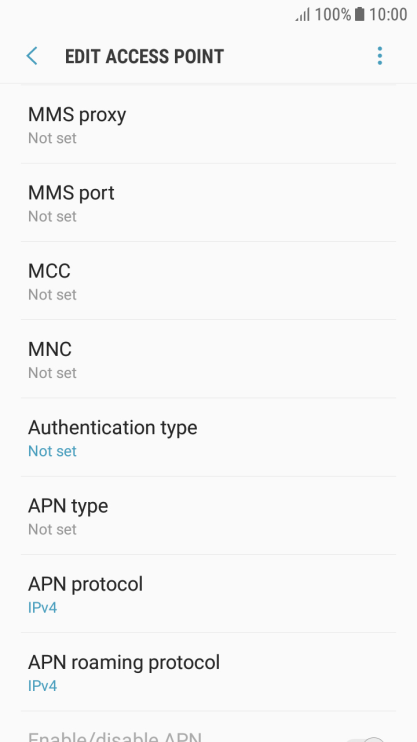

Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-06773637-a619-4a58-b64b-8edd737efbb6.png?width=206&height=368)

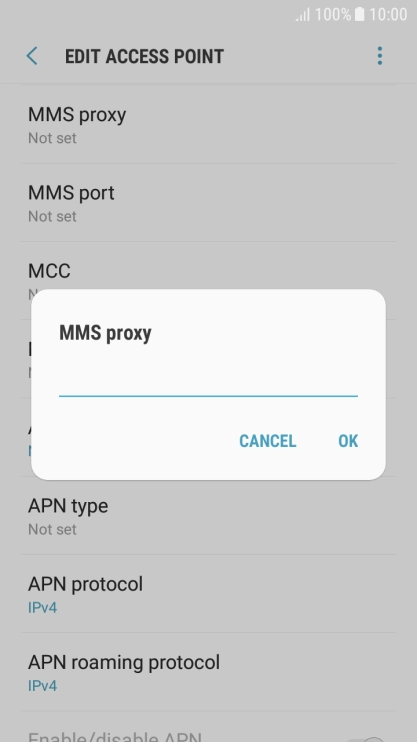

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-db561335-d97d-4568-b94d-fd3a5ad96810.png?width=206&height=368)
10.24.59.200
6. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-06773637-a619-4a58-b64b-8edd737efbb6.png?width=206&height=368)
Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3593eaf0-44c2-4cc0-a01f-134760cc547c.png?width=206&height=368)
80
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-06773637-a619-4a58-b64b-8edd737efbb6.png?width=206&height=368)
Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5b96695d-c141-479b-bf7b-a25ccb149369.png?width=206&height=368)
272
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-06773637-a619-4a58-b64b-8edd737efbb6.png?width=206&height=368)

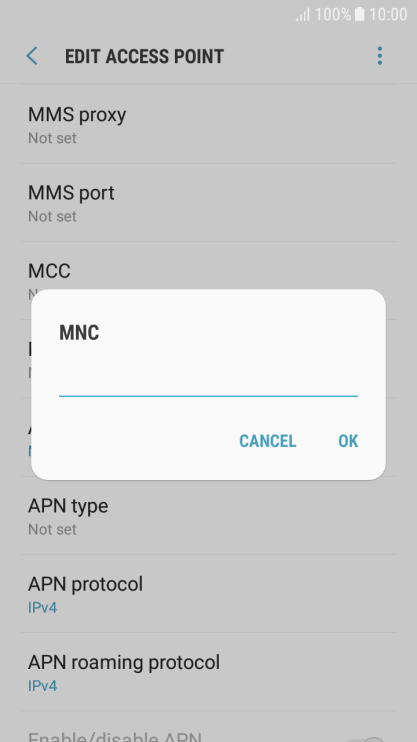

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6416db7f-75e5-4492-8b9a-03a3491c6351.png?width=206&height=368)
01
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-06773637-a619-4a58-b64b-8edd737efbb6.png?width=206&height=368)

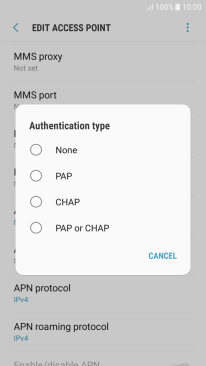

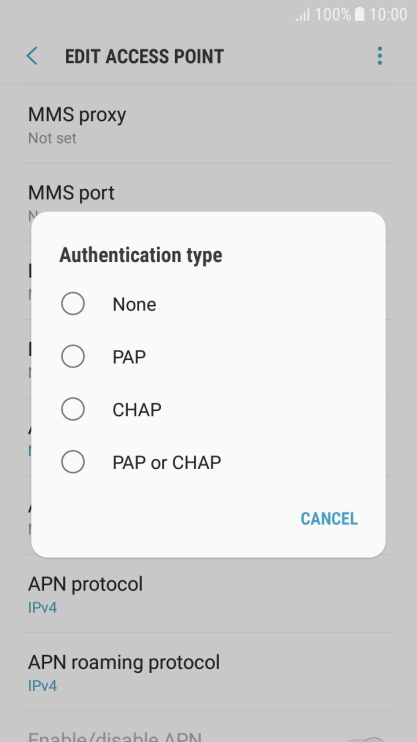

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-add629a4-c080-4353-981f-755d7ab80856.png?width=206&height=368)
10. Select APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-06773637-a619-4a58-b64b-8edd737efbb6.png?width=206&height=368)

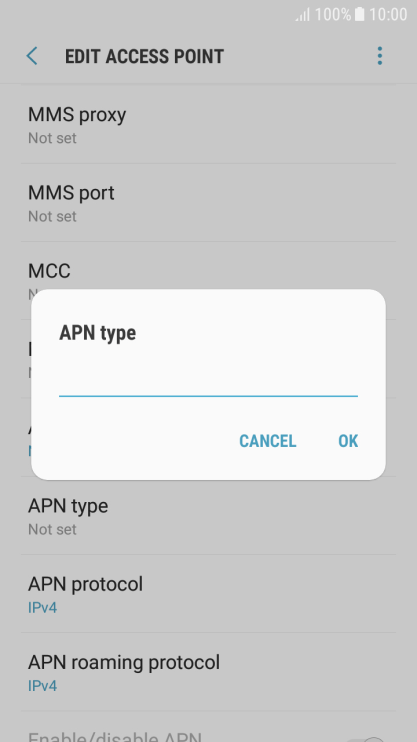

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4409c46f-5a2e-4640-84b6-422007313f97.png?width=206&height=368)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-06773637-a619-4a58-b64b-8edd737efbb6.png?width=206&height=368)

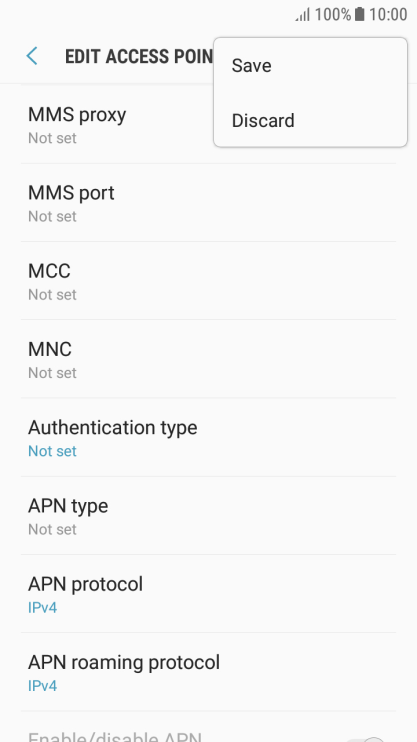

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4738f1d6-2b23-4a99-9c1c-49e4f3bea3bc.png?width=206&height=368)
12. Return to the home screen

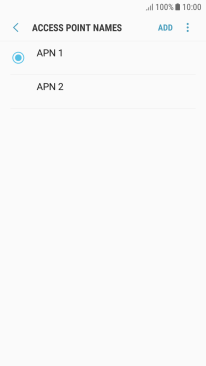

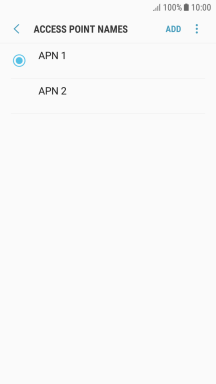

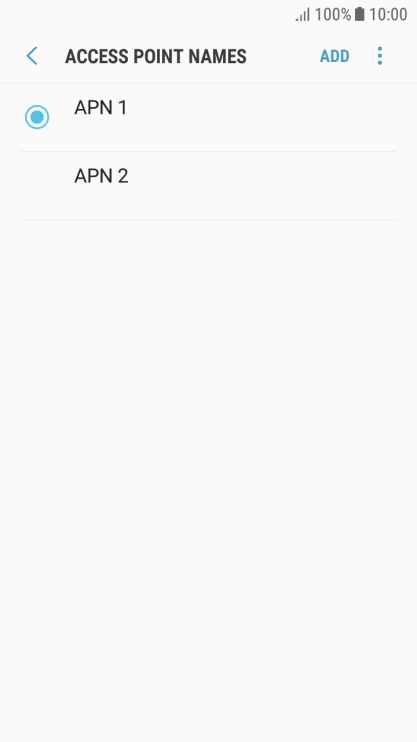

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1f8545a5-a6cf-4167-870f-383f7203f2e2.png?width=206&height=368)
