1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-fc3dc543-0316-49e7-b86e-f7f97b045ad4.png?width=202&height=448)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0dccfc04-68ec-4e46-9903-cce51a1f2204.png?width=202&height=448)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-619b6514-890f-425e-8b24-b4af2396742b.png?width=202&height=448)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6875bd75-9ae8-4152-bd3c-fe74a15ed654.png?width=202&height=448)

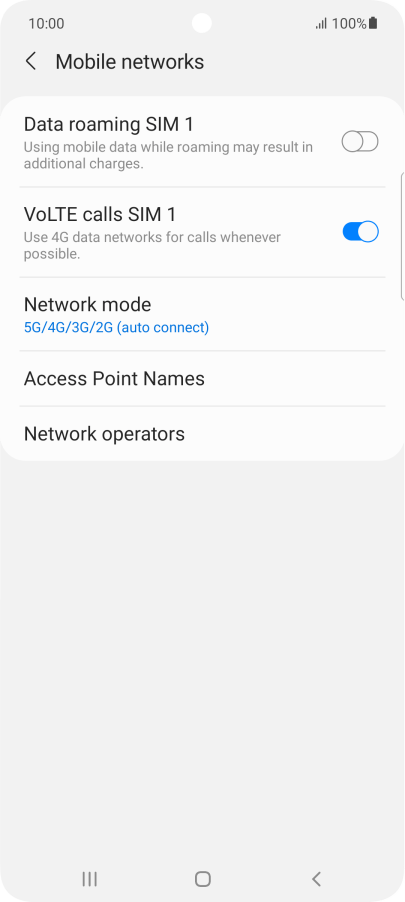

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-74a81309-a6c8-4598-9eec-7ba61c05a8d7.png?width=202&height=448)
2. Create new data connection

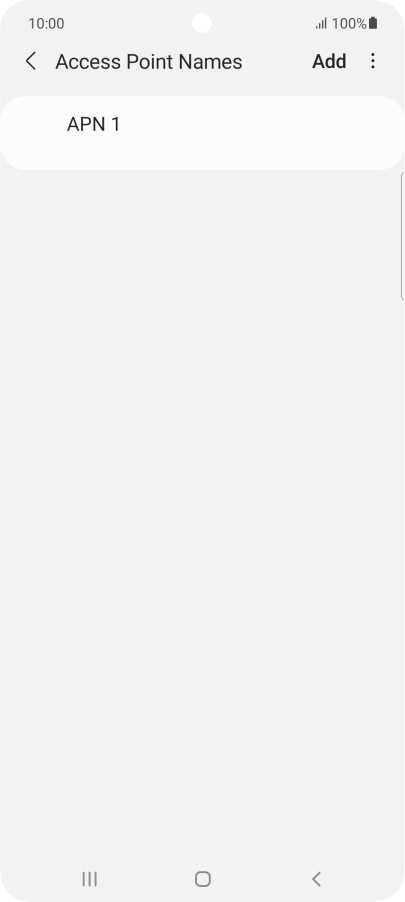

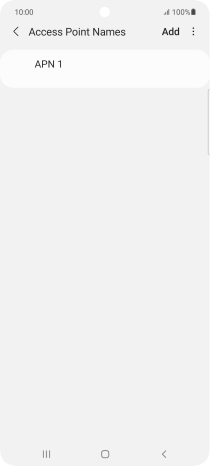

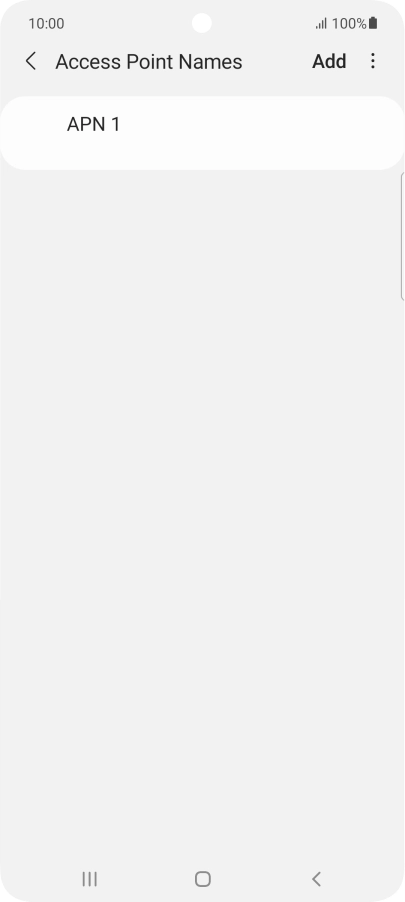

Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-89ffafcc-85ea-4784-8c6e-b559f0ac5866.png?width=202&height=448)
3. Enter a name for the connection

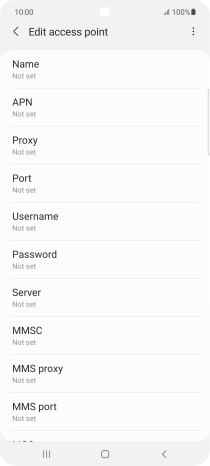

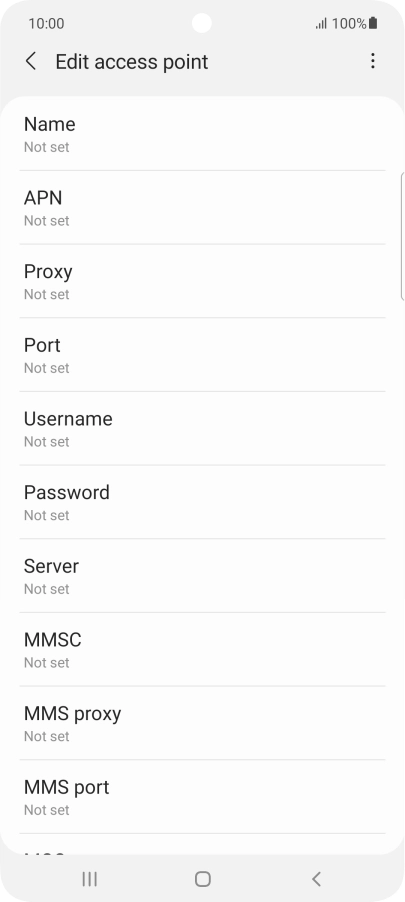

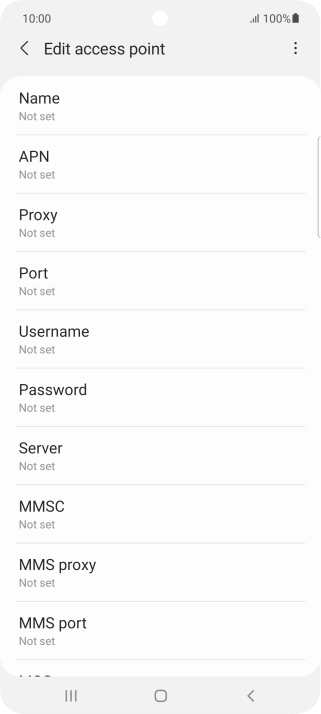

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2cab9ea6-0026-4ee3-85c2-353cadf8c7a3.png?width=202&height=448)

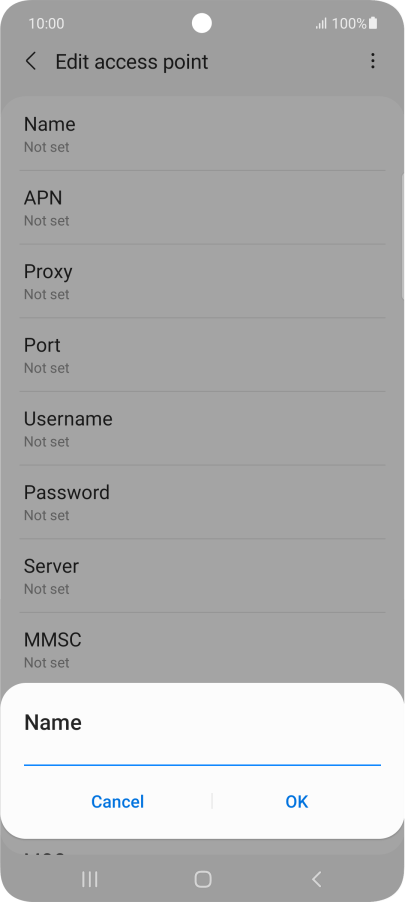

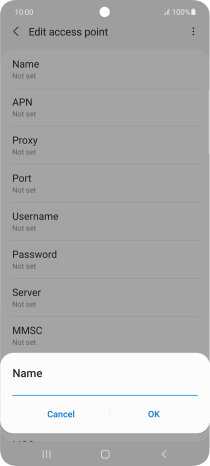

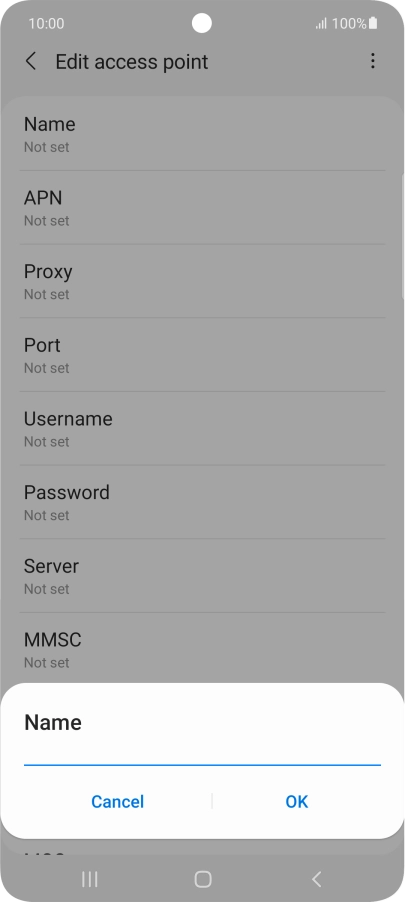

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b2a3b0e5-1703-40a0-8de4-1125555cdde4.png?width=202&height=448)
Vodafone MMS
4. Enter APN

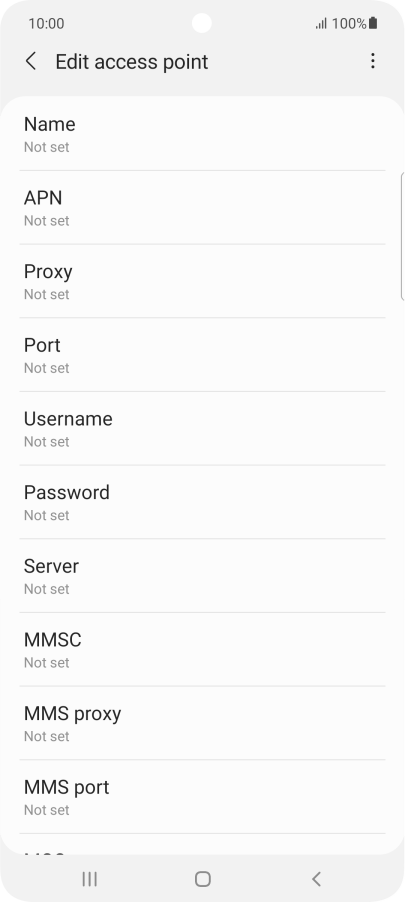

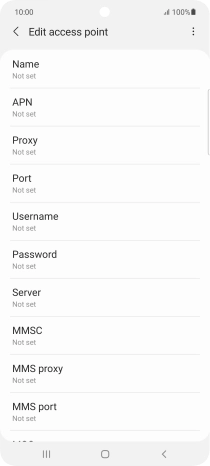

Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2cab9ea6-0026-4ee3-85c2-353cadf8c7a3.png?width=202&height=448)

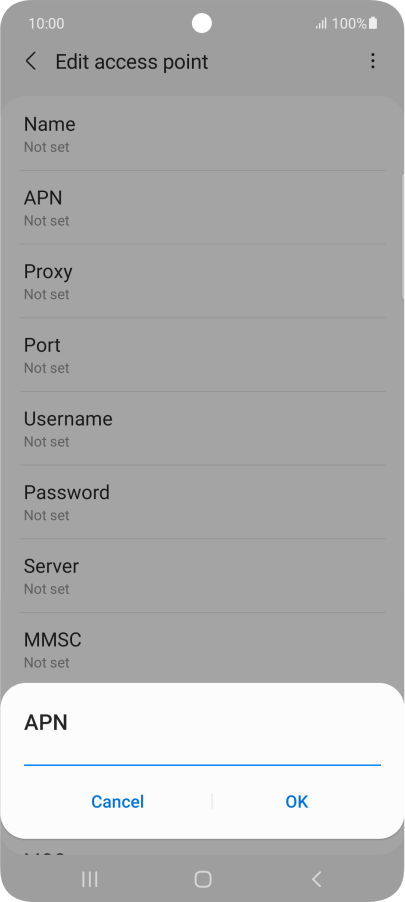

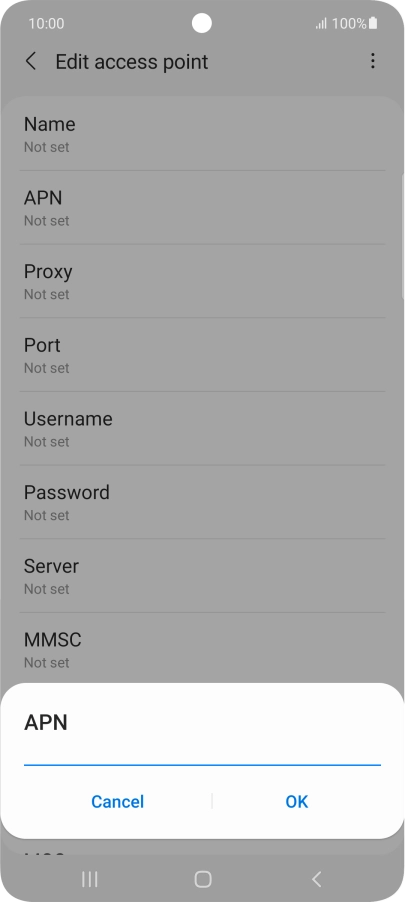

Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-21a562e5-3848-42f0-9ba9-8e2ce481a75a.png?width=202&height=448)
mms.vodafone.net
5. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2cab9ea6-0026-4ee3-85c2-353cadf8c7a3.png?width=202&height=448)

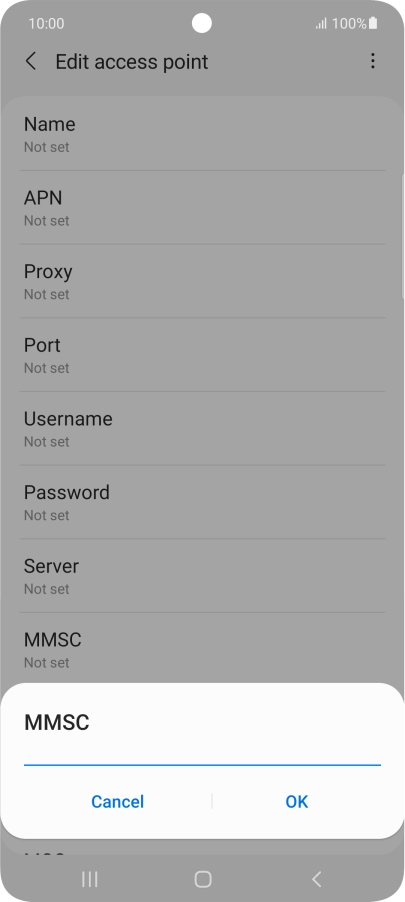

Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6a40e7d1-3d84-4c00-ba47-d1c2ab47e113.png?width=202&height=448)
http://www.vodafone.ie/mms
6. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2cab9ea6-0026-4ee3-85c2-353cadf8c7a3.png?width=202&height=448)

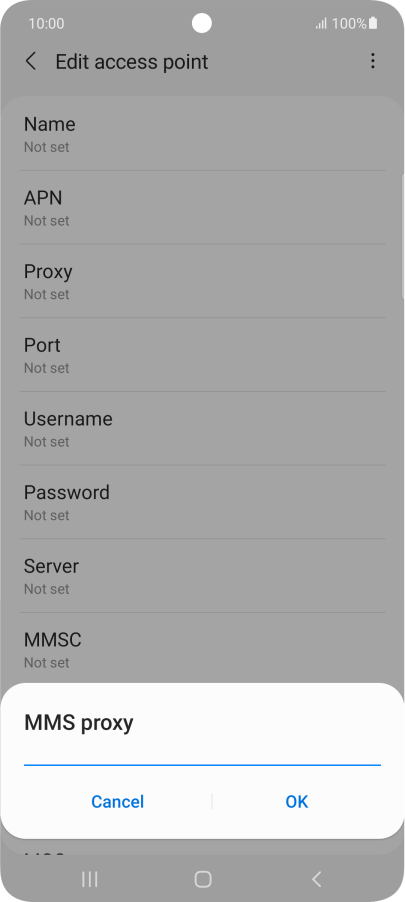

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-58f650bd-a989-48a9-9385-4a5ee50b04df.png?width=202&height=448)
10.24.59.200
7. Enter port number

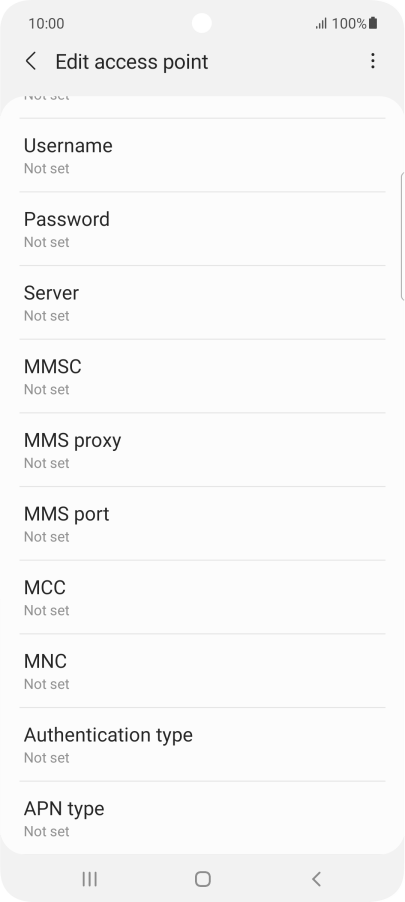

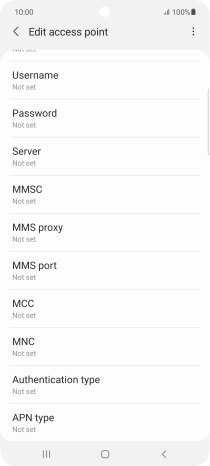

Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8a8b0305-304e-4c73-8b6a-196dcf785e81.png?width=202&height=448)

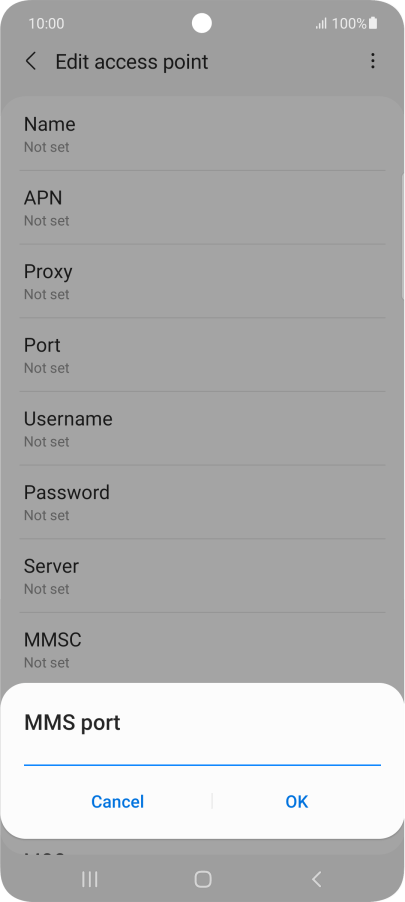

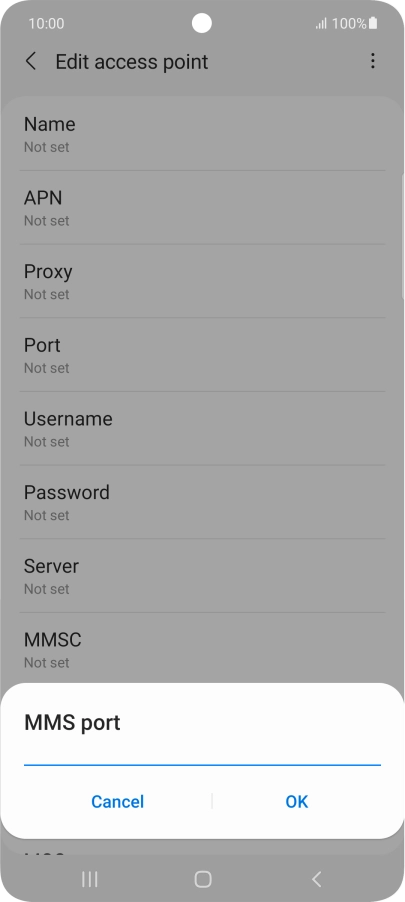

Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0585f6ac-1bcd-4c87-b10e-1010b7785a96.png?width=202&height=448)
80
8. Enter country code

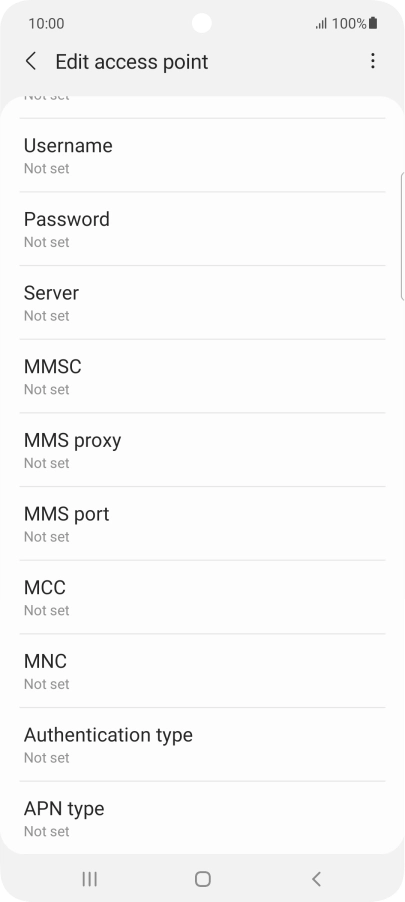

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8a8b0305-304e-4c73-8b6a-196dcf785e81.png?width=202&height=448)

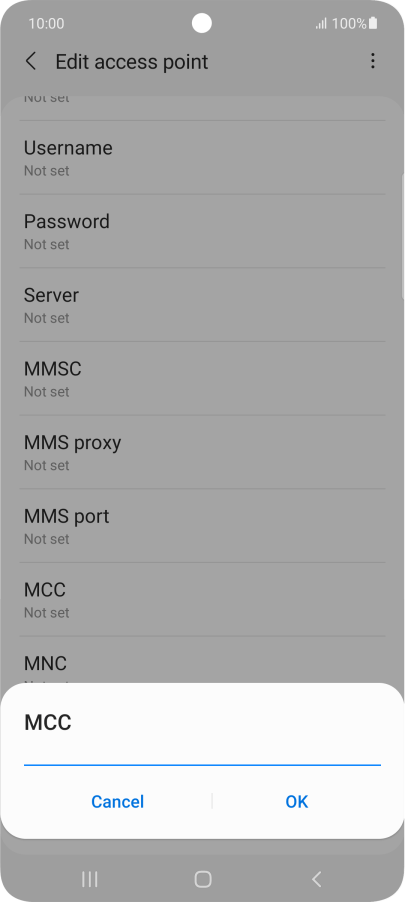

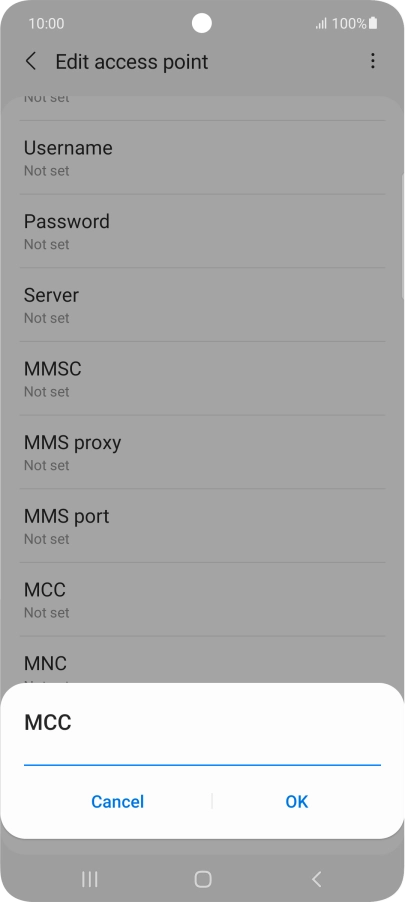

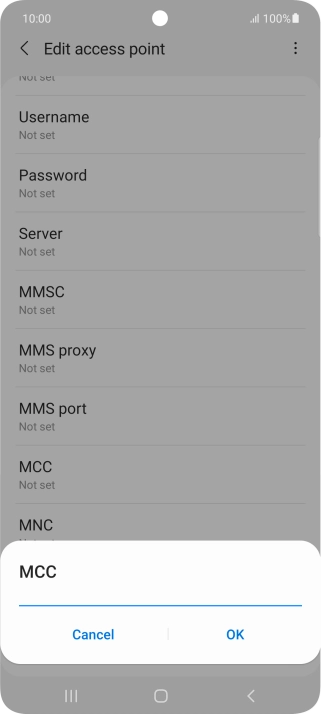

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9399ff46-f4ae-458b-875c-c201066ee6be.png?width=202&height=448)
272
9. Enter network code

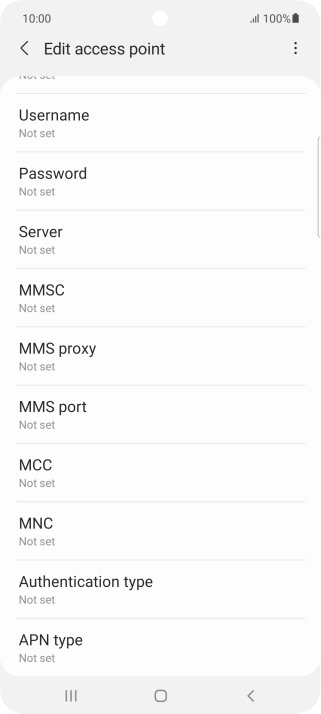

Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8a8b0305-304e-4c73-8b6a-196dcf785e81.png?width=202&height=448)

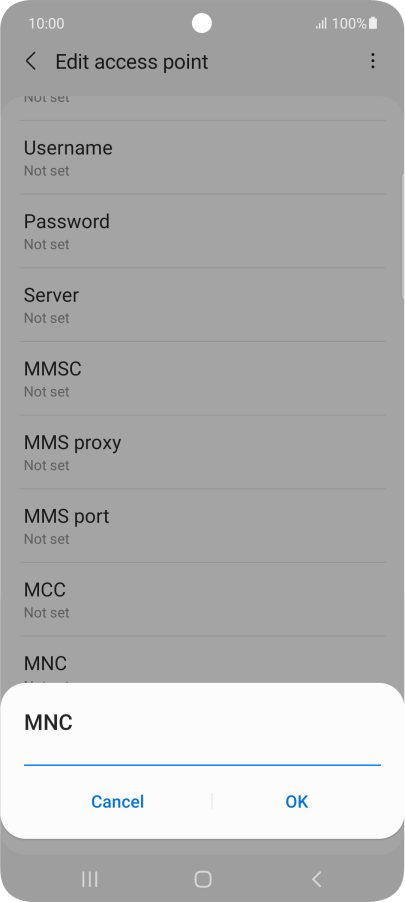

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ff1de531-a334-414e-973f-841c5d9587f0.png?width=202&height=448)
01
10. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8a8b0305-304e-4c73-8b6a-196dcf785e81.png?width=202&height=448)

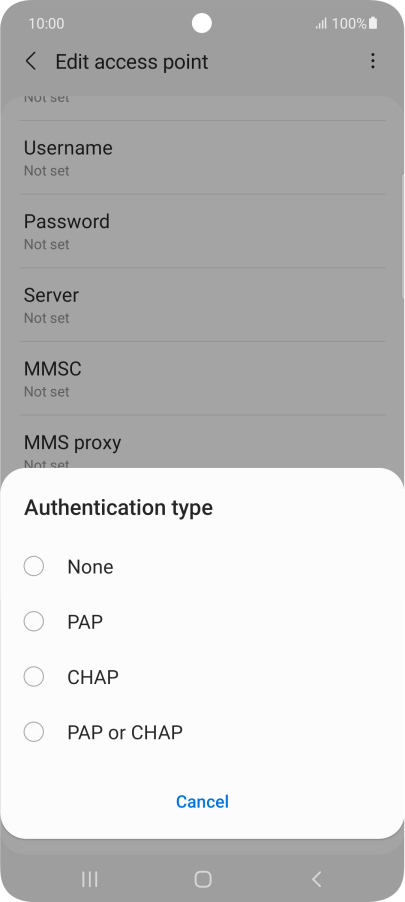

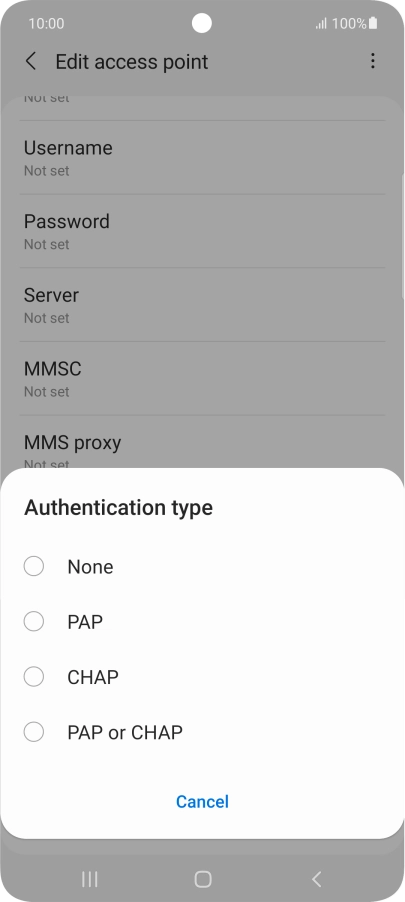

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-107eea8f-eb91-4f89-9c33-58e05e23dcc3.png?width=202&height=448)
11. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8a8b0305-304e-4c73-8b6a-196dcf785e81.png?width=202&height=448)

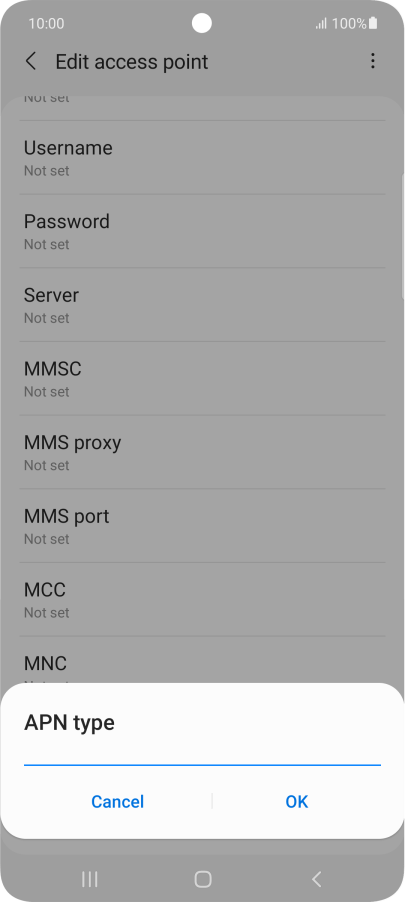

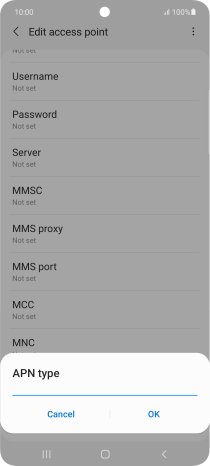

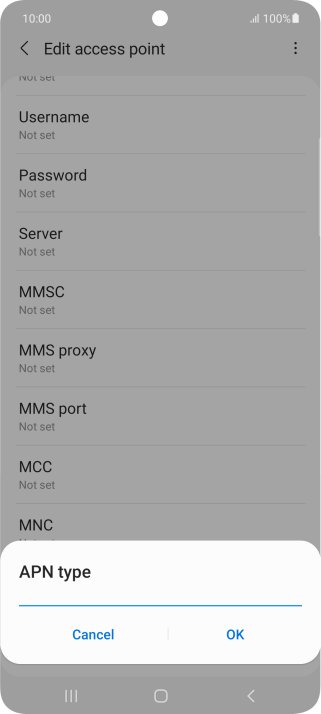

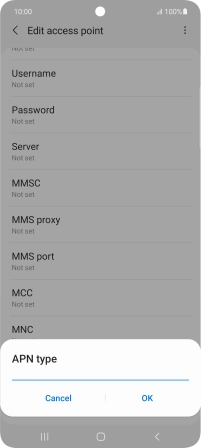

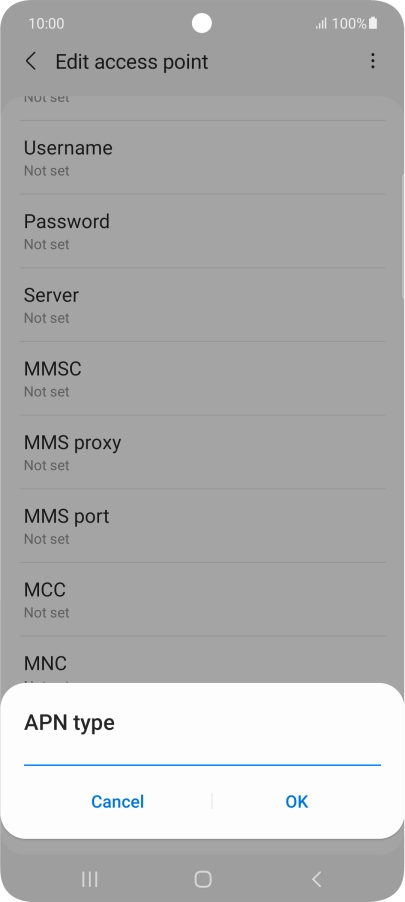

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-90d54933-5eab-4a70-89c6-b0379f92d233.png?width=202&height=448)
mms
12. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8a8b0305-304e-4c73-8b6a-196dcf785e81.png?width=202&height=448)

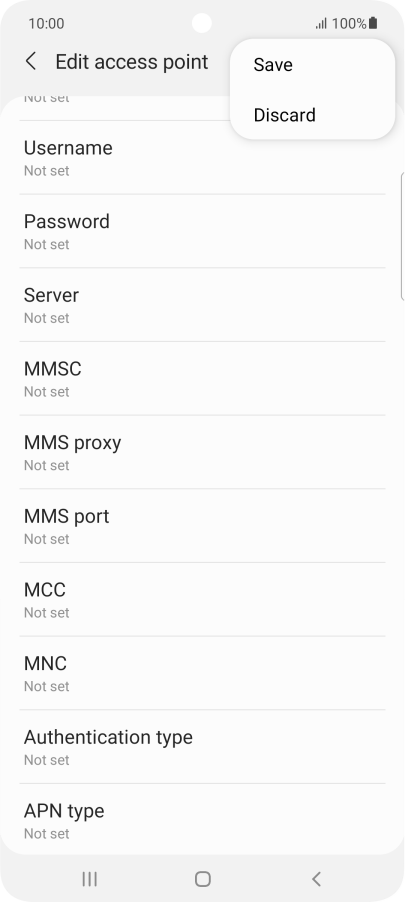

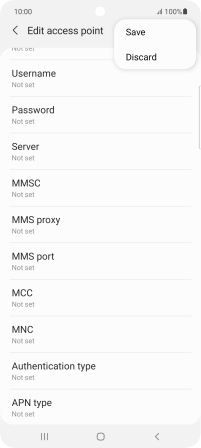

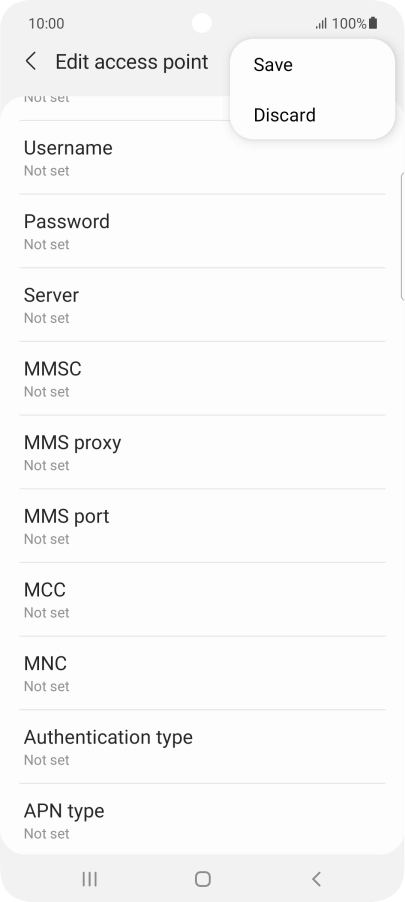

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-95eeb51e-9608-42c7-ab7d-8693ad3ca2d1.png?width=202&height=448)
13. Return to the home screen

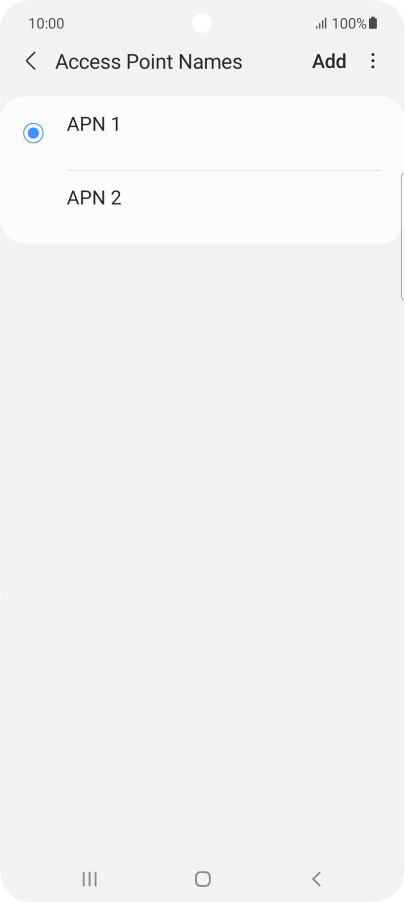

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4e18b917-b803-416d-bd6b-cf1346243e1e.png?width=202&height=448)
