1. Find "Access Point Names"

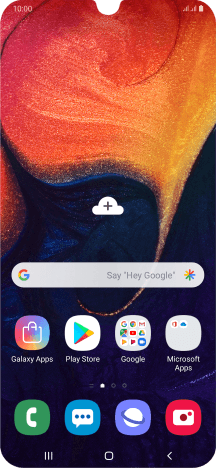

Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-72f996c0-1c9e-4fe8-b385-c67e0a931f1b.png?width=206&height=450)

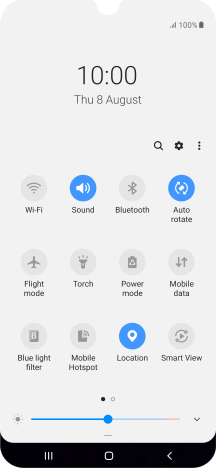

Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8e0ce656-18f3-4f08-b280-4746732c96d8.png?width=206&height=450)

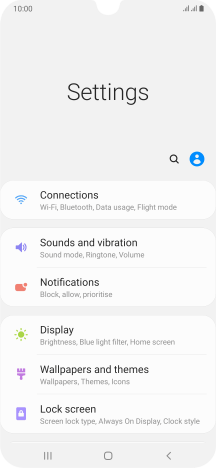

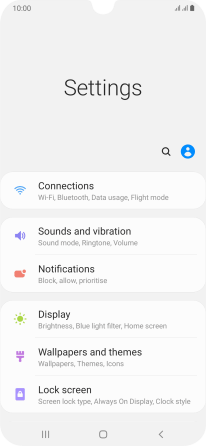

Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-95927add-342b-42a1-a87f-f211310a2abc.png?width=206&height=450)

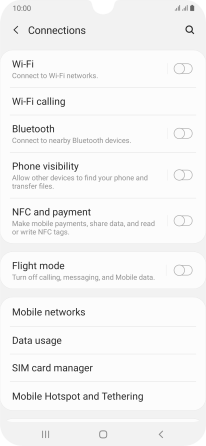

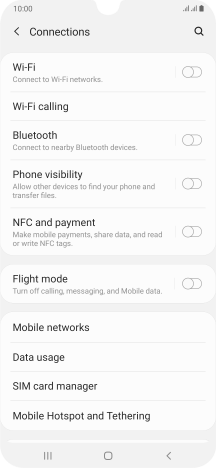

Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a9ee8218-5476-49c4-9efc-404d389615ef.png?width=206&height=450)

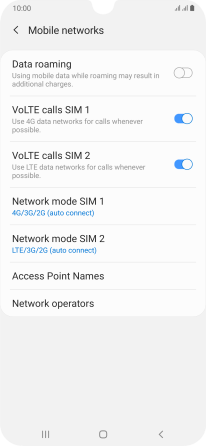

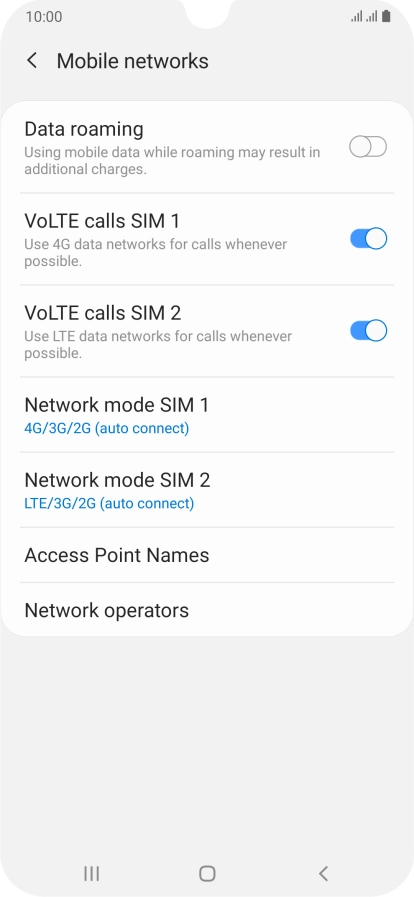

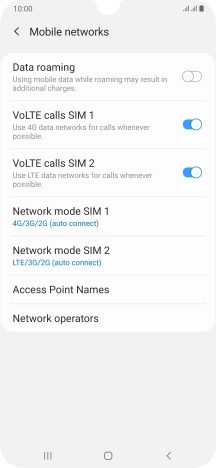

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-77731f08-20a7-4158-b2ce-b0f1707691ed.png?width=206&height=450)
2. Create new data connection

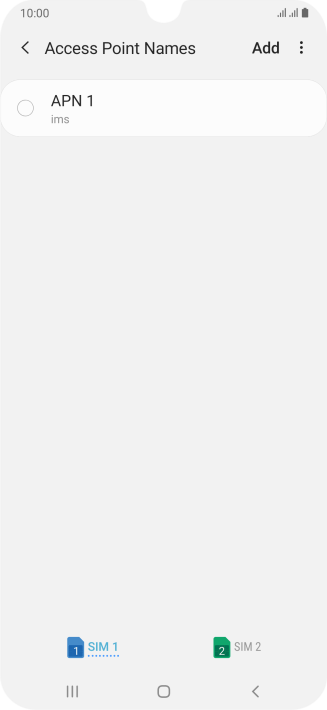

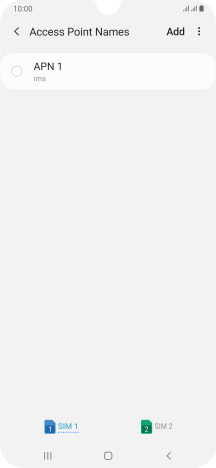

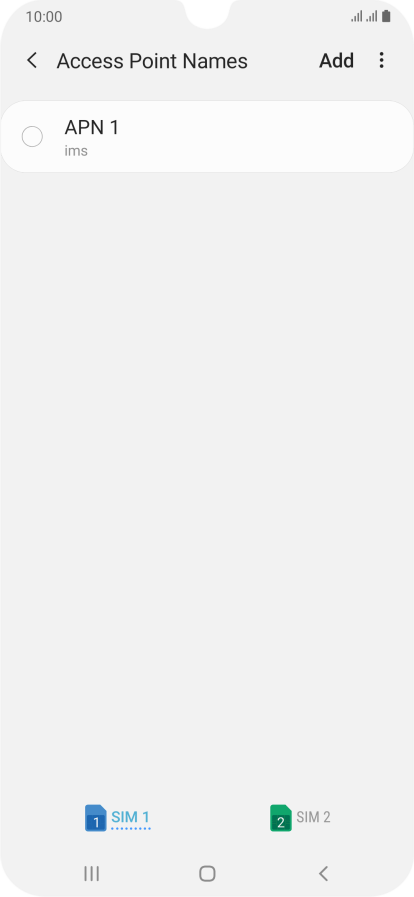

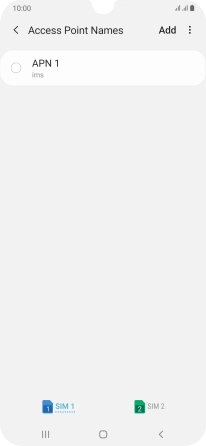

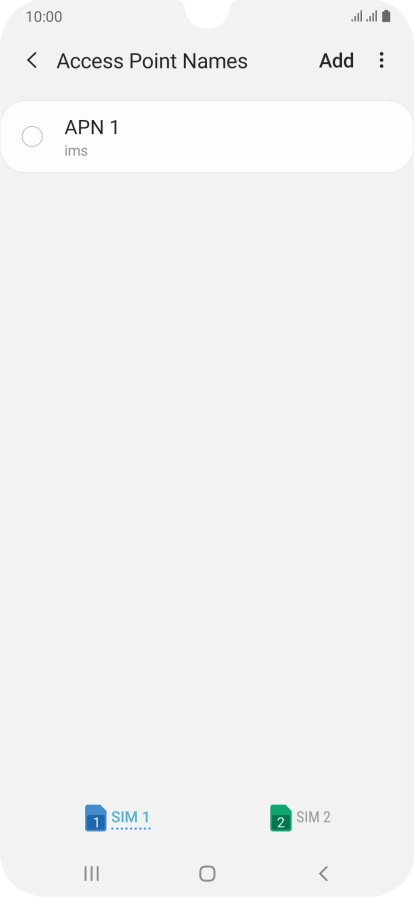

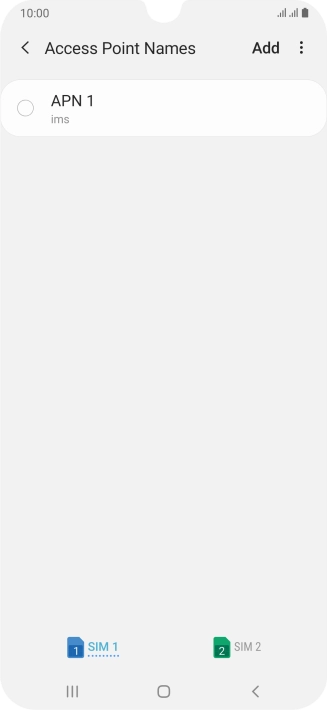

Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9b7d93a2-1e00-4d04-bad8-697f1229423c.png?width=206&height=450)
Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7c000a91-11d7-4263-b8bd-e648dce4853e.png?width=206&height=450)

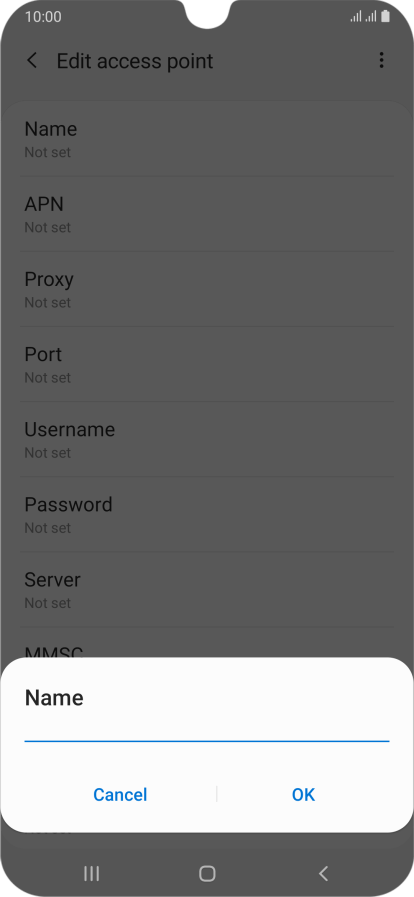

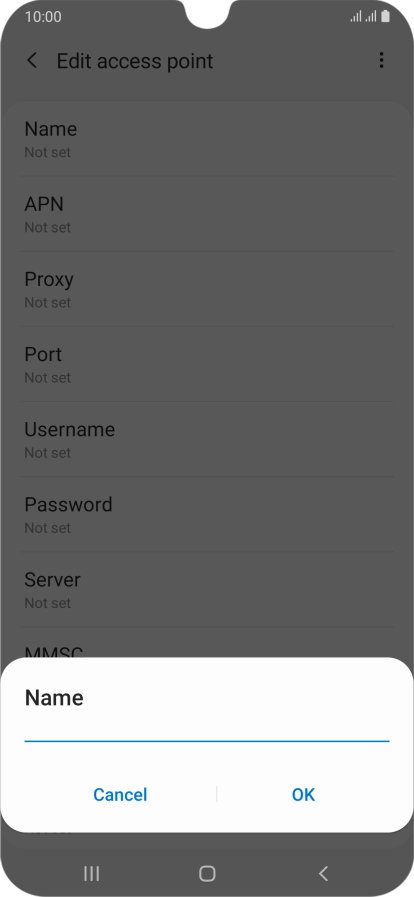

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d9d4821a-e79c-4cf2-8daf-4d5d199736fc.png?width=206&height=450)
Vodafone MMS
3. Enter APN

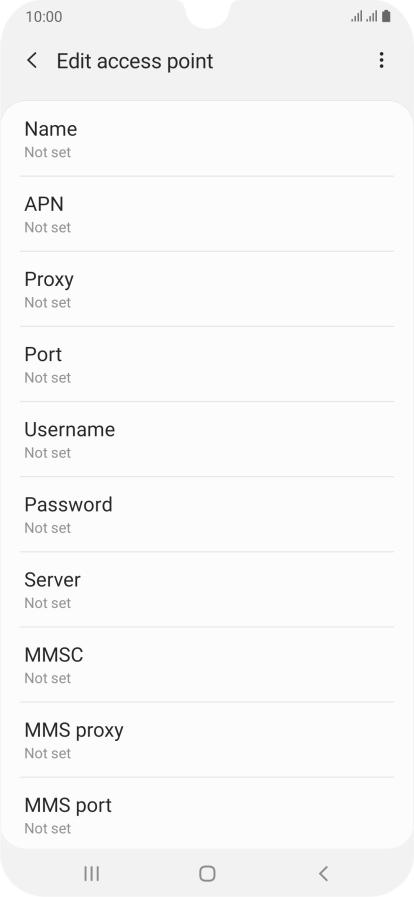

Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7c000a91-11d7-4263-b8bd-e648dce4853e.png?width=206&height=450)

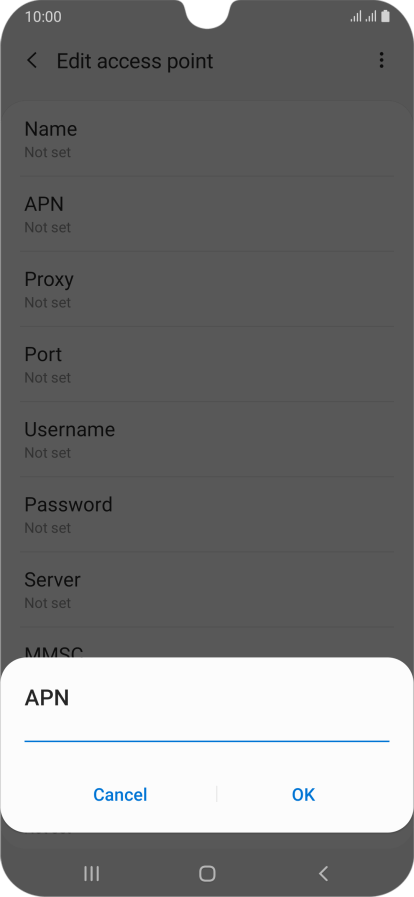

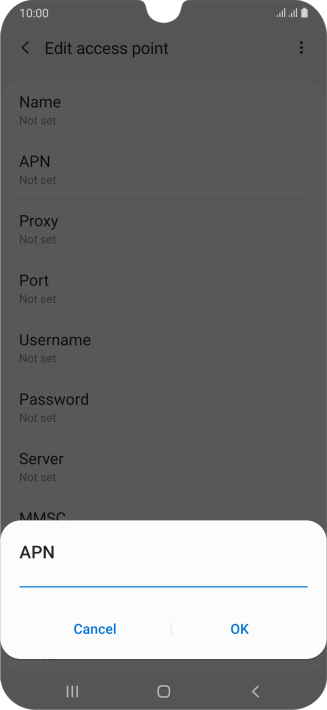

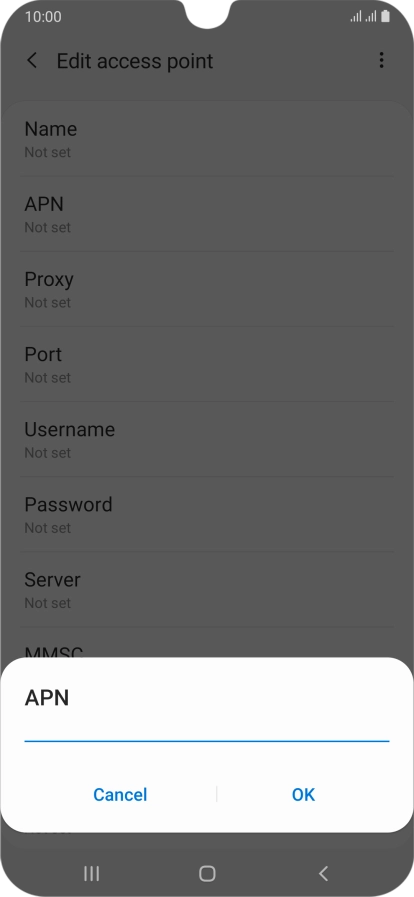

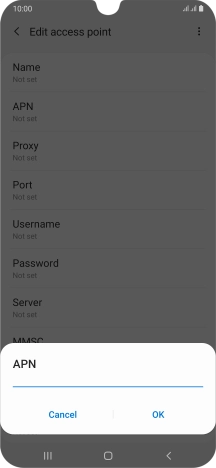

Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-37db2f66-d282-4cc3-a4f4-0e0f92881477.png?width=206&height=450)
mms.vodafone.net
4. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7c000a91-11d7-4263-b8bd-e648dce4853e.png?width=206&height=450)

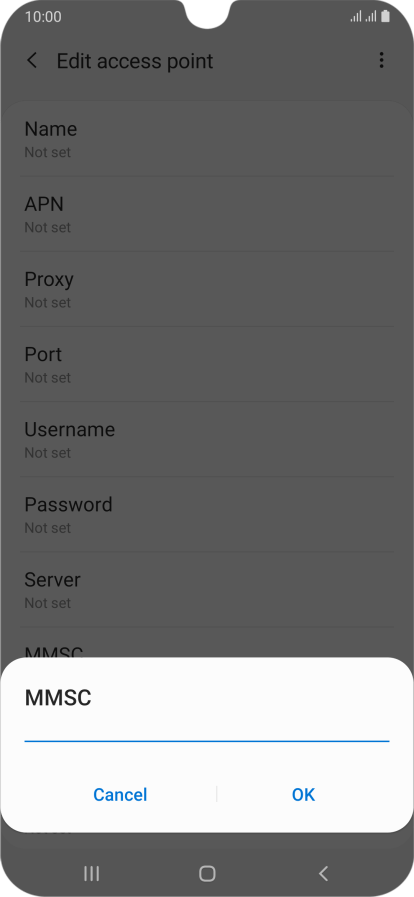

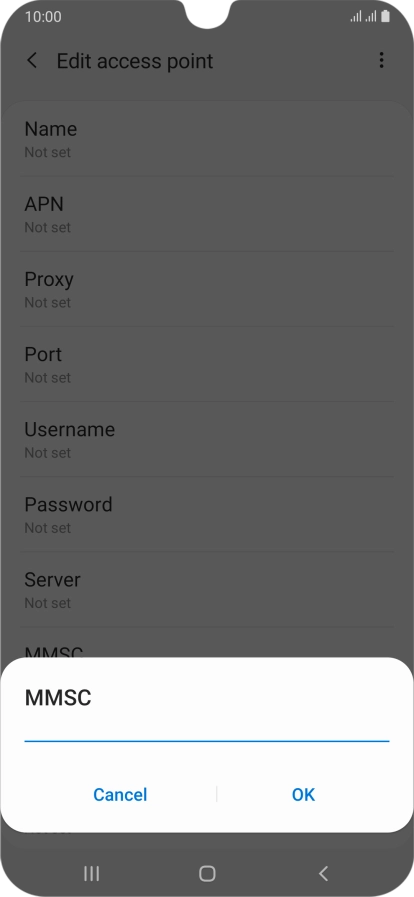

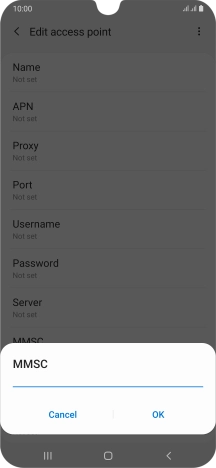

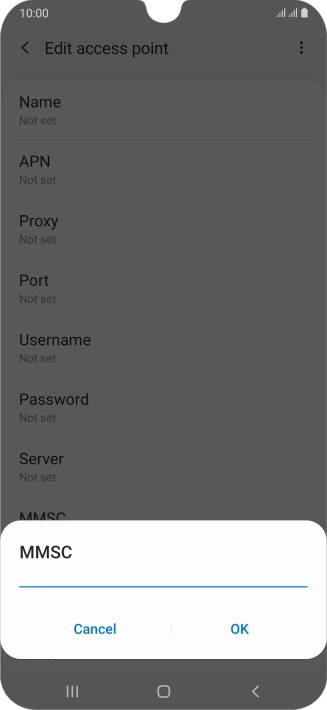

Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-70472cec-2572-4bdc-a9b5-82ca6286b3d7.png?width=206&height=450)
http://www.vodafone.ie/mms
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7c000a91-11d7-4263-b8bd-e648dce4853e.png?width=206&height=450)

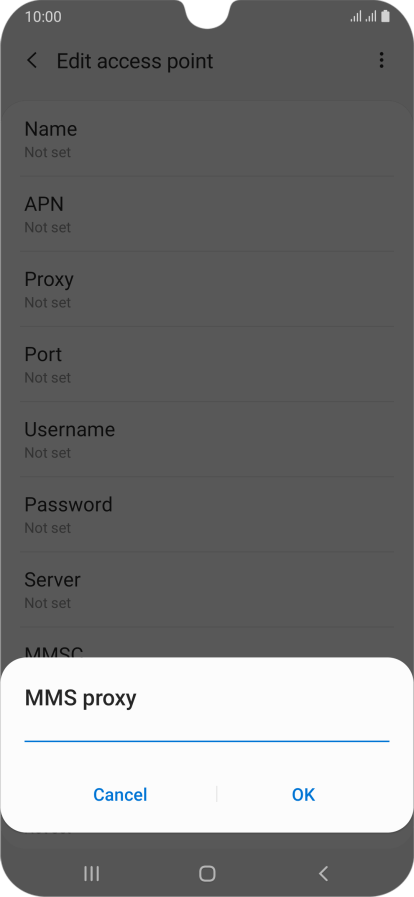

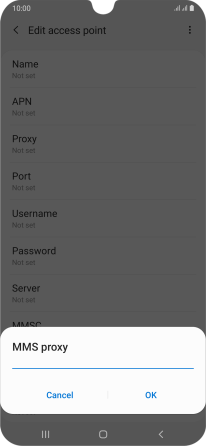

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ffaaecbe-bee5-47b5-8fd8-0c1578298412.png?width=206&height=450)
10.24.59.200
6. Enter port number

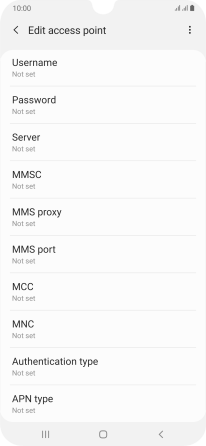

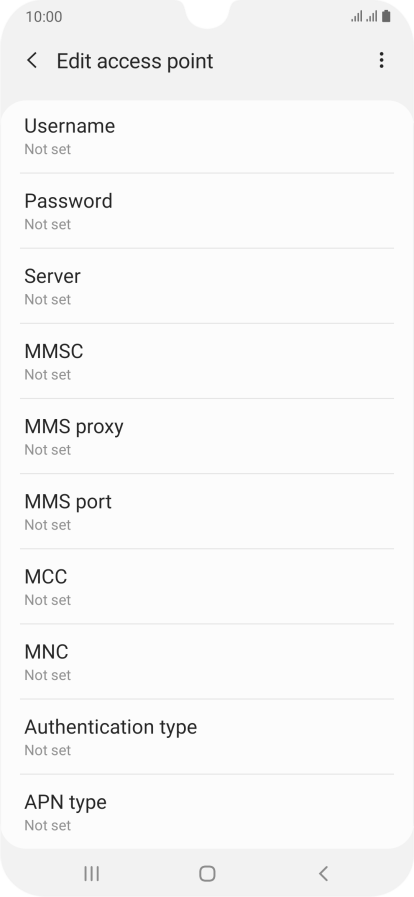

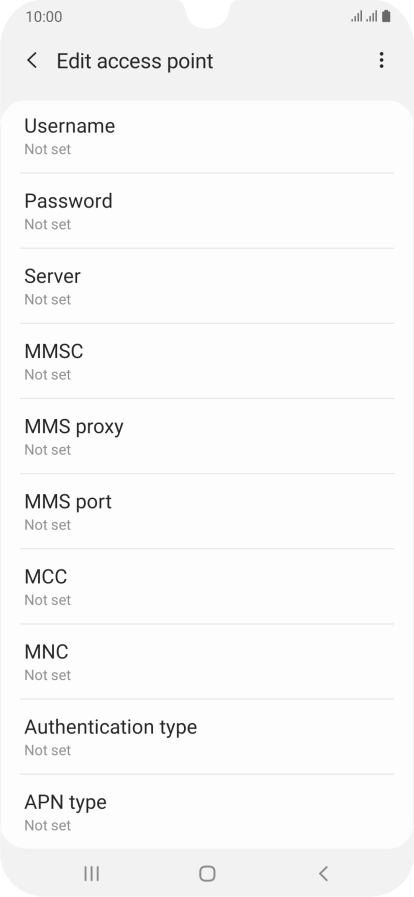

Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7e63eac6-c680-4b14-9aeb-5b24321a40ba.png?width=206&height=450)

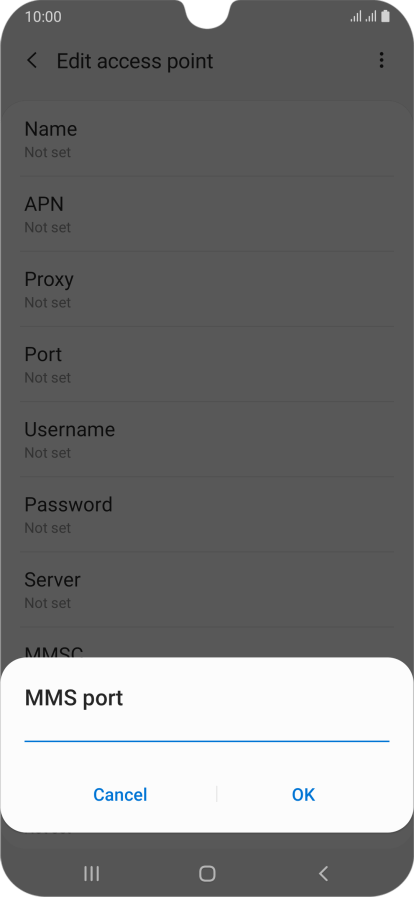

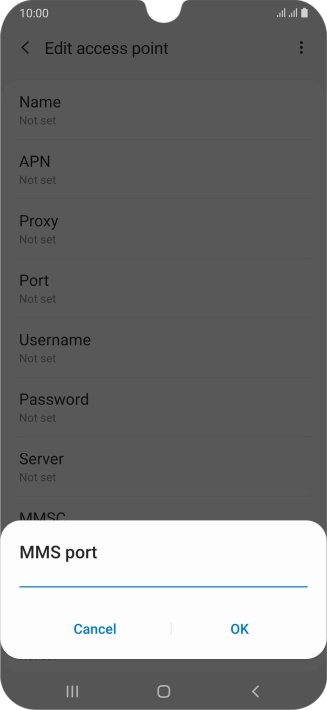

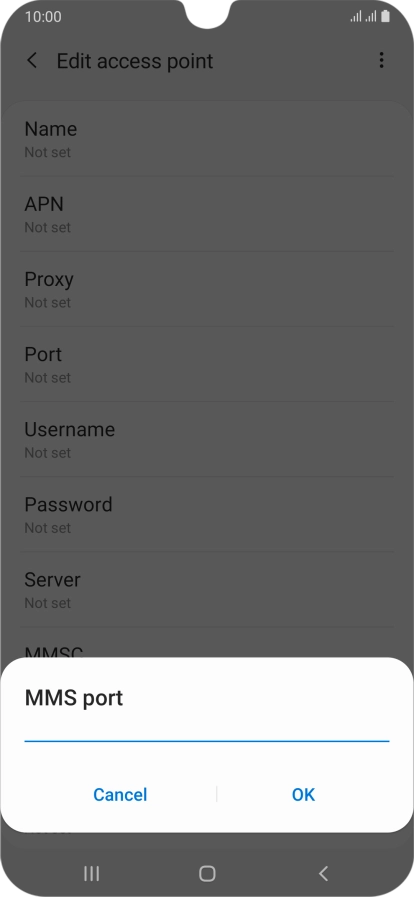

Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-11678cc9-3d89-400e-82ac-6a02f7a8cdff.png?width=206&height=450)
80
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7e63eac6-c680-4b14-9aeb-5b24321a40ba.png?width=206&height=450)

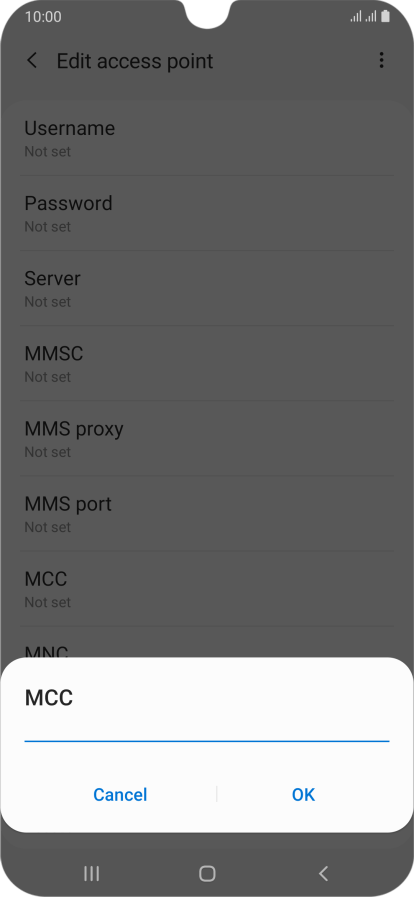

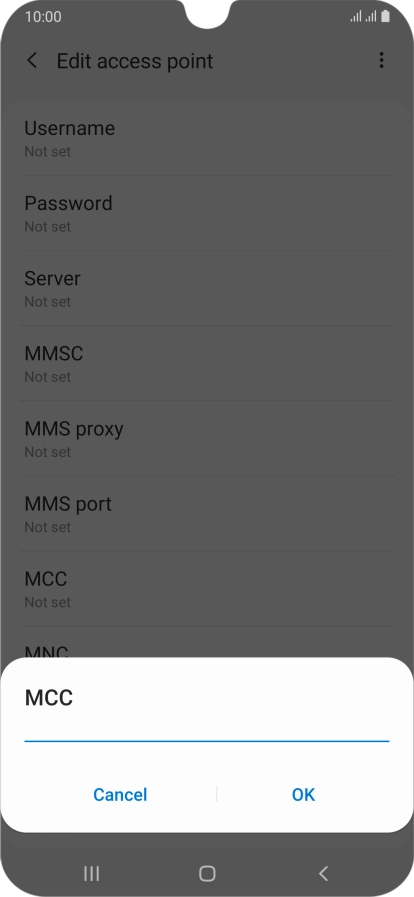

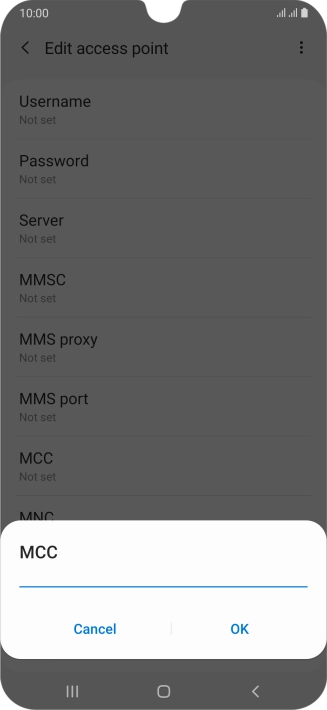

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-63007e8c-9ea5-402b-b00c-a2d7d0120753.png?width=206&height=450)
272
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7e63eac6-c680-4b14-9aeb-5b24321a40ba.png?width=206&height=450)

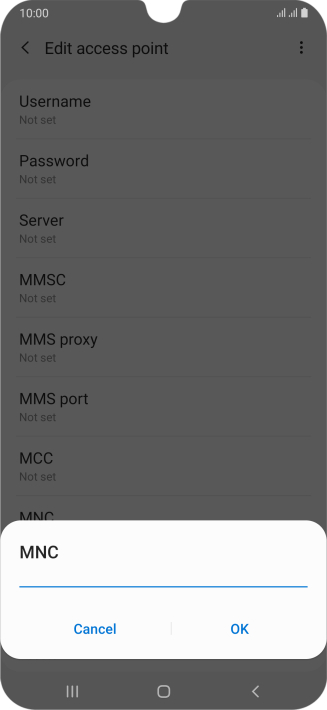

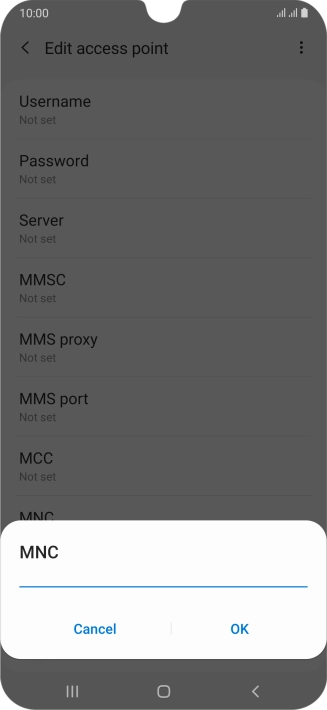

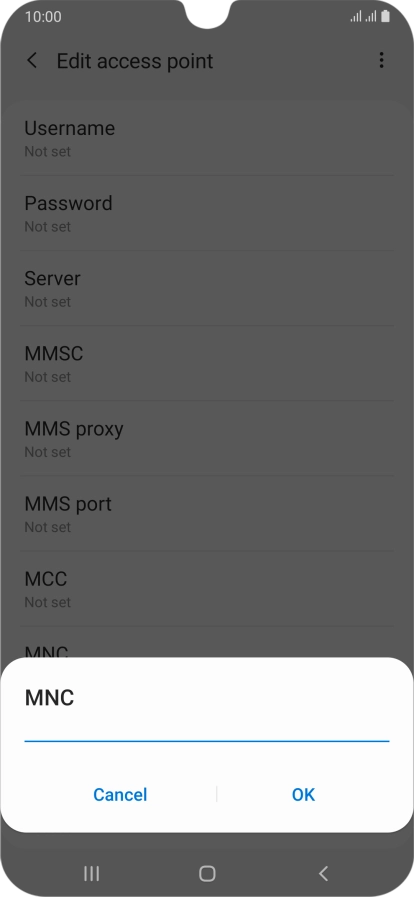

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6ff7cdca-fdd9-4c5a-b807-556cbf69450e.png?width=206&height=450)
01
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7e63eac6-c680-4b14-9aeb-5b24321a40ba.png?width=206&height=450)

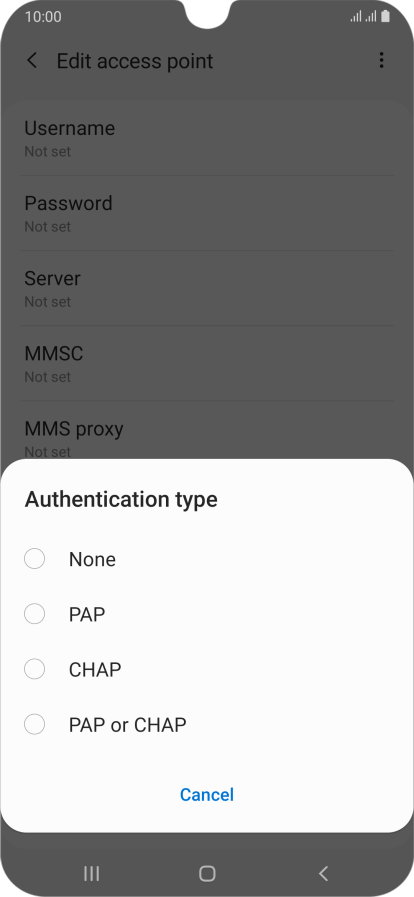

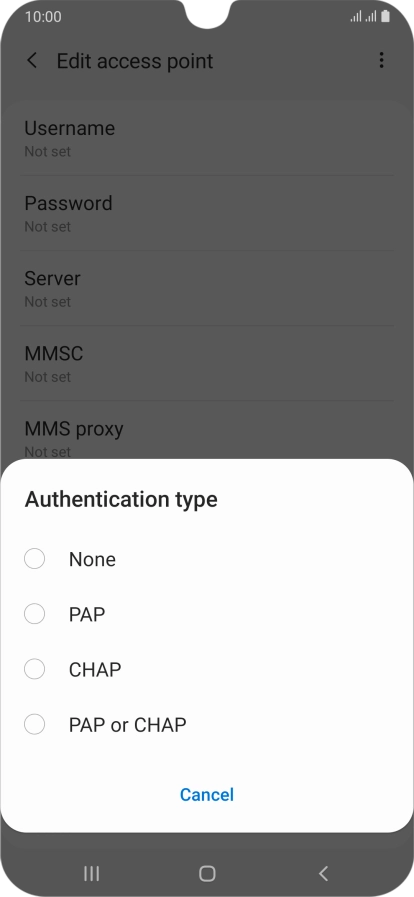

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d6140927-6e26-40bf-8de2-45a2cf3d4d3e.png?width=206&height=450)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7e63eac6-c680-4b14-9aeb-5b24321a40ba.png?width=206&height=450)

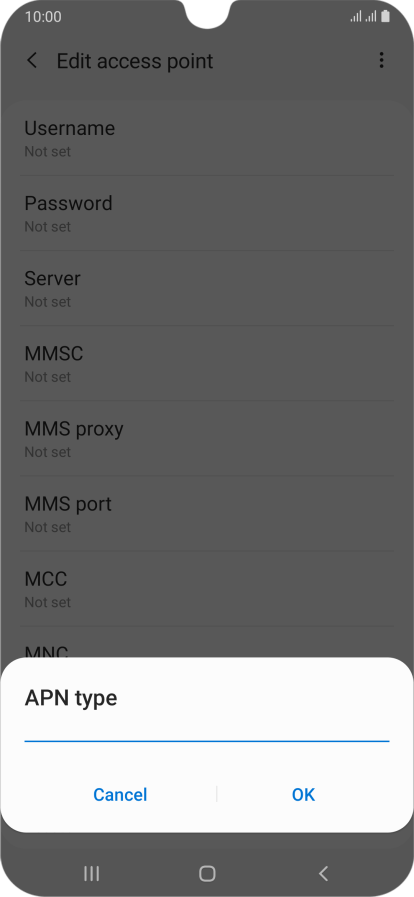

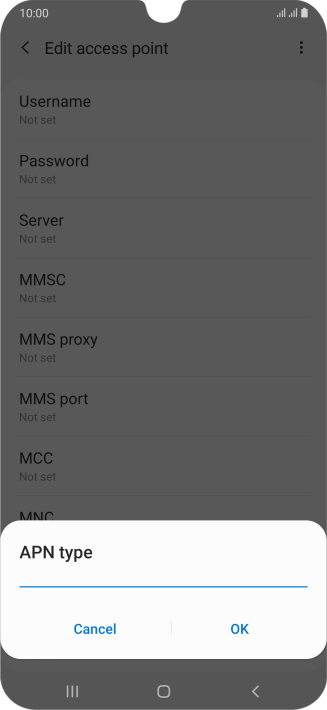

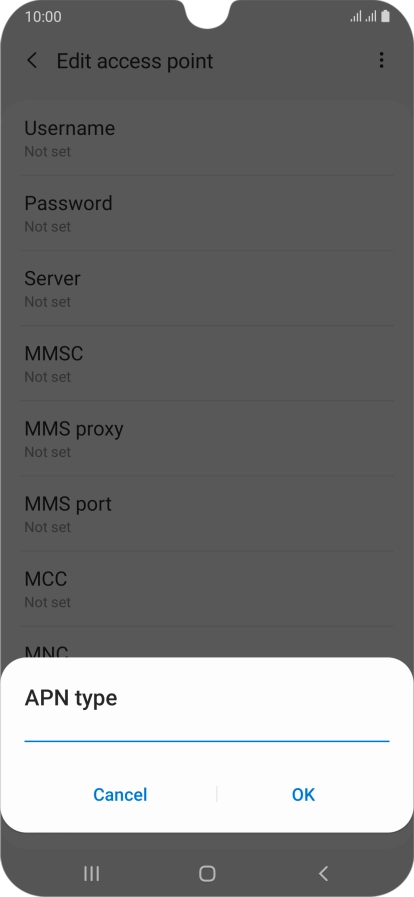

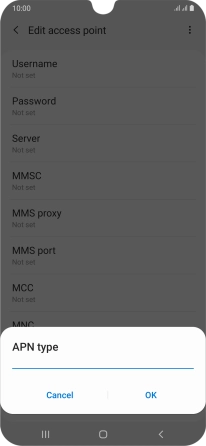

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-21de1768-fc3a-4eb7-bda3-20496e0bc46d.png?width=206&height=450)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7e63eac6-c680-4b14-9aeb-5b24321a40ba.png?width=206&height=450)

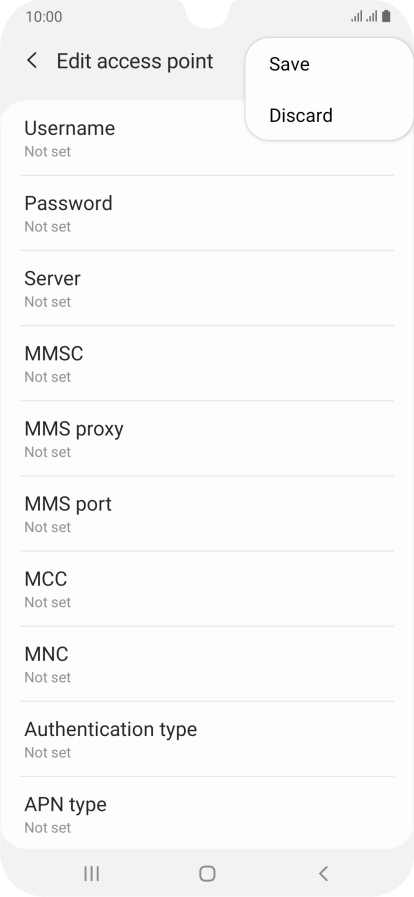

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-269193db-373c-48fb-89d5-f98b420dc10b.png?width=206&height=450)
12. Return to the home screen

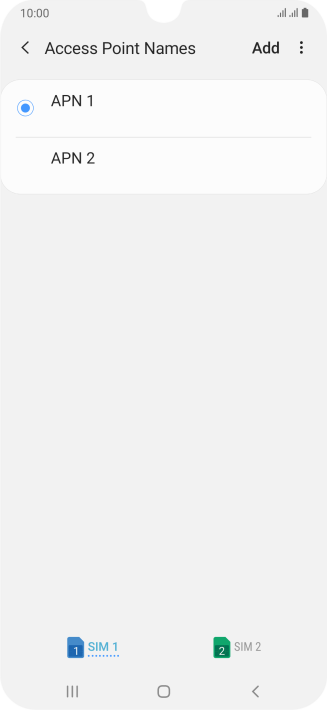

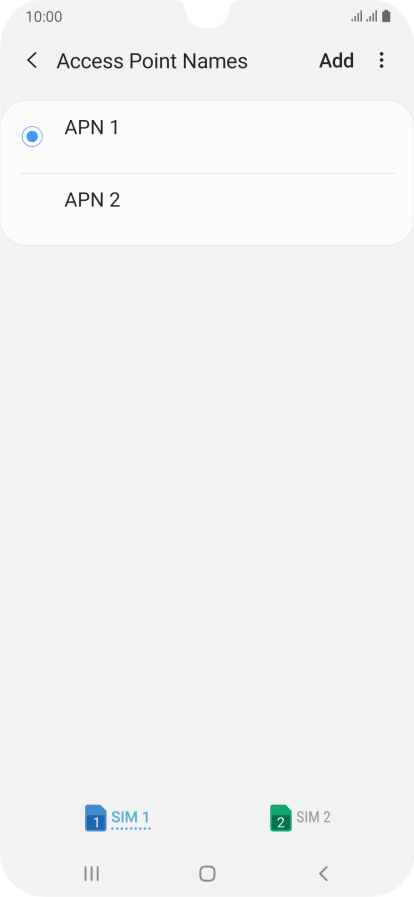

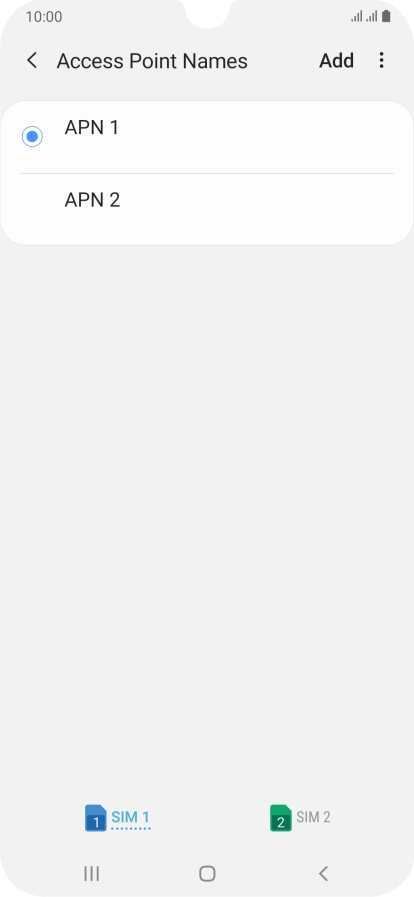

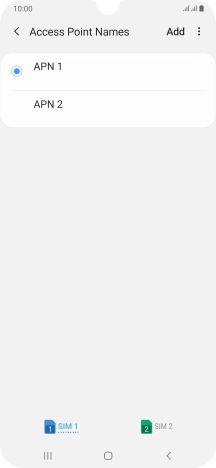

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-be384d41-23e0-47fd-b558-a87a89f66b28.png?width=206&height=450)
