OPPO Find X5 Lite

OPPO Find X5 Lite

Android 11.0

Set up your OPPO Find X5 Lite Android 11.0 for picture messaging

Read help info

A picture message is a message which can contain pictures and other media files and can be sent to other mobile phones. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for picture messaging manually.

Step 1 of 18

1. Find "Access point names"

Slide two fingers downwards starting from the top of the screen.

Step 2 of 18

1. Find "Access point names"

Press the settings icon.

Step 3 of 18

1. Find "Access point names"

Press Mobile network.

Step 4 of 18

1. Find "Access point names"

Press the required SIM.

Step 5 of 18

1. Find "Access point names"

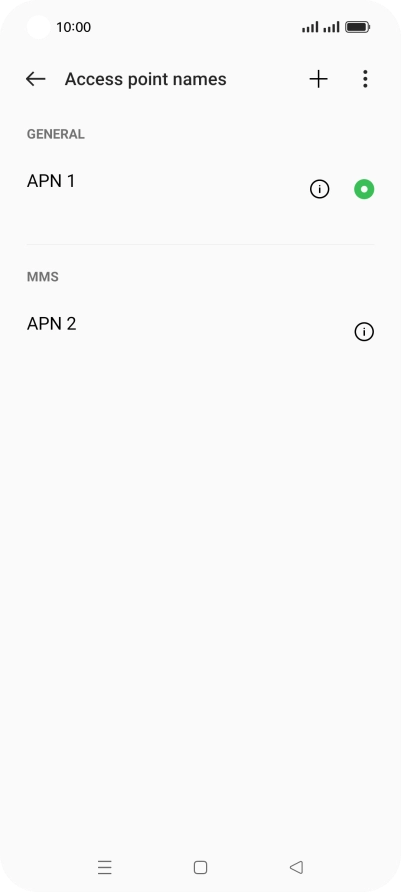

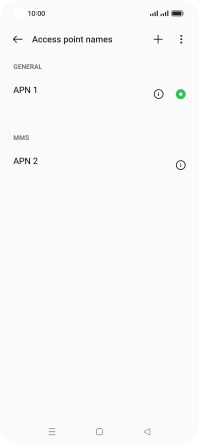

Press Access point names.

Step 6 of 18

2. Create new data connection

Press the new data connection icon.

Vodafone MMS
Step 7 of 18

2. Create new data connection

Press the field below "Name" and key in Vodafone MMS.

mms.vodafone.net
Step 8 of 18

3. Enter APN

Press the field below "APN" and key in mms.vodafone.net.

http://www.vodafone.ie/mms
Step 9 of 18

4. Enter MMSC

Press the field below "MMSC" and key in http://www.vodafone.ie/mms.

10.24.59.200
Step 10 of 18

5. Enter IP address

Press the field below "MMS proxy" and key in 10.24.59.200.

80
Step 11 of 18

6. Enter port number

Press the field below "MMS port" and key in 80.

272
Step 12 of 18

7. Enter country code

Press the field below "MCC" and key in 272.

01
Step 13 of 18

8. Enter network code

Press the field below "MNC" and key in 01.

Step 14 of 18

9. Select authentication type

Press Authentication type.

Step 15 of 18

9. Select authentication type

Press PAP.

mms
Step 16 of 18

10. Enter APN type

Press the field below "APN type" and key in mms.

Step 17 of 18

11. Save data connection

Press the confirm icon.

Step 18 of 18

12. Return to the home screen

Press the Home key to return to the home screen.

1. Find "Access point names"

Slide two fingers downwards starting from the top of the screen.
Press the settings icon.
Press Mobile network.
Press the required SIM.
Press Access point names.

2. Create new data connection

Press the new data connection icon.
Press the field below "Name" and key in Vodafone MMS.
Vodafone MMS

3. Enter APN

Press the field below "APN" and key in mms.vodafone.net.
mms.vodafone.net

4. Enter MMSC

Press the field below "MMSC" and key in http://www.vodafone.ie/mms.
http://www.vodafone.ie/mms

5. Enter IP address

Press the field below "MMS proxy" and key in 10.24.59.200.
10.24.59.200

6. Enter port number

Press the field below "MMS port" and key in 80.
80

7. Enter country code

Press the field below "MCC" and key in 272.
272

8. Enter network code

Press the field below "MNC" and key in 01.
01

9. Select authentication type

Press Authentication type.
Press PAP.

10. Enter APN type

Press the field below "APN type" and key in mms.
mms

11. Save data connection

Press the confirm icon.

12. Return to the home screen

Press the Home key to return to the home screen.
