Insert SIM and battery - Nokia Lumia 620

Read help info

Before you can start using your phone, you need to insert your SIM and battery. Follow these instructions to insert your SIM and battery.
Please note that your phone only supports micro SIMs.

Step 1 of 6

Remove the back cover

Turn the back of your phone towards you.
Take hold of the top of the back cover and remove it.

Step 2 of 6

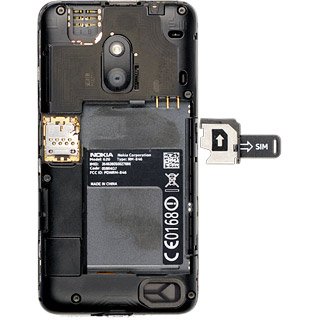

Remove the SIM holder

Remove the SIM holder from your phone.

Step 3 of 6

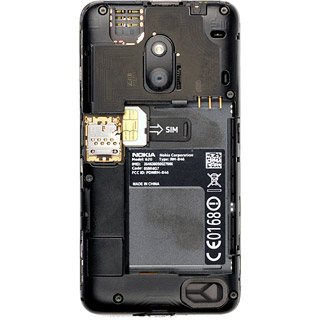

Insert your SIM

Place your SIM as illustrated on SIM holder.
Place your SIM in the SIM holder.

Step 4 of 6

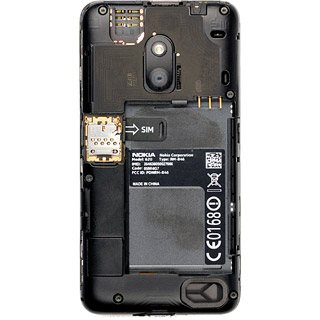

Insert the SIM holder

Slide the SIM holder into your phone.

Nokia Lumia 620
Step 5 of 6

Insert battery

Place the battery in your phone, bottom first, matching the battery contacts with the phone contacts, and press it into place.

Step 6 of 6

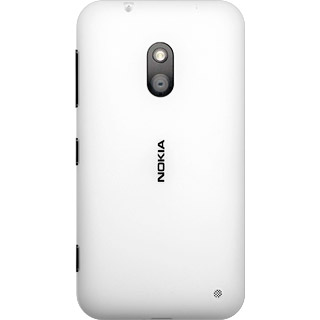

Replace the back cover

Place the back cover on your phone, bottom first, and press it into place.

Remove the back cover

Turn the back of your phone towards you.
Take hold of the top of the back cover and remove it.

Remove the SIM holder

Remove the SIM holder from your phone.

Insert your SIM

Place your SIM as illustrated on SIM holder.
Place your SIM in the SIM holder.

Insert the SIM holder

Slide the SIM holder into your phone.

Insert battery

Place the battery in your phone, bottom first, matching the battery contacts with the phone contacts, and press it into place.
Nokia Lumia 620

Replace the back cover

Place the back cover on your phone, bottom first, and press it into place.
