Set up your phone for picture messaging - Nokia Lumia 1520

Read help info

A picture message is a message which can contain pictures and other media files and can be sent to other mobile phones and email addresses. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for picture messaging manually.

Step 1 of 17

Find "access point"

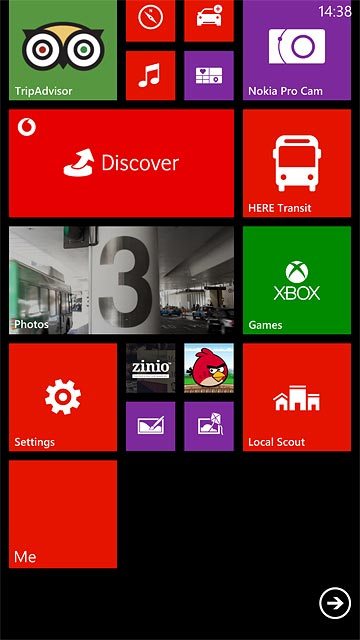

Press Settings.

Please note that your phone is set up for picture messaging and internet at the same time.
Step 2 of 17

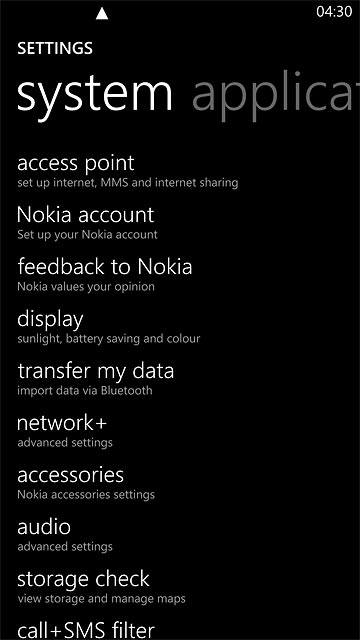

Find "access point"

Press access point.

Please note that your phone is set up for picture messaging and internet at the same time.
Step 3 of 17

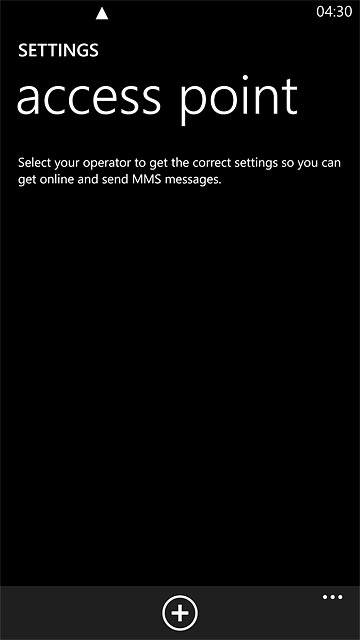

Create new data connection

Press the add icon.

Step 4 of 17

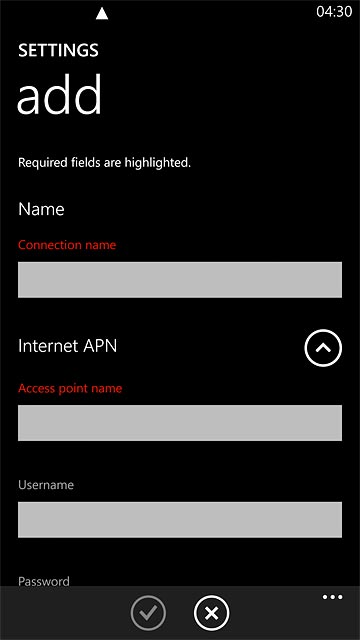

Enter name

Press the field below "Connection name" and key in Vodafone MMS + Internet

Step 5 of 17

Enter APN for internet

Press the field below "Access point name" and key in live.vodafone.com

Step 6 of 17

Select authentication type for internet

Press the field below "Authentication type".

Step 7 of 17

Select authentication type for internet

Press PAP.

Step 8 of 17

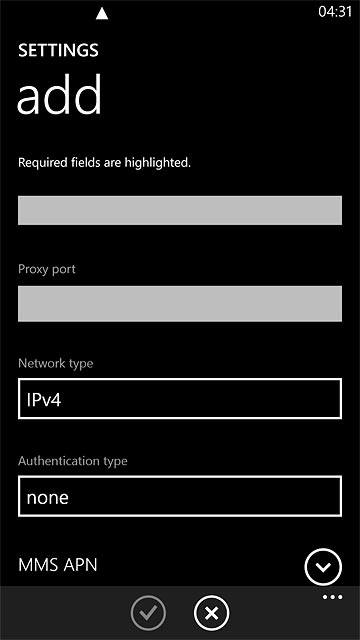

Enter APN for picture messaging

Press MMS APN.

Step 9 of 17

Enter APN for picture messaging

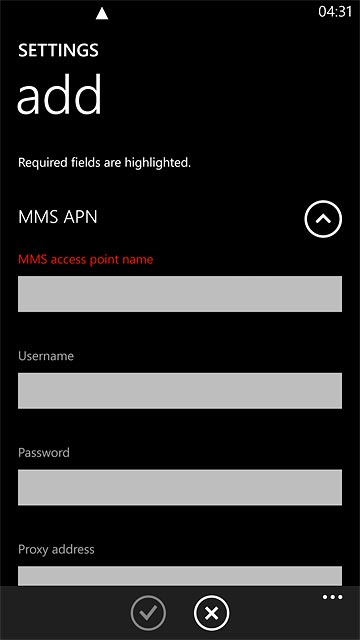

Press the field below "MMS access point name" and key in mms.vodafone.net

Step 10 of 17

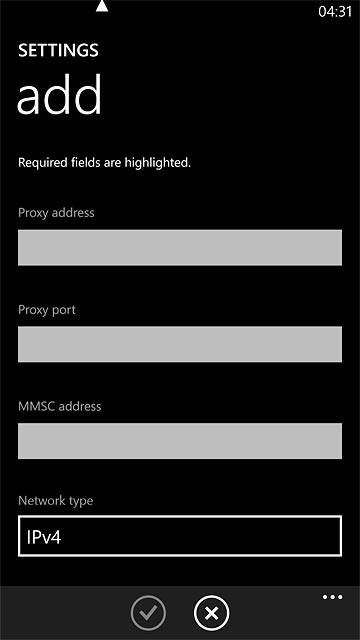

Enter IP address for picture messaging

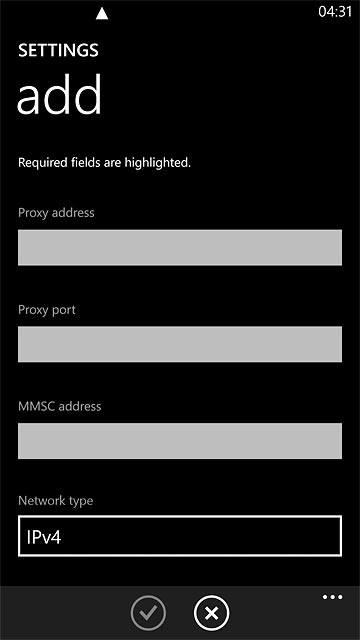

Press the field below "Proxy address" and key in 10.24.59.200

Step 11 of 17

Enter port for picture messaging

Press the field below "Proxy port" and key in 80

Step 12 of 17

Enter picture messaging server

Press the field below "MMSC address" and key in http://www.vodafone.ie/mms

Step 13 of 17

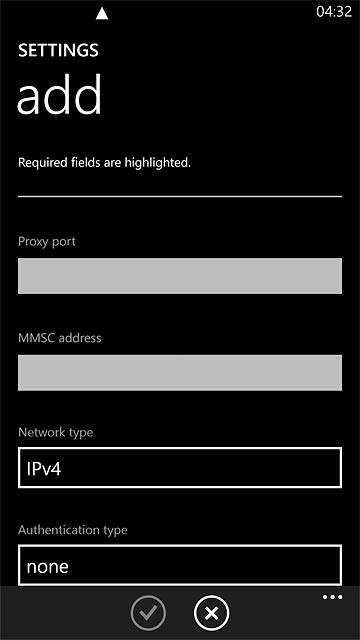

Select authentication type for picture messaging

Press the field below "Authentication type".

Step 14 of 17

Select authentication type for picture messaging

Press PAP.

Step 15 of 17

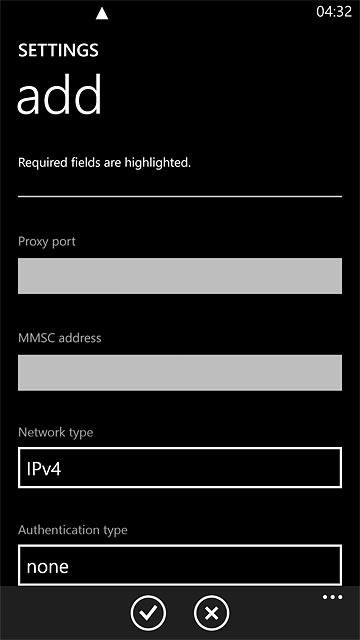

Save and activate data connection

Press the confirm icon.

Step 16 of 17

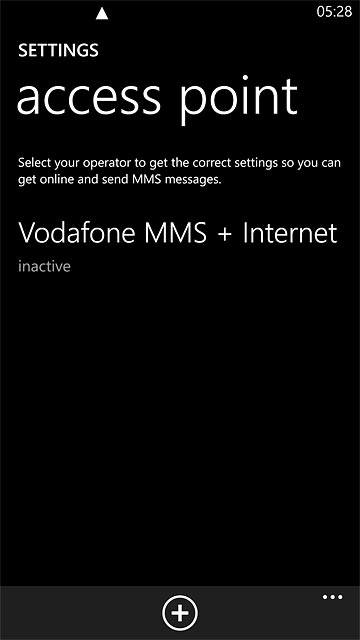

Save and activate data connection

Press the data connection to activate it.

Step 17 of 17

Return to the home screen

Press the Home key to return to the home screen.
