Nokia Lumia 1020

Find "access point"

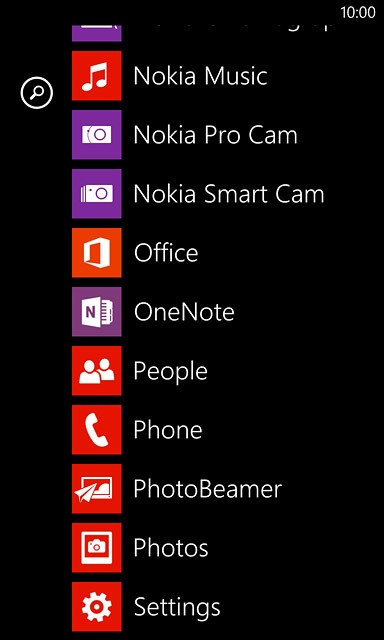

Slide your finger left across the display to open the main menu.
Press Settings.

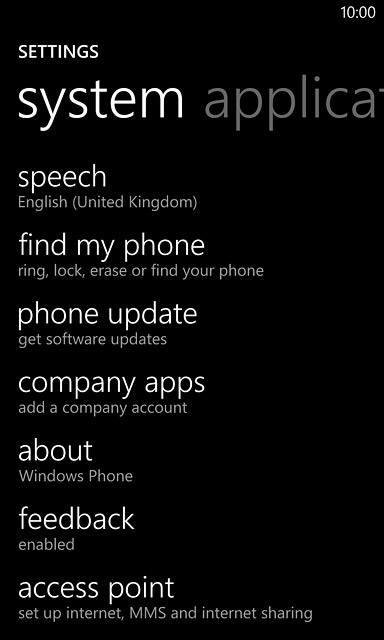

Find "access point"

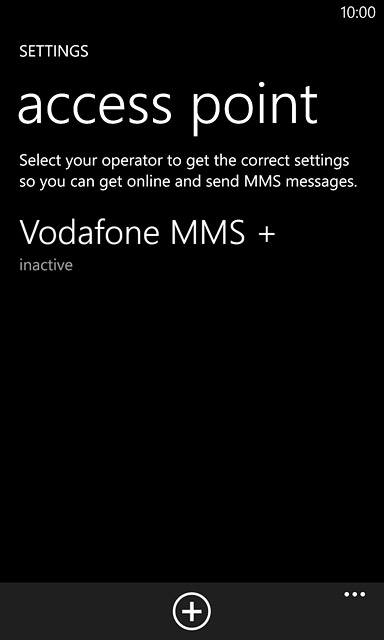

Press access point.

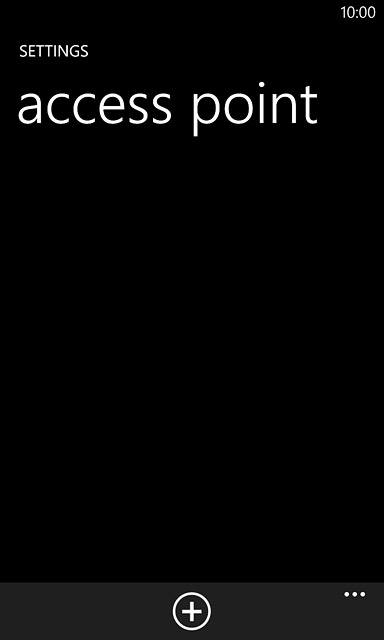

Create new data connection

Press the add icon.

Enter name

Press the field below "Connection name" and key in Vodafone MMS + Internet

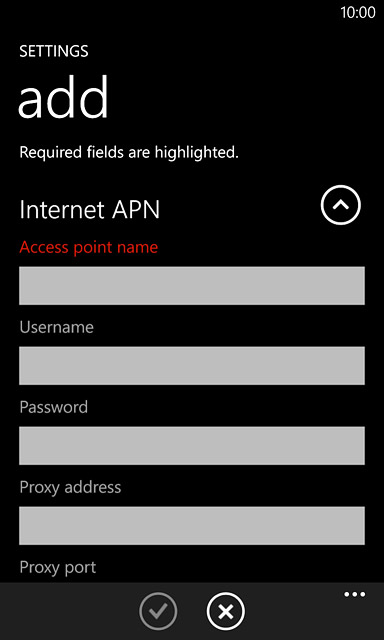

Enter APN for internet

Press the field below "Access point name" and key in live.vodafone.com

Select authentication type for internet

Press the field below "Authentication type".

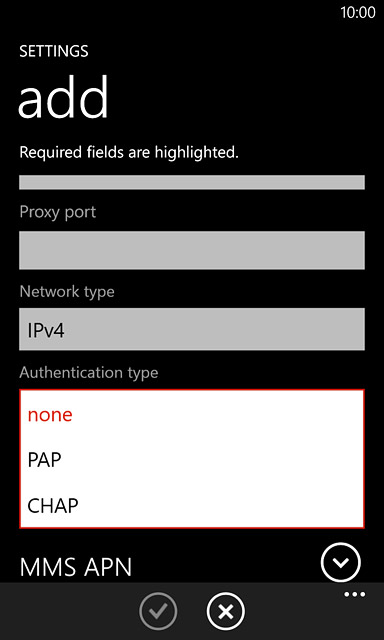

Select authentication type for internet

Press PAP.

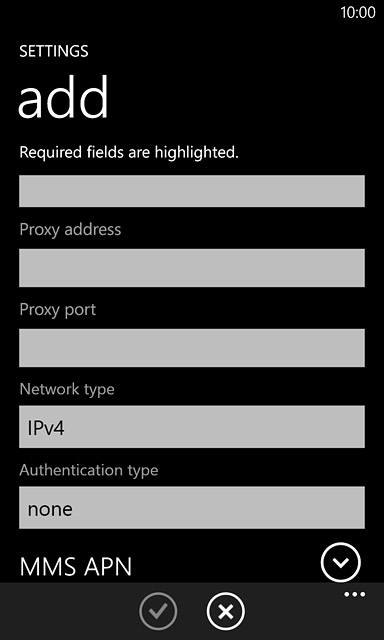

Enter APN for picture messaging

Press MMS APN.

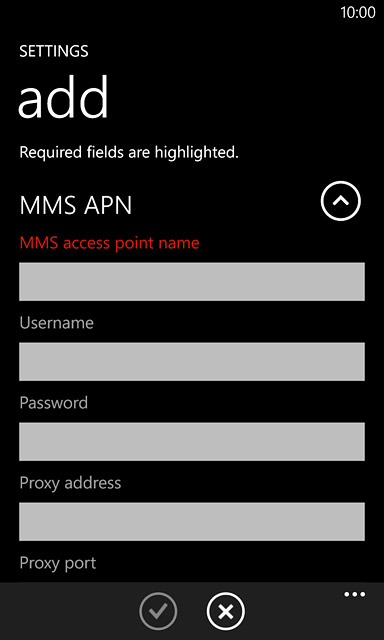

Enter APN for picture messaging

Press the field below "MMS access point name" and key in mms.vodafone.net

Enter IP address for picture messaging

Press the field below "Proxy address" and key in 10.24.59.200

Enter port for picture messaging

Press the field below "Proxy port" and key in 80

Enter picture messaging server

Press the field below "MMSC address" and key in http://www.vodafone.ie/mms

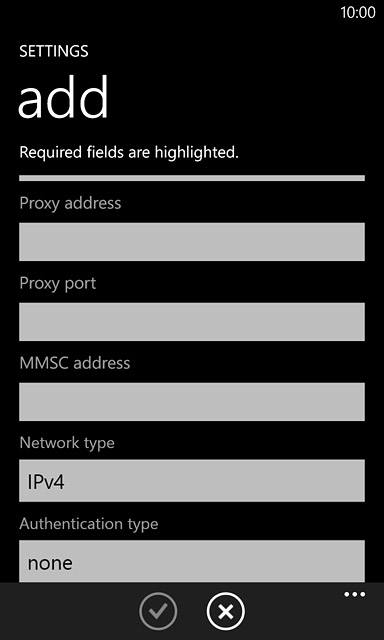

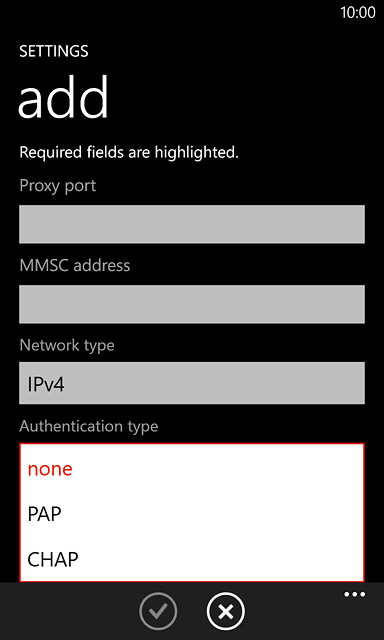

Select authentication type for picture messaging

Press the field below "Authentication type".

Select authentication type for picture messaging

Press PAP.

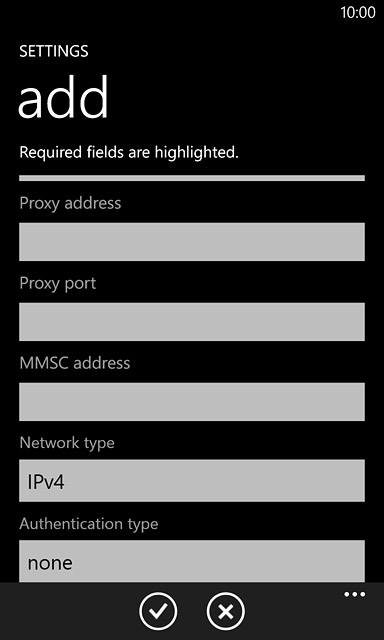

Save and activate data connection

Press the confirm icon.

Save and activate data connection

Press the data connection to activate it.

Return to the home screen

Press the Home key to return to the home screen.
