1. Find "Access point names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-33f987e6-fbb6-4fbc-824e-5e3a60c7e651.png?width=194&height=440)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8323c9e6-df24-45b8-8cc3-ac07d5b082cb.png?width=194&height=440)
Press Network and Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-27f03e40-ab1b-4c1c-afac-589865f9deea.png?width=194&height=440)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1720ccc8-60ec-49b8-b058-fd0cdf99e8ef.png?width=194&height=440)

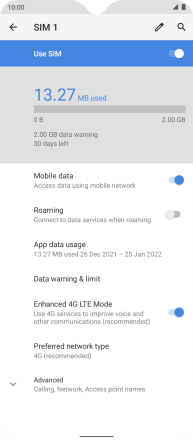

Press Advanced.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d52afd6c-26a8-4c12-b038-1a5168bbafcf.png?width=194&height=440)

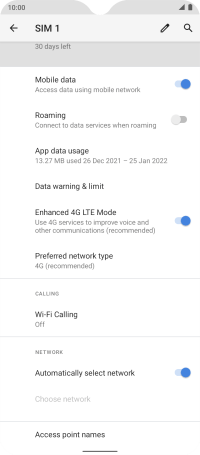

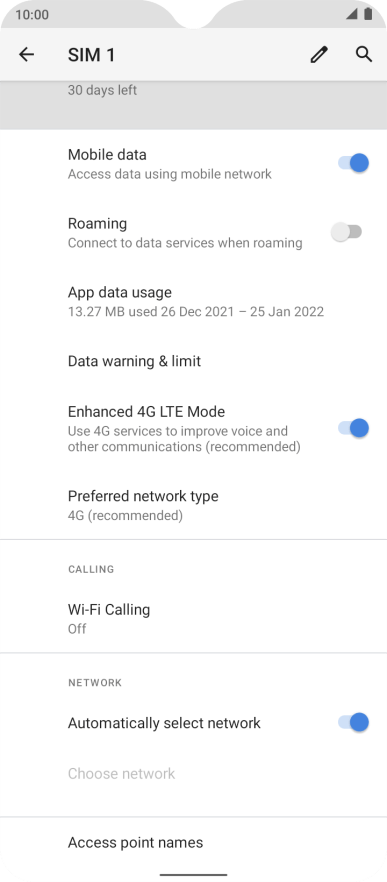

Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a385cf02-7c19-40a4-a0d9-c85238ba3510.png?width=194&height=440)
2. Create new data connection

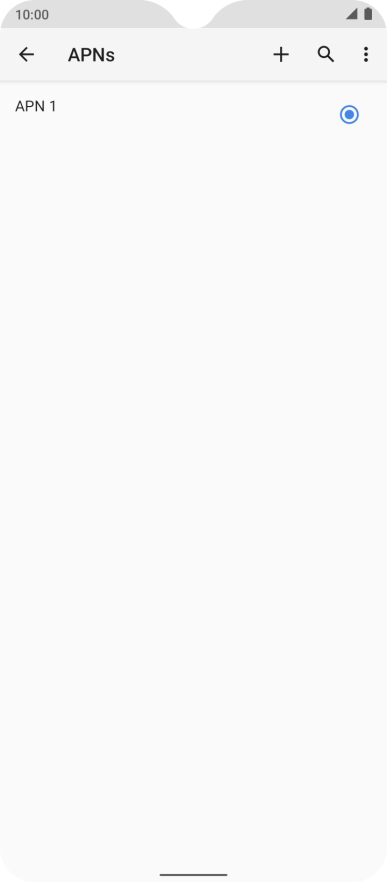

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6828ca82-188a-4396-b49f-018e18d12436.png?width=194&height=440)

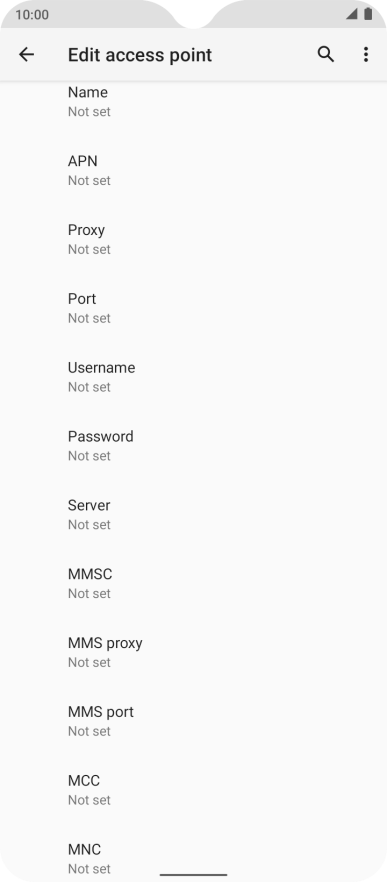

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4ebe1abc-8384-4380-99c7-732c7c704d6b.png?width=194&height=440)

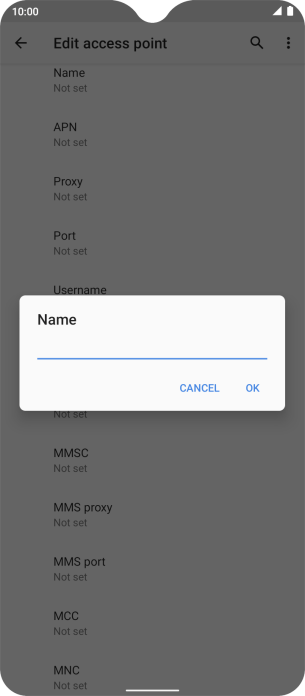

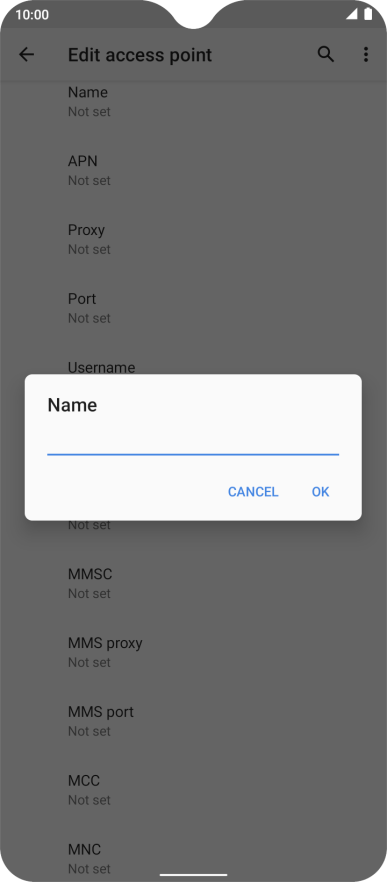

Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ceeb673b-0621-45f5-9e47-1e9becdeebc0.png?width=194&height=440)
Vodafone Internet
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4ebe1abc-8384-4380-99c7-732c7c704d6b.png?width=194&height=440)
Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ffb6643d-3476-47b7-9345-1924f1d0e1b6.png?width=194&height=440)
live.vodafone.com
4. Enter IP address
Press Proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4ebe1abc-8384-4380-99c7-732c7c704d6b.png?width=194&height=440)

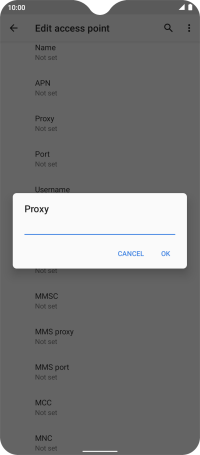

Key in 10.24.59.100 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5af2fb91-3f62-40cb-ba16-78d25be00548.png?width=194&height=440)
10.24.59.100
5. Enter port number
Press Port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4ebe1abc-8384-4380-99c7-732c7c704d6b.png?width=194&height=440)
Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-399ff904-41f4-4057-8012-7dd5b199641f.png?width=194&height=440)
80
6. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4ebe1abc-8384-4380-99c7-732c7c704d6b.png?width=194&height=440)

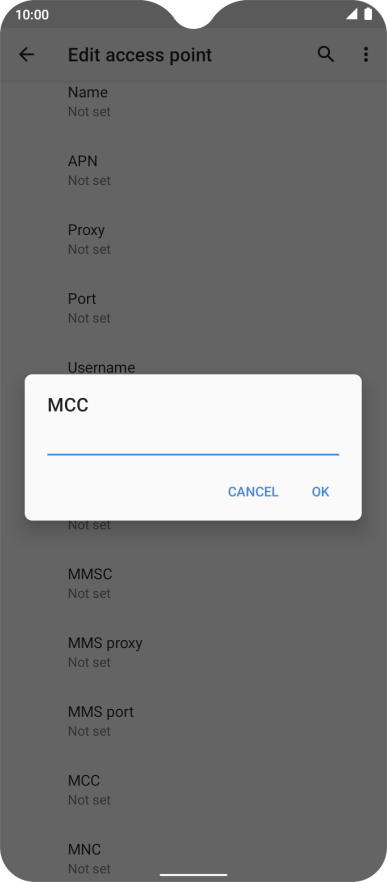

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5517ab46-ec33-4887-9576-6e208dcc3ef0.png?width=194&height=440)
272
7. Enter network code

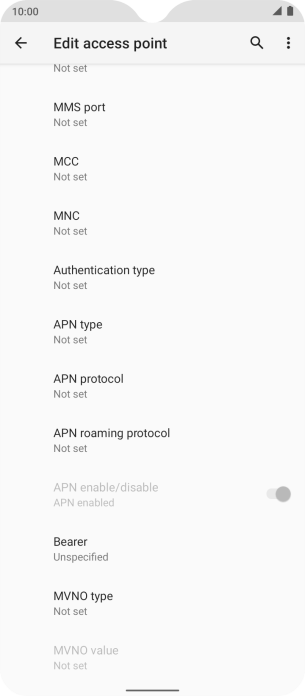

Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9676f1fa-fdf8-4d62-96a1-85f3097add6c.png?width=194&height=440)

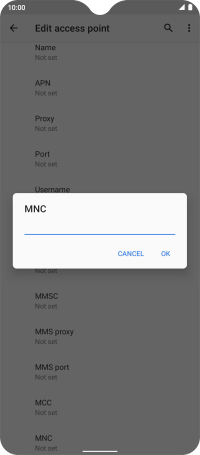

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-051803b0-f530-4f73-8148-a8b90770341f.png?width=194&height=440)
01
8. Select authentication type

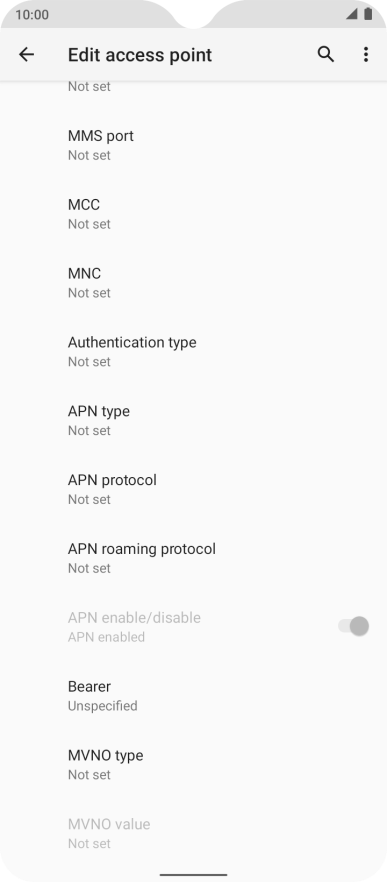

Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9676f1fa-fdf8-4d62-96a1-85f3097add6c.png?width=194&height=440)

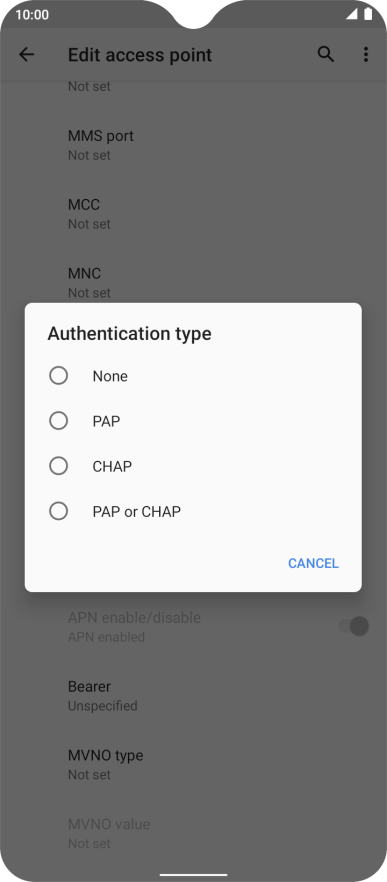

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-47859a2b-067f-45b7-9275-f83c86001e5e.png?width=194&height=440)
9. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9676f1fa-fdf8-4d62-96a1-85f3097add6c.png?width=194&height=440)

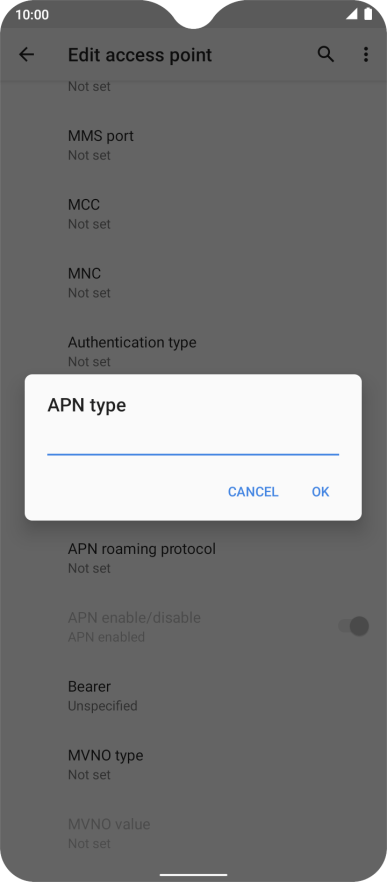

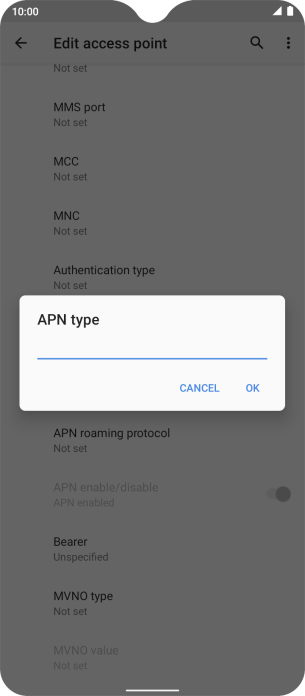

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7eae35ba-628b-4648-bf88-5a018484f566.png?width=194&height=440)
default
10. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9676f1fa-fdf8-4d62-96a1-85f3097add6c.png?width=194&height=440)

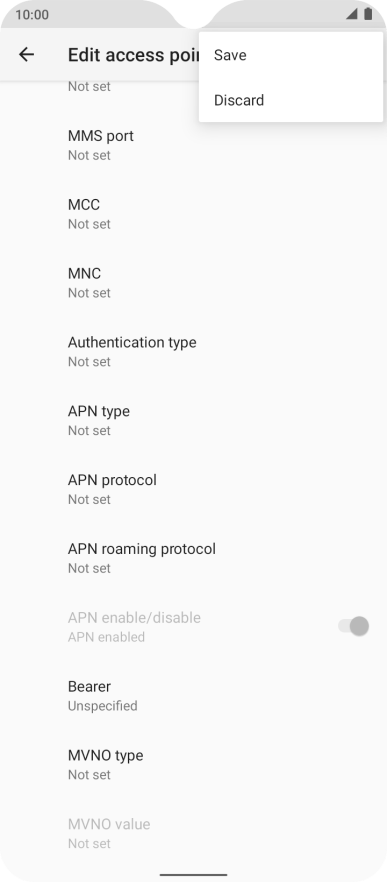

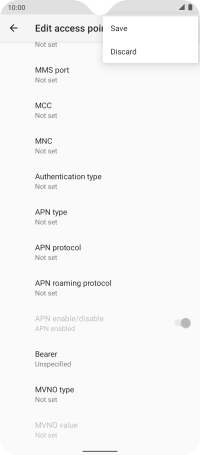

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-defd7cb0-5cb6-4b51-92ca-aa1b8f9ff1c1.png?width=194&height=440)

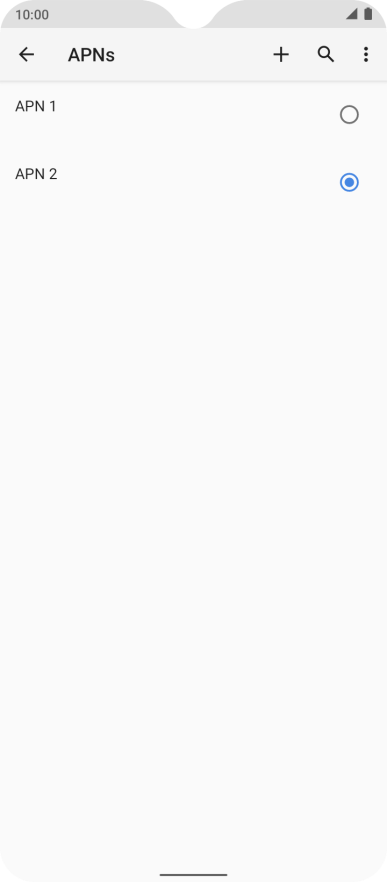

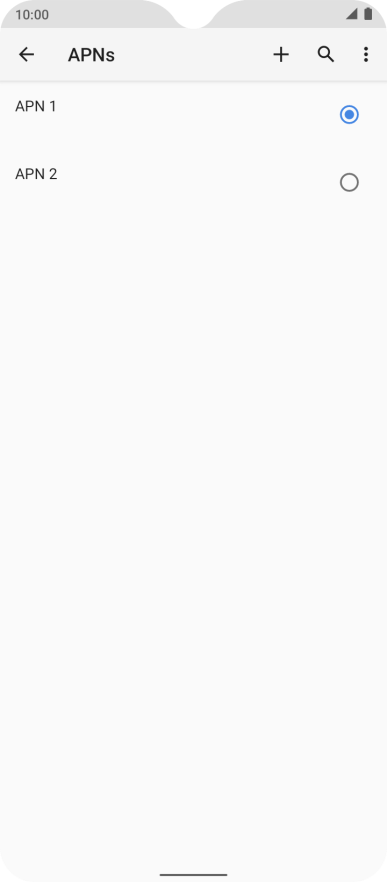

Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-947c89b9-3545-4c93-9112-f539e29d905f.png?width=194&height=440)
11. Return to the home screen
Slide your finger upwards starting from the bottom of the screen to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-445bbe83-f4cc-4afe-aa67-a1be46ae4c80.png?width=194&height=440)
