1. Find "Access point names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-829520a6-85af-4af4-8a29-1ba00b3d2297.png?width=198&height=440)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f09a36f1-e2bc-43d4-b6a0-60fd60361bce.png?width=198&height=440)
Press Network & Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1b806410-be77-4525-88e0-6759899a892f.png?width=198&height=440)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-66238d1e-f50e-4ee6-93b2-cc43c5336c48.png?width=198&height=440)
Press the required SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0a70aaf6-d8b3-4db3-bc32-c32e29d5bec2.png?width=198&height=440)
Press Advanced.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4a687e95-3a2d-4168-b5f3-10f093aab7a2.png?width=198&height=440)
Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6e4fee1d-c00d-465f-8640-71e92ec4b2e5.png?width=198&height=440)
2. Create new data connection

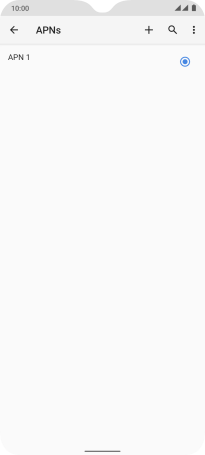

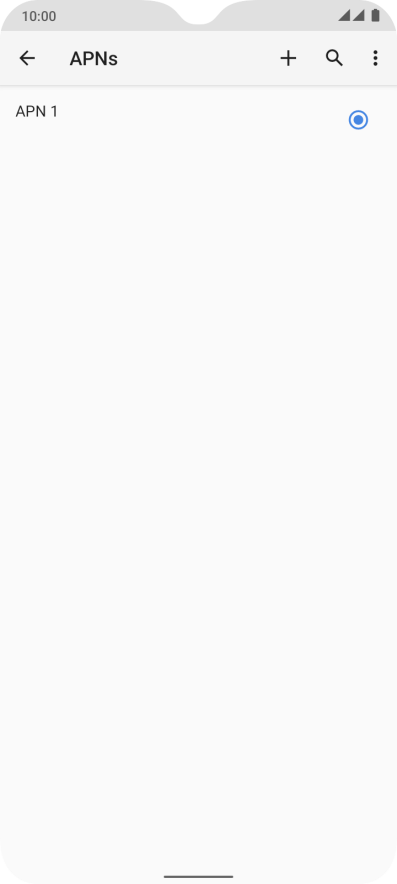

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5cc4ff8e-0d94-4cb5-a0c8-63461b738c08.png?width=198&height=440)

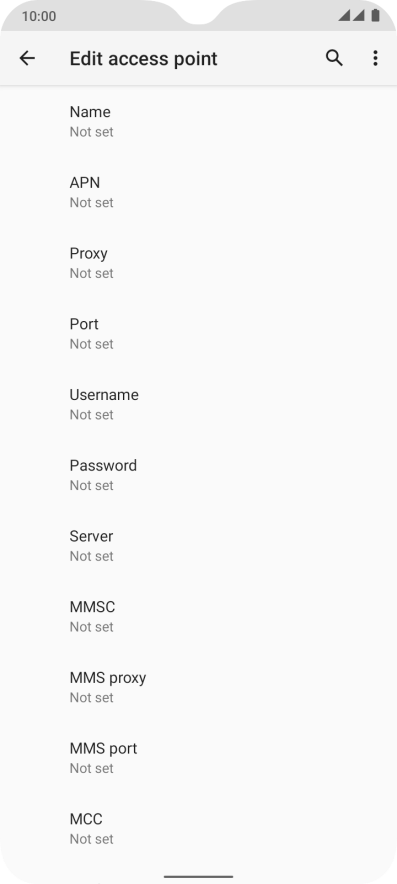

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a9aebdc6-9d5e-4ef0-a180-bee868b5916f.png?width=198&height=440)

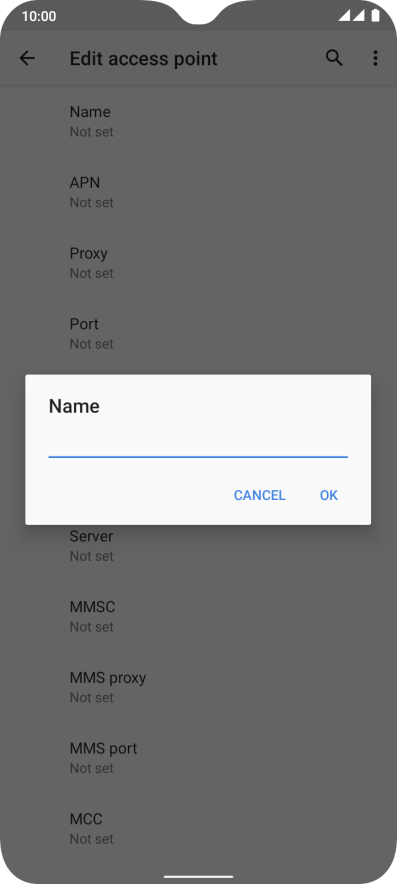

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a679471a-f997-4ece-8324-c08bd80d2d78.png?width=198&height=440)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a9aebdc6-9d5e-4ef0-a180-bee868b5916f.png?width=198&height=440)

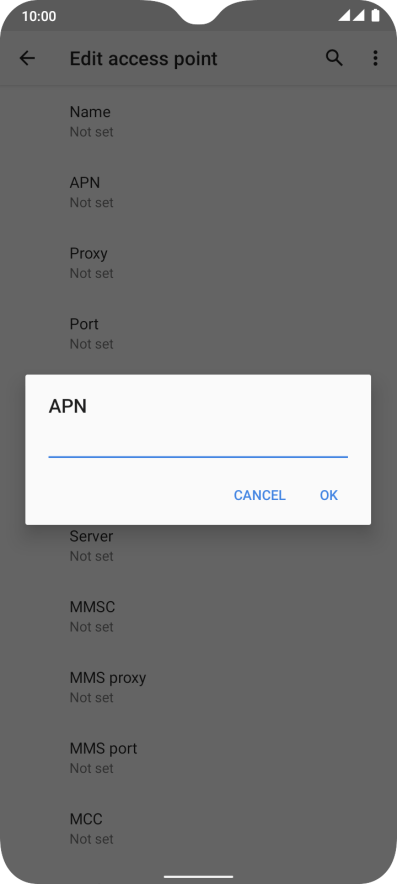

Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-77e4d932-a950-4652-8713-3f80b0d77e41.png?width=198&height=440)
mms.vodafone.net
4. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a9aebdc6-9d5e-4ef0-a180-bee868b5916f.png?width=198&height=440)
Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-dbda578f-5b60-47a4-9dfa-08561b4d0914.png?width=198&height=440)
http://www.vodafone.ie/mms
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a9aebdc6-9d5e-4ef0-a180-bee868b5916f.png?width=198&height=440)

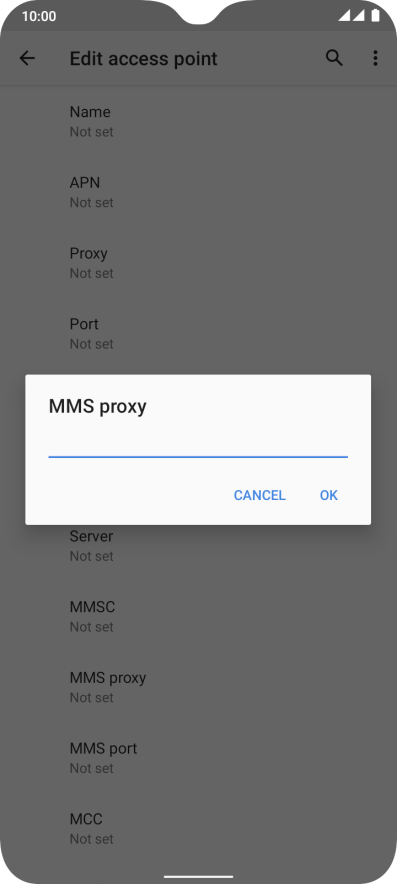

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-70ea0be2-7d5c-4057-8dd1-27b59c71bb68.png?width=198&height=440)
10.24.59.200
6. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a9aebdc6-9d5e-4ef0-a180-bee868b5916f.png?width=198&height=440)

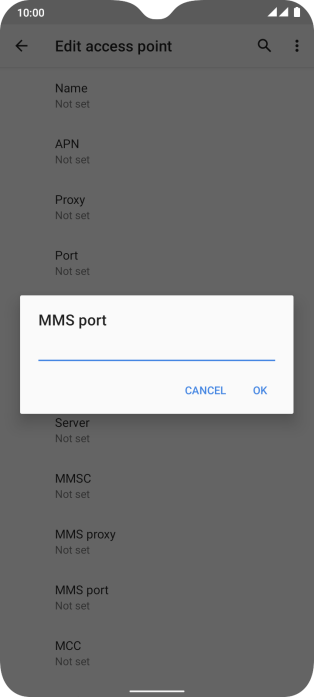

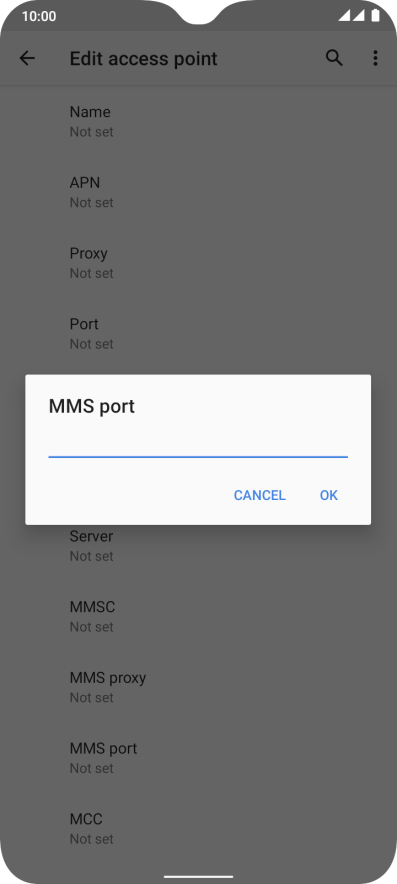

Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-38fc5e9e-4681-4b65-96c6-de8009d00269.png?width=198&height=440)
80
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a9aebdc6-9d5e-4ef0-a180-bee868b5916f.png?width=198&height=440)
Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8d312fc8-9dfa-48b5-9b3e-7a1b2da9f7a0.png?width=198&height=440)
272
8. Enter network code

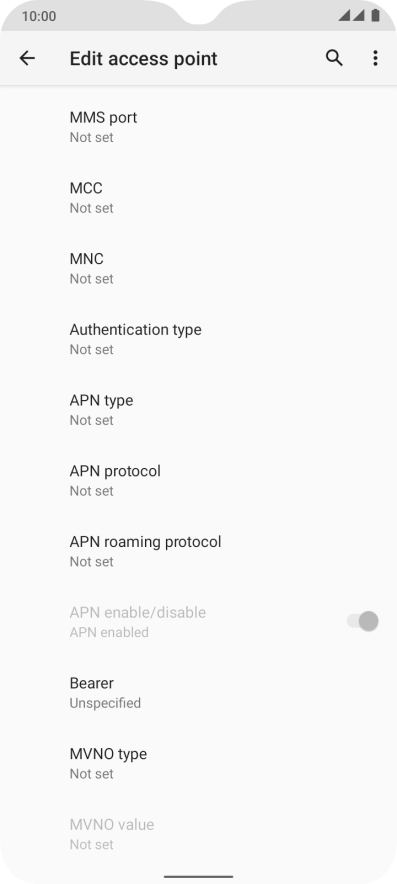

Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b3753d9c-4732-4714-9559-086689ec0999.png?width=198&height=440)

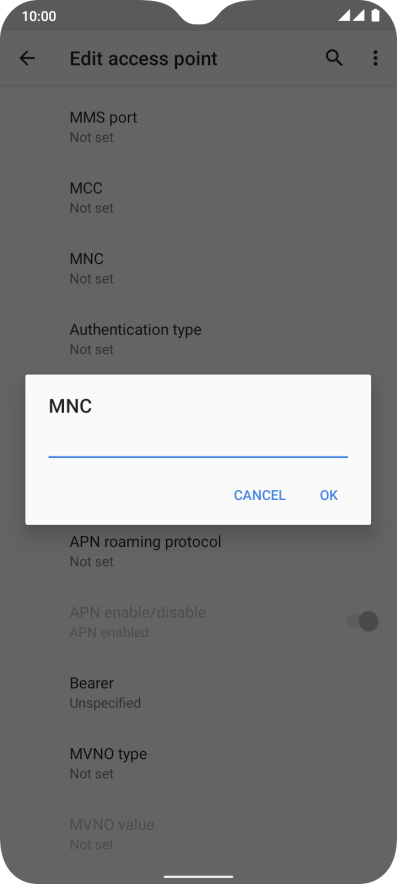

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c76954d2-a057-40a4-a087-78437d250054.png?width=198&height=440)
01
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b3753d9c-4732-4714-9559-086689ec0999.png?width=198&height=440)

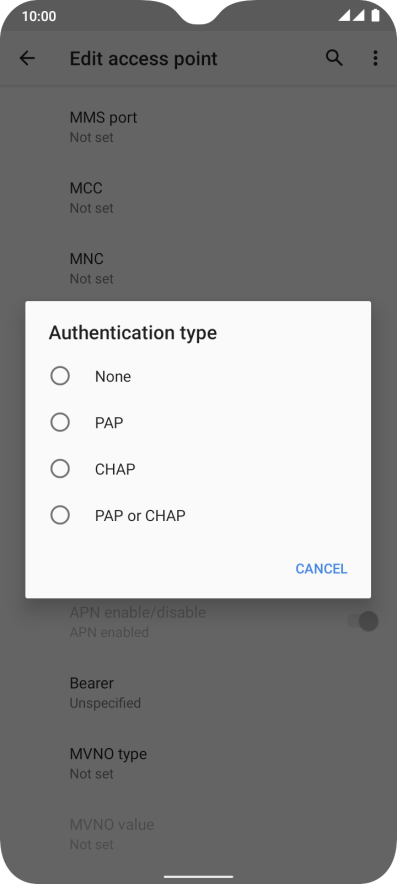

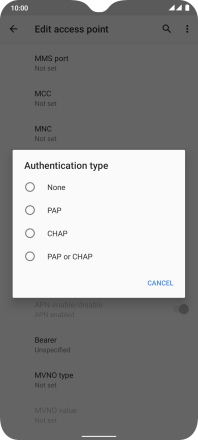

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3bb4377d-22da-4a13-9853-bb5e95637163.png?width=198&height=440)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b3753d9c-4732-4714-9559-086689ec0999.png?width=198&height=440)

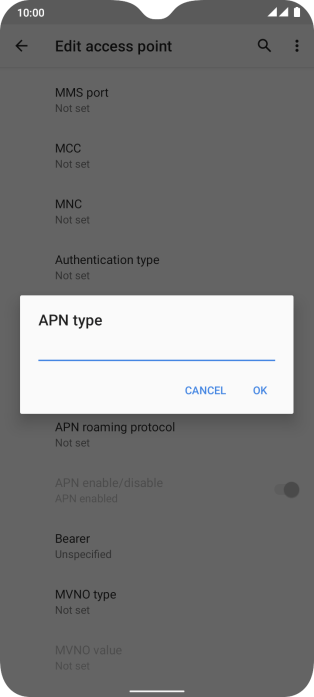

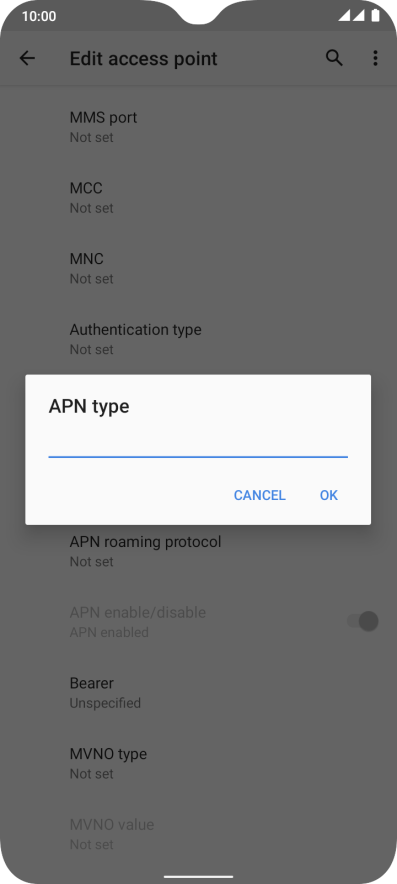

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e6bfe493-c65f-4701-8a65-fd0ed9a66c9d.png?width=198&height=440)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b3753d9c-4732-4714-9559-086689ec0999.png?width=198&height=440)

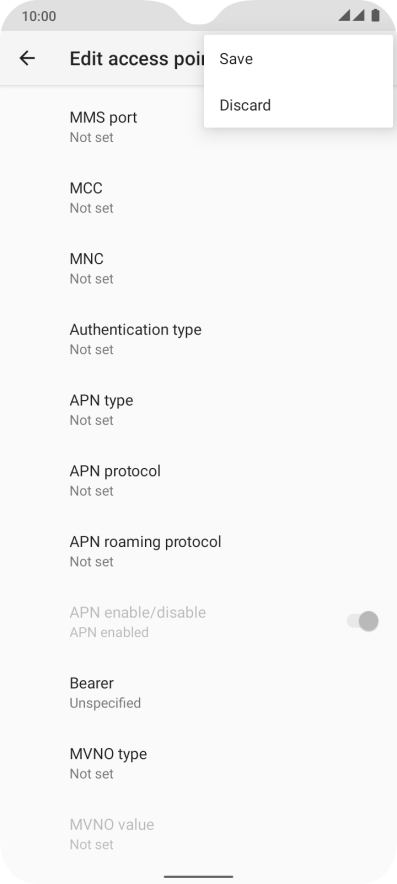

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7f77f2b4-6808-4551-9e63-4597d6524c3a.png?width=198&height=440)
12. Return to the home screen

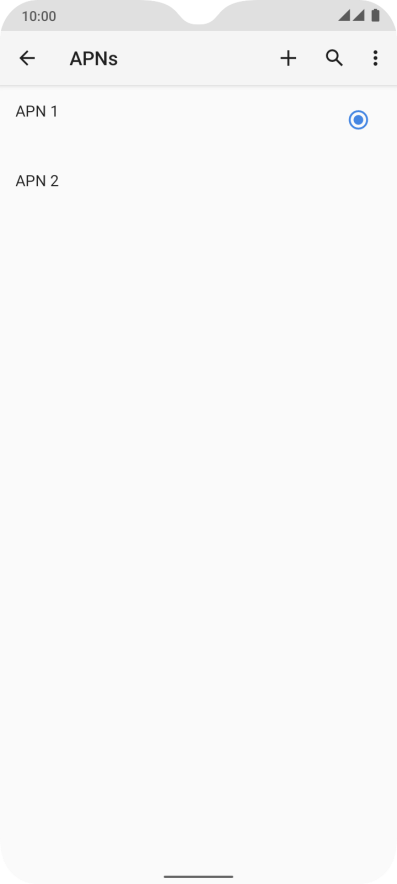

Slide your finger upwards starting from the bottom of the screen to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1c2cc0eb-80db-4e76-bb5a-8fab0ea4a7a4.png?width=198&height=440)
