Set up your phone for picture messaging - Nokia Asha 302

Read help info

Follow these instructions to set up your phone for picture messaging.

Step 1 of 49

Find "Personal settings"

Press the Navigation key.

Step 2 of 49

Find "Personal settings"

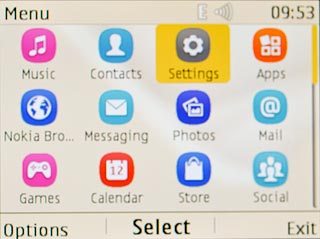

Scroll to Settings and press the Navigation key.

Step 3 of 49

Find "Personal settings"

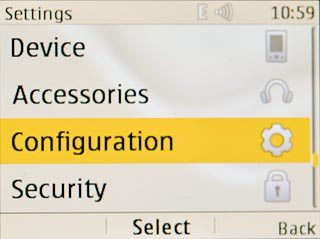

Scroll to Configuration and press the Navigation key.

Step 4 of 49

Find "Personal settings"

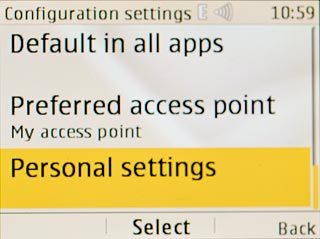

Scroll to Personal settings and press the Navigation key.

Step 5 of 49

Create new data connection

If no data connections have been created:
Press the Navigation key.

Step 6 of 49

Create new data connection

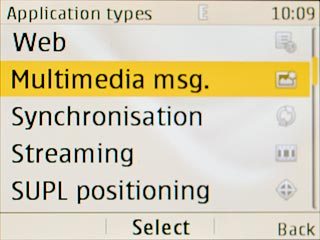

Scroll to Multimedia msg. and press the Navigation key.

Step 7 of 49

Create new data connection

If data connections have been created already:
Press Options.

Step 8 of 49

Create new data connection

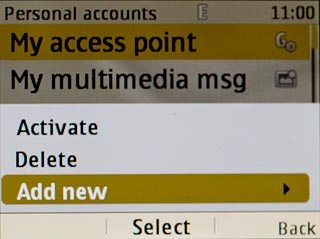

Scroll to Add new and press the Navigation key.

Step 9 of 49

Create new data connection

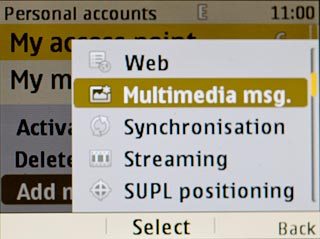

Scroll to Multimedia msg. and press the Navigation key.

Step 10 of 49

Enter data connection name

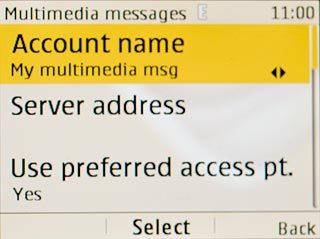

Scroll to Account name and press the Navigation key.

Step 11 of 49

Enter data connection name

Key in Vodafone MMS and press the Navigation key.

Step 12 of 49

Enter picture messaging server

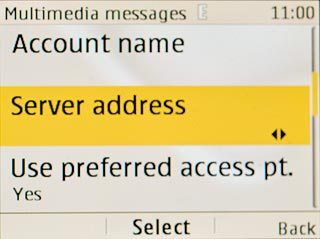

Scroll to Server address and press the Navigation key.

Step 13 of 49

Enter picture messaging server

Key in http://www.vodafone.ie/mms and press the Navigation key.

Step 14 of 49

Turn off default data connection

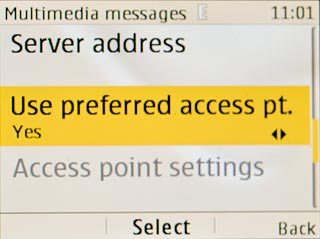

Scroll to Use preferred access pt. and press the Navigation key.

Step 15 of 49

Turn off default data connection

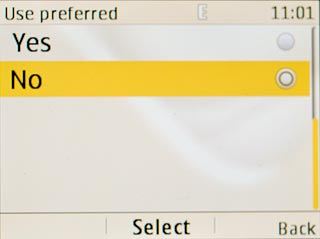

Scroll to No and press the Navigation key.

Step 16 of 49

Enable proxy

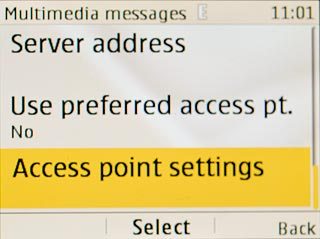

Scroll to Access point settings and press the Navigation key.

Step 17 of 49

Enable proxy

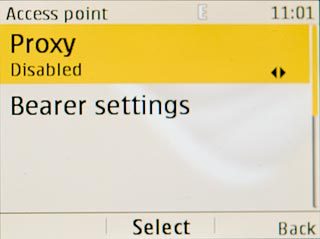

Scroll to Proxy and press the Navigation key.

Step 18 of 49

Enable proxy

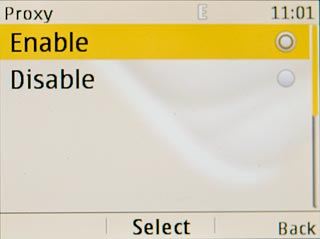

Scroll to Enable and press the Navigation key.

Step 19 of 49

Enter IP address

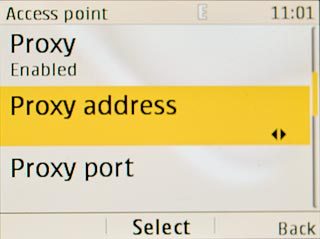

Scroll to Proxy address and press the Navigation key.

Step 20 of 49

Enter IP address

Key in 10.24.59.200 and press the Navigation key.

Step 21 of 49

Enter port

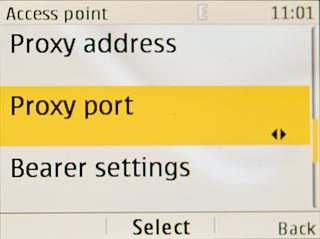

Scroll to Proxy port and press the Navigation key.

Step 22 of 49

Enter port

Key in 80 and press the Navigation key.

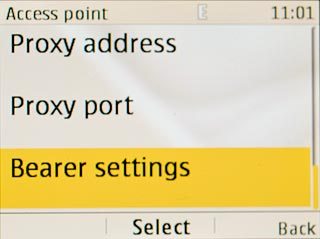

Step 23 of 49

Edit bearer settings

Scroll to Bearer settings and press the Navigation key.

Step 24 of 49

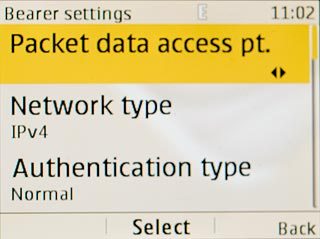

Enter APN

Scroll to Packet data access pt. and press the Navigation key.

An APN is used to establish a data connection. In order to send and receive picture messages, your phone needs a data connection.
Step 25 of 49

Enter APN

Key in mms.vodafone.net and press the Navigation key.

An APN is used to establish a data connection. In order to send and receive picture messages, your phone needs a data connection.
Step 26 of 49

Select authentication type

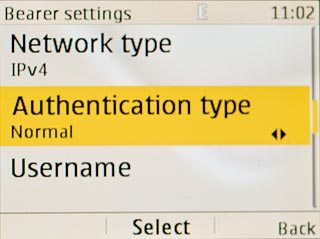

Scroll to Authentication type and press the Navigation key.

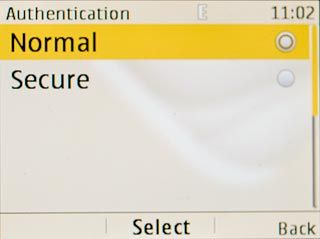

Step 27 of 49

Select authentication type

Scroll to Normal and press the Navigation key.

Step 28 of 49

Activate data connection

Press Back three times to save the settings and return to the list of data connections.

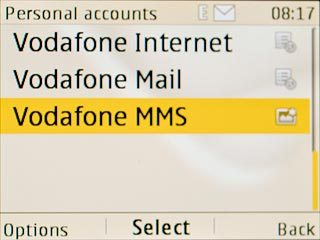

Step 29 of 49

Activate data connection

Scroll to Vodafone MMS and press Options.

Step 30 of 49

Activate data connection

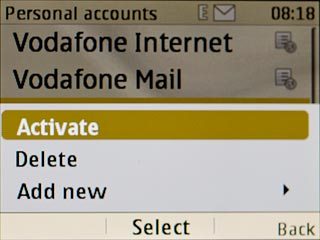

Scroll to Activate and press the Navigation key.

Step 31 of 49

Activate data connection

Press Disconnect to return to standby mode.

Step 32 of 49

Find "General settings"

Press the Navigation key.

Step 33 of 49

Find "General settings"

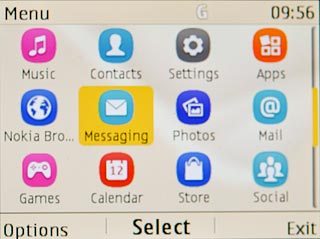

Scroll to Messaging and press the Navigation key.

Step 34 of 49

Find "General settings"

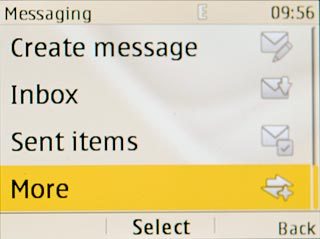

Scroll to More and press the Navigation key.

Step 35 of 49

Find "General settings"

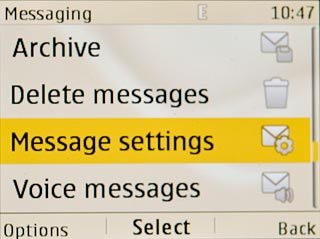

Scroll to Message settings and press the Navigation key.

Step 36 of 49

Find "General settings"

Scroll to General settings and press the Navigation key.

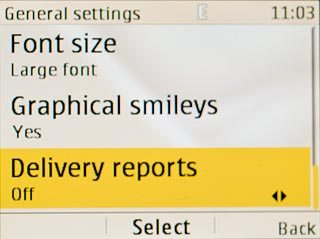

Step 37 of 49

Turn request for delivery reports on or off

Scroll to Delivery reports and press the Navigation key.

If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
This setting applies to text messages and picture messages.
Step 38 of 49

Turn request for delivery reports on or off

To turn on delivery reports:

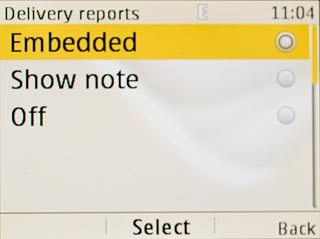

Highlight Embedded or Show note and press the Navigation key.

If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
This setting applies to text messages and picture messages.

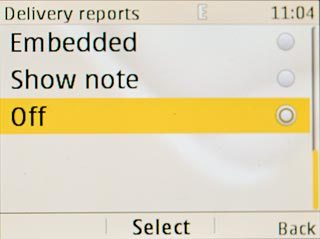

Step 39 of 49

Turn request for delivery reports on or off

To turn off delivery reports:
Press Off and press the Navigation key.

If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
This setting applies to text messages and picture messages.
Step 40 of 49

Turn request for delivery reports on or off

Press Back.

If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
This setting applies to text messages and picture messages.

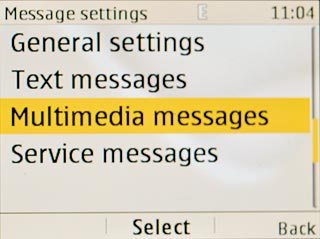

Step 41 of 49

Select settings for picture message download

Scroll to Multimedia messages and press the Navigation key.

If you select Automatic, you'll receive all picture messages.
If you select Autom. in home nw., you'll be notified before you receive picture messages when you're out of range of your home network.
If you select Manual, you'll always be notified before you receive picture messages.
If you select Off, only headers are retrieved. You then have to retrieve the picture message manually.
Step 42 of 49

Select settings for picture message download

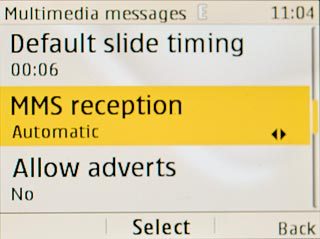

Scroll to MMS reception and press the Navigation key.

If you select Automatic, you'll receive all picture messages.
If you select Autom. in home nw., you'll be notified before you receive picture messages when you're out of range of your home network.
If you select Manual, you'll always be notified before you receive picture messages.
If you select Off, only headers are retrieved. You then have to retrieve the picture message manually.

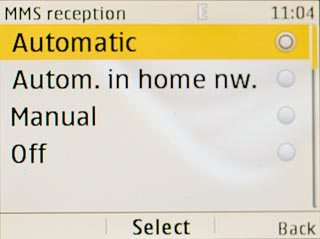

Step 43 of 49

Select settings for picture message download

Scroll to Automatic and press the Navigation key.

If you select Automatic, you'll receive all picture messages.
If you select Autom. in home nw., you'll be notified before you receive picture messages when you're out of range of your home network.
If you select Manual, you'll always be notified before you receive picture messages.
If you select Off, only headers are retrieved. You then have to retrieve the picture message manually.

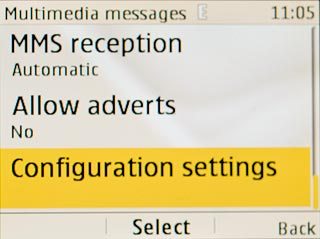

Step 44 of 49

Select data connection

Scroll to Configuration settings and press the Navigation key.

Step 45 of 49

Select data connection

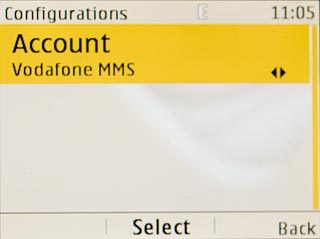

Scroll to Account and press the Navigation key.

Step 46 of 49

Select data connection

Scroll to Vodafone MMS and press the Navigation key.

Step 47 of 49

Select data connection

Press Back.

Step 48 of 49

Save and exit

Press Back twice to save the settings.

Step 49 of 49

Save and exit

Press Disconnect to return to standby mode.

1. Find "Personal settings"

Press the Navigation key.
Scroll to Settings and press the Navigation key.
Scroll to Configuration and press the Navigation key.
Scroll to Personal settings and press the Navigation key.

2. Create new data connection

If no data connections have been created:
Press the Navigation key.
Scroll to Multimedia msg. and press the Navigation key.
If data connections have been created already:
Press Options.
Scroll to Add new and press the Navigation key.
Scroll to Multimedia msg. and press the Navigation key.

3. Enter data connection name

Scroll to Account name and press the Navigation key.
Key in Vodafone MMS and press the Navigation key.

4. Enter picture messaging server

Scroll to Server address and press the Navigation key.
Key in http://www.vodafone.ie/mms and press the Navigation key.

5. Turn off default data connection

Scroll to Use preferred access pt. and press the Navigation key.
Scroll to No and press the Navigation key.

6. Enable proxy

Scroll to Access point settings and press the Navigation key.
Scroll to Proxy and press the Navigation key.
Scroll to Enable and press the Navigation key.

7. Enter IP address

Scroll to Proxy address and press the Navigation key.
Key in 10.24.59.200 and press the Navigation key.

8. Enter port

Scroll to Proxy port and press the Navigation key.
Key in 80 and press the Navigation key.

9. Edit bearer settings

Scroll to Bearer settings and press the Navigation key.

10. Enter APN

Scroll to Packet data access pt. and press the Navigation key.
An APN is used to establish a data connection. In order to send and receive picture messages, your phone needs a data connection.
Key in mms.vodafone.net and press the Navigation key.
An APN is used to establish a data connection. In order to send and receive picture messages, your phone needs a data connection.

11. Select authentication type

Scroll to Authentication type and press the Navigation key.
Scroll to Normal and press the Navigation key.

12. Activate data connection

Press Back three times to save the settings and return to the list of data connections.
Scroll to Vodafone MMS and press Options.
Scroll to Activate and press the Navigation key.
Press Disconnect to return to standby mode.

13. Find "General settings"

Press the Navigation key.
Scroll to Messaging and press the Navigation key.
Scroll to More and press the Navigation key.
Scroll to Message settings and press the Navigation key.
Scroll to General settings and press the Navigation key.

14. Turn request for delivery reports on or off

Scroll to Delivery reports and press the Navigation key.
If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
This setting applies to text messages and picture messages.
To turn on delivery reports:
Highlight Embedded or Show note and press the Navigation key.
If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
This setting applies to text messages and picture messages.
To turn off delivery reports:
Press Off and press the Navigation key.
If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
This setting applies to text messages and picture messages.
Press Back.
If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
This setting applies to text messages and picture messages.

15. Select settings for picture message download

Scroll to Multimedia messages and press the Navigation key.
If you select Automatic, you'll receive all picture messages.
If you select Autom. in home nw., you'll be notified before you receive picture messages when you're out of range of your home network.
If you select Manual, you'll always be notified before you receive picture messages.
If you select Off, only headers are retrieved. You then have to retrieve the picture message manually.
Scroll to MMS reception and press the Navigation key.
If you select Automatic, you'll receive all picture messages.
If you select Autom. in home nw., you'll be notified before you receive picture messages when you're out of range of your home network.
If you select Manual, you'll always be notified before you receive picture messages.
If you select Off, only headers are retrieved. You then have to retrieve the picture message manually.
Scroll to Automatic and press the Navigation key.
If you select Automatic, you'll receive all picture messages.
If you select Autom. in home nw., you'll be notified before you receive picture messages when you're out of range of your home network.
If you select Manual, you'll always be notified before you receive picture messages.
If you select Off, only headers are retrieved. You then have to retrieve the picture message manually.

16. Select data connection

Scroll to Configuration settings and press the Navigation key.
Scroll to Account and press the Navigation key.
Scroll to Vodafone MMS and press the Navigation key.
Press Back.

17. Save and exit

Press Back twice to save the settings.
Press Disconnect to return to standby mode.
