1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-49f60437-adb5-40ef-9479-04d8f43a628c.png?width=198&height=438)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9fd1f528-028d-4a03-b872-de91b0054e96.png?width=198&height=438)
Press Network & Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-91e72fa8-56be-422c-aa5c-34d33cf8fecb.png?width=198&height=438)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8f270506-1867-4748-a786-193f10c64354.png?width=198&height=438)
Press Advanced.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b22eebe2-a440-4ae7-85c4-60da7c0512b3.png?width=198&height=438)
Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ebbb2d89-2dc7-4309-8e78-fd4c9838758f.png?width=198&height=438)
2. Create new data connection

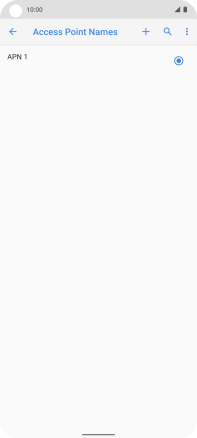

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f90f9fb0-7286-417d-8beb-c5738e687be9.png?width=198&height=438)

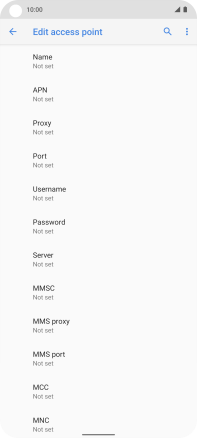

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-248c9ae3-36d2-43a5-820c-70d19b29e03c.png?width=198&height=438)
Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-829edf16-4991-4271-b3a7-173dfb5f9bbe.png?width=198&height=438)
Vodafone Internet
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-248c9ae3-36d2-43a5-820c-70d19b29e03c.png?width=198&height=438)
Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-891b79c0-fc71-4a82-b14c-c8390b55c6de.png?width=198&height=438)
live.vodafone.com
4. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-248c9ae3-36d2-43a5-820c-70d19b29e03c.png?width=198&height=438)

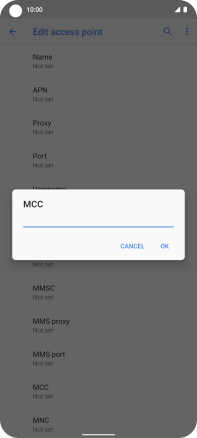

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0ac3a531-5fc5-4261-b5a2-07c722979b21.png?width=198&height=438)
272
5. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-248c9ae3-36d2-43a5-820c-70d19b29e03c.png?width=198&height=438)
Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-301d8ee6-d139-4b48-b878-8d676d72f9d1.png?width=198&height=438)
01
6. Select authentication type

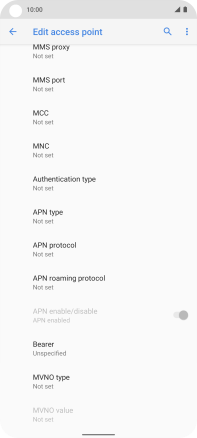

Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9e9cac7b-ff28-429f-8502-5b42af87fc03.png?width=198&height=438)

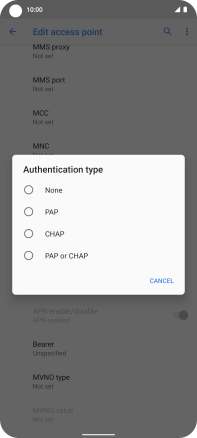

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8620a506-fce0-480c-be74-85a48aa05056.png?width=198&height=438)
7. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9e9cac7b-ff28-429f-8502-5b42af87fc03.png?width=198&height=438)

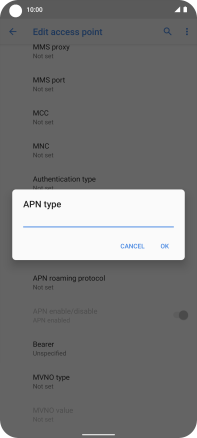

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d169fa45-c71e-438f-a70c-b975671321e2.png?width=198&height=438)
default
8. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9e9cac7b-ff28-429f-8502-5b42af87fc03.png?width=198&height=438)

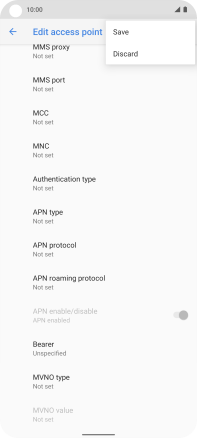

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-85efb631-37da-4f9d-958e-6ddc19314fdf.png?width=198&height=438)
Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c94f4f51-a281-4d51-8e23-da8d56dfe84a.png?width=198&height=438)

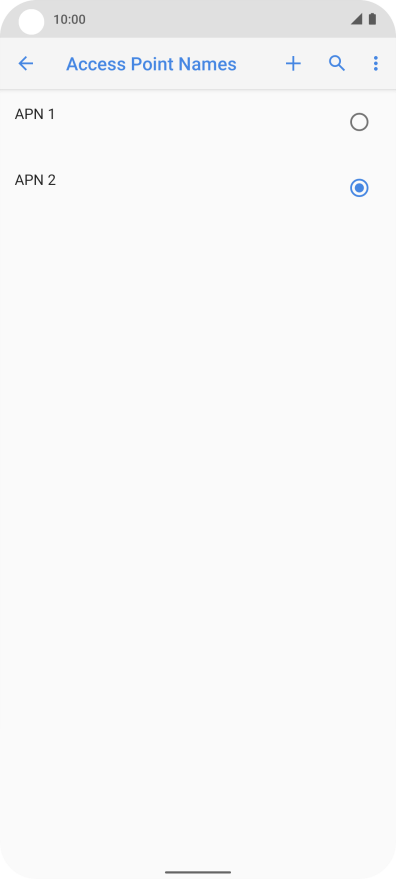

9. Return to the home screen
Slide your finger upwards starting from the bottom of the screen to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d7054d4b-d0df-4989-a362-9687ad2196c3.png?width=198&height=438)
