1. Find "Access point names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7e693868-bd59-45bb-ac93-a593fa2145e1.png?width=204&height=432)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9ce1efa9-5206-46a8-a447-338255c2a8c9.png?width=204&height=432)
Press Network & Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b5cf50c2-9259-4480-80f9-4f7d05314f97.png?width=204&height=432)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-fd91419f-c9f6-47a0-a81e-060bd0b2cc3e.png?width=204&height=432)

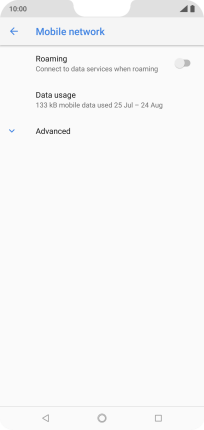

Press Advanced.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2fd1b777-fc3c-4f15-a9df-96b2f0b97fa0.png?width=204&height=432)

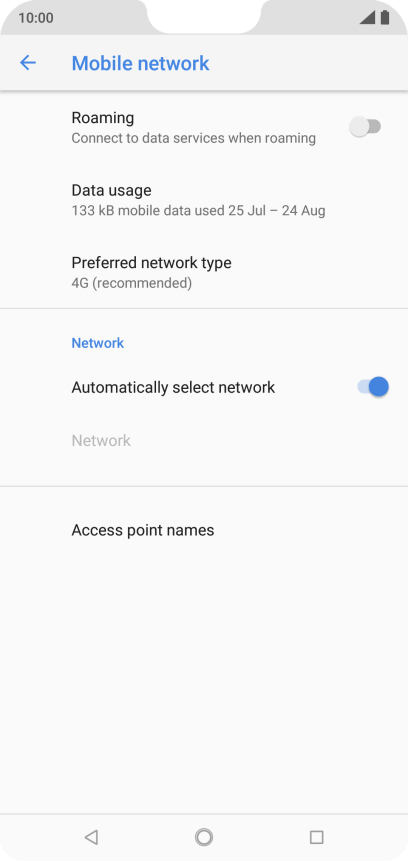

Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-26e7a4d7-2cc7-4458-9c74-9d60666e8fc9.png?width=204&height=432)
2. Create new data connection

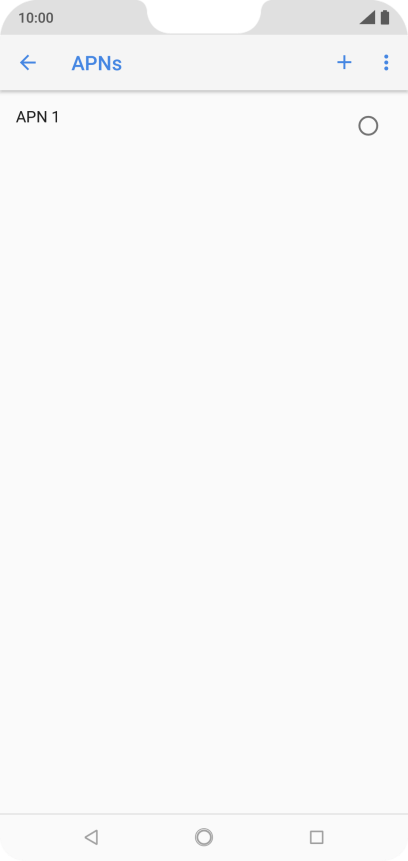

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-13311b5c-db14-4e55-bd87-830efb08f596.png?width=204&height=432)

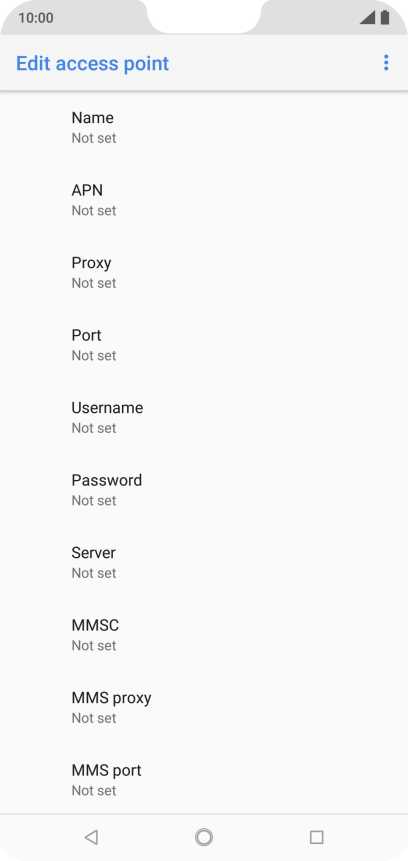

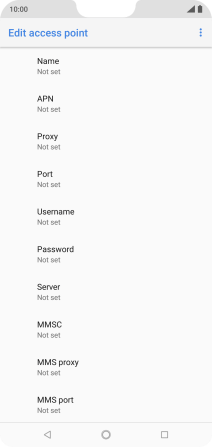

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3a776256-a307-4c24-9b0b-e75117253f51.png?width=204&height=432)

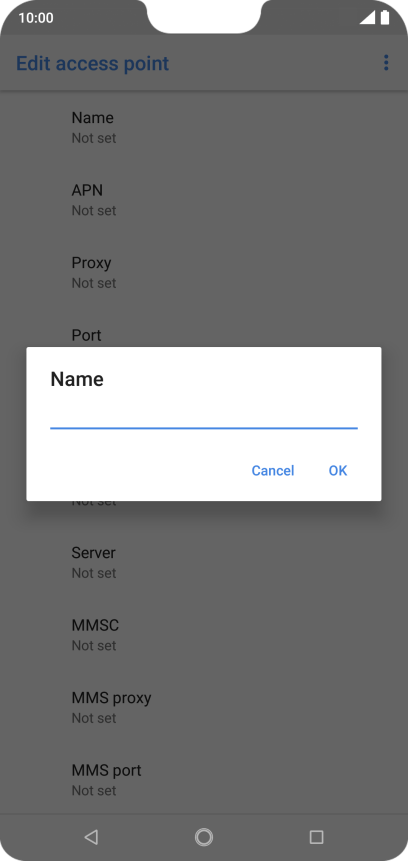

Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-bc60e2c8-4e8a-452e-ac1f-672ef96fe270.png?width=204&height=432)
Vodafone Internet
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3a776256-a307-4c24-9b0b-e75117253f51.png?width=204&height=432)

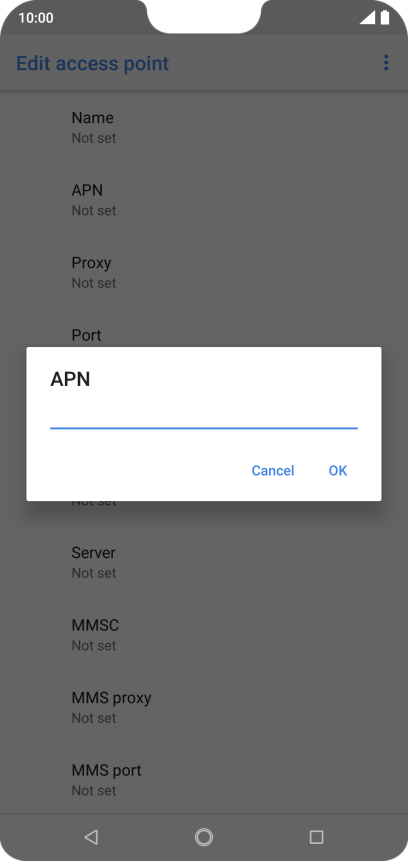

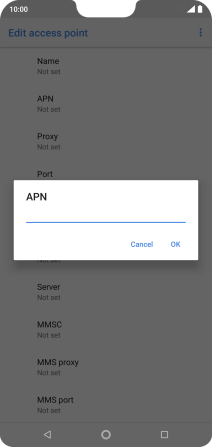

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b5d46d4f-d55c-4c97-861a-c17a296eaa65.png?width=204&height=432)
live.vodafone.com
4. Enter country code

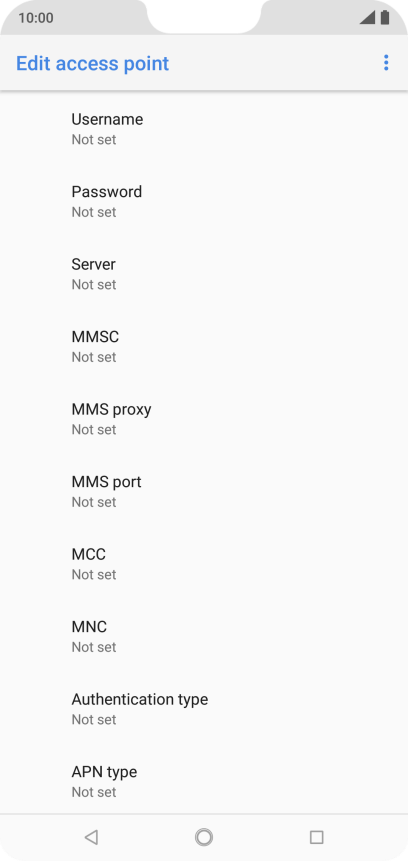

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-75383d46-f5c4-46f4-b9e8-dc408badb111.png?width=204&height=432)

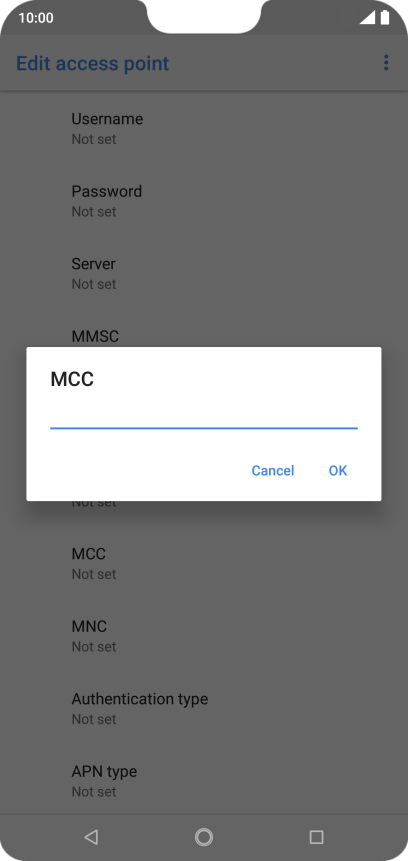

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-03461090-8714-4079-b216-8a982af23271.png?width=204&height=432)
272
5. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-75383d46-f5c4-46f4-b9e8-dc408badb111.png?width=204&height=432)
Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ee398980-011b-45e7-bbcd-957e505032e0.png?width=204&height=432)
01
6. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-75383d46-f5c4-46f4-b9e8-dc408badb111.png?width=204&height=432)

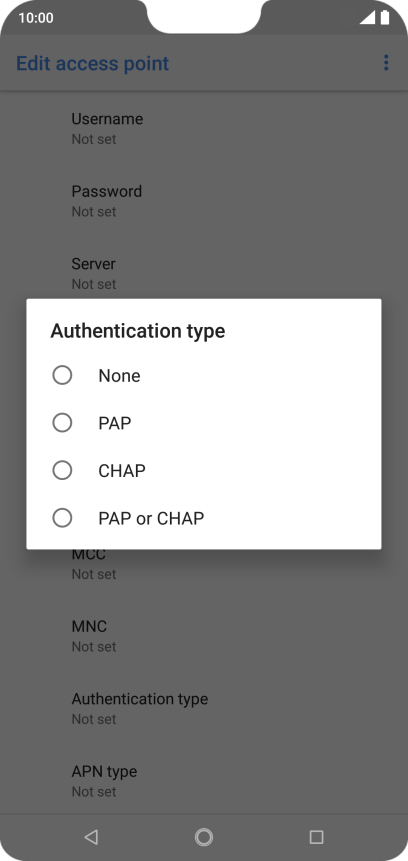

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-39f4452f-bca1-4123-a453-a5b7a69836df.png?width=204&height=432)
7. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-75383d46-f5c4-46f4-b9e8-dc408badb111.png?width=204&height=432)

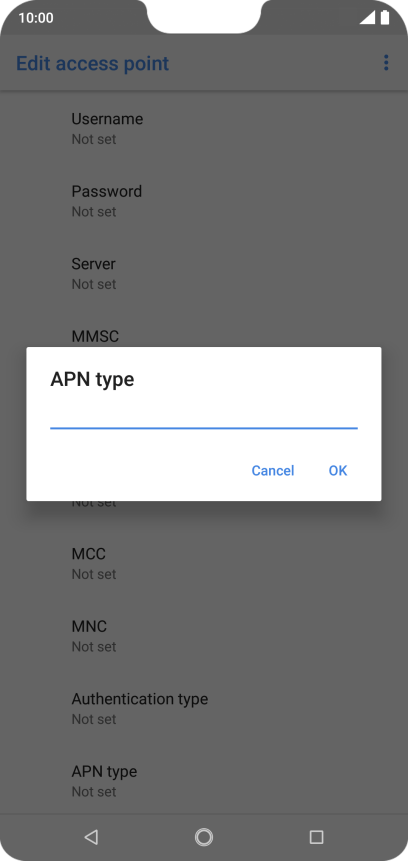

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5a242ca8-426f-4ff3-a4b0-9ddec42d00ce.png?width=204&height=432)
default
8. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-75383d46-f5c4-46f4-b9e8-dc408badb111.png?width=204&height=432)

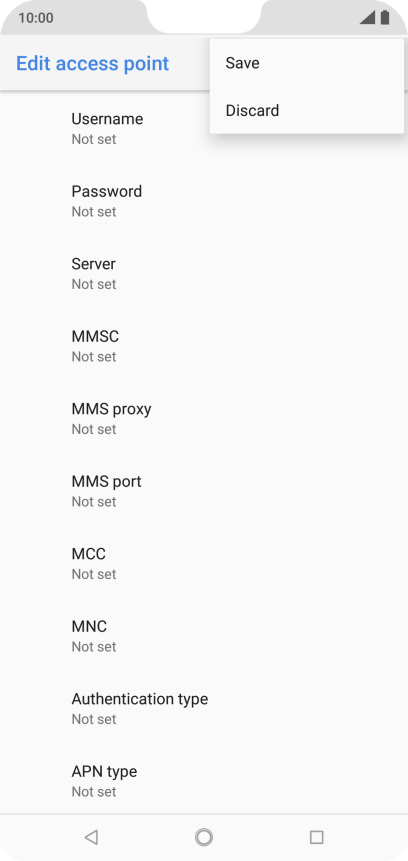

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-68ccffe1-d474-4e2b-9246-b62e651101ec.png?width=204&height=432)

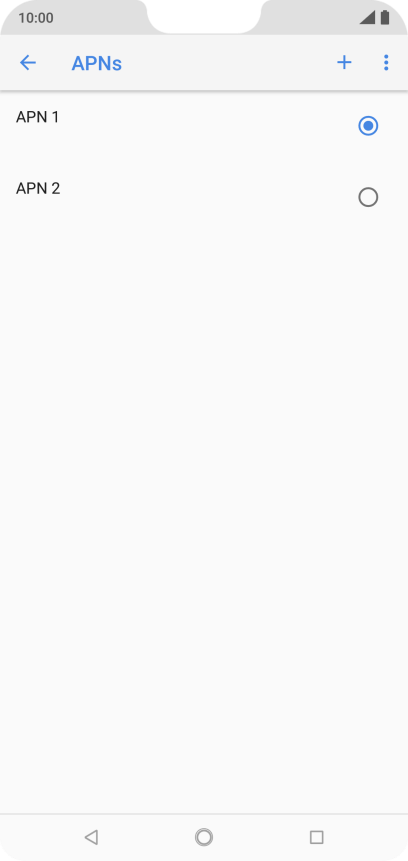

Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7fb54832-ab31-4f93-b00e-f7811a41214d.png?width=204&height=432)
9. Return to the home screen

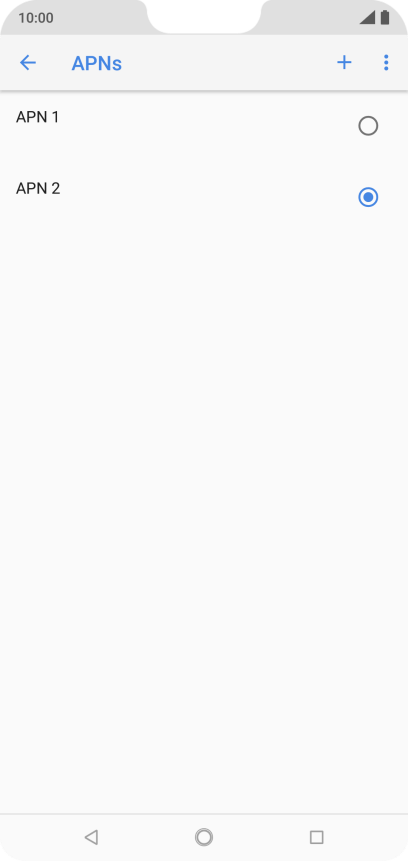

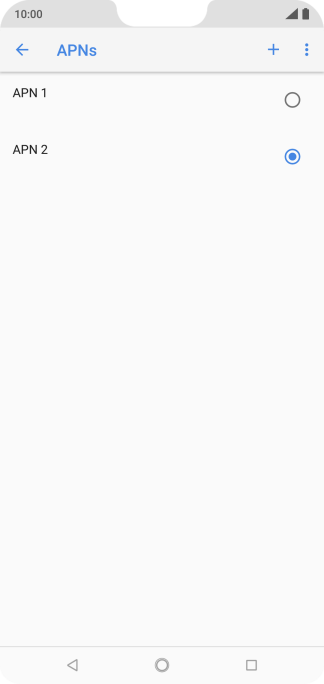

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ad70b075-24a9-423f-9302-bc00b9517fd7.png?width=204&height=432)
